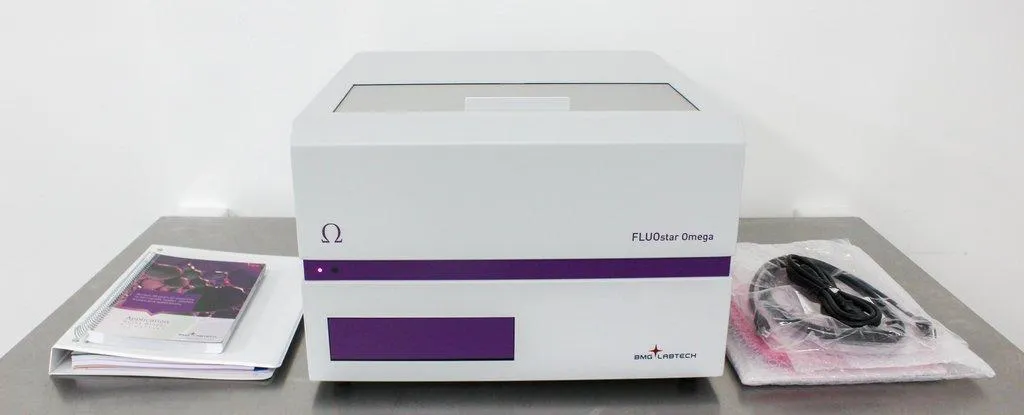

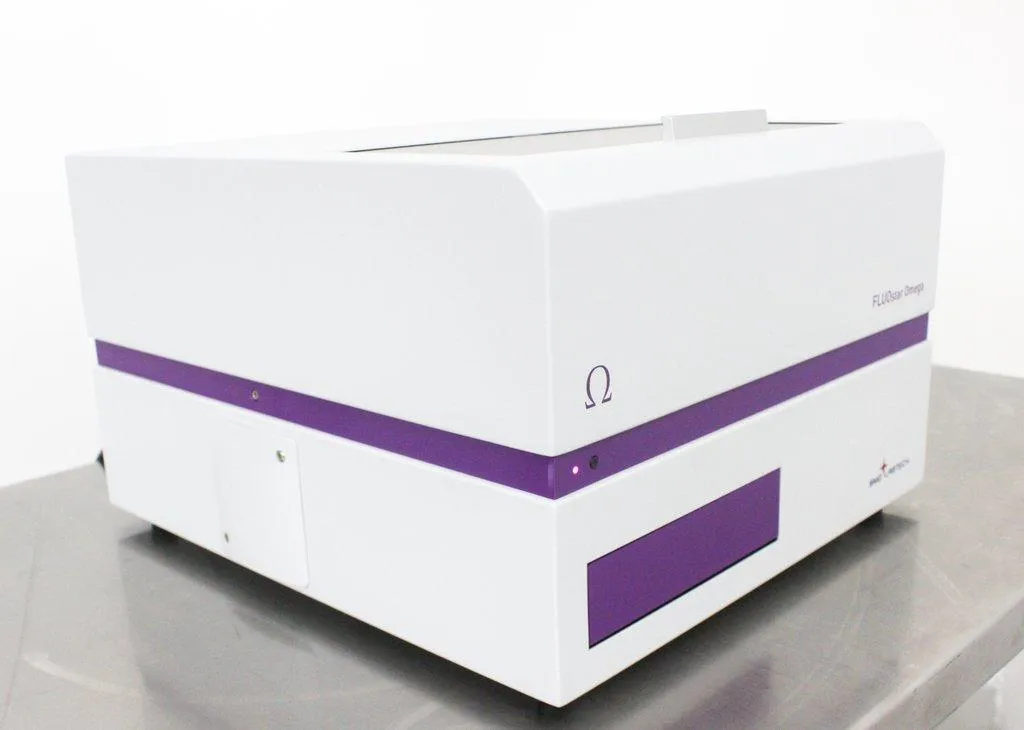

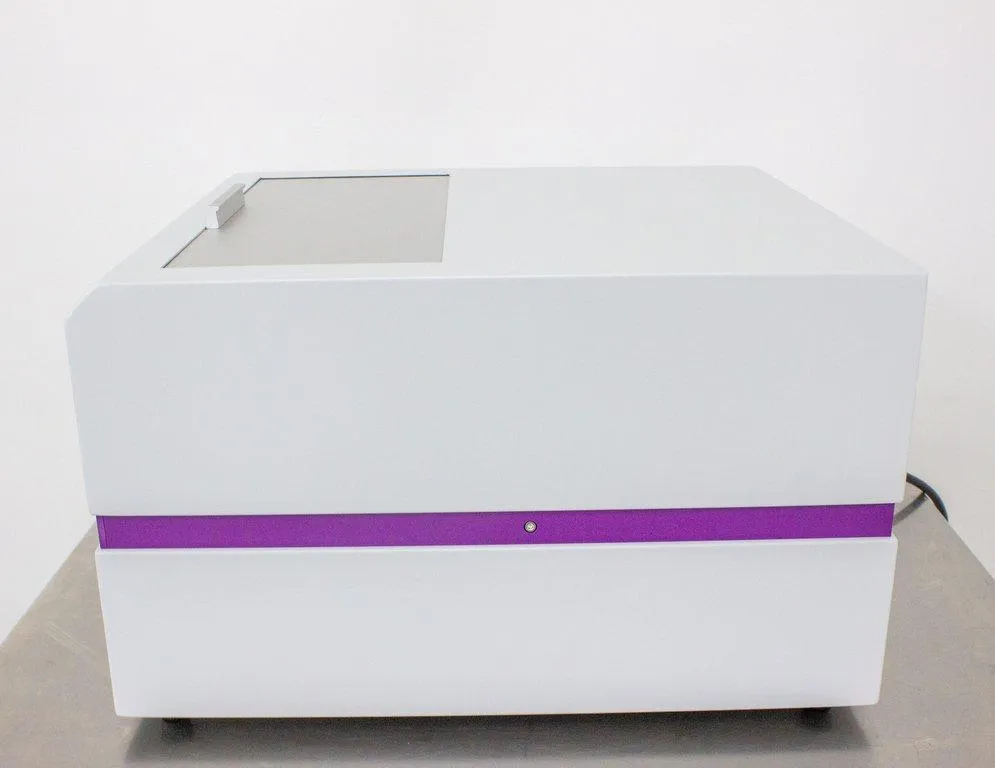

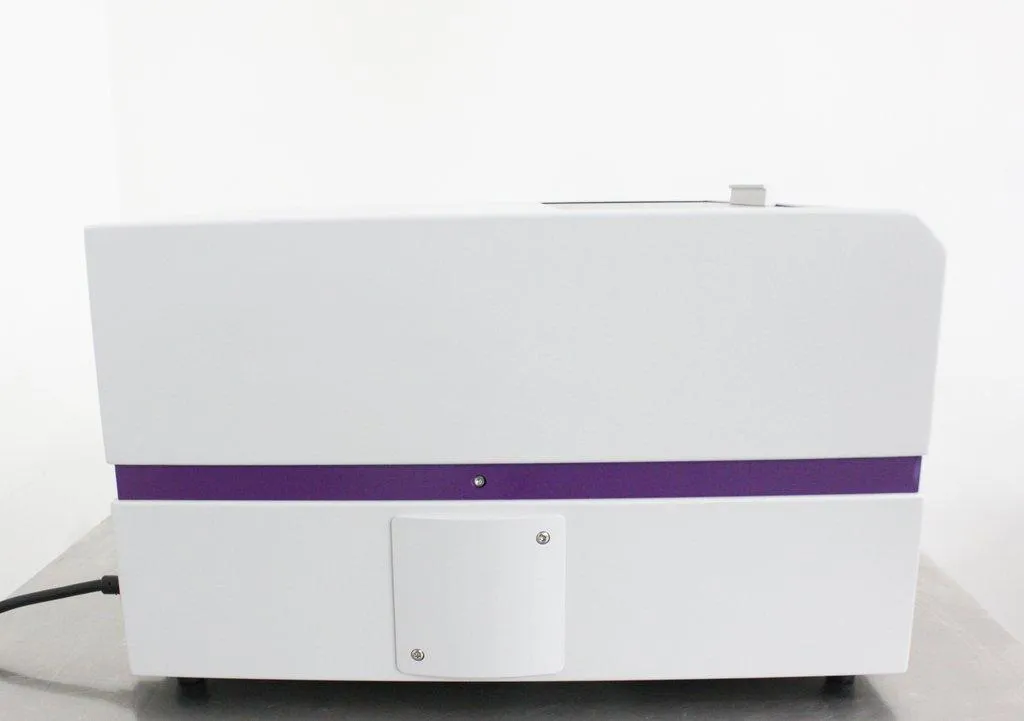

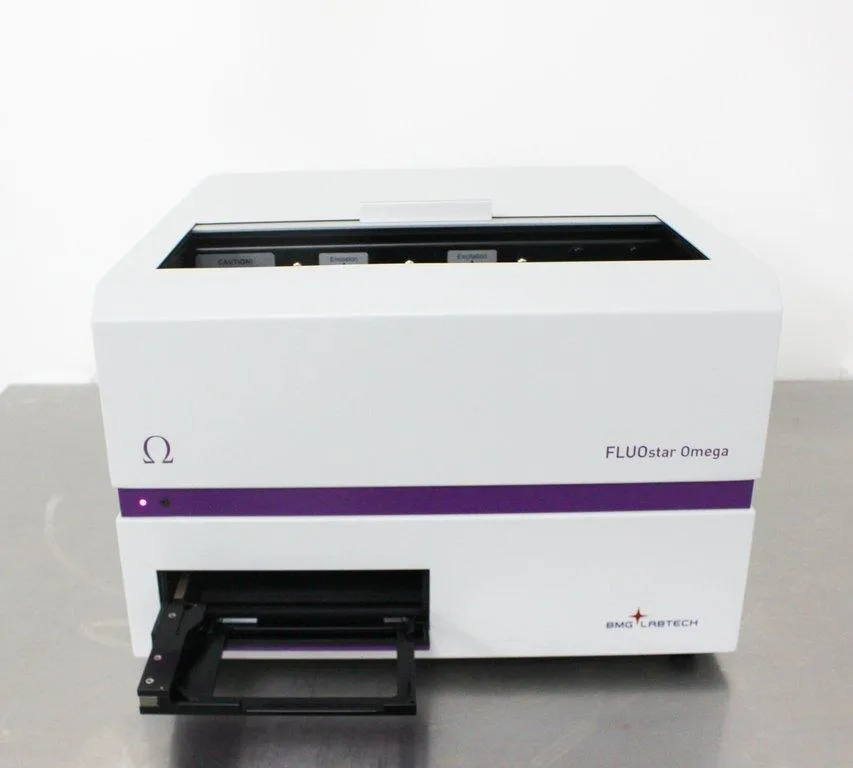

BMG Labtech FLUOstar Omega Filter-Based Multi-Mode Microplate Reader

Product Information

The BMG Labtech FLUOstar Omega represents innovation, quality, and reliability in microplate reader instrumentation. With its Tandem Technology, it provides an exceptional platform for various R&D applications, including basic research, life science studies, and assay development. The unit boasts high sensitivity, precision assay capabilities, and a collection of fast, full-spectrum absorbance scans. It monitors rapid kinetic reactions and performs FRET and BRET detection. The multi-mode microplate reader offers versatility, with three detection modes, making it ideal for life science applications. It employs an ultra-fast UV/vis spectrometer and filters for absorbance, as well as highly sensitive filters for other detection modes. The incorporation of a UV/vis spectrometer for absorbance detection into a multi-mode instrument has improved sensitivity, resolution, and efficiency. It can capture a full-absorbance data at a resolution of 1 nm for all wavelengths from 220 to 1000 nm in less than one second per well, or collect up to eight discrete wavelengths concurrently. The spectrometer enables absorbance experiments that were previously not possible, thus opening the door to significant advancements in assay development. The FLUOstar Omega is equipped with multiple user-defined features which enable it to be easily integrated into automated systems. BMG LABTECH is known for being the first plate reader manufacturer to incorporate a UV/vis spectrometer for absorbance detection into multi-detection microplate readers. Its technical specifications include detection modes such as Fluorescence Intensity, Luminescence, and UV/Vis absorbance spectra, as well as top and bottom reading, endpoint and kinetic measurement modes, simultaneous dual emission, and ratiometric measurements. The microplate formats are flexible, ranging from 6 to 384-well plates. The FLUOstar Omega is designed to meet the rigorous demands of academic and pharmaceutical research laboratories, offering a 30-Day Warranty for 100% Parts and Labor.

• Innovative Tandem Technology for a wide range of life science and R&D applications
• Ultra-fast UV/vis spectrometry combined with filter-based detection modes
• User-defined features including shaking, scanning, and injector capabilities
• Flexible microplate formats from 6 to 384-well plates
• 30-Day Warranty for 100% Parts and Labor

• Detection Modes: Fluorescence Intensity, Luminescence, UV/Vis Absorbance
• Measurement Modes: Top and bottom reading, endpoint and kinetic, simultaneous dual emission
• Microplate Formats: 6 to 384-well plates, user-definable
• Microplate Carrier: Robot compatible
• Software: Multi-user Reader Control and MARS Data Analysis Software included
• Dimensions: Width: 44 cm, Depth: 48 cm, Height: 30 cm; Weight: 28 kg
• Spectral Range: Filters - 240 - 740 nm or 240 - 900 nm for FI, 240 - 740 nm for LUM; Spectrometer - 220 - 1000 nm for ABS; Wavelength precision: 0.5 nm
• Sensitivity: FI - <0.2 fmol/well FITC, TRF - < 30 amol/well europium, LUM - < 20 amol/well ATP, ABS with spectrometer - Selectable spectral resolution: 1, 2, 5, and 10 nm
• Reagent Injection: Up to 2 built-in reagent injectors, Injection at measurement position from 6 to 384-well

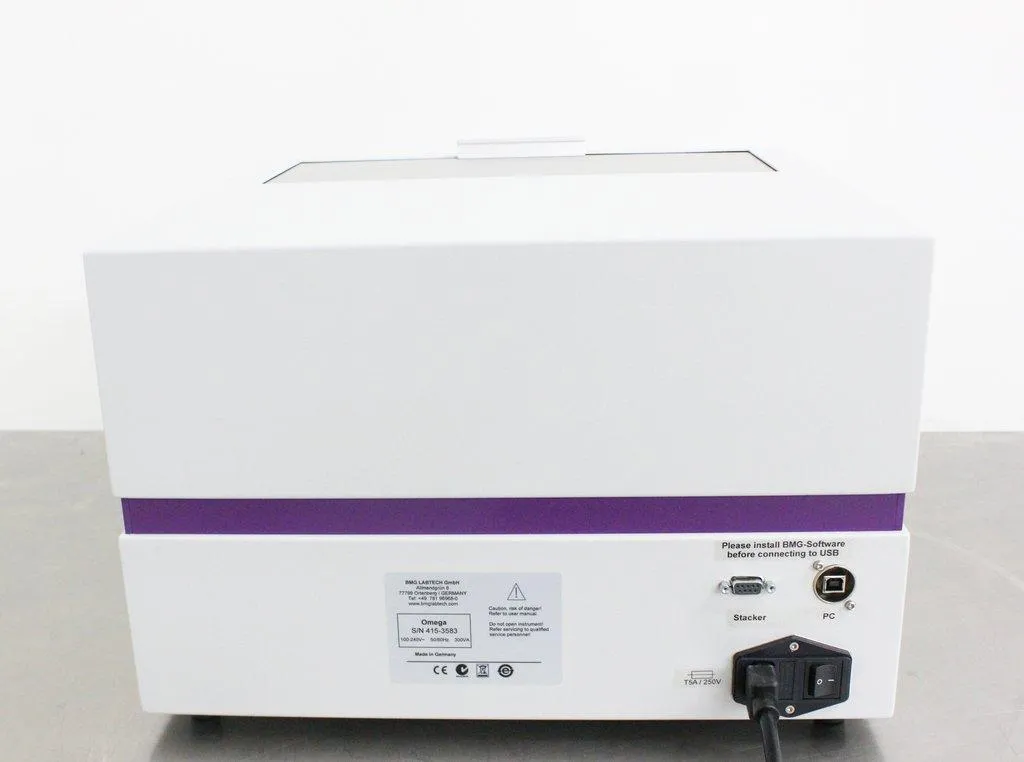

• Power Requirements: 100-240 V, 50/60 Hz, max. peak 300 VA
• Optional Accessories: LVis Plate, Quality control internal standards, THERMOstar, Atmospheric Control Unit (ACU), Stacker

Metric: 28 kg

Imperial: 61.72 lb

Metric: 44 cm x 48 cm x 30 cm
Imperial: 17.32 in x 18.9 in x 11.81 in
