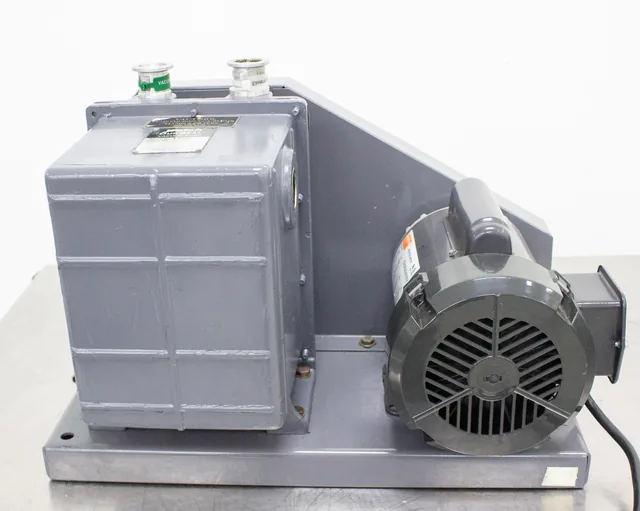

Welch 1402 Duoseal Rotary Vane Vacuum Pump for Lab and Industrial Use
Welch
Details
-
CategoryPump
-
Dimension12.0in x 20.0in x 14.0in
-
Serial130649
-
Shipping TypeFedEx Ground
-
Voltage / Hertz120V / 60Hz US
Description
The Welch 1402 DuoSeal Belt Drive Rotary Vane Mechanical Vacuum Pump is a high-performance, dual-stage vacuum pump designed to deliver superior vapor handling capabilities. Known for its legendary longevity and exceptional durability, the pump is ideal for applications including vacuum furnace evacuation, rotary evaporation, refrigeration system evacuation, vacuum sterilization, freeze drying, and other vacuum processes. Despite its current condition requiring repair, it is being offered AS-IS due to its ability to power on with weak vacuum pressure, making it an excellent choice for those seeking valuable spare parts or a project to restore its function. Operating at 115VAC with a free air displacement of 5.6 CFM and an ultimate pressure of 1x10-4 Torr, this unit displays a cool running design with a large oil reservoir and high oil feed port to dilute contaminants and draw clean oil. Perfect for scientific and industrial use, the Welch 1402 provides a reliable vacuum solution for challenging applications.
Key Features
- Dual-stage rotary vane design
- Pumping speed displacement of 5.6 CFM
- Ultimate pressure of 1x10-4 Torr
- 115VAC operation
- Cool running, low RPM for extended service life
- Large oil reservoir and high oil feed port
Specifications
- Model: 1402
- Motor Power: 1/2 HP (0.37 kW) at 60 Hz
- Motor Speed: 525 RPM @60Hz
- Oil Capacity: 2.1 L
- Tubing Needed: ID of 13/16 in (21 mm)
- Dimensions: LxWxH - 51x30.5x39.1 cm
- Free Air Displacement: 5.6 cfm (158 L/min)
Weight
Imperial: 158.4 Pounds
Metric: 71.85 Kilograms
Shipping Dimensions
Imperial: 14.4 lb x 24.0 lb x 16.8 lb
Metric: 36.58 cm x 60.96 cm x 42.67 cm
Harmonized Code
8414100000
Harmonized Code Details
8414100000 - Vacuum pumps. Selected this code as it covers pumps specifically designed for creating a vacuum, fitting the description of the Welch 1402 DuoSeal Rotary Vane Vacuum Pump.
