IEC IEC HBD Fan Coil Unit ACH550 Control Panel 600-4000 CFM
IEC
Details
-
CategoryFacility
-
Dimension58.0in x 65.0in x 33.0in
-
Serial333202-10-1
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 60Hz US
Description

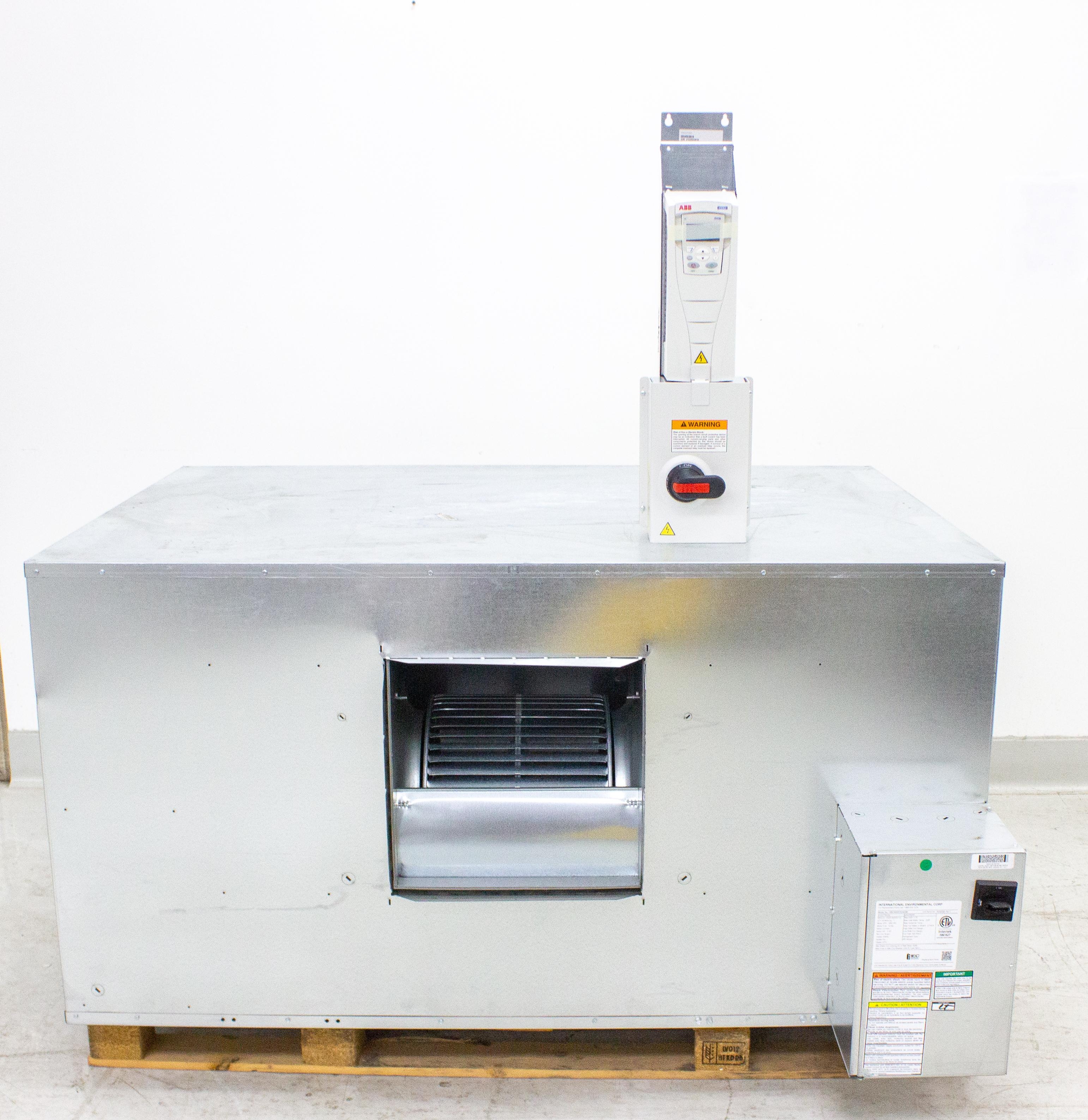

The IEC HBD4000324006 Horizontal Belt Drive HBD Fan Coil, equipped with an ACH550 Control Panel, is a compact and versatile system ideal for ducted applications. This preowned fan coil is in good condition, having been sourced from a working environment. It offers a substantial airflow range of 600 to 4000 nominal CFM, with a max capacity of up to 5100 CFM. The unit features an isolated blower assembly for reduced noise, large access panels for easy maintenance, and a stainless steel drain pan for durability. It can be used for both cooling and heating applications, adaptable for different climates and configurations. Although the unit was not fully tested, it powers on and generally appears functional. Optional configurations can enhance control with the preassembled ACH550 adjustable frequency drive that includes an input disconnect switch for operational convenience.
Technician comment

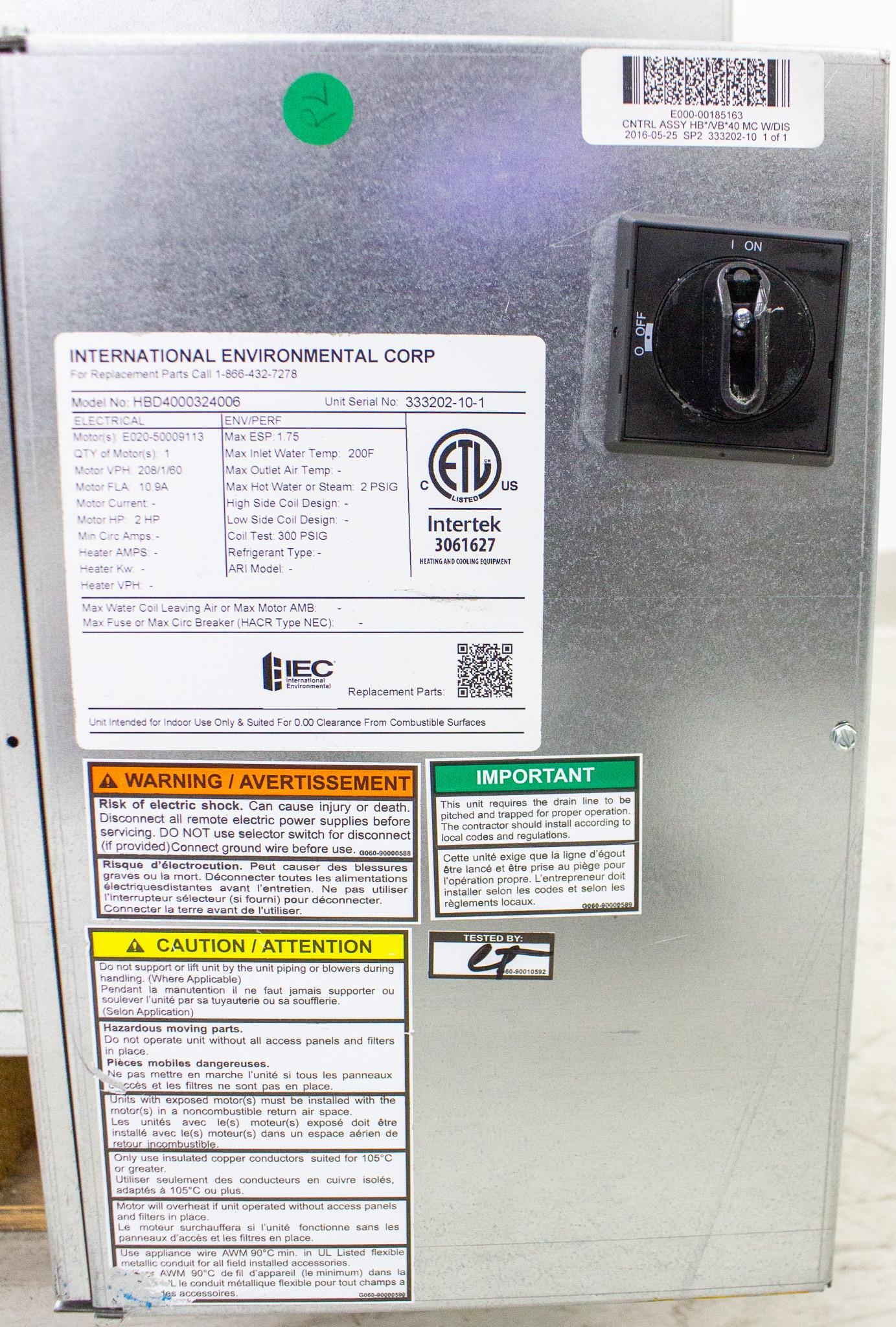

IEC HBD4000324006 Horizontal Belt Drive HBD Fan Coil w/ ACH550 Control Panel ***Preowned unit from a working environment. Everything pictured included. See photos for details.
Key Features
- Nominal airflow range of 600 to 4000 CFM
- Total static pressure up to 2.5 w.g.
- Removable stainless steel drain pan

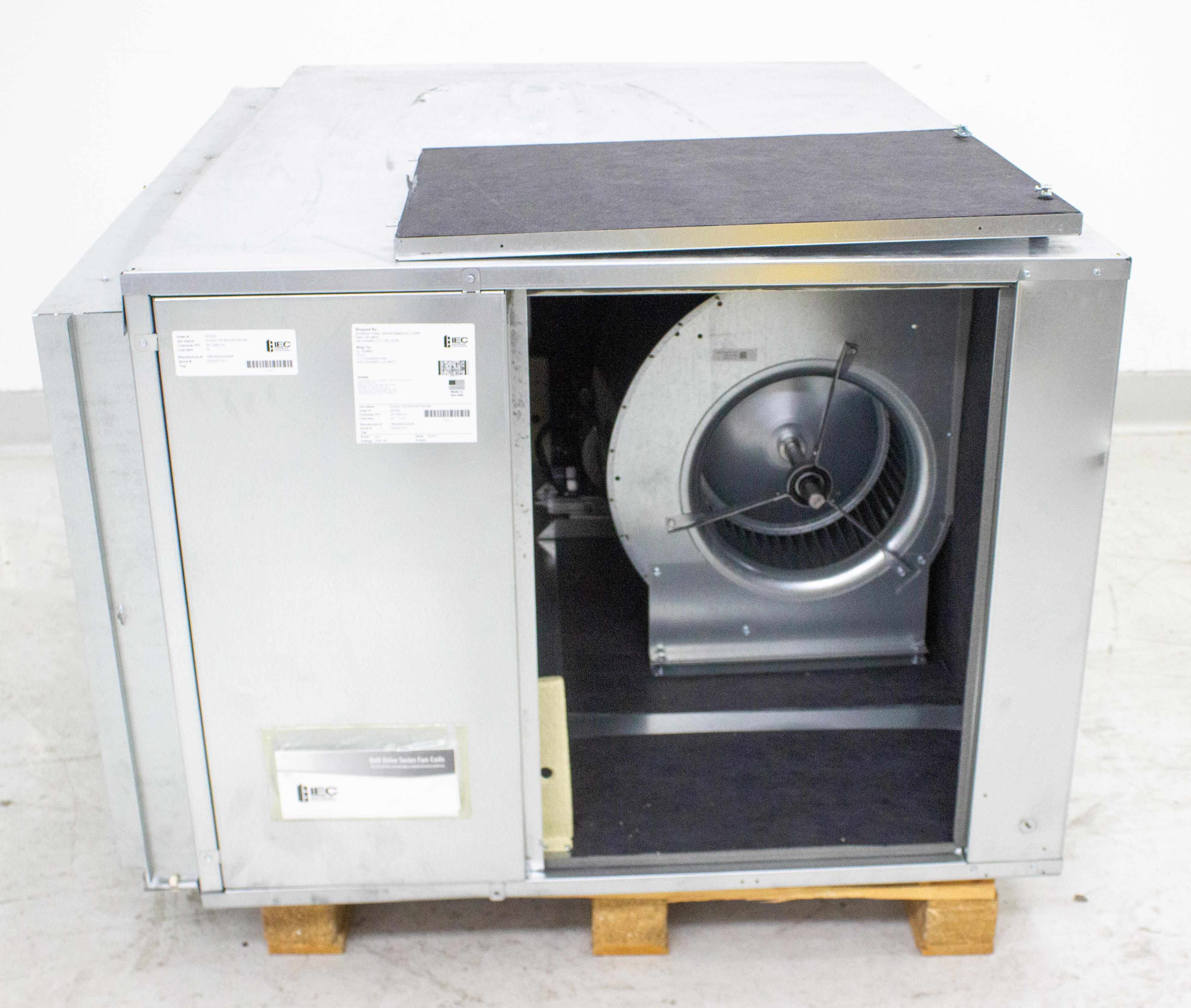

- Removable blower and motor assembly

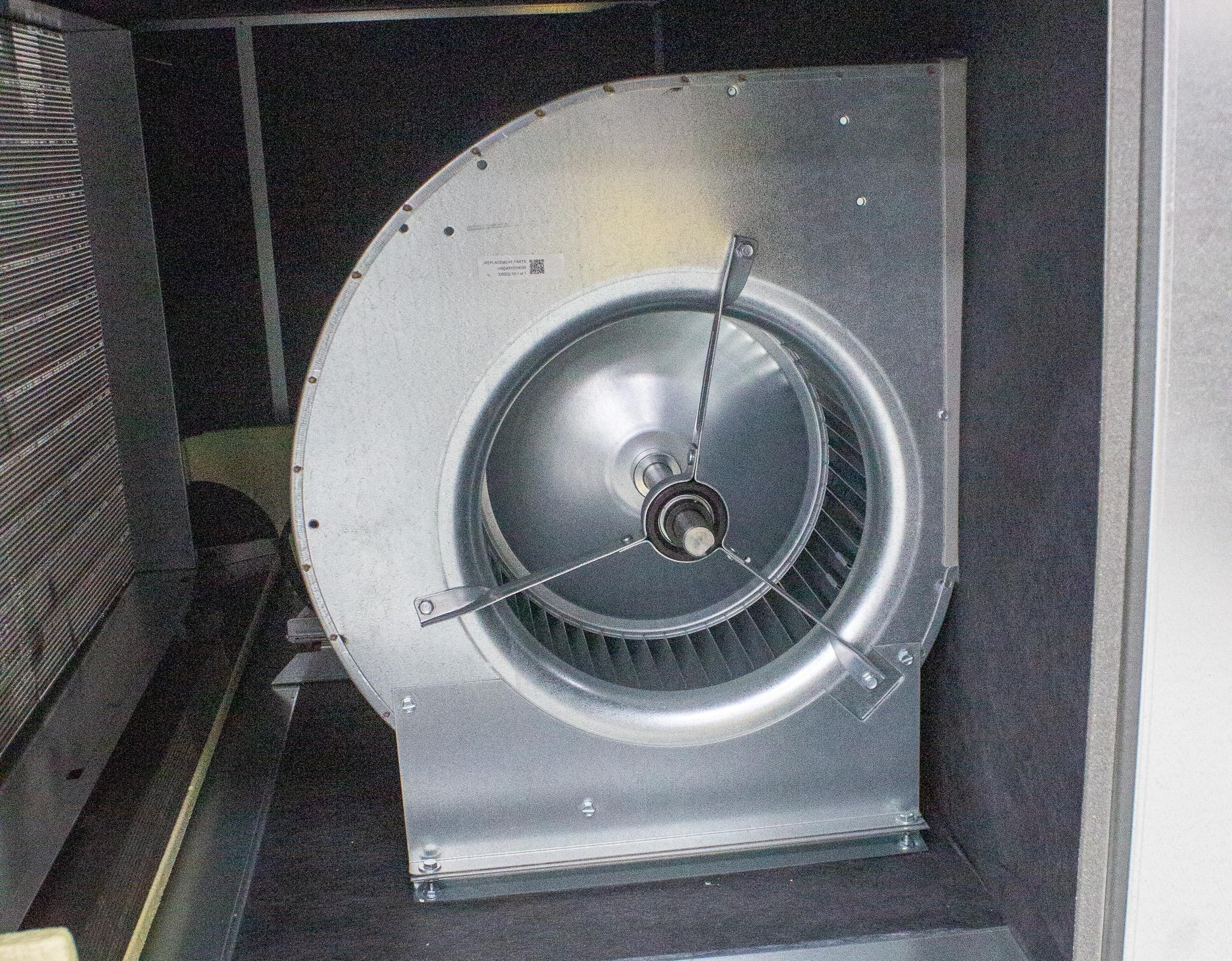

- Isolated blower assembly for noise reduction
Specifications
- Voltage: 220V
- Frequency: 60Hz US

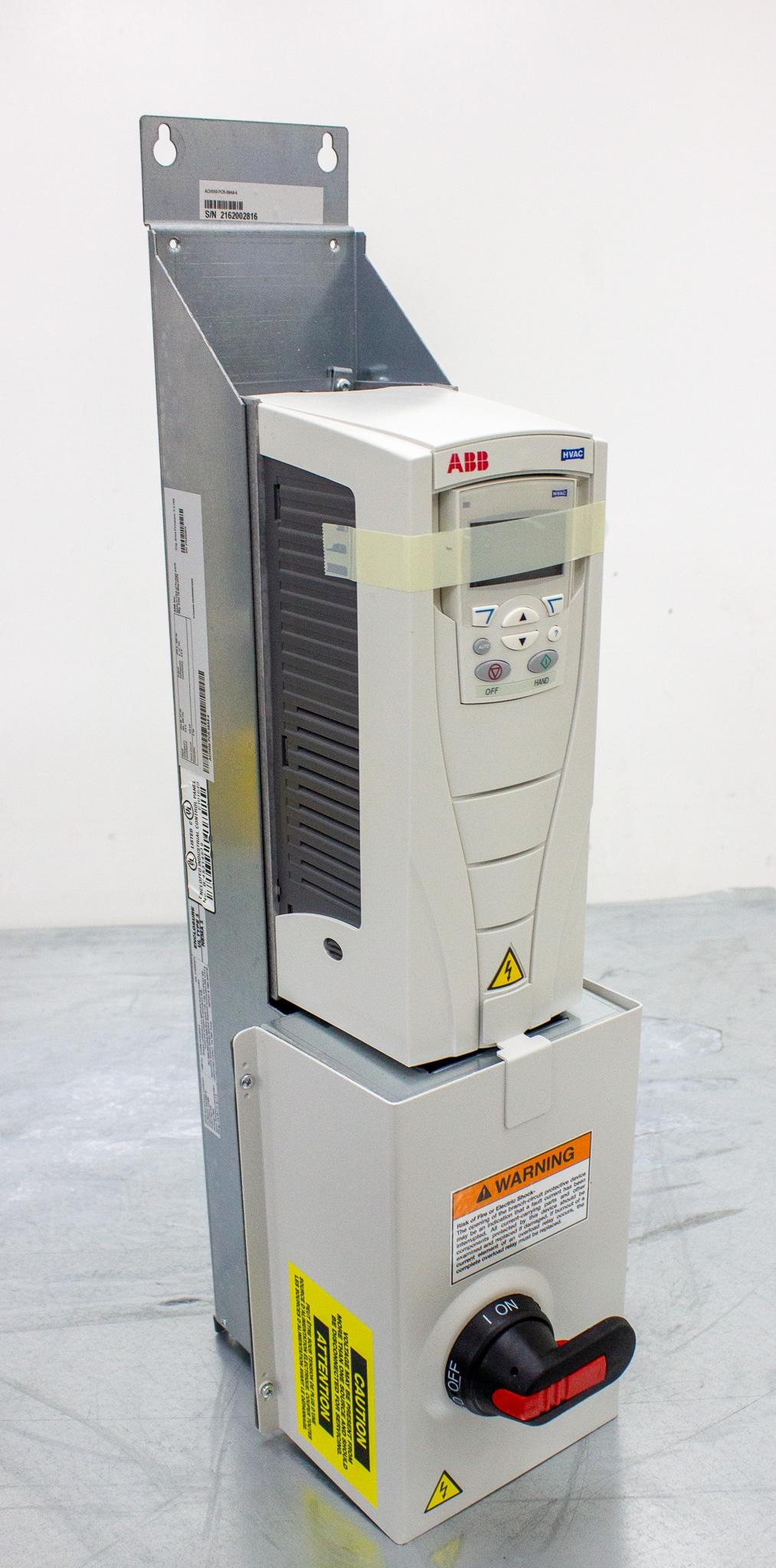

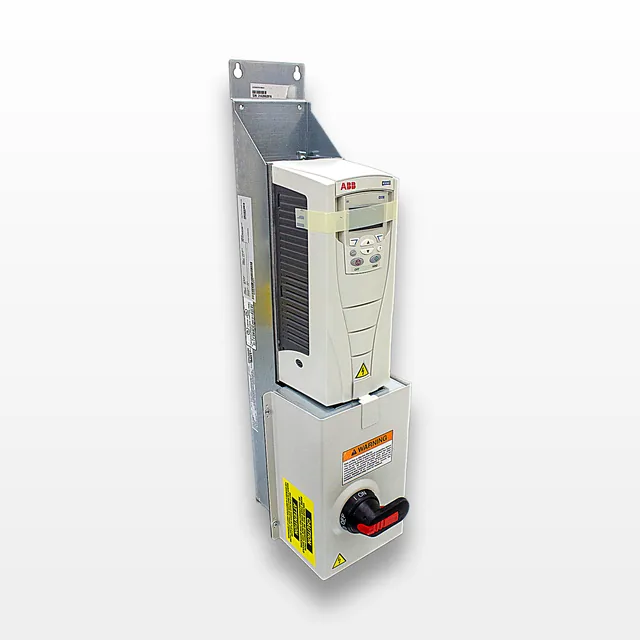

- Power: ACH550 Control Panel with Input Disconnect
- Flow Capacity: 600-4000 CFM (Actual 300-5100 CFM)
- Static Pressure Capacity: Up to 2.5+ w.g.
- Installation: Floor or ceiling mounted configurations
Weight
Imperial: 600.0 Pounds
Metric: 272.16 Kilograms
Shipping Dimensions
Imperial: 69.6 lb x 78.0 lb x 39.6 lb
Metric: 176.78 cm x 198.12 cm x 100.58 cm
Harmonized Code
8415.82.00
Harmonized Code Details
Air conditioning machines not elsewhere specified; this fan coil unit falls under HVAC equipment, therefore 8415.82.00 is appropriate.
