Chart 1536P-190AF-BB-TS Liquid Nitrogen Freezer, 36400 Vial Capacity, -190C
Chart
Details
-
CategoryCold Storage
-
Dimension1.0in x 1.0in x 1.0in
-
SerialCAB2120020021
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

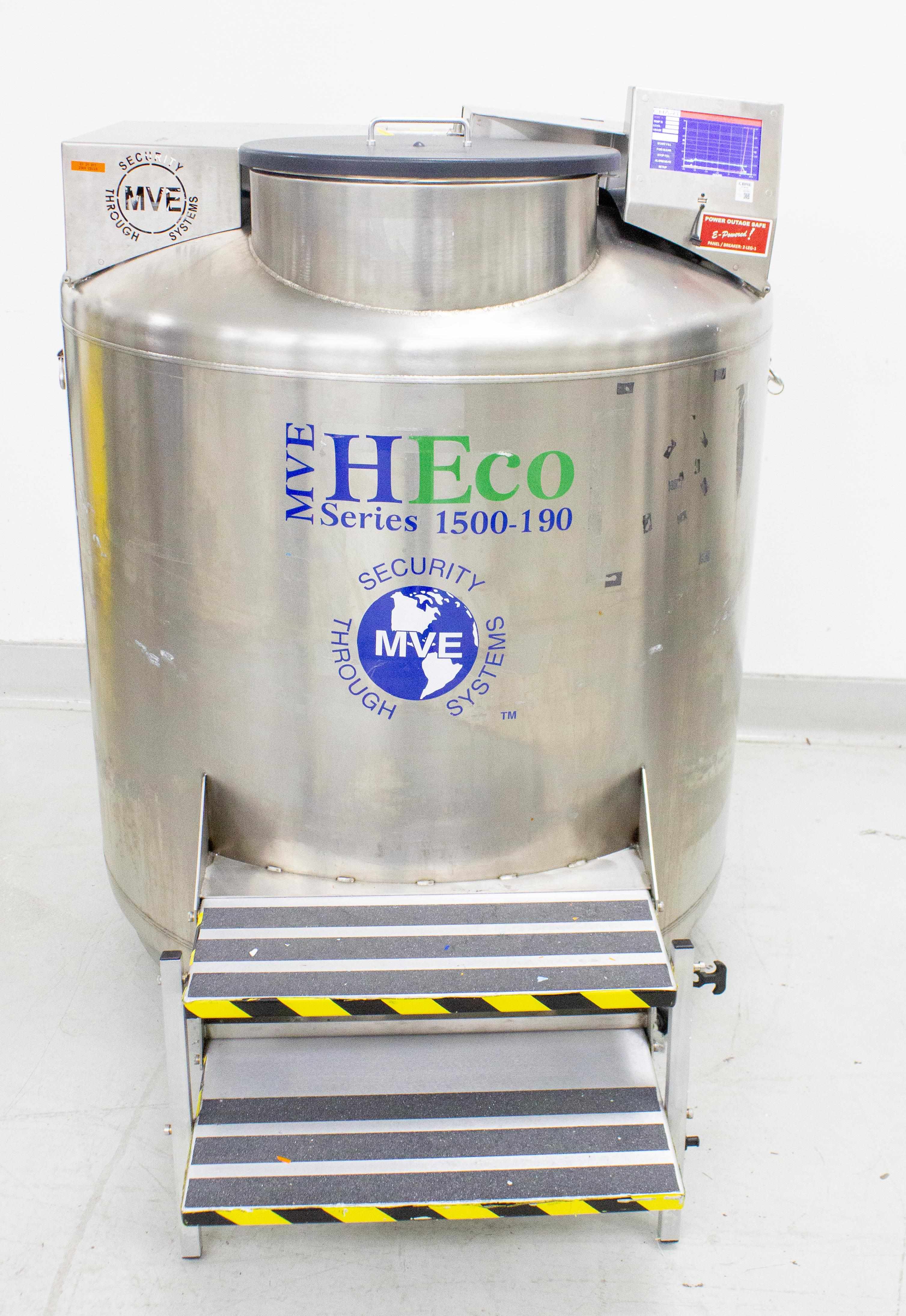

The Chart MVE HECO Series 1500-190 Model 1536P-190AF-BB-TS is a liquid nitrogen freezer designed for efficient cryogenic storage, offering a remarkable capacity of up to 36,400 2ml vials. Constructed with all stainless steel, this freezer maintains a controlled temperature of -190°C. It features a user-friendly touch screen controller, a low profile for reduced lift-over height, fully enclosed wiring and plumbing, and a vacuum jacketed transfer hose. Preowned from a working environment, the unit shows slight wear from normal use, with some cosmetic damage and requires replacement of inlet fittings. Despite these, the unit powers on and passes basic tests. Optional features include a battery backup.
Key Features
- Stainless steel construction
- Maintains -190°C temperature

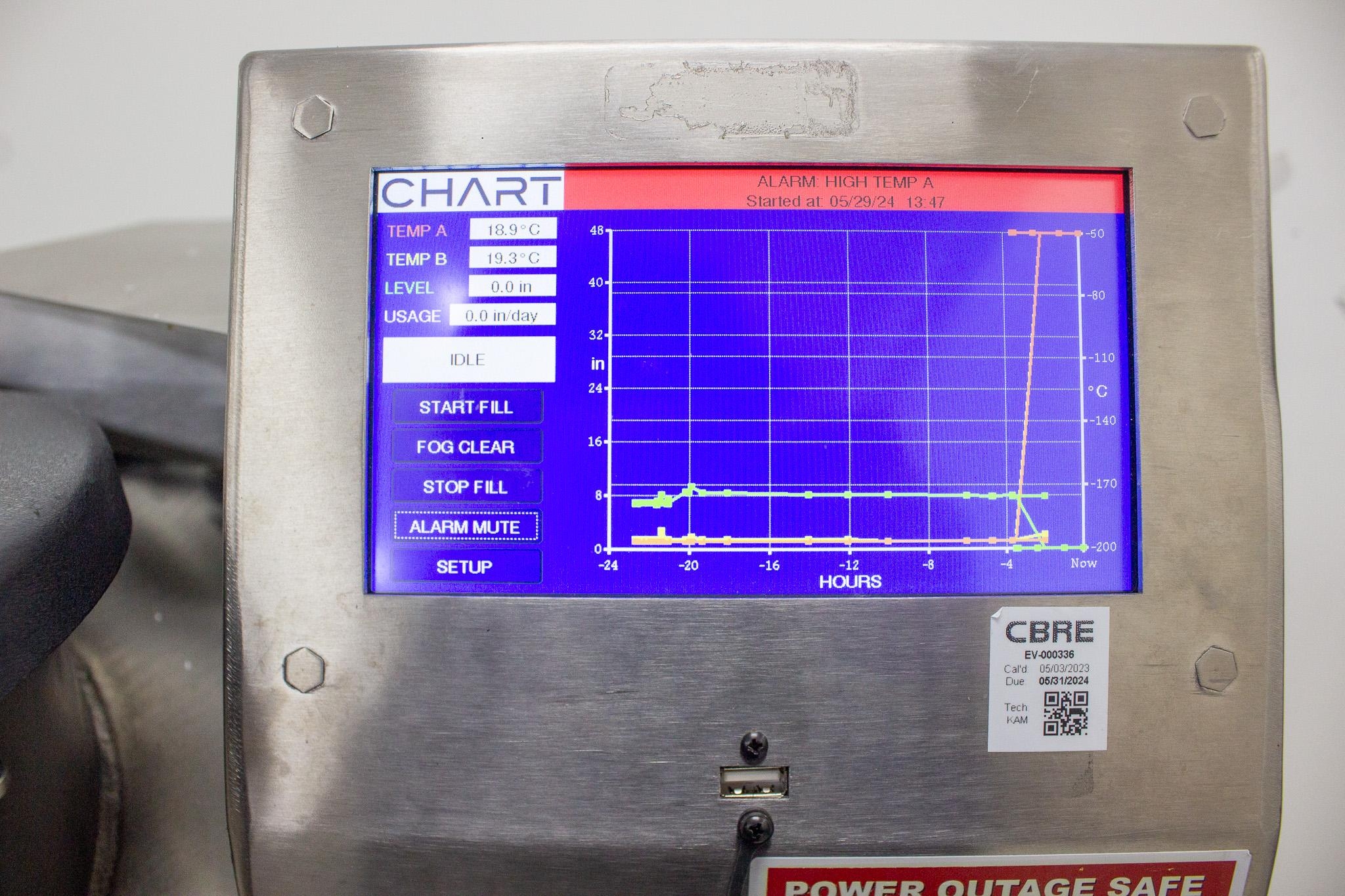

- User-friendly touch screen controller
- Capacity for up to 36,400 2ml vials
- Low lift-over height
- Automatic fill and gas bypass system
- Optional battery backup
Specifications
- Max Storage Capacity: 1.2 & 2ml vials: 36,400
- Racks for 100 Cell Boxes: 24
- Racks for 25 Cell Boxes: 16
- LN2 Capacity: 730 liters
- Usable Internal Height: 28.8 / 732mm
- Dimensions (H x W x D): 54.7" x 38.5" x 37.3"
- Weight Empty: 700 lbs / 318kg
- Weight Liquid Full: 2000 lbs / 907kg
Weight
Imperial: 1.2 Pounds
Metric: 0.54 Kilograms
Shipping Dimensions
Imperial: 1.2 lb x 1.2 lb x 1.2 lb
Metric: 3.05 cm x 3.05 cm x 3.05 cm
Harmonized Code
841869
Harmonized Code Details
The harmonized code 841869 is used for refrigeration equipment not elsewhere classified, which is appropriate for liquid nitrogen freezers such as the Chart MVE HECO freezer.
