Thermo 7452 Controlled Rate Freezer Ultra Low Temp +50C to -180C LN2 Injection
Thermo Fisher Scientific
Details
-
CategoryCold Storage
-
Dimension11.0in x 36.0in x 21.0in
-
Serial300023999
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

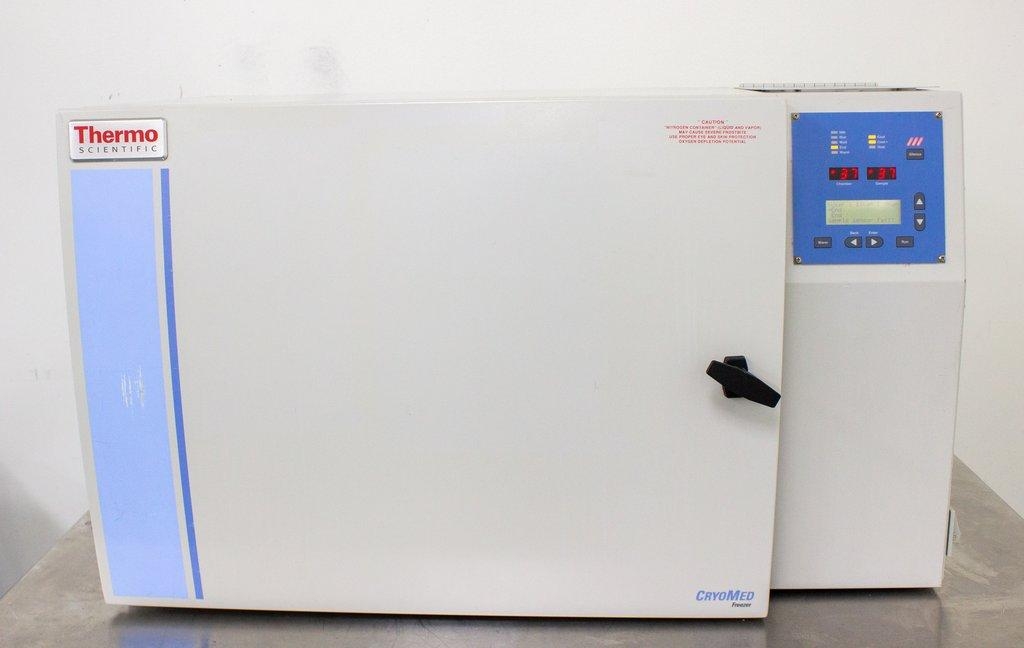

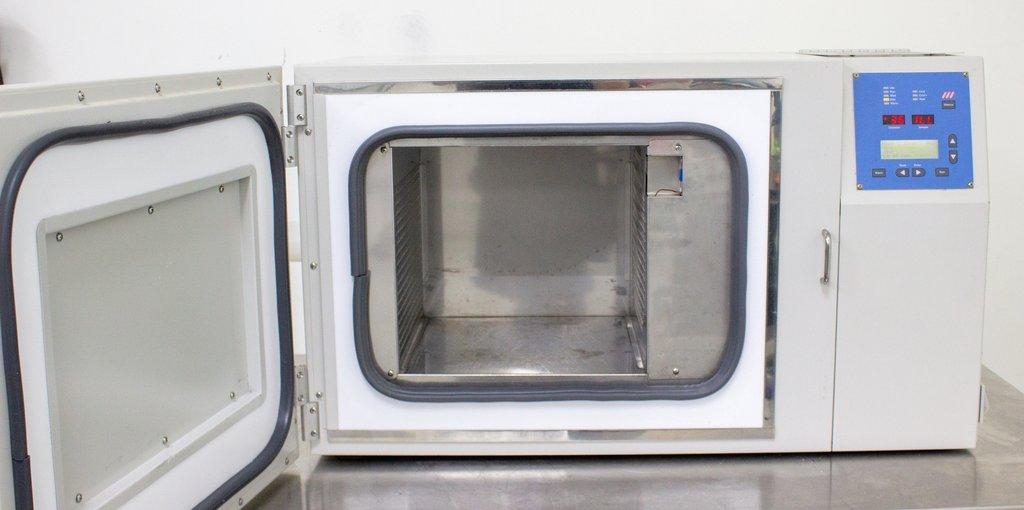

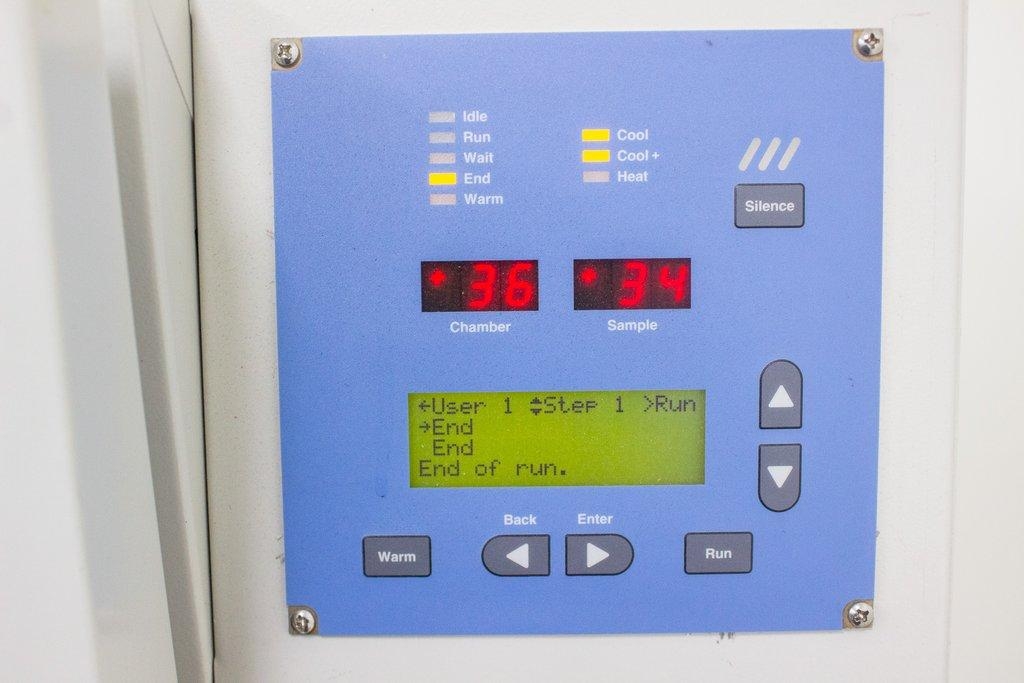

The Thermo CryoMed 7452 Controlled Rate Freezer offers ultra-low temperature storage and customizable protocols ideal for laboratory settings. Tested to the extent possible, this unit powers on and completes cycles but requires liquid nitrogen for a full test. It features dual solenoid valves for precise LN2 injection, an integrated thermal printer, and a backlit LCD for ease of use. With a temperature range from +50°C to -180°C and the ability to adjust freezing rates from .01 to 99.9 degrees per minute, the CryoMed 7452 prioritizes cell viability during freezing processes. Model includes corrosion-resistant stainless steel interior and foamed-in-place insulation, ensuring durability. Exterior dimensions are 38x20x20 inches and power requirements are 120v, 60Hz, 12amps.
Key Features
- Compact countertop design
- Temperature range: +50°C to -180°C
- Precise LN2 injection

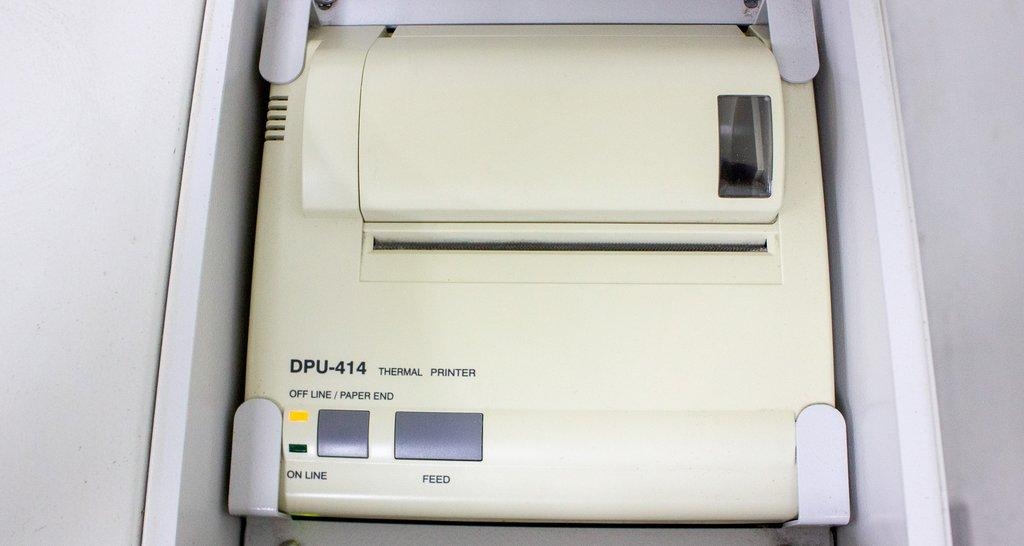

- Integrated thermal printer
- Adjustable freezing rate

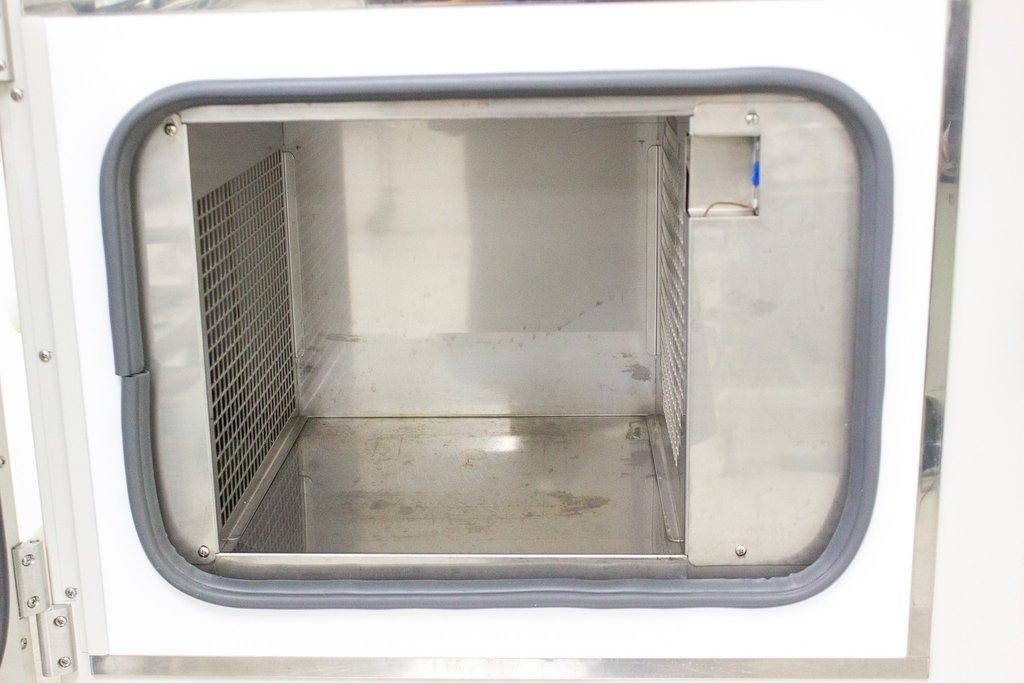

- Corrosion-resistant stainless steel interior
Specifications
- Temperature Range: +50°C to -180°C
- Freezing Rate: Adjustable from .01 to 99.9 degrees per minute
- Chamber Tolerance: +/- 2°C
- Liquid Nitrogen Supply Pressure: 22 psi max
- Chamber warming rate: Average 9.0°C / min
- Chamber Volume: 1.2 cu ft/34 l
- Chamber Dimensions: 13x13x13 inches
- Exterior Dimensions: 38x20x20 inches
- Power Requirement: 120v, 60Hz, 12amps
- Weight: 215 lbs
Weight
Imperial: 258.0 Pounds
Metric: 117.03 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 43.2 lb x 25.2 lb
Metric: 33.53 cm x 109.73 cm x 64.01 cm
Harmonized Code
84185000
Harmonized Code Details
84185000: Refrigerating or freezing equipment; combined refrigerator-freezers, fitted with separate external doors. This classification was chosen because the unit functions as a freezing system with specialized temperature control technology using liquid nitrogen.
