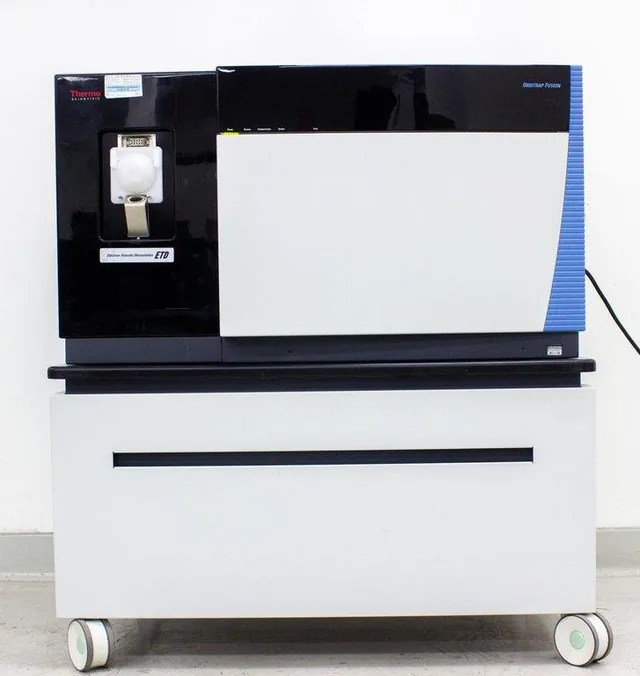

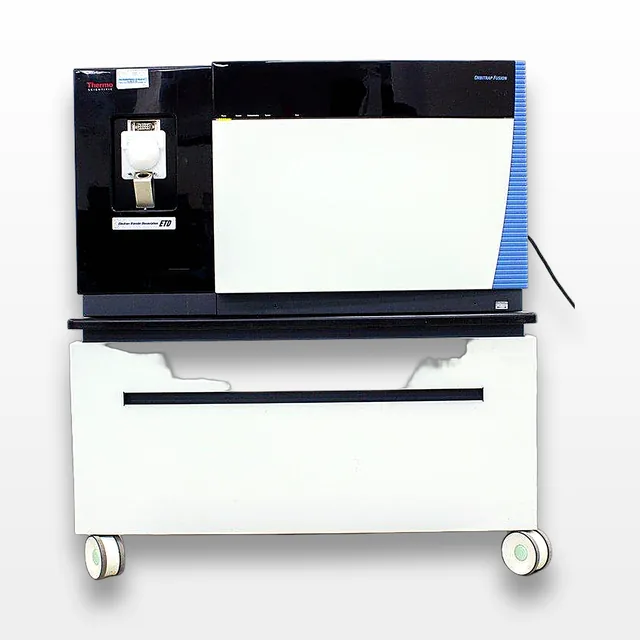

Thermo Orbitrap Fusion Mass Spectrometer High Resolution Tribrid MS Analysis
Thermo Fisher Scientific
Details
-
CategoryMass Spectrometry
-
Dimension32.0in x 52.0in x 57.0in
-
SerialFSN10206
-
Shipping TypeFreight
-
Voltage / Hertz220V / 50Hz/60Hz
Description
The Thermo Orbitrap Fusion Mass Spectrometer is a pre-owned unit that offers a highly integrated Tribrid architecture combining quadrupole, Orbitrap, and linear ion trap mass analysis, ensuring unmatched depth of analysis for highly complex and low-abundance samples. Its multiple fragmentation techniques, including CID, HCD, and optional ETD/EThCD, enhance versatility and performance. The Orbitrap Fusion is ideal for applications in proteomics, metabolomics, and glycomics, among others, allowing life scientists to identify compounds more rapidly and accurately. It features advanced ion optics and next-gen ion sources that improve operational efficiency and data acquisition. The system is installed with intuitive instrument control software, making method development user-friendly.
Key Features
- Tribrid architecture with quadrupole, Orbitrap, and linear ion trap
- Advanced fragmentation techniques: CID, HCD, ETD, EThCD
- Optimized for complex sample analysis in proteomics and metabolomics
- Next-gen ion sources and optics for robust and efficient operation
- User-friendly control software for easy method development
Specifications
- Mass Range: Linear Ion Trap - Standard m/z 50–2,000; High Mass m/z 200–4,000
- Orbitrap Mass Range: Up to m/z 6000 without precursor ion selection
- Resolution: 15,000–500,000 (FWHM) at m/z 200
- Scan Rate: Up to 20 Hz for Orbitrap and Ion trap MSn
- Mass Accuracy: <3 ppm RMS using external calibration, <1 ppm RMS with internal calibration
- Ion source options include HESI, APCI, NanoSpray Flex, EASY-Spray
- Operating Environment: 16–26°C, 50–80% RH
- Power Requirements: 230 Vac ± 10%, 15 Amps, 50/60 Hz
Weight
Imperial: 840.0 Pounds
Metric: 381.02 Kilograms
Shipping Dimensions
Imperial: 38.4 lb x 62.4 lb x 68.4 lb
Metric: 97.54 cm x 158.5 cm x 173.74 cm
Harmonized Code
9027.20.40
Harmonized Code Details
9027.20.40 - Mass spectrometers. Selected due to its functionality as a high-performance mass spectrometer suitable for laboratory analysis applications.
