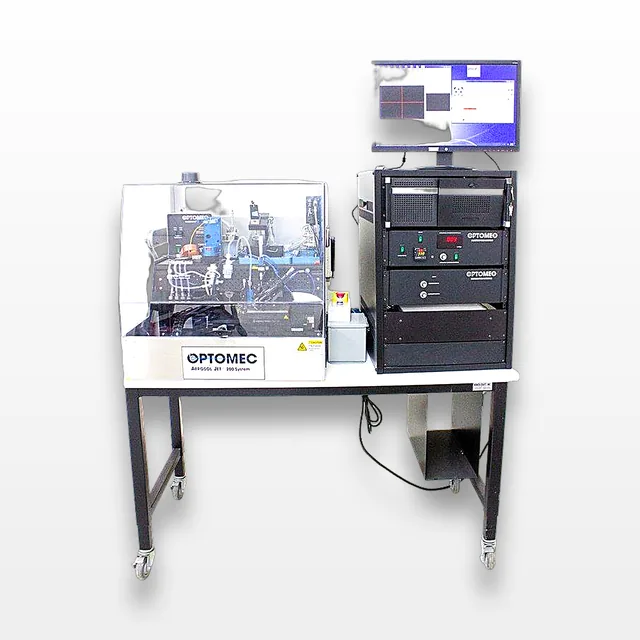

Optomec AEROSOL JET 200 Printing System Compact Benchtop Electronics Solution
Optomec
Details
-
CategoryProduction / Manufacturing
-
Dimension65.0in x 30.0in x 50.0in
-
Serial100_0171
-
Shipping TypeFreight
-
Manufacturing2016-05-18
-
Voltage / Hertz110-220 vac / 50Hz/60Hz
Description

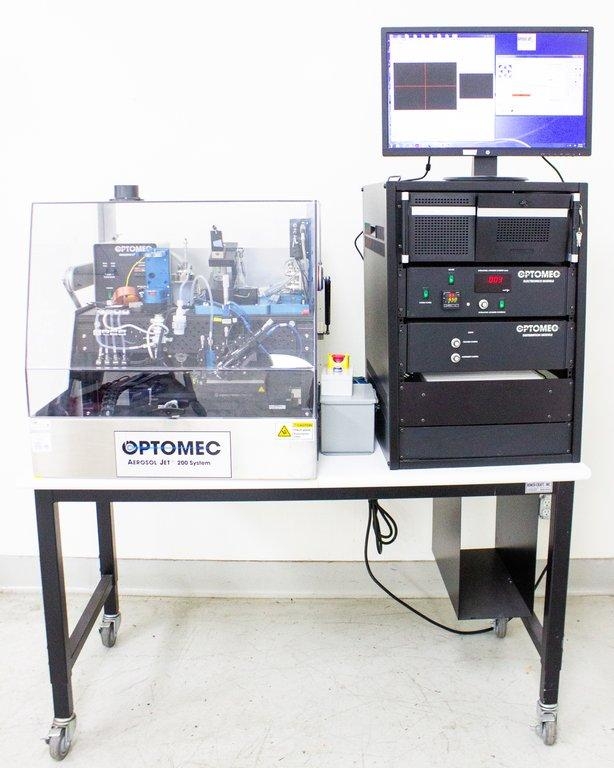

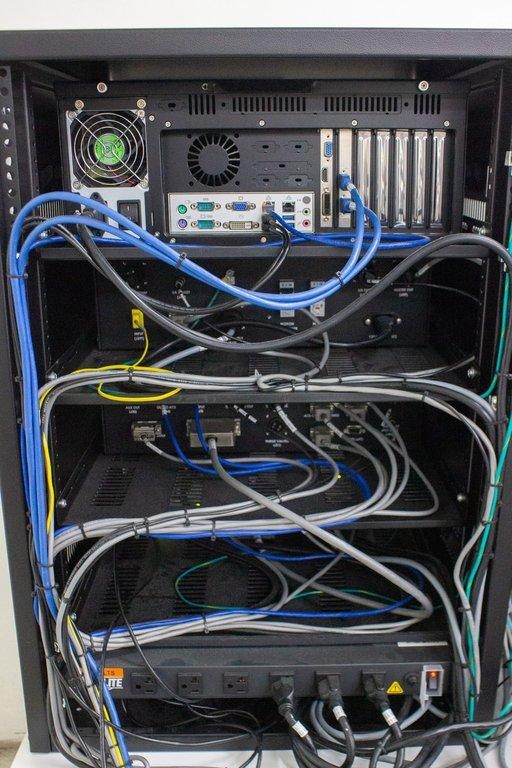

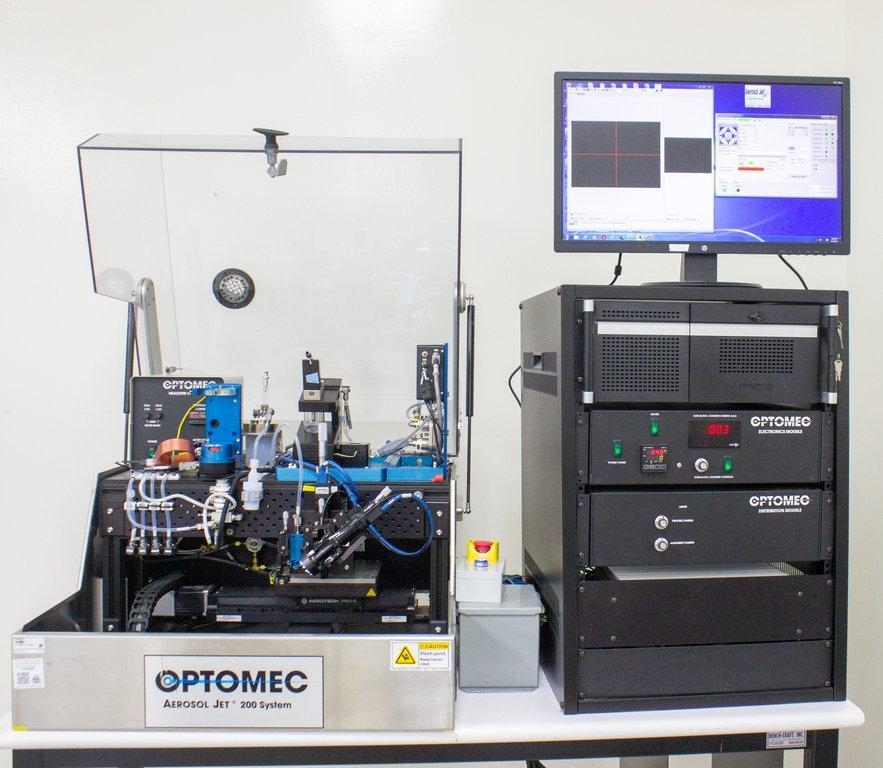

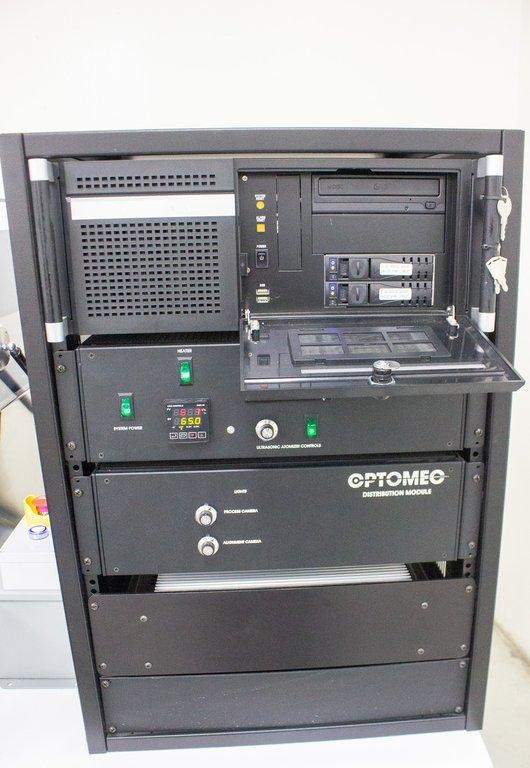

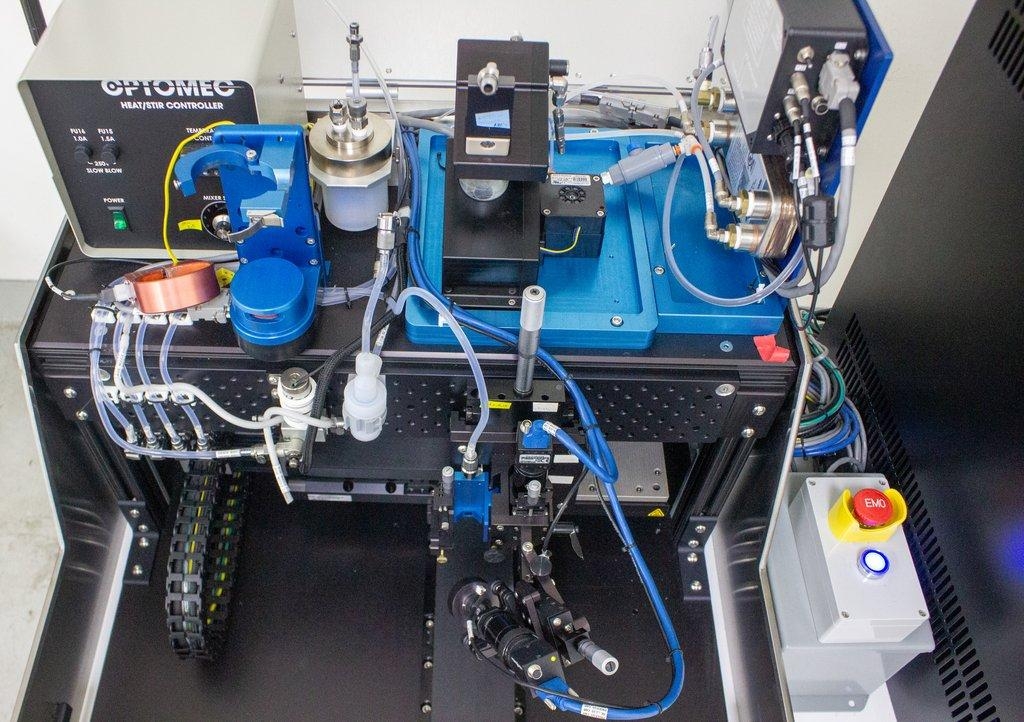

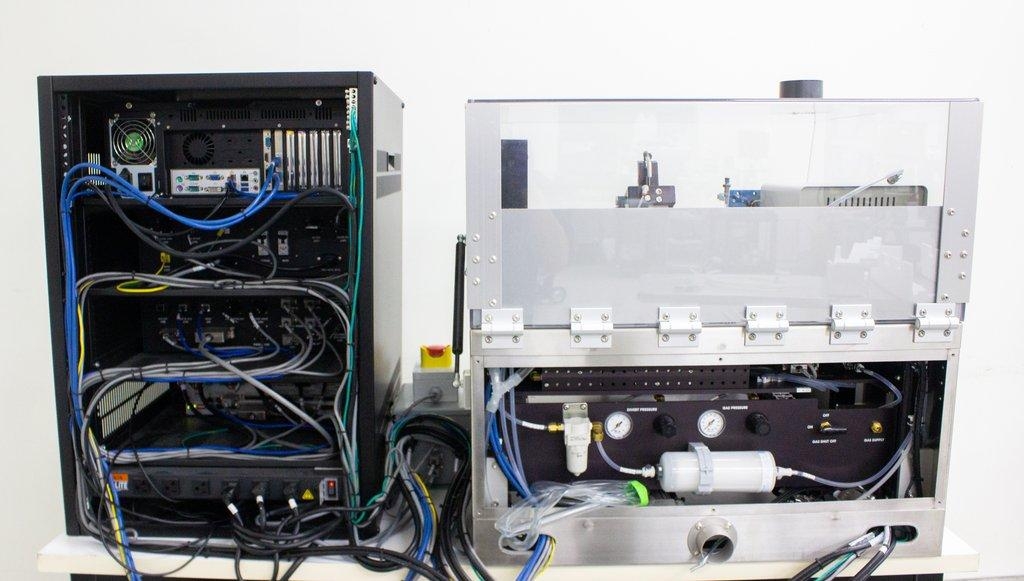

The Optomec AEROSOL JET 200 Series, manufactured in 2016, is an advanced benchtop printing system designed for universities, ink developers, and those pursuing electronic printing exploration and development. Utilizing cutting-edge aerodynamic focusing technology, this system is capable of printing features as small as 10 microns and extending to millimeters. It supports a wide array of inks and materials, boasts repeatable recipe-driven dispensing, and accommodates both planar and non-planar surfaces. Key features include a high-speed print capability of up to 100 mm/s, precision positioning with ±5 microns repeatability, and feature sizes from 10 to 200 microns. This equipment is ideal for research and development applications, curriculum development, and advanced manufacturing solutions. The system dimensions are 28” x 26” x 15” for the motion platform and 21” x 17.5” x 20” for the electronics rack. As it comes with power cords, but not a computer, this device stands out as a versatile solution for creating intricate electronic designs.
Key Features
- Prints features from 10 microns to millimeters
- Supports a wide variety of inks/materials
- Repeatable recipe-driven dispensing
- Planar and non-planar capabilities
- Print speed up to 100 mm/s
- Precision positioning with ±5 microns repeatability
Specifications
- Feature size range: 10 microns to 200 microns
- Nozzle stand-off height: Up to 5 mm
- Work area: 175 mm x 200 mm
- Response time: 2 milliseconds
- Electrical: 110 – 220 VAC, 50/60 Hz
- Nitrogen gas input: 28 LPM
- System weight: AJ 200 platform: 100 lbs; Electronics rack: 50 lbs
- Motion accuracy: ±25 microns
- CE Certification: Fully Compliant
Weight
Imperial: 240.0 Pounds
Metric: 108.86 Kilograms
Shipping Dimensions
Imperial: 78.0 lb x 36.0 lb x 60.0 lb
Metric: 198.12 cm x 91.44 cm x 152.4 cm
Harmonized Code
847989
Harmonized Code Details
847989 covers other machines and mechanical appliances with individual functions not specified elsewhere in this chapter. This is appropriate for the AEROSOL JET 200, a specialized printing system with unique functionality in additive manufacturing and electronics printing.
