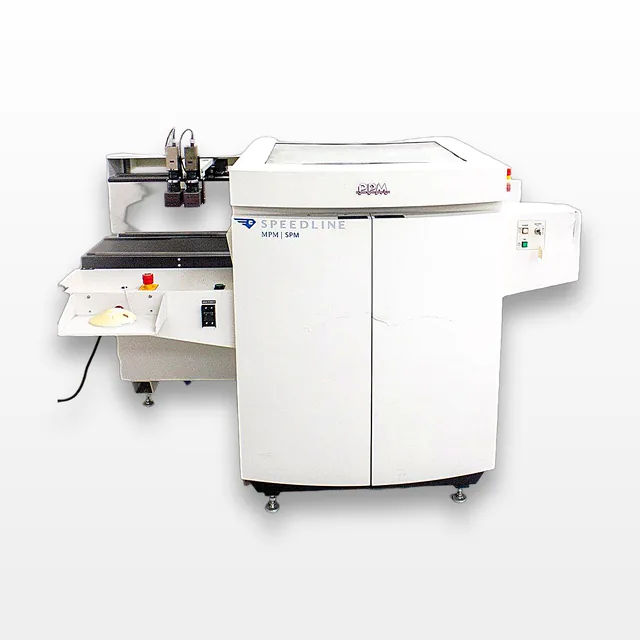

Speedline/MPM SPM Semiautomatic Stencil Screen Printer for Precision Batch Printing and Prototype Work 7807

Product Information

The Speedline/MPM SPM is a highly accurate screen printer, perfect for precision batch printing and prototype work. The PC-based control system ensures quick changeover and maximum flexibility, making it suitable for various printing needs such as surface mount, screen printing inks, green tape, adhesive printing, or wafer bumping and encapsulation. Several options are available to enhance its capabilities, including ultra-fine pitch printing down to 12 mil pitch or better in some applications. The SPM is part of Speedline's Technology Upgrade Program, allowing for credit toward a new state-of-the-art in-line MPM printer. With features such as a balanced control print head, automatic vision system, and a large maximum print area, the SPM offers high precision and efficiency for laboratory use.

• Highly accurate screen printer
• PC-based control system for quick changeover and flexibility
• Ultra-fine pitch printing capabilities
• Automatic vision system for precise printing
• Part of Technology Upgrade Program for credit toward new MPM printer

• Max Frame Size: 29" x 29" (737 x 737mm)
• Print Area: up to 20" x 18" (508 x 457mm) with trailing edge squeegees or 20" x 19" (508 x 483mm) with single edge squeegees
• Control System: Setup parameters and control functions for over 200,000 substrate files in memory
• Balanced Control Print Head provides true closed-loop print pressure for repeatable, precise printing
• Automatic Vision System with fiducial correction for efficient image capture

Metric: 569.798 kg
Imperial: 1258.8 lb

Metric: 86.4 cm x 68.4 cm x 66.0 cm
Imperial: 34.0 in x 27.0 in x 26.0 in

848630

Machines and apparatus of a kind used solely or principally for the manufacture of semiconductor boules or wafers, semiconductor devices, electronic integrated circuits or flat panel displays; machines and apparatus specified in Note 9(C) to this Chapter; parts and accessories
