Nautilus PL100i-EP Adhesive Applicator for Automated Assembly Solutions
Nautilus Systems
Details
-
CategoryProduction / Manufacturing
-
Dimension10.0in x 34.0in x 21.0in
-
SerialC1996
-
Shipping TypeFedEx Ground
-
Manufacturing2021-06-01
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

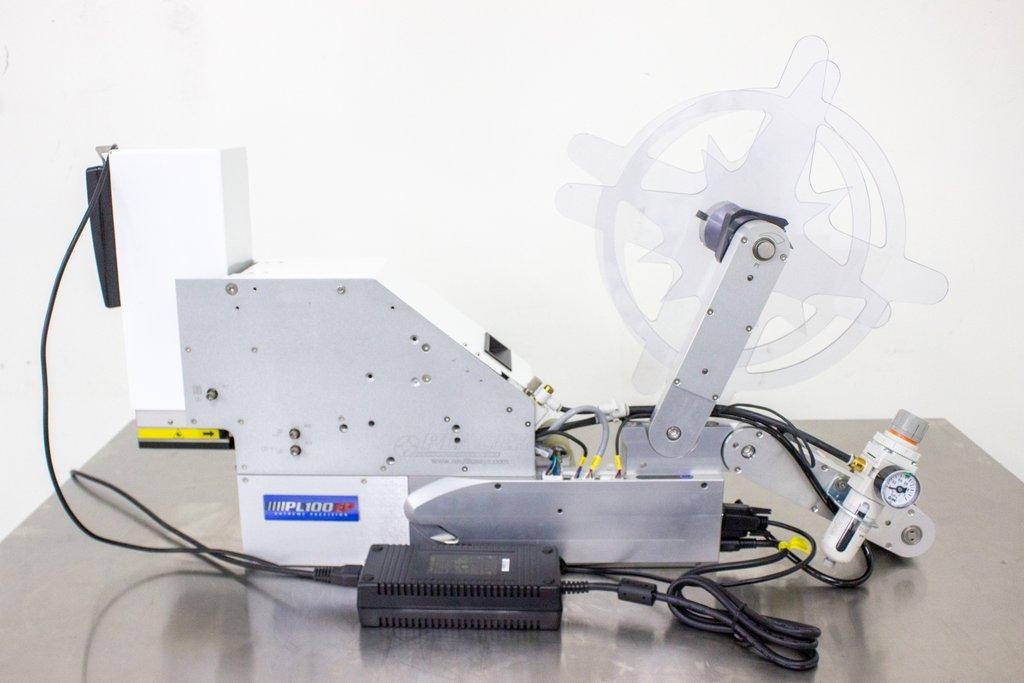

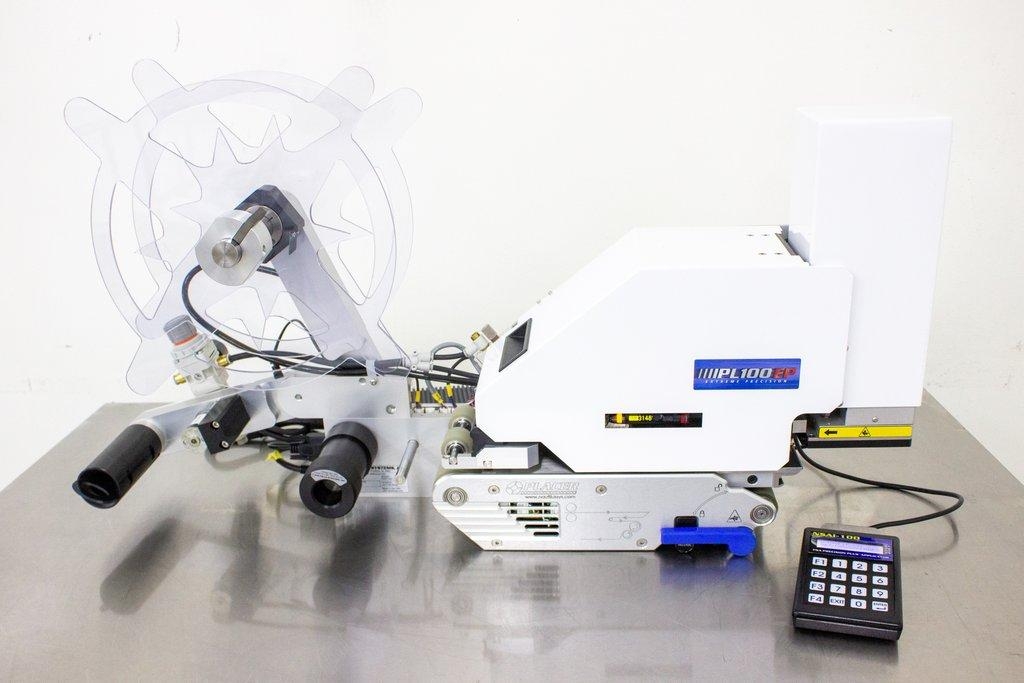

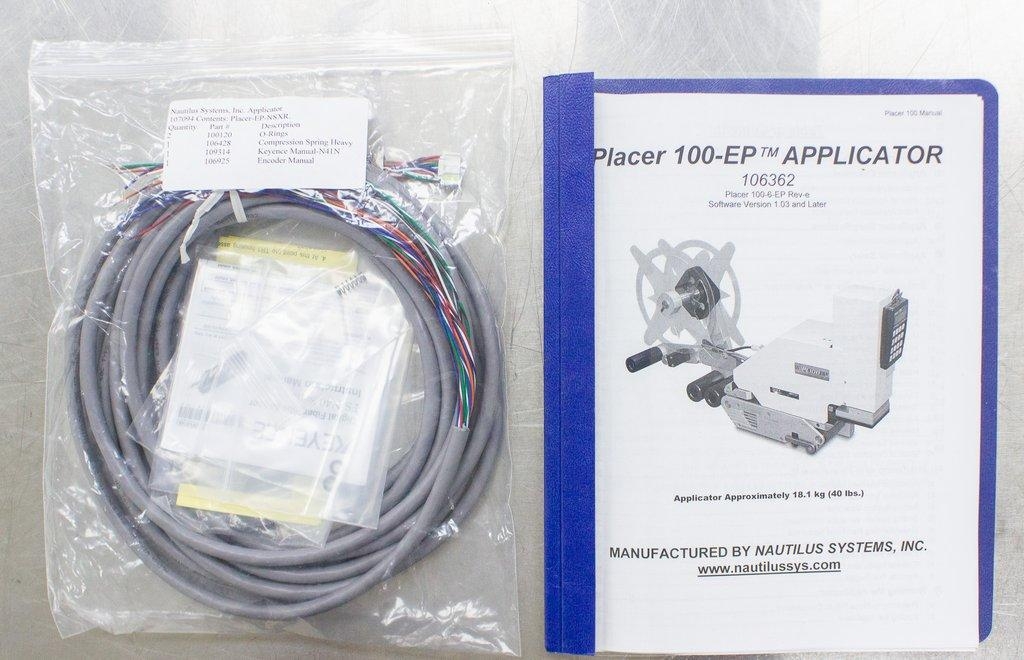

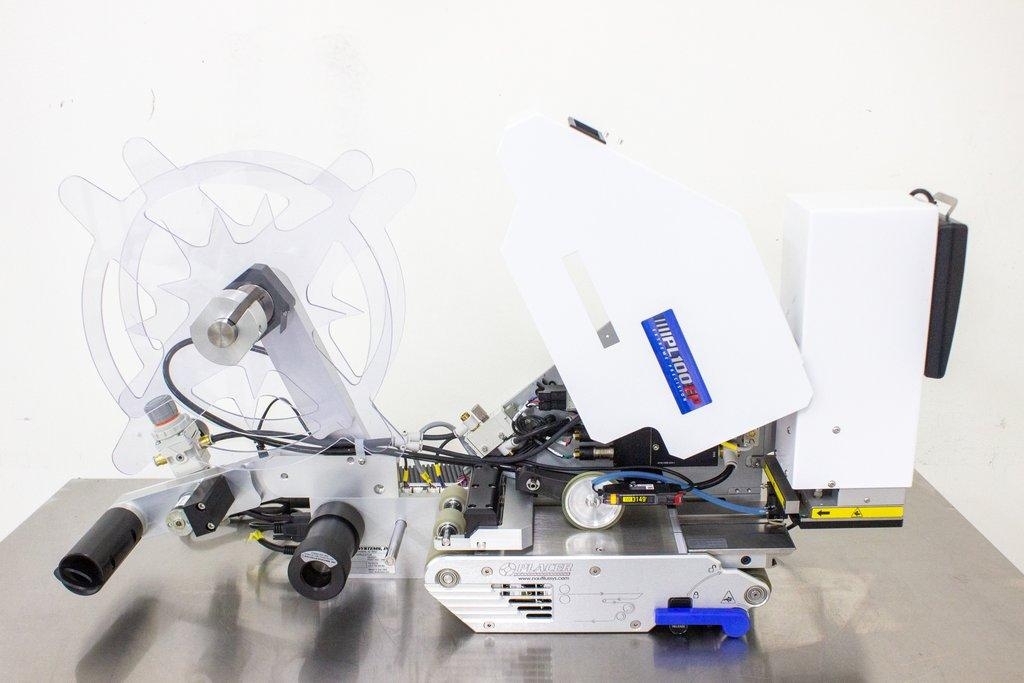

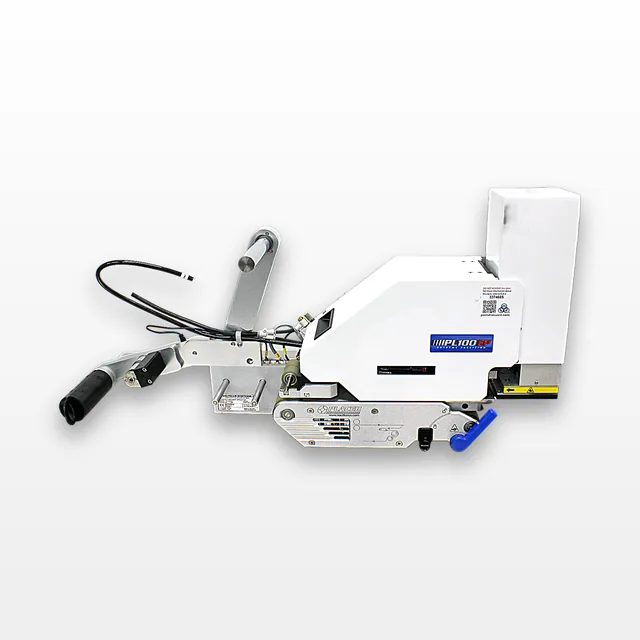

The Nautilus Systems PL100i-EP Adhesive Component Applicator, manufactured in 2021, delivers precise and reliable placement of die-cut adhesive components up to 100 x 100mm. Featuring an EP Package for maximum accuracy (+/- 0.035mm), it employs a 'closed-loop' feedback system to ensure correct feed location with increased resolution. Ideal for automated assembly systems, it includes essential hardware like pneumatic precision-guided Tamp actuator, Payoff, and powered Takeup assembly. Rapid changeover capabilities allow for tool-free customization, complementing diverse component specifications. This G (Good) condition device powers on with an error display, signaling readiness for integration and testing within larger systems. It comes with a power cord and user manuals, emphasizing ease of use and integration in industrial settings. Computer is not included.
Technician comment

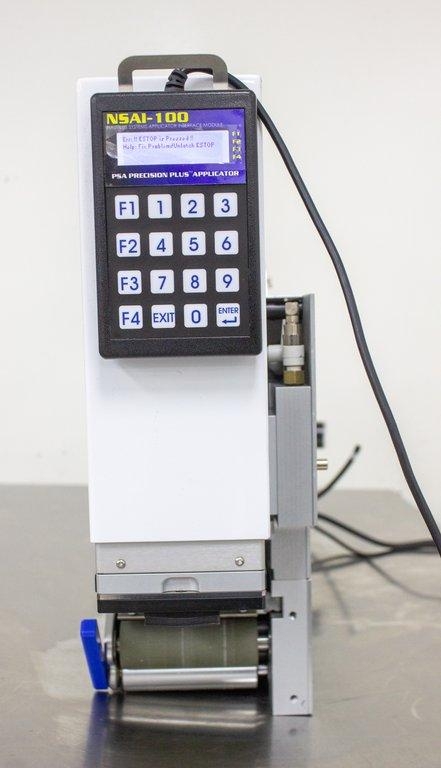

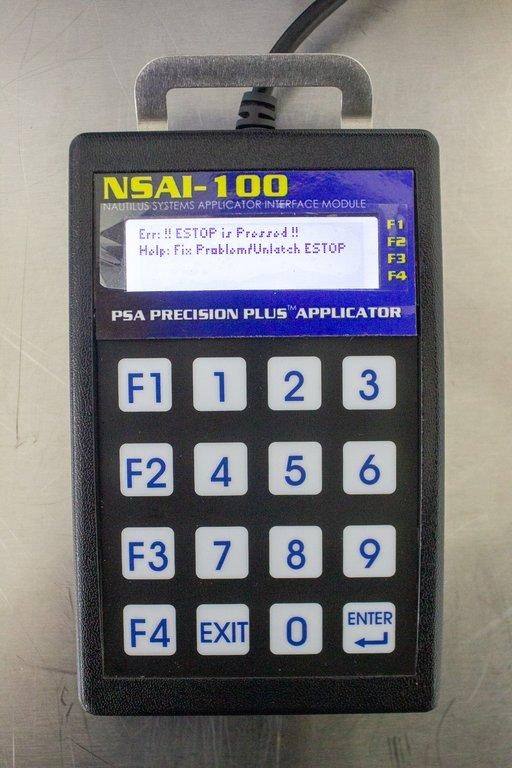

Powers on with error on display. "ERR ESTOP is Pressed!! Unlatch ESTOP" Unit is in like-new condition. Includes AC adapter. "Will need to be connected to a larger system to fully test. See photos for details.
Key Features
- Highly accurate placement of die-cut adhesive components
- EP Package provides accuracy as good as +/- 0.035mm
- Closed-loop feedback system
- Integration ready for automated assembly solutions
- Components up to 100 x 100mm in size
- Rapid changeover with no tools required
Specifications
- Voltage: 120V/220V
- Frequency: 50Hz/60Hz

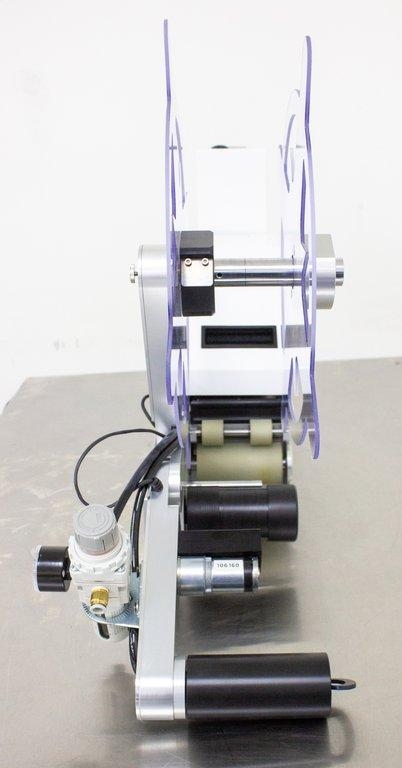

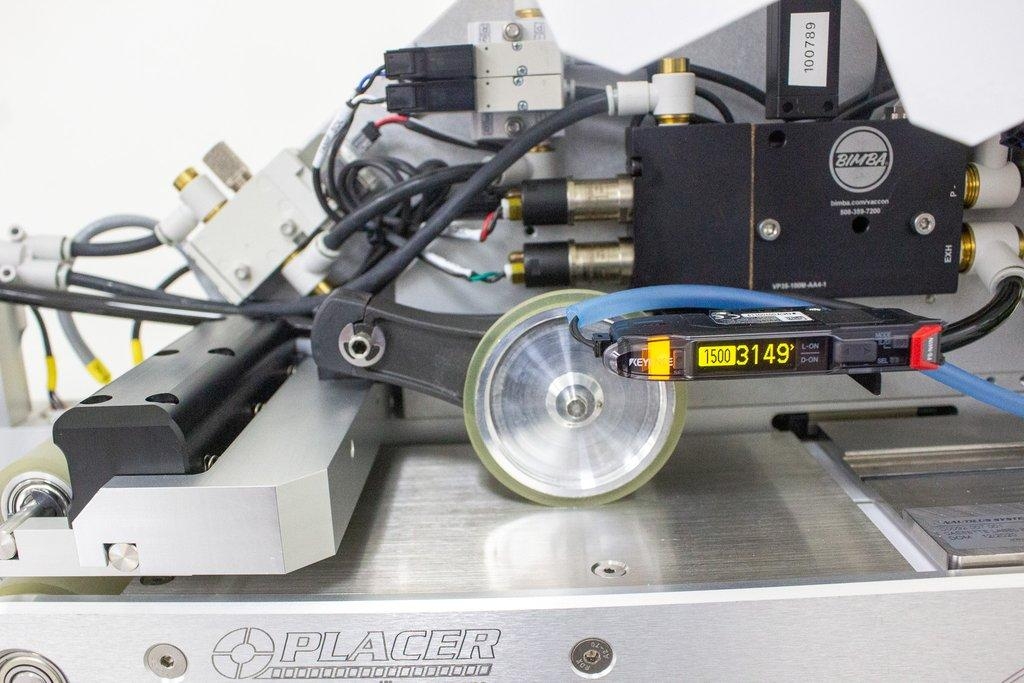

- Pneumatic precision-guided Tamp actuator, Payoff, and Takeup assemblies

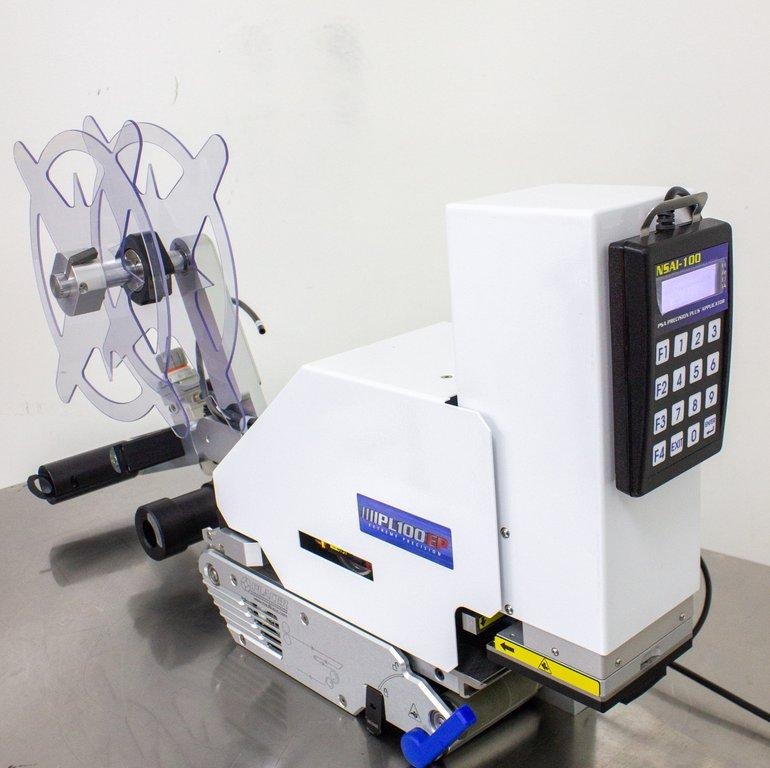

- 16-key Applicator Interface Module (AIM) with LCD Display
- Custom Component Tooling (CCT) with vacuum chuck, blade guide pad, liner guide roller
- Optional Secure AIM limits accessibility
Weight
Imperial: 48.0 Pounds
Metric: 21.77 Kilograms
Shipping Dimensions
Imperial: 12.0 lb x 40.8 lb x 25.2 lb
Metric: 30.48 cm x 103.63 cm x 64.01 cm
Harmonized Code
847989
Harmonized Code Details
847989 - Machines and mechanical appliances having individual functions, not specified elsewhere; Adhesive Machinery. This code is chosen as it best aligns with the specific use of the PL100i-EP in adhesive placement for manufacturing applications.
