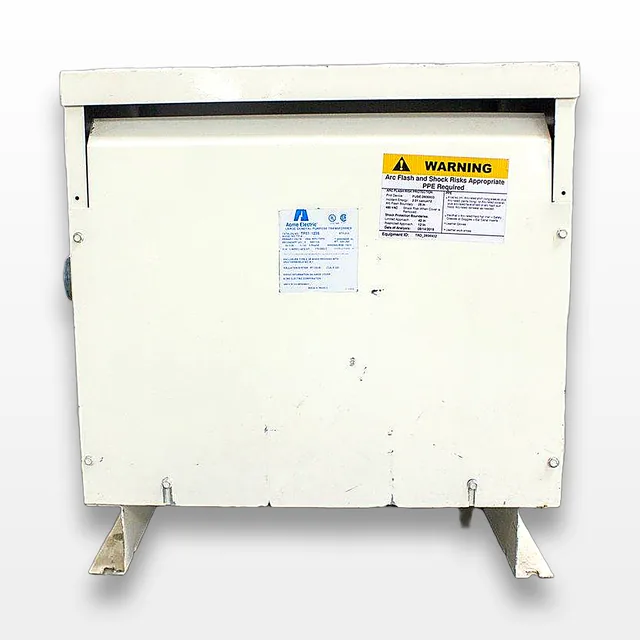

Acme Electric TP1A Transformer 30 KVA 480-208Y/120V Industrial Use
Acme Electric
Details
-
CategoryOther
-
Dimension20.0in x 25.0in x 26.0in
-
SerialDoes Not Apply
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz480V / 60Hz US
Description

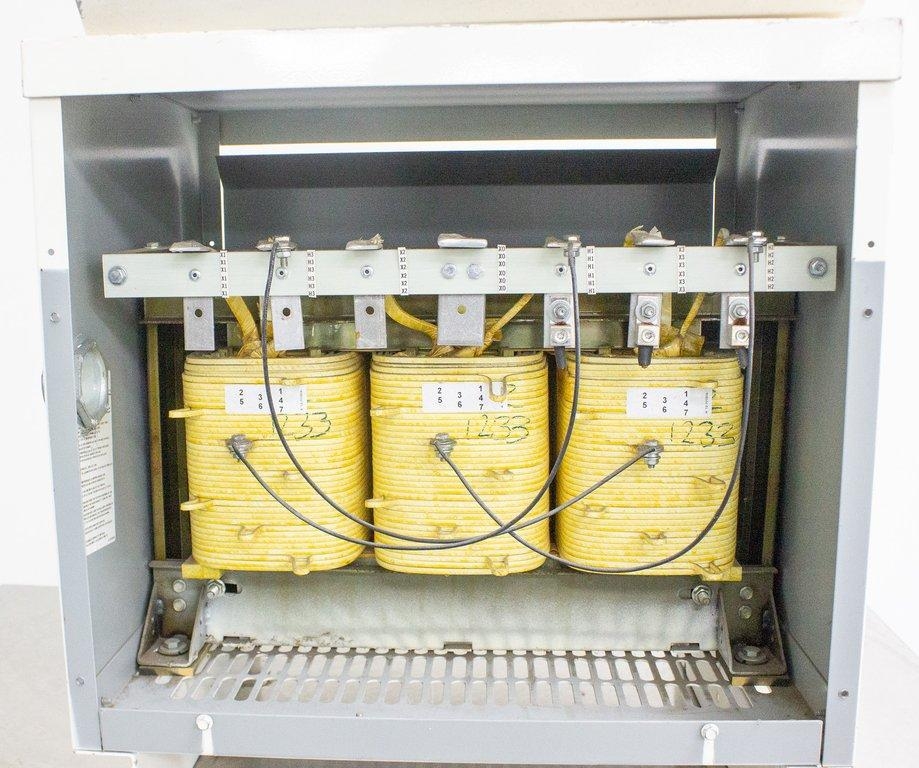

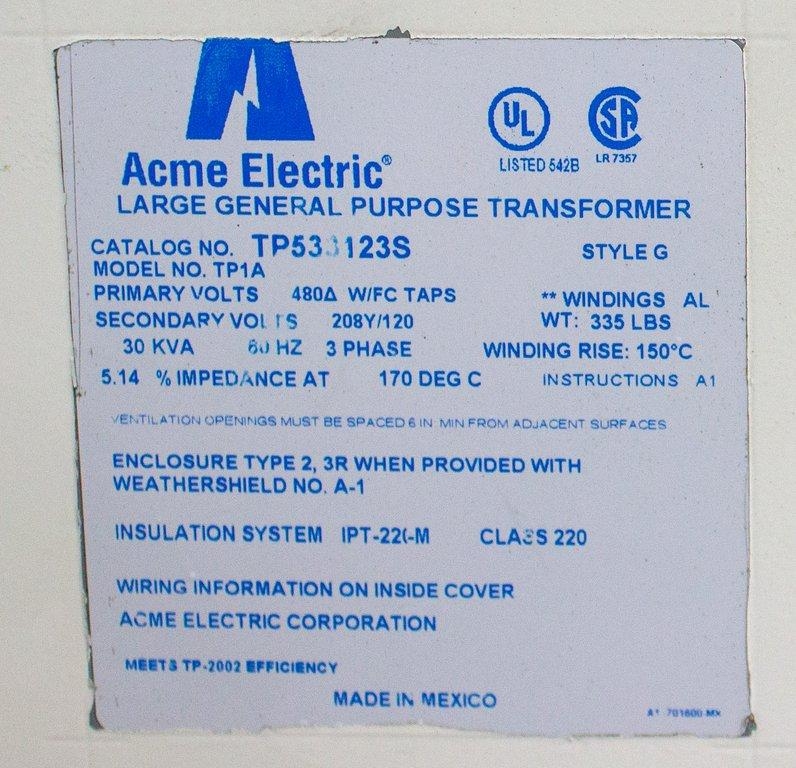

The Acme Electric Model TP1A is a Large General Purpose Transformer, catalog number TP533123S, ideal for industrial applications. Featuring 480 Delta Primary Volts and 208Y/120 Secondary Volts, it operates on a three-phase system at 60 Hz. This transformer is designed to withstand harsh environments, including corrosive chemical exposure and marine settings. It possesses an encapsulated structure with a UL Type 3R enclosure without a weather shield. Although cosmetically imperfect and untested, the transformer includes UL Class 220C insulation, a 150C rise, and an extra-large wiring compartment for easier installation and cooler case temperatures. Some stains are present on the unit, which needs to be hard-wired.
Technician comment

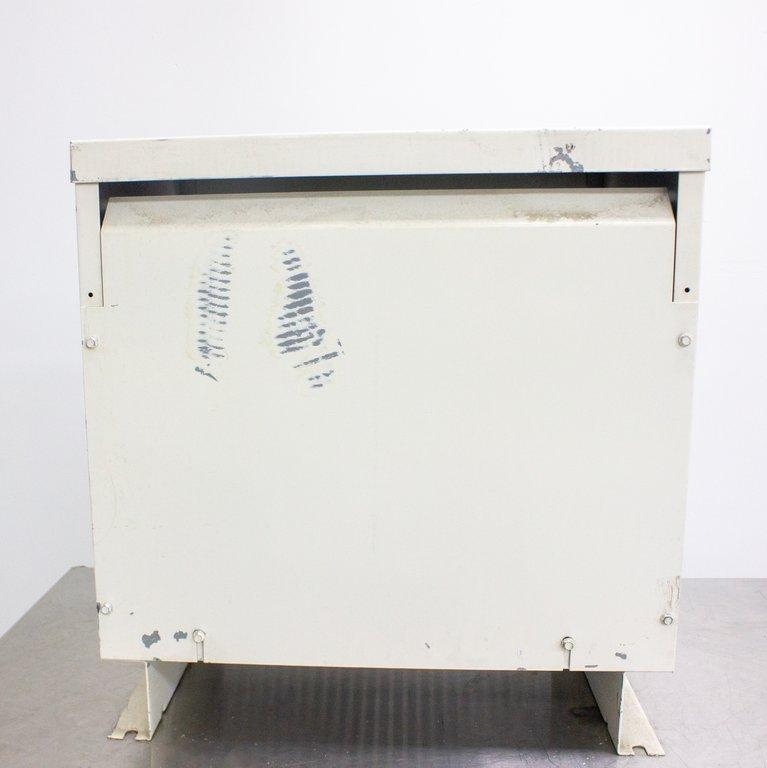

Transformer will need to be hard wired. Stains around unit.
Key Features
- Three-phase low voltage distribution
- 480 Delta Primary Volts, 208Y/120 Secondary Volts
- 60 Hz frequency operation
- UL Type 3R enclosure - UL Listed, CSA Certified
- Extra large wiring compartment
Specifications
- Voltage: 480 Delta Primary / 208Y/120 Secondary
- Frequency: 60 Hz
- KVA Rating: 30 KVA
- Insulation System: UL Class 220C with 150C rise
- Enclosure: UL Type 3R with optional weather shield
- Suitable for corrosive environments
Weight
Imperial: 402.0 Pounds
Metric: 182.34 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 30.0 lb x 31.2 lb
Metric: 60.96 cm x 76.2 cm x 79.25 cm
Harmonized Code
8504.33.00
Harmonized Code Details
Harmonized Code 8504.33.00 covers transformers having a power handling capacity exceeding 16 kVA but not exceeding 500 kVA. This applies to the Acme Electric TP1A model due to its 30 KVA rating and industrial application.
