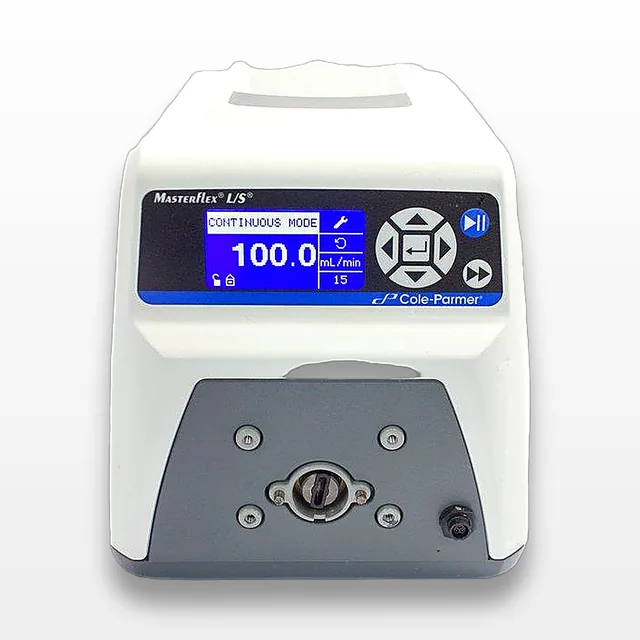

Cole Parmer Masterflex L/S Model 07522-28 Digital Pump Drive 600 RPM
Cole Parmer
Details
-
CategoryPump
-
Dimension11.0in x 9.0in x 9.0in
-
SerialL19002604
-
Shipping TypeFedEx Ground
-
Voltage / Hertz115V-230V / 50Hz/60Hz
Description
The Cole Parmer Masterflex L/S Model 07522-28 is a versatile digital pump drive designed for precision dispensing applications. Designed to operate at speeds ranging from 0.1 to 600 RPM, this pump drive is powered by a maintenance-free motor that provides high accuracy with ±0.1% speed control. Its digital interface, complemented by a graphical LCD, allows the user to set continuous run, timed dispense, copy dispense, or volume dispense modes easily. This model includes an open-head sensor that halts operation when the pump head is opened, adding a safety feature beneficial for lab settings. Suitable for advanced automated process applications, this drive offers remote control options and programmable dispensing intervals. Although the pump head is not included, the unit powers on effortlessly and has no visible functionality problems. Constructed with a robust ABS plastic and aluminum housing, the pump drive is designed with dimensions of 10 inches in length, 8.5 inches in width, and height.
Technician comment
Need pump head to test. Unit powers on without errors.
Key Features
- Variable speed range from 0.1 to 600 RPM
- Digital control with graphical LCD interface
- Open-head sensor for safety
- Antidrip function for dispensing accuracy
- Maintenance-free brushless motor
- Reversible motor for bi-directional pumping
- Programmable dispense intervals
- Remote control options available
Specifications
- Model: 07522-28
- Speed range: 0.1 to 600 RPM
- Max flow rate: 3400 ml/min
- Power: 90-260 VAC; 50/60 Hz; 2.2 A
- Motor: 75 W, 0.1 HP
- Housing material: ABS plastic and aluminum
- Open-head sensor: Yes
- Control type: Digital variable speed
- Interface: Graphical LCD
- Remote I/O: 0 to 20 mA, 4 to 20 mA, 0 to 10 V, start/stop, direction, and prime via contact closure
- Plug type: US
- IP rating: IP 33
- Dimensions: 254 mm x 216 mm x 216 mm
Weight
Imperial: 16.8 Pounds
Metric: 7.62 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 10.8 lb x 10.8 lb
Metric: 33.53 cm x 27.43 cm x 27.43 cm
Harmonized Code
841360
Harmonized Code Details
841360 - Other positive displacement pumps. This code is appropriate as it includes chemical or laboratory liquid handling pumps that match the function and applications of this equipment.
