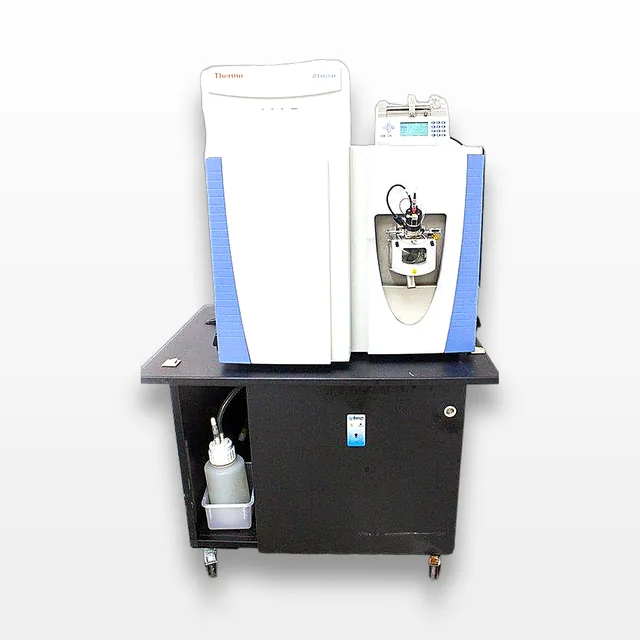

Thermo Scientific Q Exactive Mass Spectrometer System

Product Information

The Thermo Scientific Q Exactive benchtop LC-MS/MS combines high-performance quadrupole precursor selection with high-resolution, accurate-mass (HR/AM) Orbitrap detection to deliver high performance. It allows identifying, quantifying, and confirming trace-level metabolites, contaminants, peptides, and proteins in complex mixtures. The fast scan speed and multiplexing capabilities make it an outstanding detector for fast chromatography separation techniques. It is ideally suited for drug metabolism, proteomics, environmental analysis, food safety, toxicology, and clinical research applications. The manufacturer's specifications include a mass range of m/z 50-6,000, a max resolving power of 140,000, and a max scan rate of up to 12 Hz at a resolution setting of 17,500 @ m/z 200. The quadrupole mass filter, spectral multiplexing, and S-Lens ion source contribute to the enhanced sensitivity and ruggedness of this system. It offers broad screening capabilities and excels at targeted quantitation experiments. The included hardware specifications are the Thermo Scientific Ion Max API Source, Transfer Ion Optics, Quadrupole Mass Filter, Vacuum System, and Orbitrap Mass Analyzer. The Q Exactive system also offers ultra-fast real-time data acquisition and instrument control, automated calibration, and automated gain control.

Unit is from a working environment. System will need to be validated/calibrated to ensure accurate results. Inquire if validation/calibration is available for an additional cost.. Syringe pump powers on but unresponsive, will need to connect via software to fully test. Includes: Q Exactive, SV65 Pump, Fusion101 Syringe Pump & Ionbench

• High-performance quadrupole precursor selection
• Fast scan speed and multiplexing capabilities
• Broad screening capabilities for drug metabolism, proteomics, and clinical research
• Enhanced sensitivity and ruggedness with innovative technologies, Ultra-fast real-time data acquisition and instrument control

• Mass Range: m/z 50-6,000
• Max Resolving Power: 140,000 @ m/z 200 (280,000 optional)
• Max Scan Rate: Up to 12 Hz at resolution setting of 17,500 @ m/z 200
• Quadrupole Mass Filter for increased sensitivity and ruggedness
• Ultra-fast real-time data acquisition and instrument control
• Automated calibration via instrument control software
• Automated gain control for enhanced accuracy

Metric: 245 kg

Imperial: 540.13 lb

Metric: 35 cm x 48 cm x 72 cm
Imperial: 13.78 in x 18.9 in x 28.35 in

9027200000

9027.20.00 - Liquid chromatographs; instruments and apparatus for measuring or checking viscosity, porosity, expansion, surface tension, or the like
