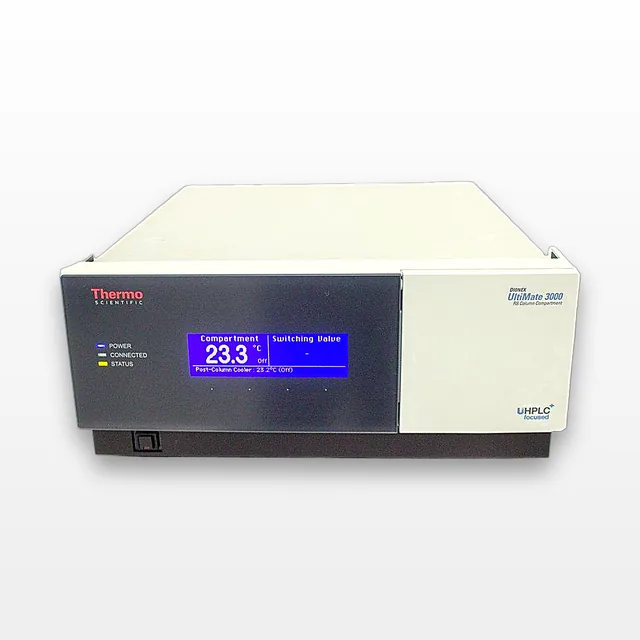

Thermo TCC-3000RS Column Compartment Ultrafast LC Temp Control 110C Optimized
Thermo Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension20.0in x 17.0in x 8.0in
-
Serial8028998
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz100V-240V / 50Hz/60Hz
Description
The Thermo Dionex UltiMate TCC-3000RS Rapid Separation Thermostatted Column Compartment, manufactured in Germany, is an optimal choice for ultrafast liquid chromatography (LC) applications. Designed for use with the Dionex UltiMate 3000 RS Series, it supports precise temperature control from 5°C to 110°C, ensuring consistent retention times and minimizing system backpressure. Its advanced design includes features like dispersion-reduced precolumn heating, postcolumn cooling, and support for up to twelve columns. Additionally, it can incorporate optional stainless steel or PEEK column switching valves to handle pressures up to 125 MPa. Despite not being fully tested, it powers on, performs basic functions, and shows no known issues. This unit is ideal for labs looking to automate method development with high precision and efficiency.
Technician comment
Unit is preowned, Comes with 30 day warranty.
Key Features
- Temperature range from 5°C to 110°C
- Supports high column temperatures for ultrafast LC applications
- Dispersion-reduced precolumn heating
- Postcolumn cooling technology
- Automated method development capabilities
- Optional column switching valves, stainless steel or PEEK
- Supports up to 12 LC columns
Specifications
- Voltage: 100V-240V, 50Hz/60Hz
- Temperature accuracy: ±0.5°C
- Max column pressure: 125 MPa
- I/O Interfaces: 2 digital inputs, 2 relay outputs
- PC Connection: USB
- Max. Column Length: 30 cm
- Weight: 12.9 kg
Weight
Imperial: 34.8 Pounds
Metric: 15.79 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 20.4 lb x 9.6 lb
Metric: 60.96 cm x 51.82 cm x 24.38 cm
Harmonized Code
9027.20.80
Harmonized Code Details
Harmonized code 9027.20.80 covers Chromatographs, Lc, liquid chromatography apparatus, used mainly in analytical or measuring work. The Thermo TCC-3000RS falls under this category due to its design for temperature-controlled liquid chromatography applications.
