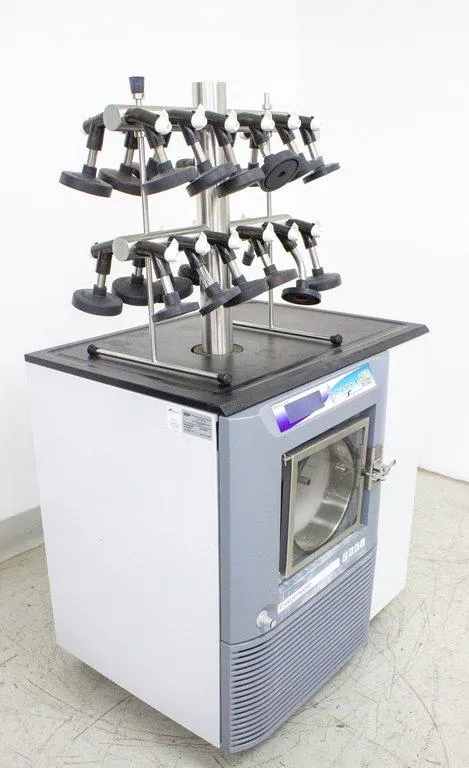

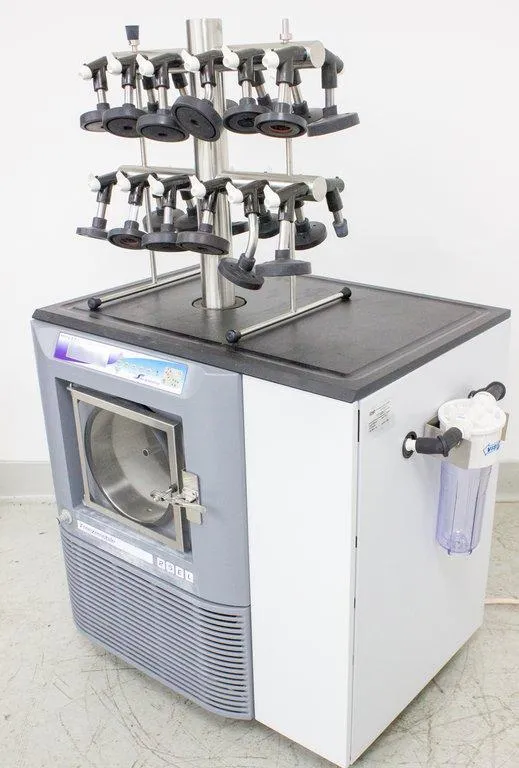

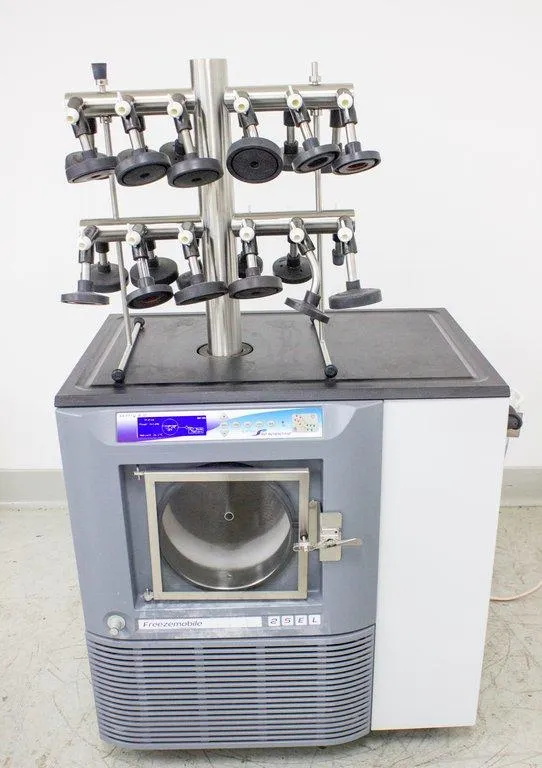

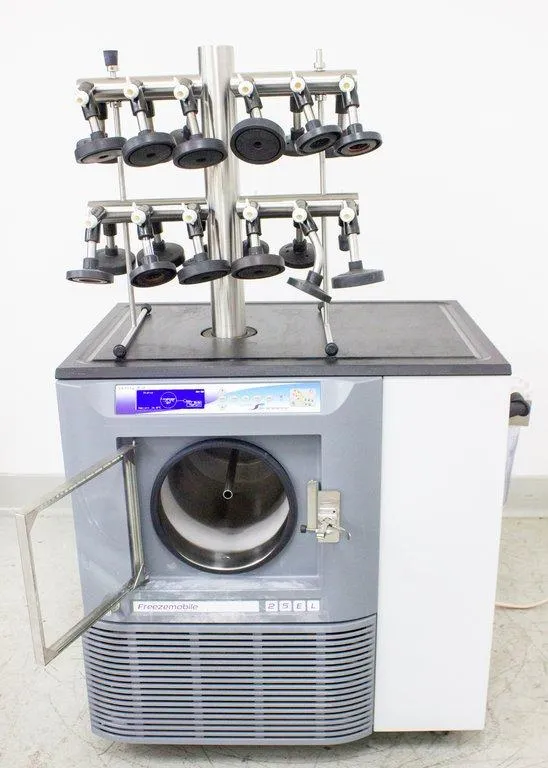

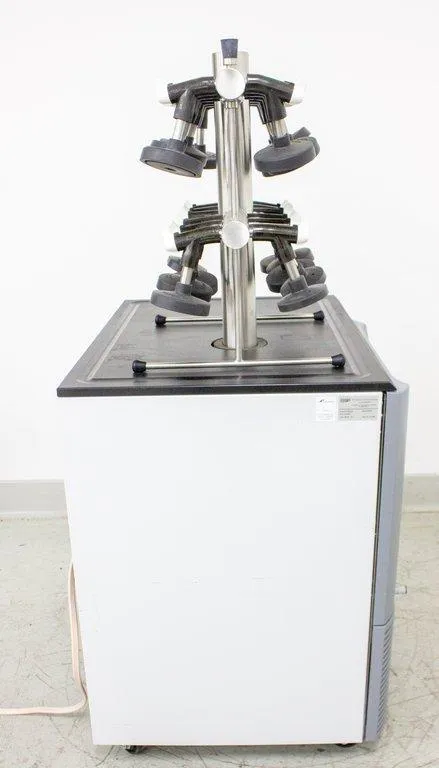

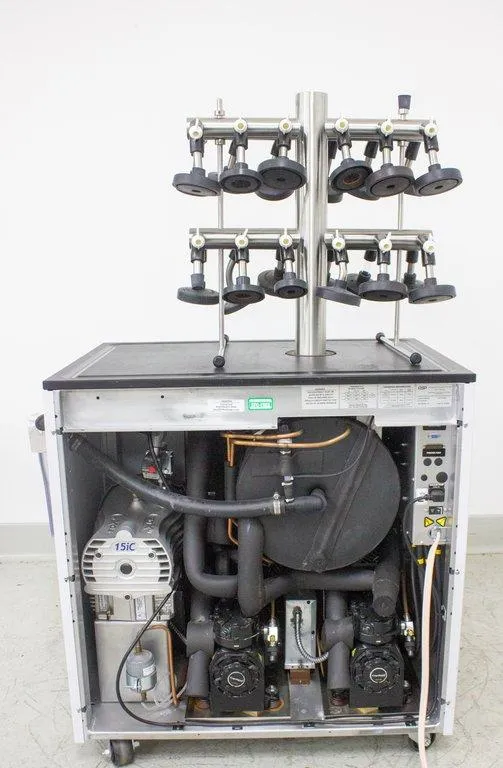

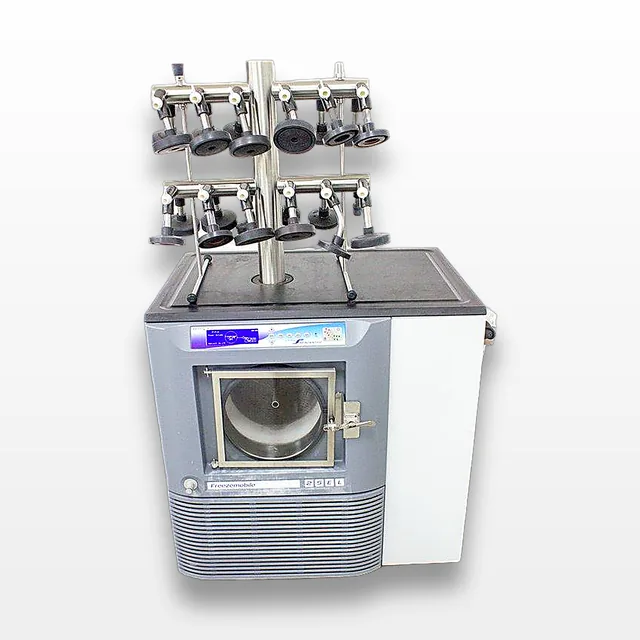

SP Scientific Lab Freeze Dryer FM25EL-85° Part# 100015011
- Make SP Scientific
- Hertz 50Hz/60Hz

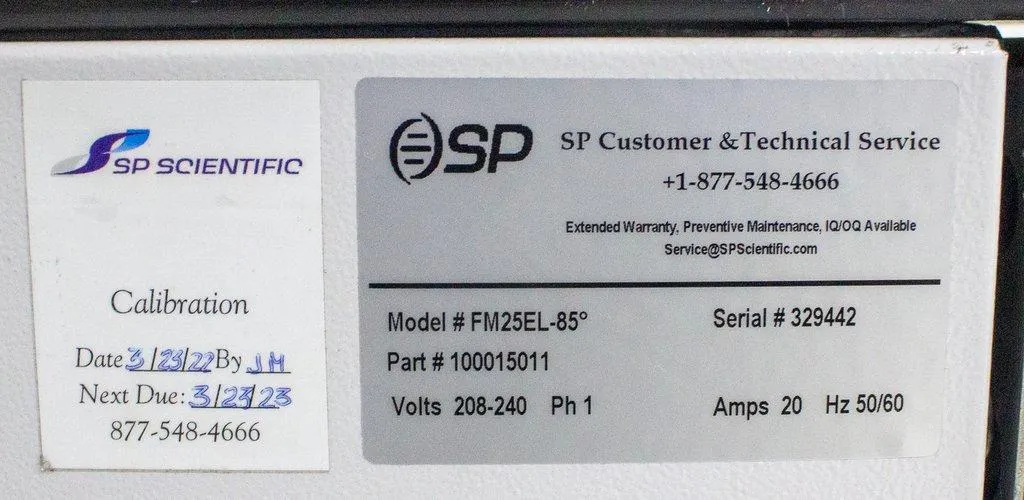

- Model FM25EL-85°
- Serial 329442
- Weight 480.0 Lb
- Voltage 5c0b4d334e
- Includes Power cord included |
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 32.0in x 48.0in x 73.0in
- Shipping Type Freight
- Item Condition G (Good)
- Manufacturing Date Does Not Apply
Product Information
The SP Scientific Lab Freeze Dryer FM25EL-85° is designed for the preservation of biological materials, pharmaceuticals, and other sensitive substances through the process of freeze-drying. This freeze dryer is known for its reliability in maintaining low temperatures and efficient drying performance, making it a staple in many laboratory environments. Applications include preservation of biological samples, freeze-drying of pharmaceutical products, food preservation, and research and development in various scientific fields. The feature set includes a compact, freestanding, mobile design, microprocessor-based Sentry 2.0 controller, and a choice of refrigeration systems to meet a variety of process requirements. Optional manifolds, shelves, and accessories are available, along with filter traps to protect the vacuum pump from corrosive solvents.
Technician comment

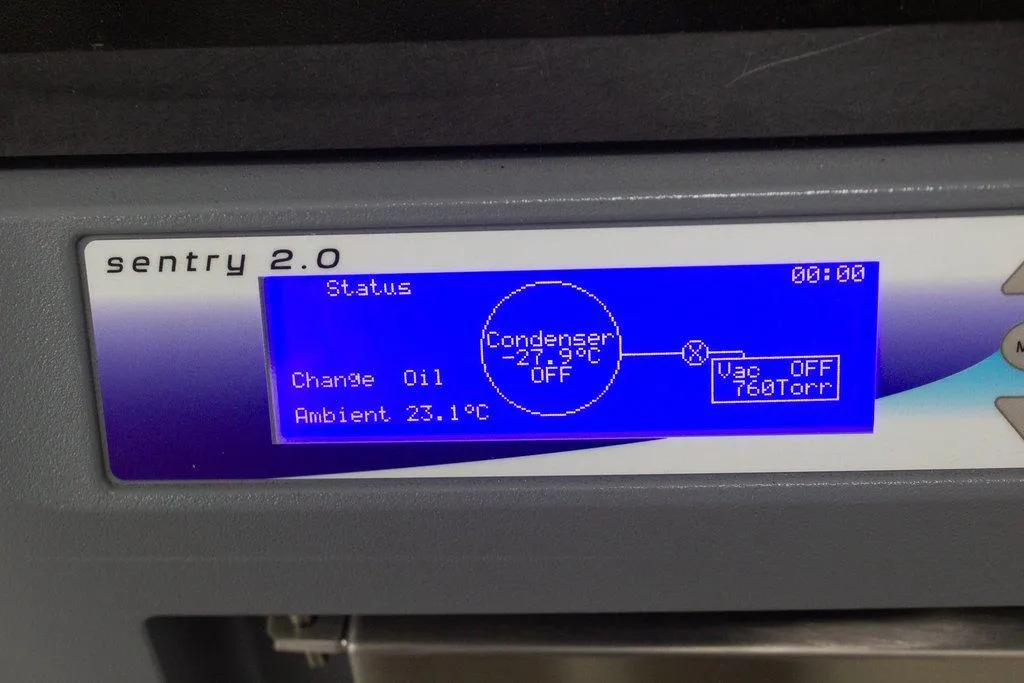

Calibration due, powers on with "Change Oil" notice. Unit is cooling.
Key Features
- Compact, freestanding, mobile design

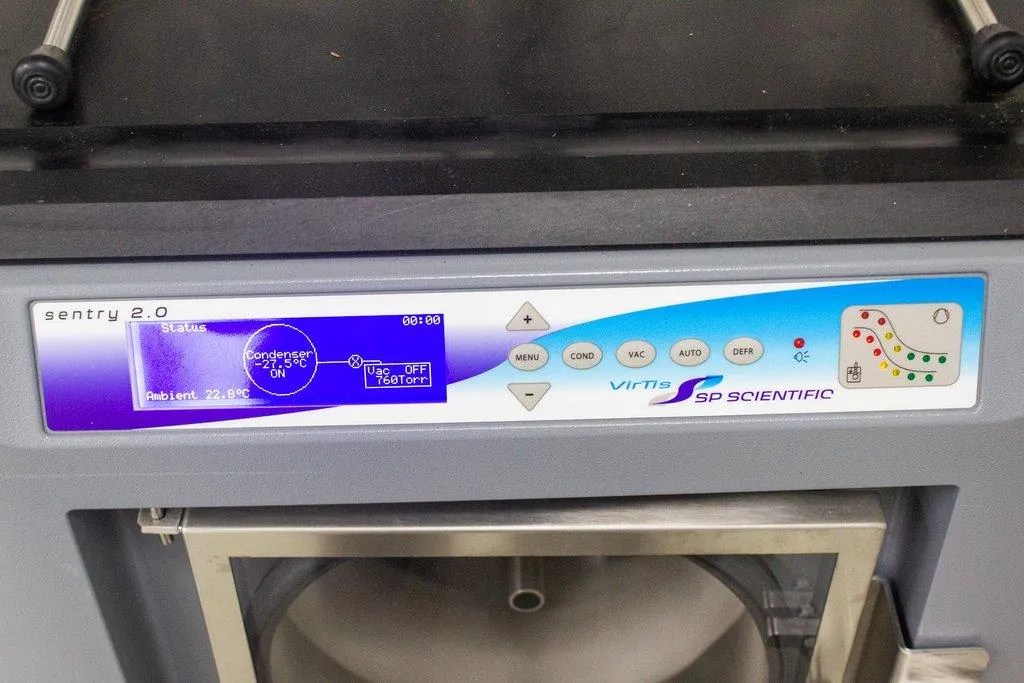

- Microprocessor-based Sentry 2.0 controller
- Choice of refrigeration system to meet a variety of process requirements
- Wide variety of optional manifolds, shelves and accessories available

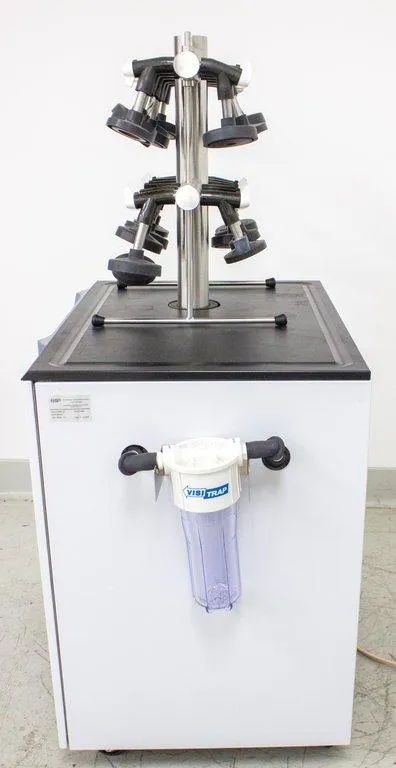

- Optional filter traps available to protect the vacuum pump from corrosive solvents
Specifications
- Lowest Condenser Temperature (50 Hz / 60 Hz, °C): -82 / -85
- Lowest Freezing Temperature with Optional Shell Bath (50 Hz / 60 Hz, °C): -67 / -70
- Maximum Condenser Capacity (L): 25
- Condenser Surface Area (in2/ cm2): 506/3264
- Maximum Ice Condensing Capacity in 24 hours (L): 12
- Maximum Deposition Rate (L/hour): 0.5
- Condenser Pull-Down from 20°C to -45 °C (minutes): ≤ 25

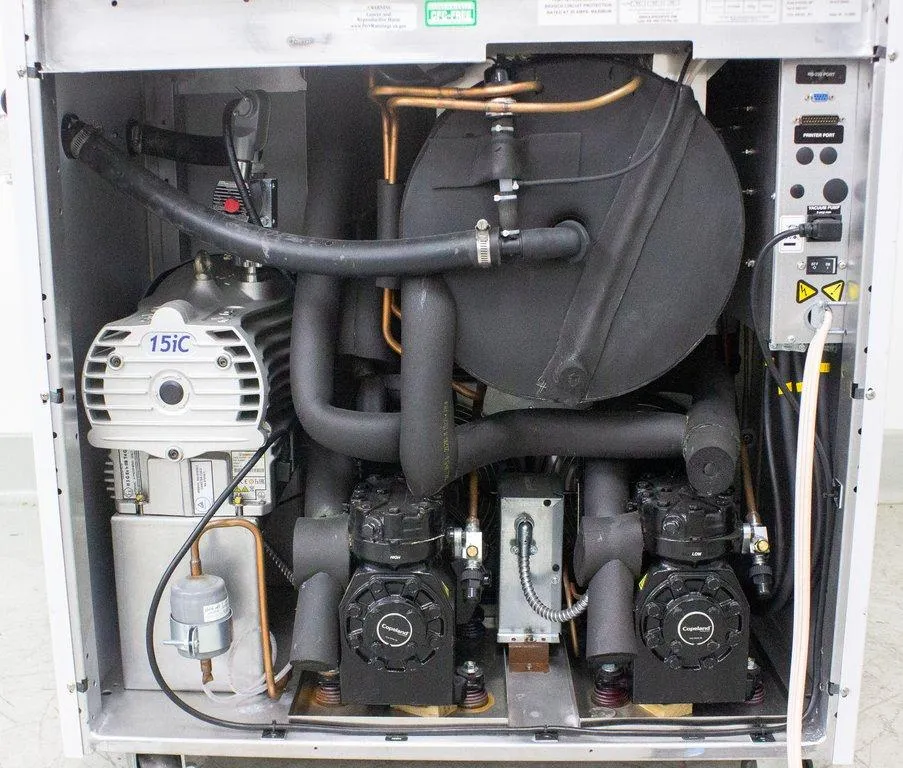

- Number of Compressors: 2
- Compressor Horsepower: 1.0
- System Refrigerant: R508B, R407C
- Vacuum Time to 100 Millitorr (minutes): ≤ 20
- Lowest System Vacuum (mT): ≤ 15
- Average Defrost Time (minutes): ≤ 60
Weight
Metric: 217.72 kg
Imperial: 480 lb
Dimensions
Metric: 81.28 cm x 121.92 cm x 185.92 cm
Imperial: 32 in x 48 in x 73 in
Harmonized Code
841932
Harmonized Code Details
This particular code is for vacuum freeze-drying machines. It is chosen based on the intended function of the equipment and the detailed specifications provided.
