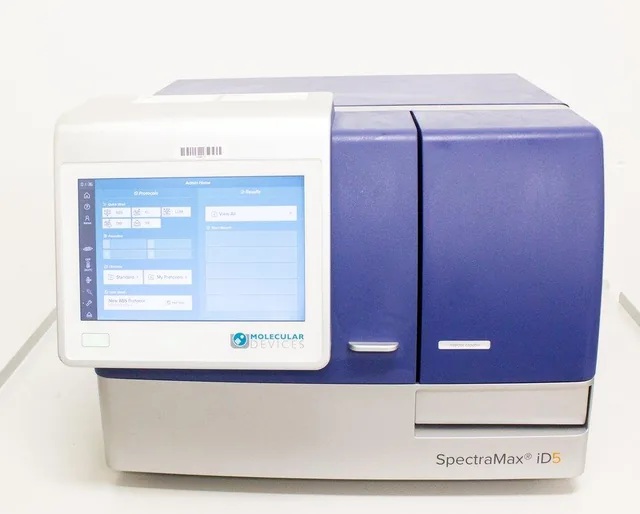

Molecular SpectraMax iD5 Microplate Reader Multi-Mode NFC Touchscreen
Molecular Devices
Details
-
CategorySpectrometer - Multi-Well
-
Dimension24.0in x 21.0in x 16.0in
-
Serial375701315
-
Shipping TypeFedEx Ground
-
Manufacturing2022-06-28
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description
The Molecular Devices SpectraMax iD5 is a multi-mode microplate reader, manufactured in 2022, offering capabilities in absorbance, fluorescence, and luminescence measurements. It also measures TRF and FP, with potential expansion for TR-FRET, HTRF, BRET, and dual luciferase reporter assays with injectors, catering to a wide spectrum of research applications like drug discovery and DNA/RNA quantitation. Featured with an NFC-based personalization and an intuitive touchscreen, it simplifies task execution by accessing and storing custom protocols. Despite showing a warning 'System Battery maintenance scheduled' on startup, the unit powers on and functions as intended. Ambient to 66°C temperature control, enhanced security, and hybrid optical system using QuickSync for network data pushing are additional highlights. Ideal for ELISA, protein quantification, and western blot detection, this device enhances research efficiency with its optimized reagents and SoftMax Pro Software, offering a streamlined experience in breakthrough research.
Technician comment
Powers on without errors. Unit functions as intended. Warning 119 on startup " System Battery maintenance scheduled" Minor scratch on right side panel.;
Key Features
- Multi-mode reading: absorbance, fluorescence, luminescence
- Measures TRF and FP, expandable for TR-FRET, HTRF, BRET
- NFC personalization and enhanced touchscreen for usability
- QuickSync feature for network data sharing
- Temperature control from ambient to 66C
- Ultra-cooled PMT detector for sensitivity
- Automatic filter identification and security features
Specifications
- Read modes: Absorbance, Fluorescence (top/bottom read), Luminescence (top/bottom read), Time-Resolved Fluorescence (top/bottom read), Fluorescence Polarization (top/bottom read)
- Wavelength ranges: Abs: 230 - 1000 nm, FL Ex: 250 - 830 nm, FL Em: 270 - 850 nm, Lumi: 300 - 850 nm, TRF Ex: 350 nm, TRF Em: 450 - 750 nm, FP: 300 - 750 nm
- Wavelength selection: Hybrid filters and monochromator tunable in 1 nm increments
- Light source: High power xenon flash lamp
- Detector: Silicon photodiode, Ultra-cooled photomultiplier tube
- Temperature control: Ambient + 5°C to 66°C
- Plate types: 6-384 well plates
- Dimensions: H 40.1 cm x W 53.2 cm x D 59.8 cm
- Sensitivity top read optimized: FL: Mono: 1 pM fluorescein 96 well, 1 pM fluorescein 384 well; Filters: 0.3 pM fluorescein 96 well, 0.5 pM fluorescein 384 well
Weight
Imperial: 108.0 Pounds
Metric: 48.99 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 25.2 lb x 19.2 lb
Metric: 73.15 cm x 64.01 cm x 48.77 cm
Harmonized Code
902290
Harmonized Code Details
Harmonized code 902290 pertains to specialized laboratory equipment such as spectrophotometers used for analytical and diagnostic applications. The SpectraMax iD5's multi-mode reading capability supports its classification under this code.
