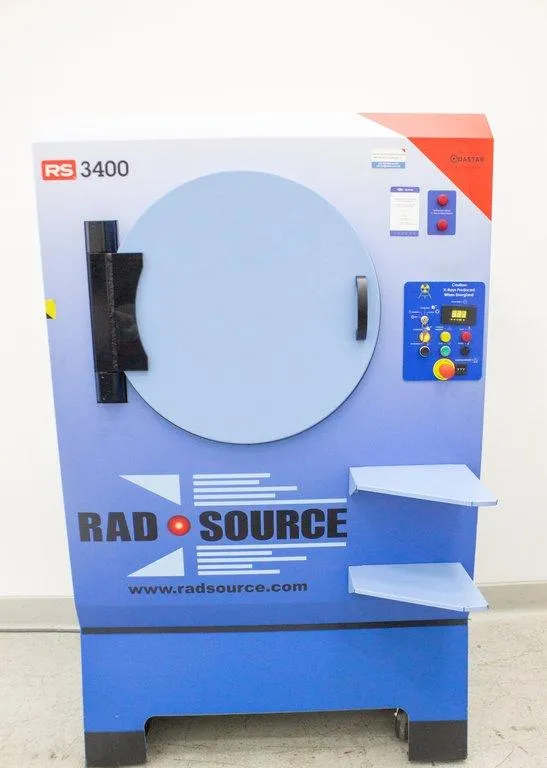

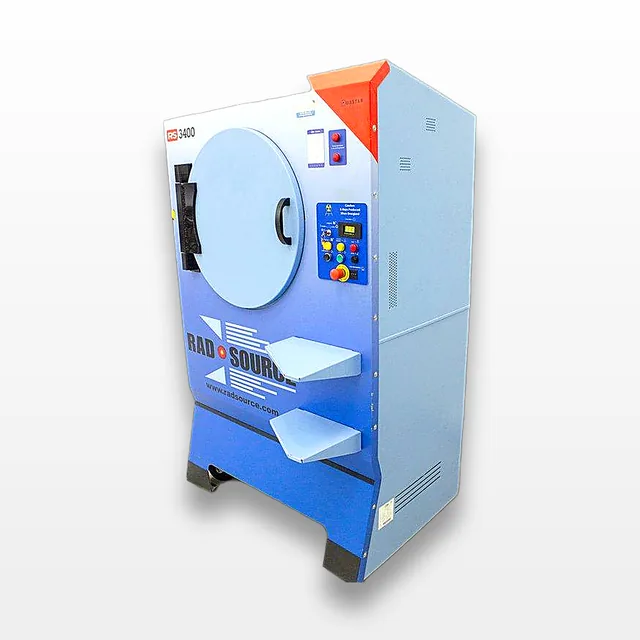

Rad Source RS 3400 X-Ray Blood Irradiator, High Throughput & Uniformity
Rad Source
Details
-
CategoryClinical
-
Dimension41.0in x 47.0in x 76.0in
-

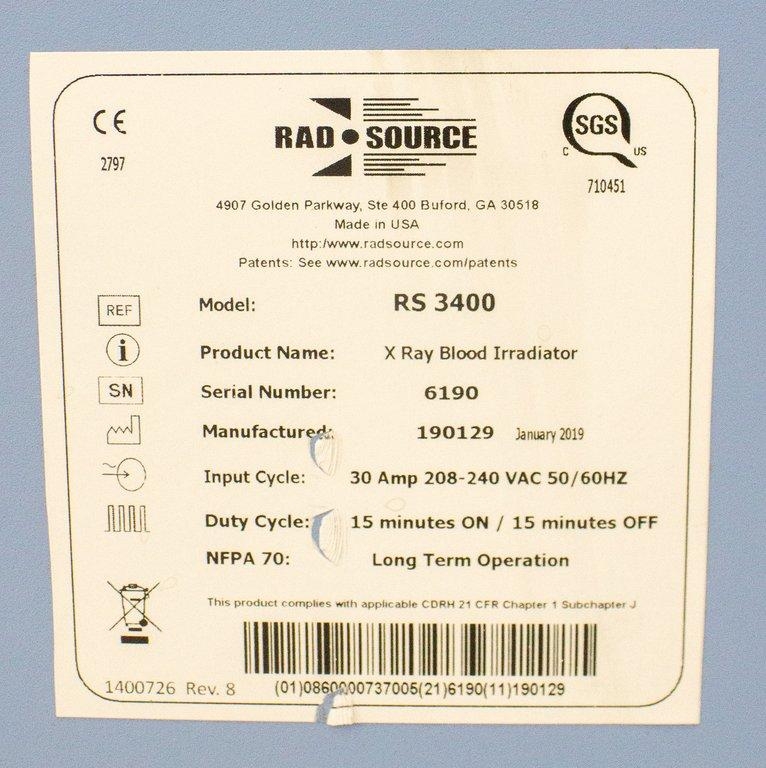

Serial6190
-
Shipping TypeFreight
-
Manufacturing2019-01-01
-
Voltage / Hertz208-240V / 50Hz/60Hz
Description
The Rad Source RS 3400, manufactured in 2019, is a premier X-Ray blood irradiator designed for high throughput and unmatched dose uniformity in life science applications. With a cycle capacity of up to 6 liters, this device efficiently processes whole blood bags, platelet bags, and syringes within a 5-minute cycle. Featuring a patented Quastar x-ray emitter, the irradiation achieves a Dose Uniformity Ratio (DUR) as low as ~1.35. As a direct replacement for gamma irradiators, the RS 3400 requires no NRC license or nuclear waste management. The unit operates on a simple power supply, with a repairable x-ray emitter that can last up to 7 years. It includes an onboard cooling system that eliminates the need for water hookups. Safety is assured through redundant interlocks preventing access during operation while maintaining external emissions far below federal standards.
Key Features
- Processes up to 6L of blood components in 5 minutes
- Patented Quastar x-ray emitter with DUR ~1.35
- Direct gamma irradiator replacement
- Repairable emitter lasts up to 7 years
- No NRC license or nuclear disposal
- Onboard cooling system, no water hookup
- Compact footprint 86 x 91 cm
Specifications
- Processes whole blood bags, platelet bags, syringes

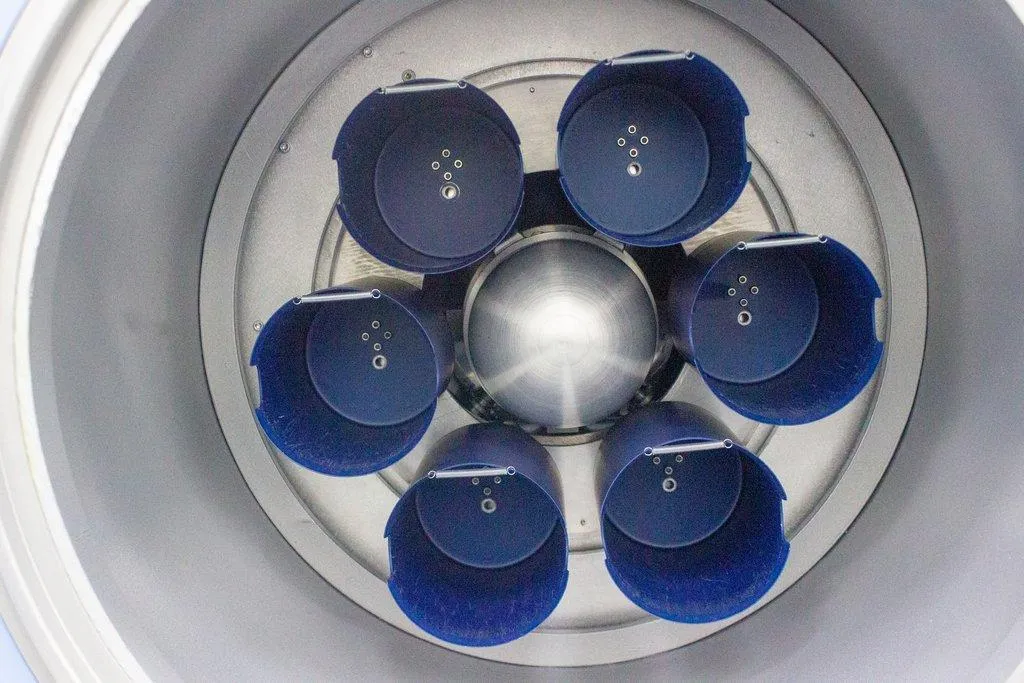

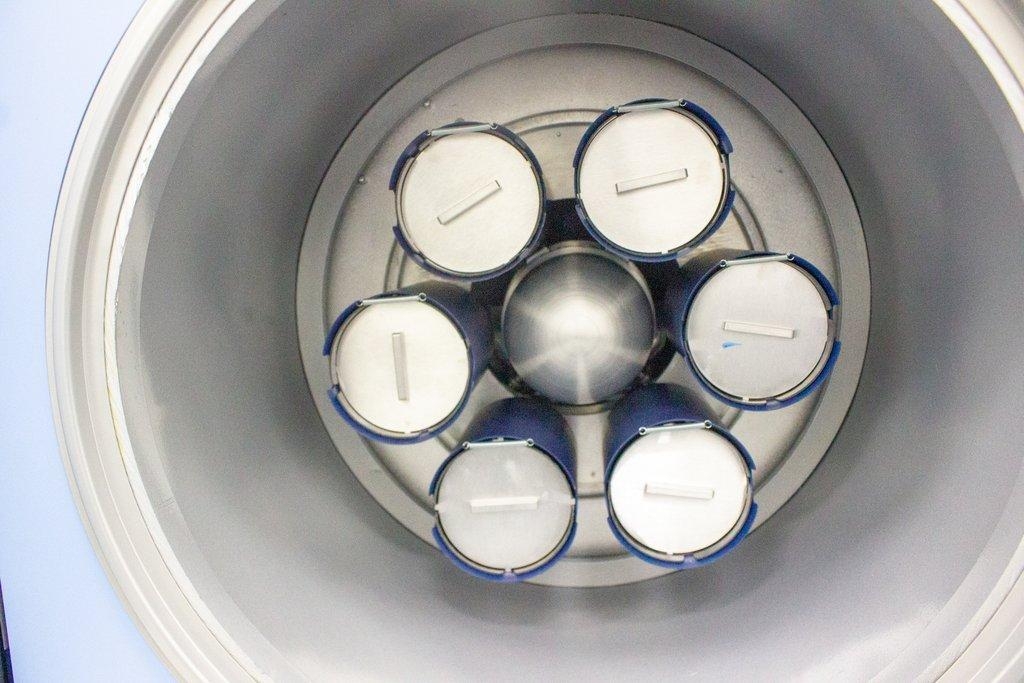

- Holds up to (6) 1 L canisters
- Cycle time for 25Gy dose: <5 minutes
- Runs on 208-240V, 50/60Hz, <2kW
- Dimensions: 33.9 x 33.35 x 68.25 in (86 x 84.6 x 173.35 cm)
- Weight: 1735 lb (786.98 kg)
- No NRC license required
- US-FDA cleared, CE marked
Weight
Imperial: 2082.0 Pounds
Metric: 944.38 Kilograms
Shipping Dimensions
Imperial: 49.2 lb x 56.4 lb x 91.2 lb
Metric: 124.97 cm x 143.26 cm x 231.65 cm
Harmonized Code
9022.13.00
Harmonized Code Details
9022.13.00 - Apparatus based on the use of X-rays for medical, surgical, dental or veterinary uses. Suitable for the Rad Source RS 3400 as it is a medical device using X-rays for blood irradiation.
