Repligen XCell ATF 10 Cell Retention Device 0.2µ 6L 30-80 Lpm Unused
Repligen
Details
-
CategoryBioreactor / Fermenter
-
Dimension27.0in x 49.0in x 23.0in
-
Serial0008
-
Shipping TypeFedEx Ground
-
Manufacturing2019-02-01
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

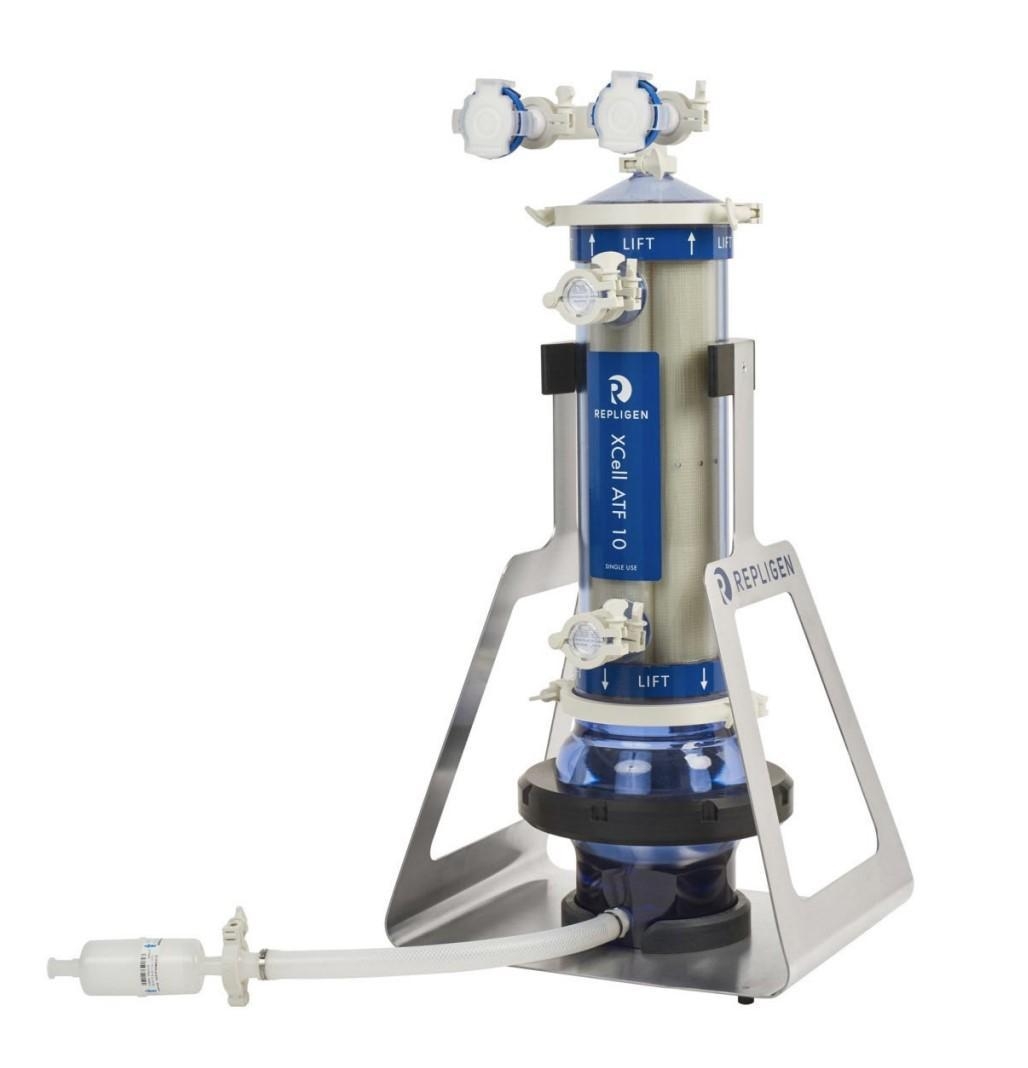

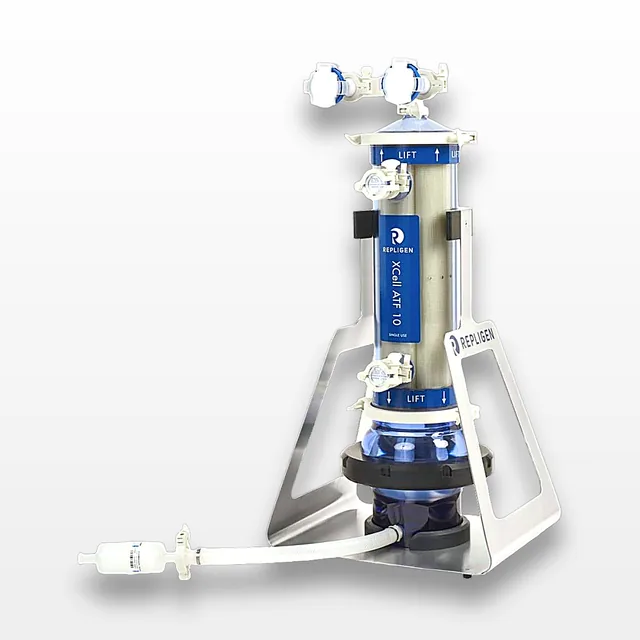

Brand new Repligen XCell ATF 10 Single-use Device, manufacturing year 2019, designed for cell retention in high cell density and high viability cell culture operations. Enables scalable bioreactor solutions, compatible with bioreactors ranging from 200L to 5000L, featuring a 0.2µ pore size for single-use (SU) and PES chemistry, enhancing filtration performance. Offers a substantial effective surface area of 11 m² and provides total displacement volume of 6L. Capable of operating in an ATF flow range from 30 to 80 Lpm, ensuring optimal process flexibility. The device includes XCell C410 Controller and XCell LS Controller, facilitating diverse applications in cell culture development and current Good Manufacturing Practice (cGMP) manufacturing environments. It provides linear scaling from XCell ATF 2 to ATF 10, ideal for supporting multiple scales of cell culture development.
Technician comment
NEW in unopened box.
Key Features
- Single-use device for cell retention
- Compatible with 200-5000L bioreactors
- 0.2µ PES membrane
- Effective surface area of 11 m²
- 6L displacement volume
- ATF flow range: 30-80 Lpm
- Supports linear scaling from ATF 2 to 10
Specifications
- Make: Repligen
- Model: XCell ATF 10
- Sub-Model: SUATF10-S02PES
- Manufacture Date: 2019-02-01
- Pore Size: 0.2µ for single-use
- Chemistry: PES, PS
- Effective Surface Area: 11 m²
- Displacement Volume: 6L
- ATF Flow Range: 30-80 Lpm
- Compatible Controllers: XCell C410 and LS
- Weight: 34 kg / 75 lb
- Dimensions (cm): 68.6 x 124.4 x 58.4
- Dimensions (in): 27 x 49 x 23
Weight
Imperial: 90.0 Pounds
Metric: 40.82 Kilograms
Shipping Dimensions
Imperial: 32.4 lb x 58.8 lb x 27.6 lb
Metric: 82.3 cm x 149.35 cm x 70.1 cm
Harmonized Code
841989
Harmonized Code Details
841989 - Machinery, plant or laboratory equipment designed for other industrial uses. Applicable due to the equipment's role in cell culture processes and compatibility with laboratory and production bioreactors.
