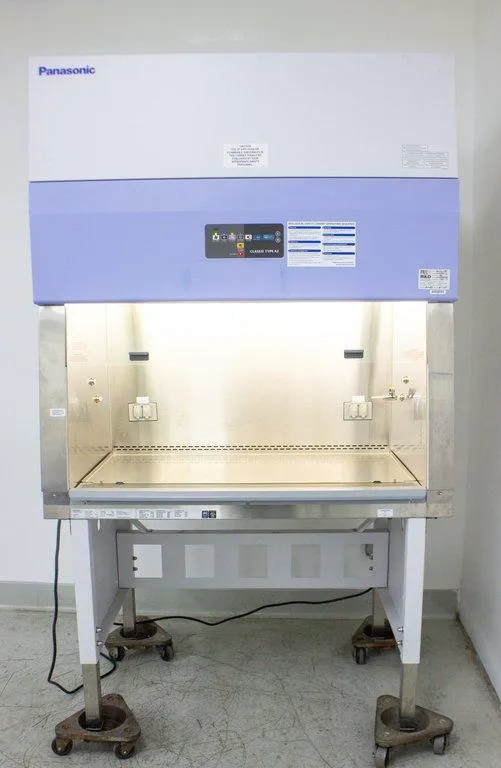

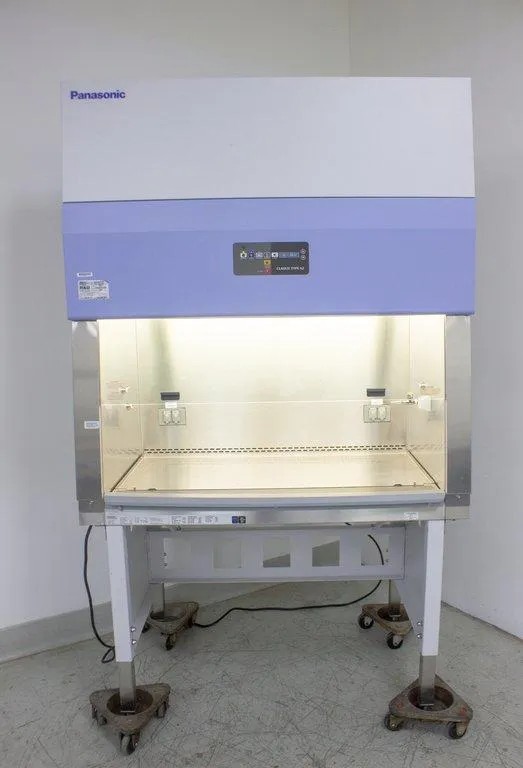

Panasonic MHE-N400A2-PA Class II Type A2 Biological Safety Cabinet with HEPA Filtration
Panasonic
Details
-
CategoryHood
-
Dimension32.0in x 54.0in x 92.0in
-
Serial161150012
-
Shipping TypeFreight
-
Manufacturing2016-01-01
-
Voltage / Hertz115V / 60Hz US
Description

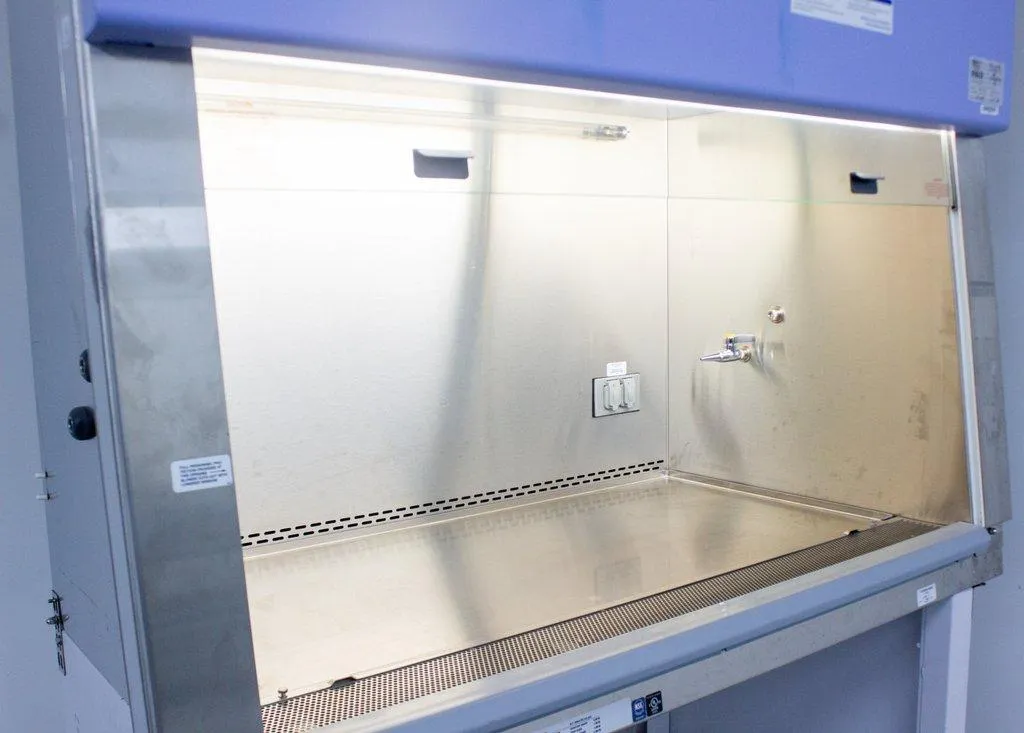

The Panasonic MHE-N400A2-PA Class II Type A2 Biological Safety Cabinet, manufactured in 2016, is expertly designed for work with low to moderate risk organisms. This biohazard safety cabinet emphasizes personnel, product, and environmental protection through its high-performance airflow and HEPA filtration systems. With an airflow containment zone and 99.99% efficient HEPA filters, it ensures effective removal of biological particulates. Its ergonomic design, including uniform interior lighting and a glare-resistant front sash, enhances user comfort and minimizes repetitive motion stress. This cabinet is crafted from sturdy, polished welded stainless steel and features a microprocessor control system for efficient operation. With its negative pressure plenums and aerodynamically shaped surfaces, it minimizes contaminant entry. Actual weight is 480 lbs and dimensions are 53.6' W × 31.4' D × 61.9' H.
Technician comment

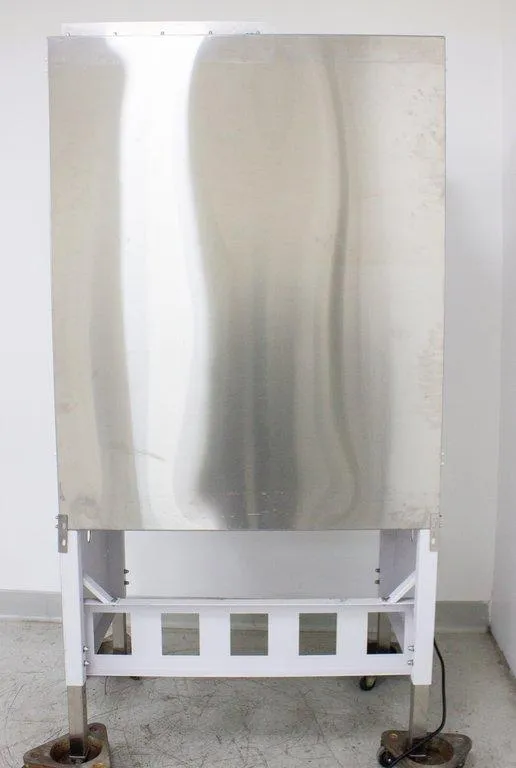

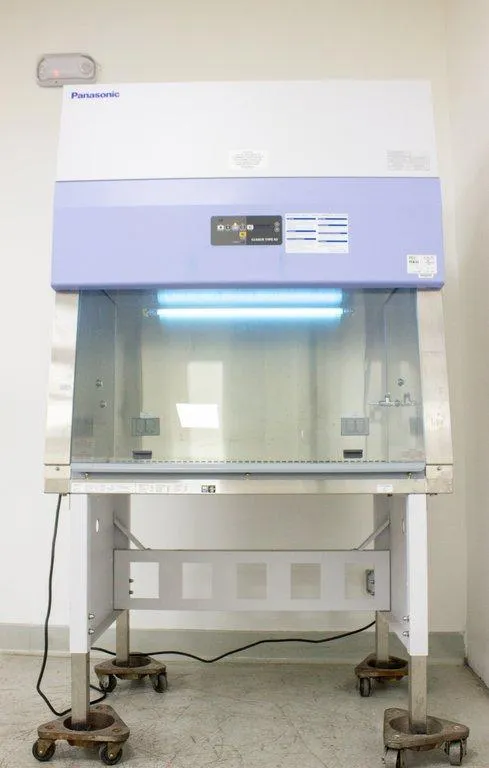

Minor stains on front panel, UV, Lights & blower all working. Includes base stand.
Key Features
- Class II Type A2 Biological Safety Cabinet
- High performance airflow and filtration
- 99.99% efficient HEPA filters
- Ergonomic design for user comfort

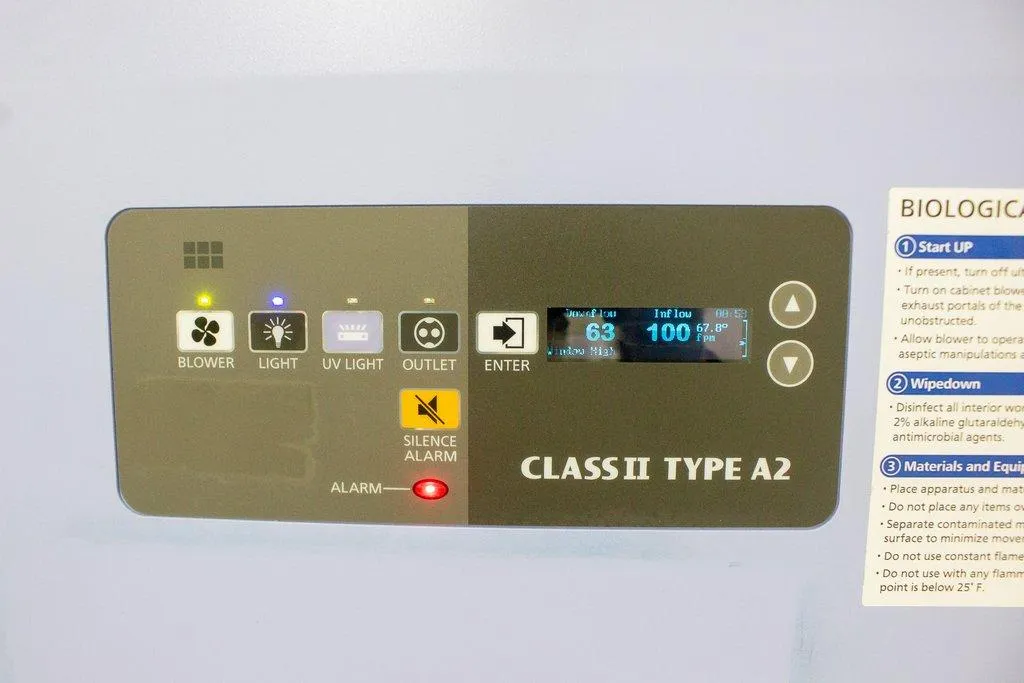

- Microprocessor control with universal icon touchpad
- Polished welded stainless steel construction
Specifications
- External Dimensions: W 53.6", D 31.4", H 61.9"
- Internal Dimensions: W 46.4", D 25.8", H 28.5"
- Weight: 480 lbs (218 kg)
- NSF/ANSI 49 Classification: Class II, Type A2

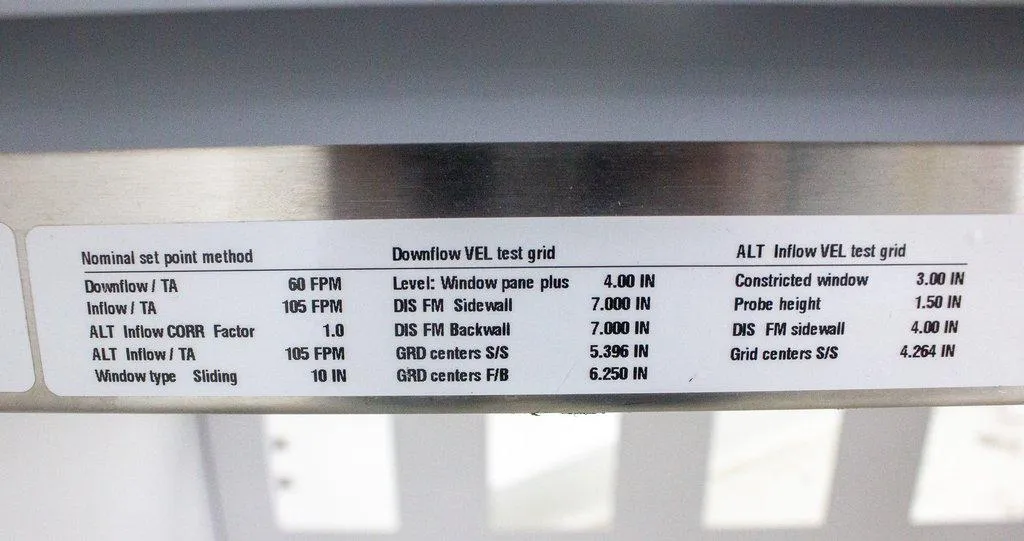

- Standard Inflow Velocity: 105 FPM (0.53 m/s)
- HEPA Supply/Exhaust Filter: 99.99% effective on 0.3 microns
- Fumigation: Per NIH/NSF Procedures

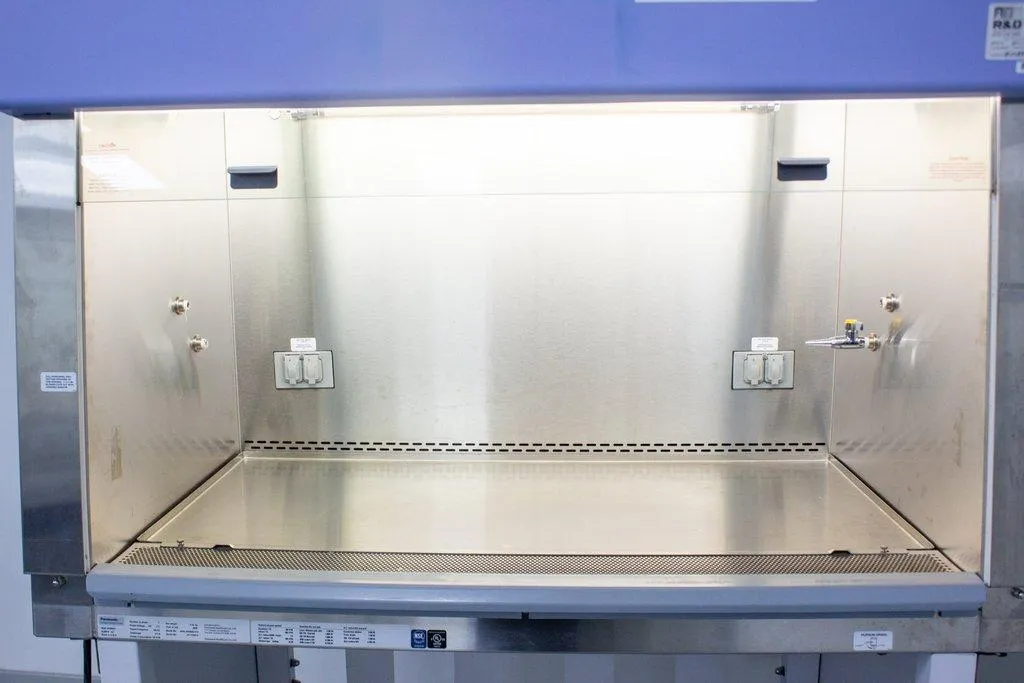

- Gas Valve/Service Coupling: 1 right sidewall
- Duplex Outlet: 2 backwall
- Ultraviolet Light: 1 backwall
- Viewing Window Opening Range: Fully closed to 21" open
- Electrical Classification: UL / UL-C Listed
- Power Supply: 115V, 60Hz
Weight
Imperial: 576.0 Pounds
Metric: 261.27 Kilograms
Shipping Dimensions
Imperial: 38.4 lb x 64.8 lb x 110.4 lb
Metric: 97.54 cm x 164.59 cm x 280.42 cm
Harmonized Code
841460
Harmonized Code Details
Harmonized code 841460 is for nuclear reactors, boilers, machinery and mechanical appliances. This aligns with the description of a Biological Safety Cabinet, which is a type of machinery used for safety and containment in scientific environments.
