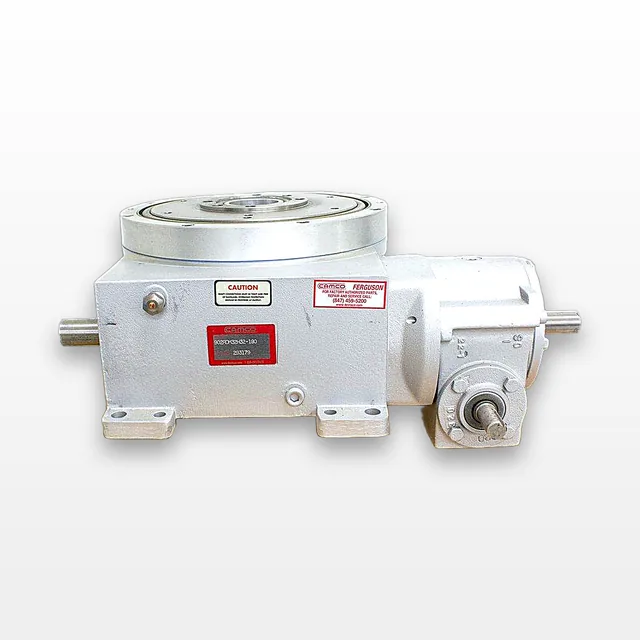

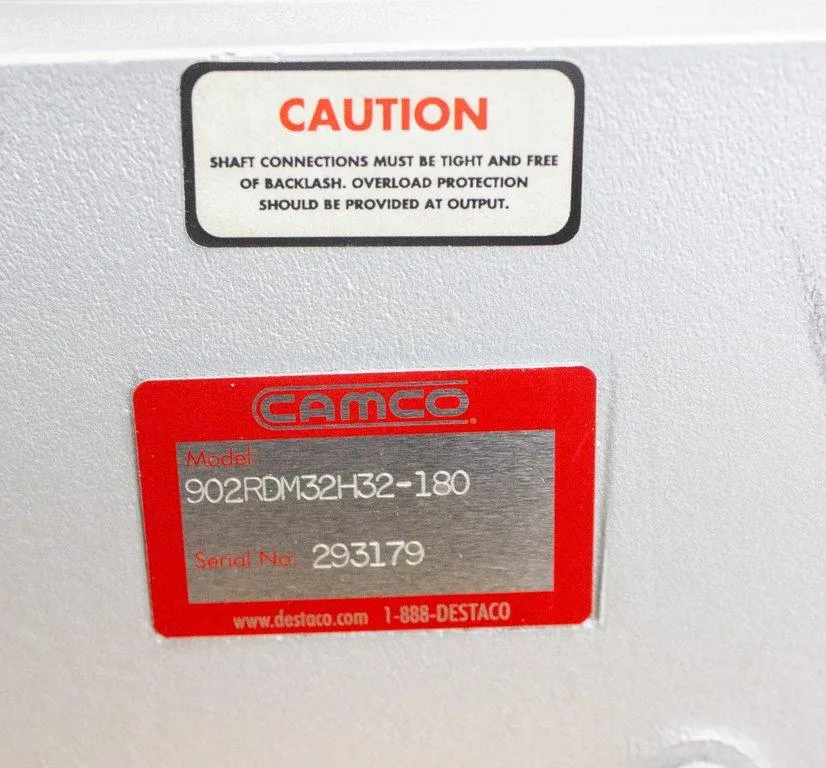

Camco 902RDM32H32-180 Rotary Index Drive 902RDM Series

The Camco 902RDM32H32-180 Rotary Index Drive 902RDM Series is a precision cam-operated rotary index drive designed to move products and components smoothly and with precision. It features high precision, hardened cams, superior accuracy, and a sealed 4-point contact output bearing for handling high loads and speeds with controlled acceleration and deceleration for repeatable positioning. With a 60-station capacity, it's ideal for multi-part automatic assembly machines. The unit has some minor damage on the shaft and is sold AS/IS. Typical applications include dial diameter accuracy, repeatability, and multi-part assembly machines.

Technician comment

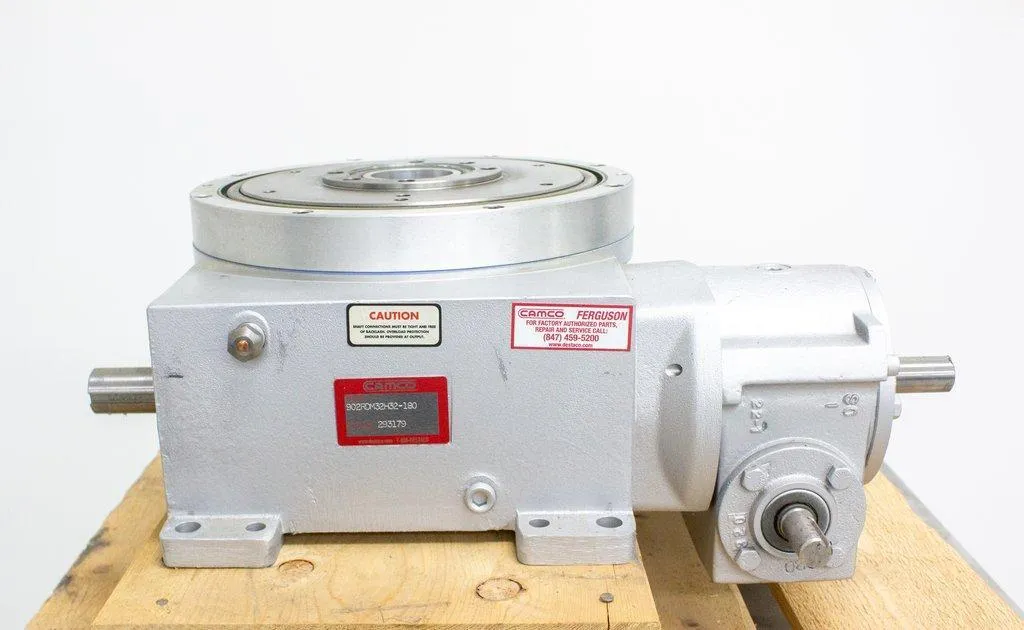

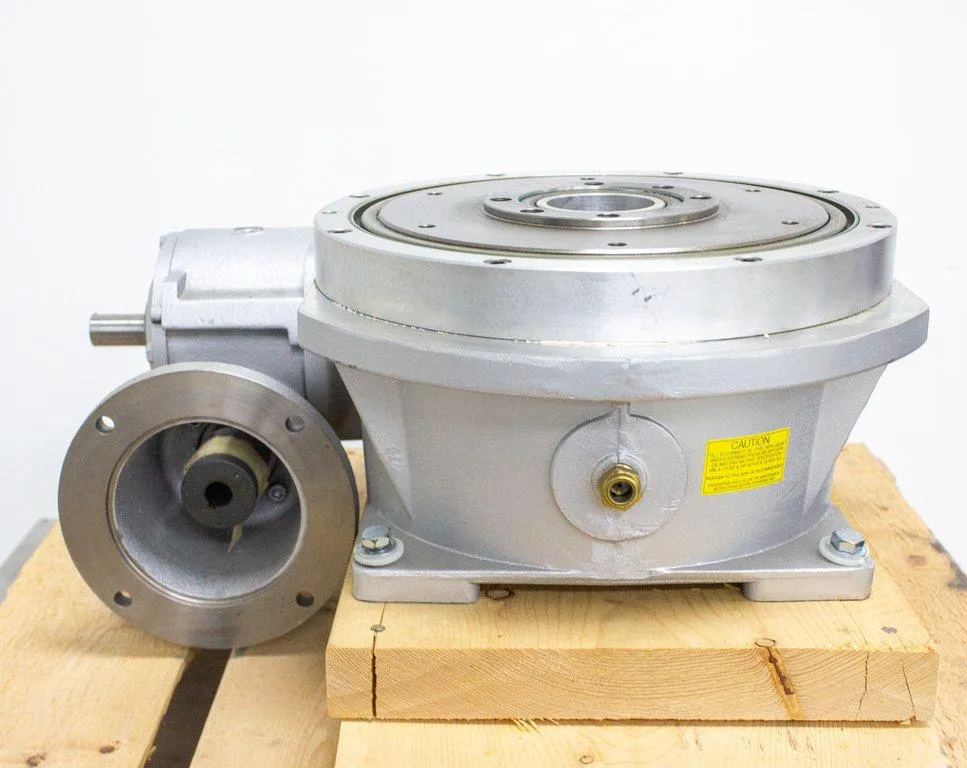

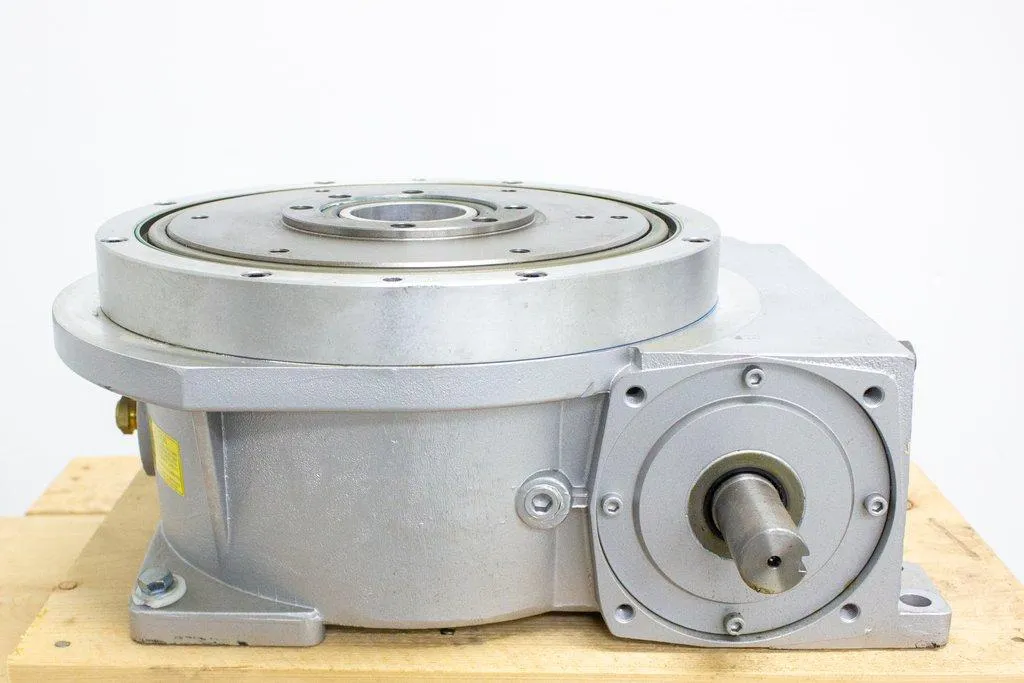

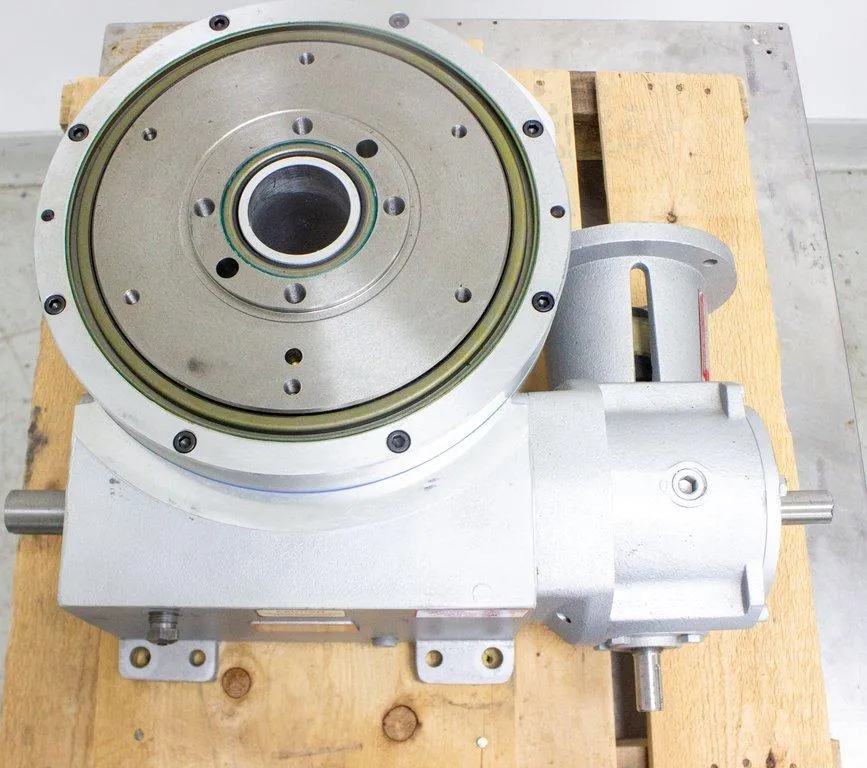

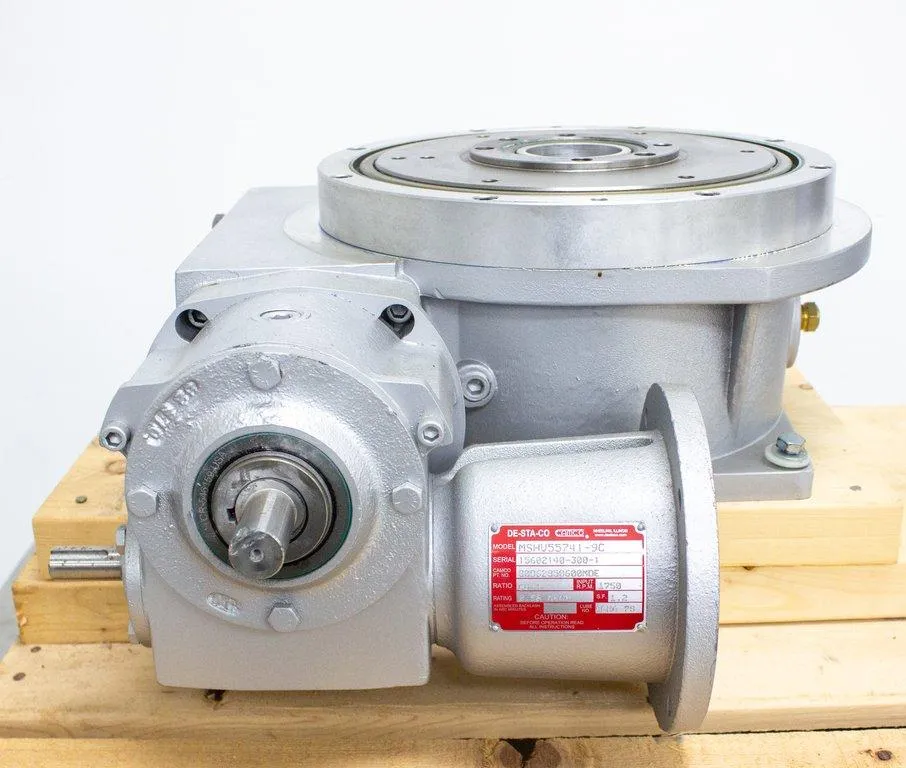

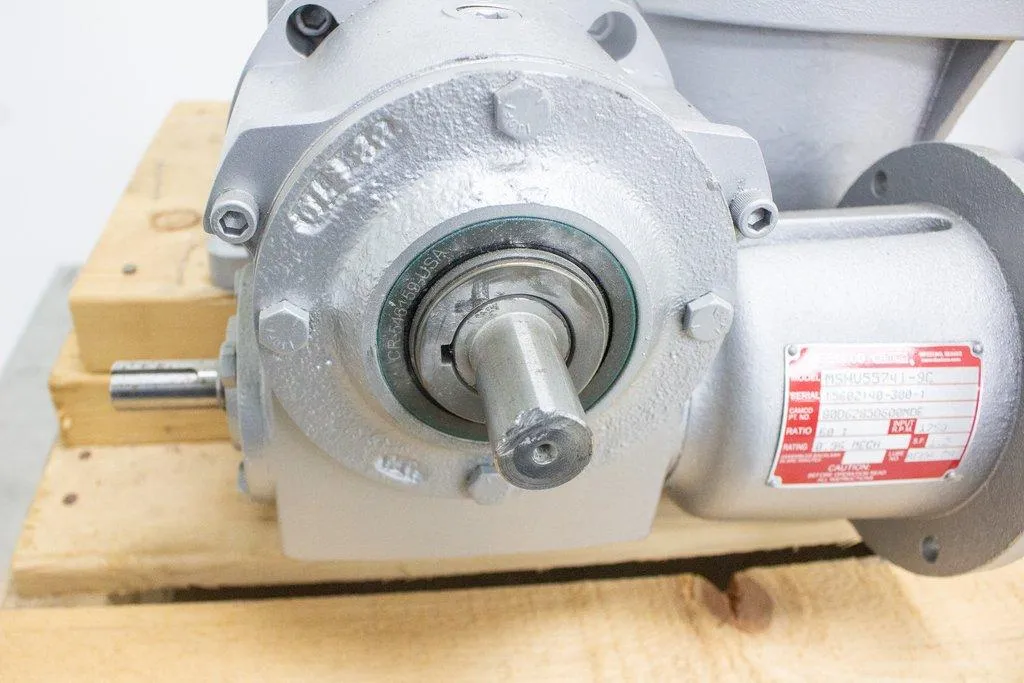

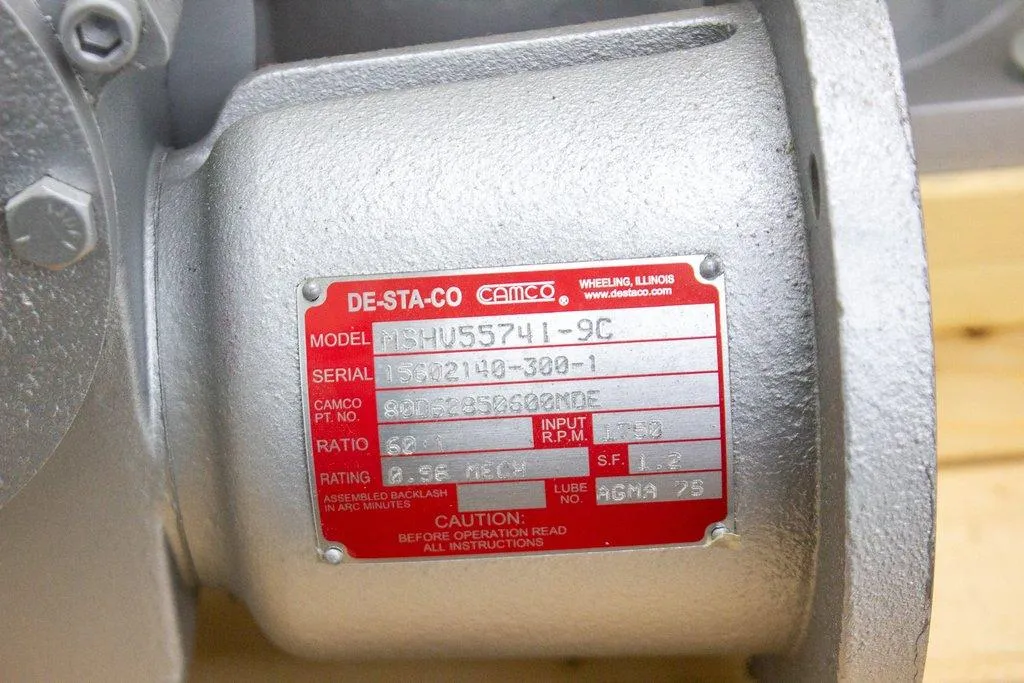

Minor damage on shaft. Unit for sale AS/IS. See photos for details.

Key Features

1. High precision, hardened cams
2. Sealed 4-point contact output bearing
3. 60-station capacity

Specifications

1. Load Capacity - Radial: 3540 lbs, Thrust/Axial: 7000 lbs
2. Output Load Capacity - Radial: 15747 N [3540 lbs], Thrust/Axial: 31138 N [7000 lbs], Moment: 2443 N-m [21620 in-lb]
3. Accuracy - ±27 arcsec / ±0.08 mm [±.003in] at 609.6 mm [24in] Radius
4. Repeatability - ±7 arcsec / ±0.020 mm [±.0008in] at 609.6 mm [24in] Radius

Weight

Metric: 0 kg

Imperial: 0 lb

Dimensions

Metric: 90.9 cm x 85.1 cm x 48.2 cm

Imperial: 35.8 in x 33.5 in x 18.9 in
