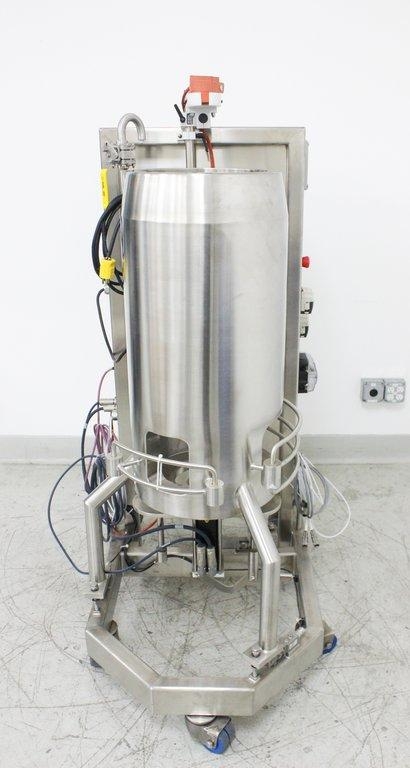

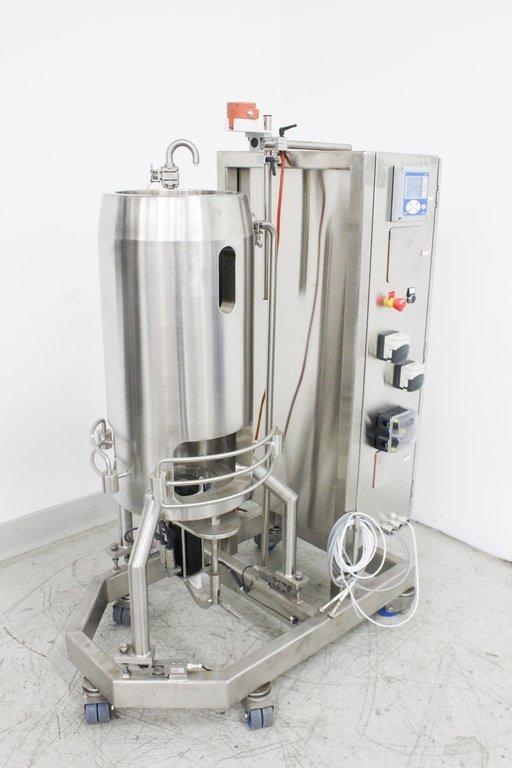

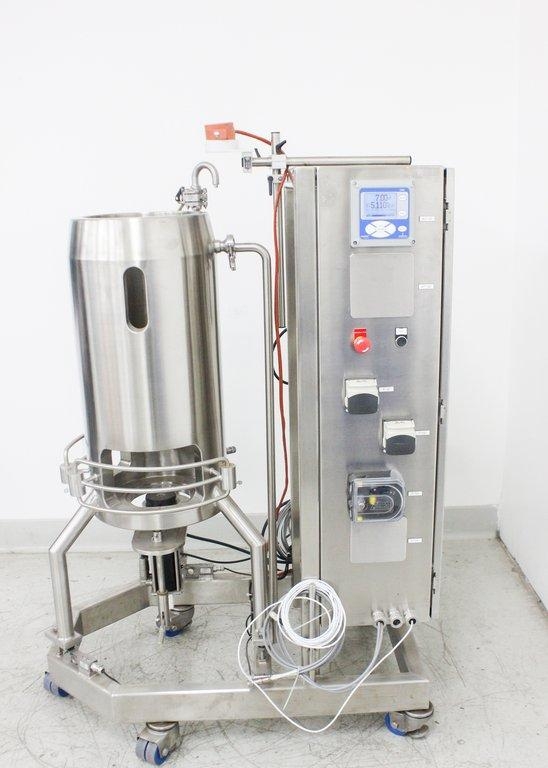

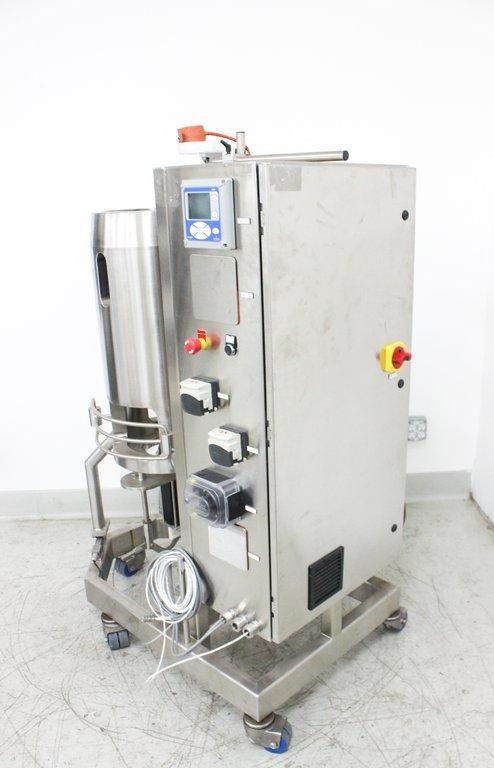

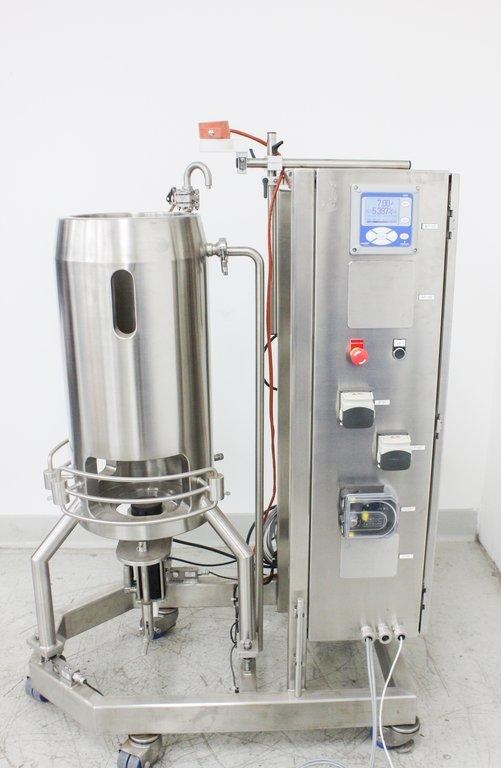

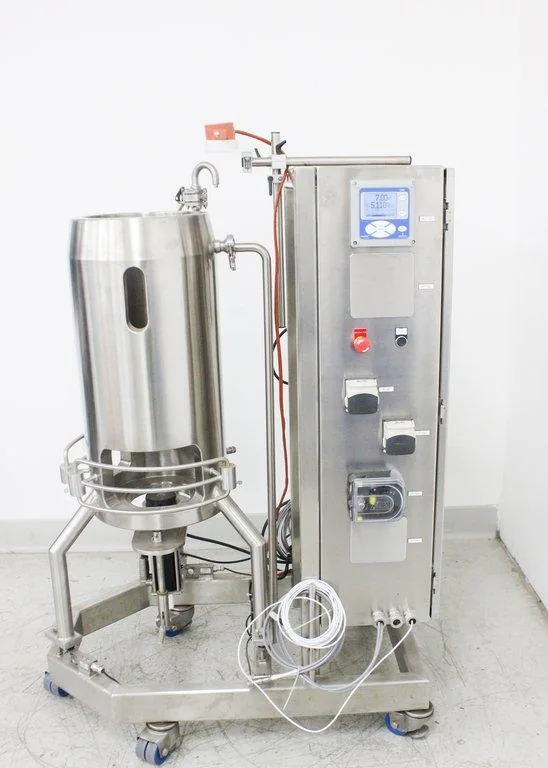

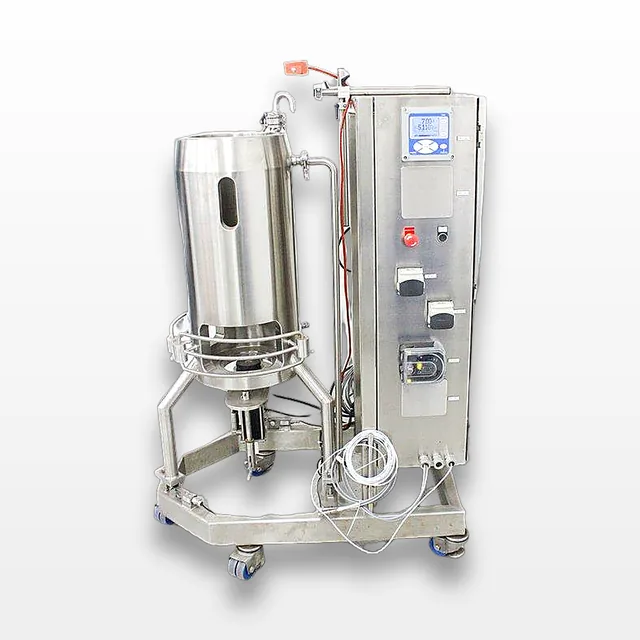

XDR-50 Single-Use Stirred-Tank Bioreactor by Xcellerex/Cytiva
- Make Xcellerex/Cytiva
- Hertz 60Hz US
- Model XDR-50
- Serial X0222010
- Weight 1234.0 Lb
- Voltage 120V
- Includes All cables (power and data) included | Power cord included |
- Warranty 30-Day Warranty On Part
- Dimensions 38.0in x 54.0in x 80.0in
- Shipping Type Freight
- Item Condition Good
- Manufacturing Date Does Not Apply
Product Information
The Xcellerex XDR-50 single-use stirred-tank bioreactor is designed to offer scalable and robust stirred-tank performance for up to 2000 L. It is reliable and quantifiable, with a modular design that enables configurability, adaptability to a variety of molecules, and applications including batch, fed-batch, and perfusion processes. This single-use technology provides seamless process scalability and supports smooth transfer from process development to manufacturing scale. It features a jacketed stainless steel vessel for precise temperature control, robust industrial automation for process control and data management, and gas mass flow and liquid pump options for highly productive cultures.
Technician comment

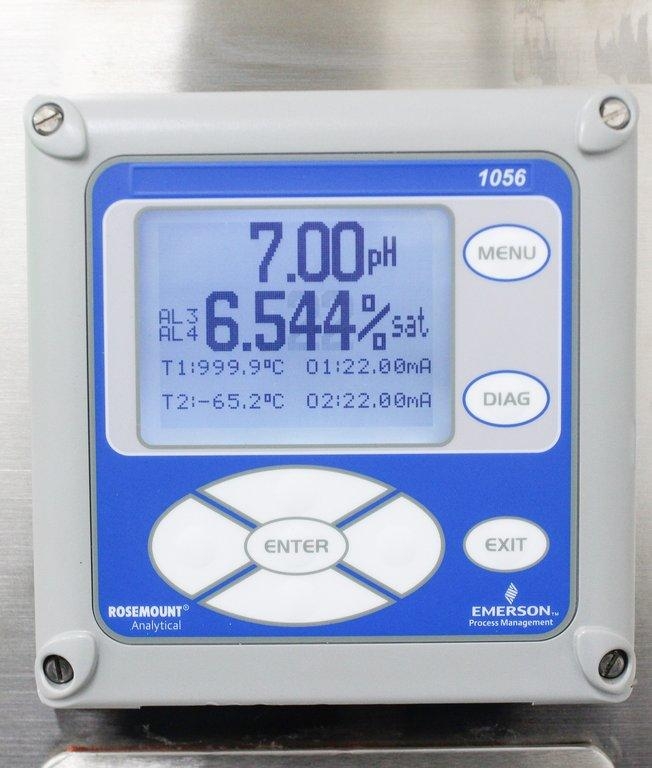

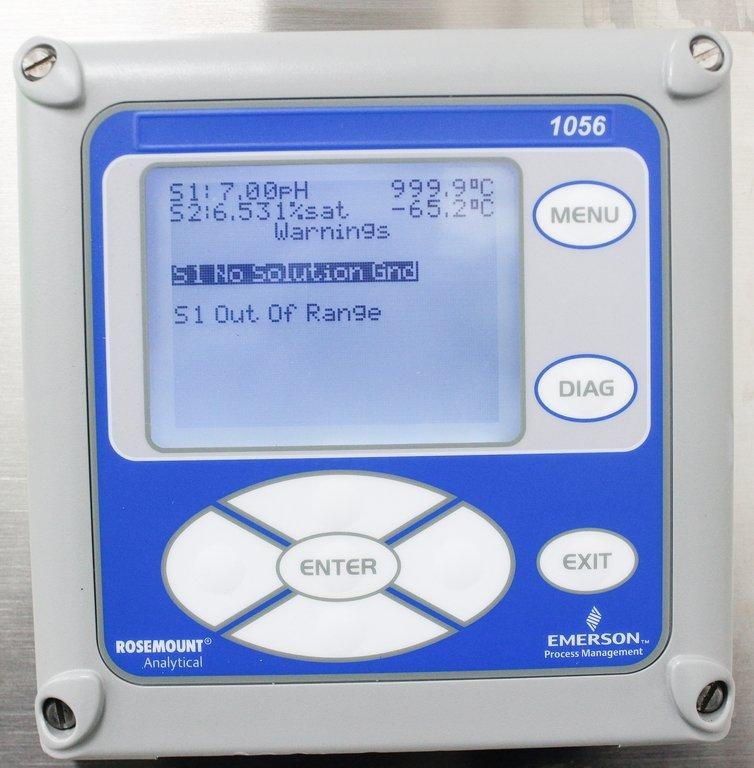

XDR 50 powers on but under menu diagnostics states (S1 No Solution Gnd & S1 Out of Range) also (Fault S2 RTD Open. 1 Check RTD wiring connections, 2 Check RTD for opens and shorts) Unit needs to be connected to control console to fully test. See photos for details.
Key Features
- Scalable and robust stirred-tank performance
- Reliable and quantifiable process performance
- Modular design for configurability and flexibility
- Jacketed stainless steel vessel for precise temperature control

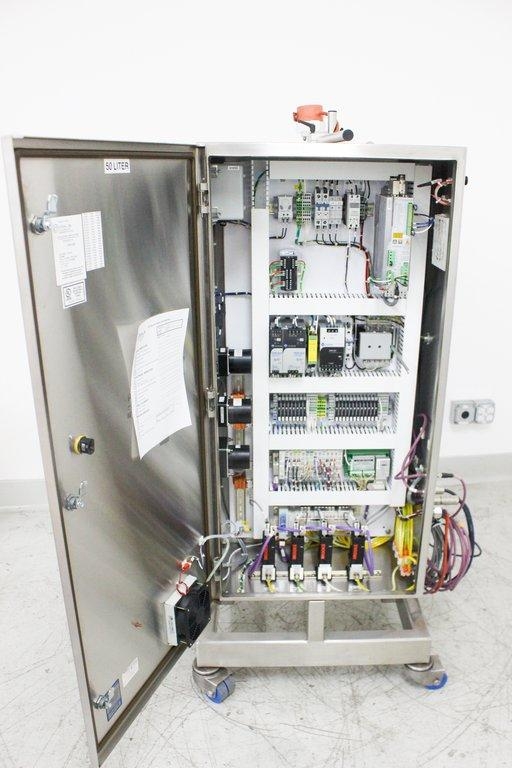

- Robust industrial automation for process control and data management
- Gas mass flow and liquid pump options for highly productive cultures
Specifications
- Maximum working volume (L): 50
- Minimum working volume (L): 25
- Head-space volume at maximum working volume (L): 17.16
- Volume turn-down ratio: 2:1
- Aspect ratio (H/D): 2.25:1

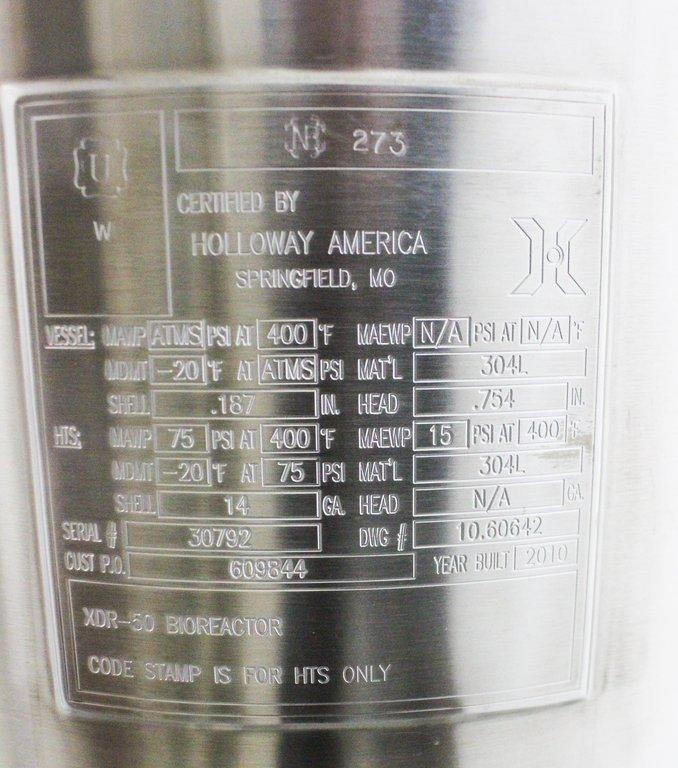

- Vessel: Jacketed 304 SS
- Filter heat assembly: 1
- Biocontainer hoist: NA
- Impeller: M40e pitched-blade type with 3 blades at 40° pitch
- Dimensions (W × H × D): 149 × 211 × 123 cm (58½" × 82¾" × 42⅛")
- Weight (empty): 466 kg (1028 lb)
Weight
Metric: 466 kg
Imperial: 1028 lb
Dimensions
Metric: 149 cm x 211 cm x 123 cm
Imperial: 58.5 in x 82.75 in x 42.125 in
Harmonized Code
841989
Harmonized Code Details
This code covers machinery, plant or laboratory equipment whether or not electrically heated, for the treatment of materials by a process involving a change of temperature; for the growth of micro-organisms such as viruses, bacteria, and other pathogens, or for the production of biological cultures.
