Isoplexis IsoLight-1000-1 Protein Analysis System for High-Throughput Research
Isoplexis
Details
-
CategoryAnalytical
-
Dimension28.0in x 28.0in x 31.0in
-
SerialNA
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz100-240V / Does Not Apply
Description

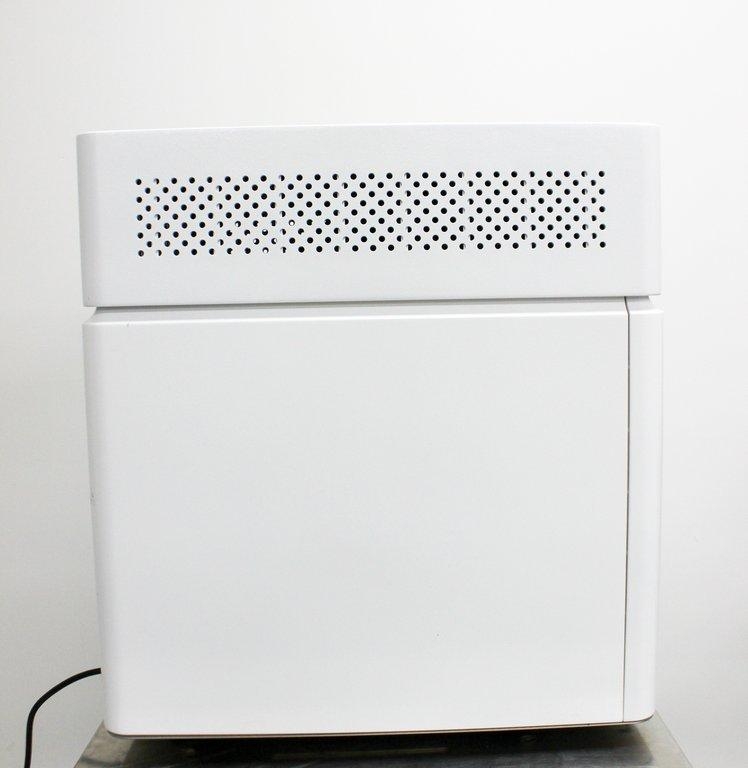

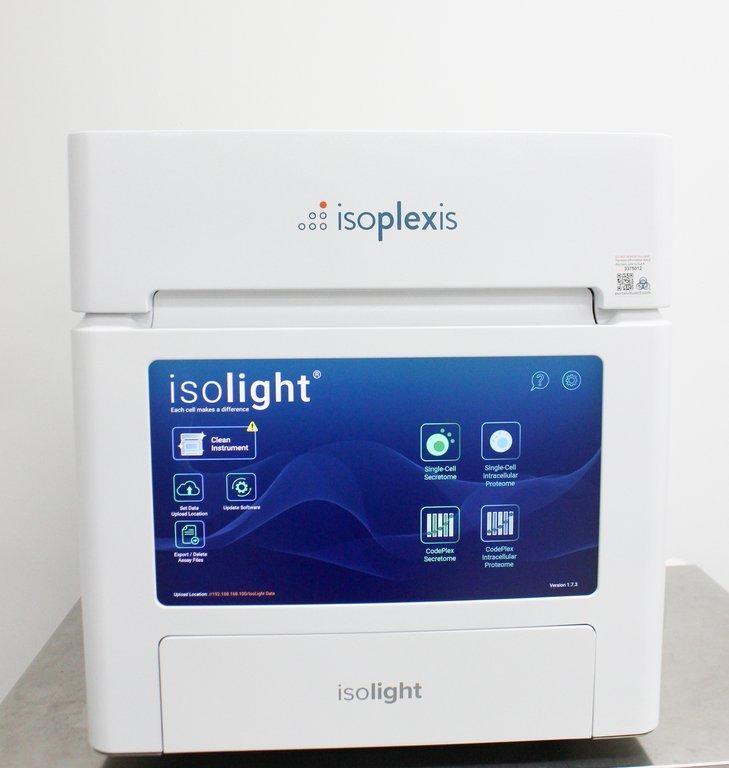

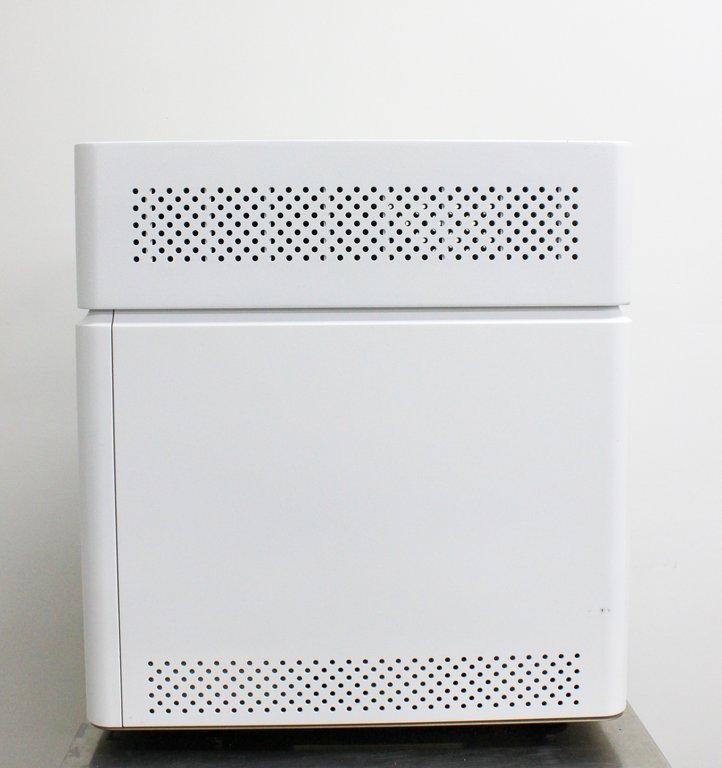

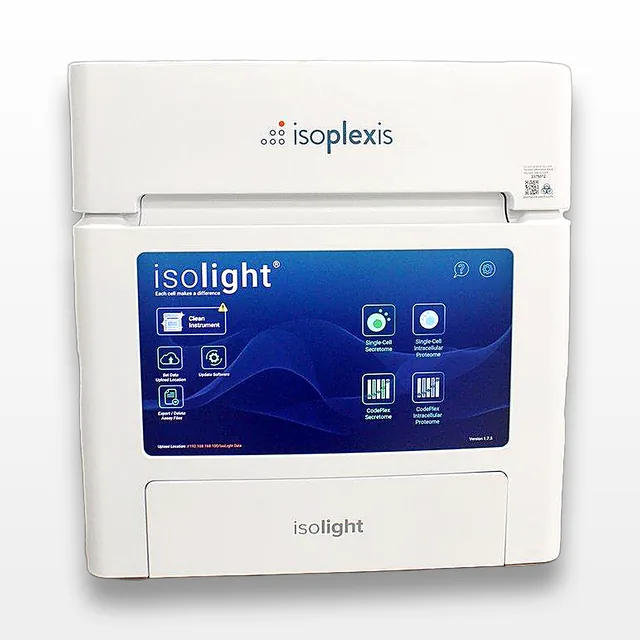

The Isoplexis IsoLight-1000-1, manufactured by Isoplexis in the United States, is a robust single-cell secreted protein analysis system designed for high-throughput research encompassing immunology and immuno-oncology. In good condition, this system powers on and performs basic tests, despite an inability to test its full functionality. The IsoLight-1000-1 supports up to 10,000 isolated cells per run using 8 disposable IsoCode chips and features multiplexed cytokine profiling for comprehensive data insights. It utilizes innovative microfluidic technology and enables precise secretome characterization, making it ideal for applications such as cancer immunotherapy development, infectious disease research, and autoimmune disease investigations. The integrated onboard incubator maintains a temperature of 37 ± 2°C and a CO2 concentration of 5 ± 1%. Powered by 100-240V, it also operates with a laser wavelength capability of 405 nm, 437 nm, and 638 nm, emphasizing its adaptability in various research settings.
Key Features
- Single-cell protein analysis
- High-throughput detection capabilities
- Multiplexed cytokine profiling
- Innovative microfluidic technology
- Integrated onboard incubator functionality
Specifications

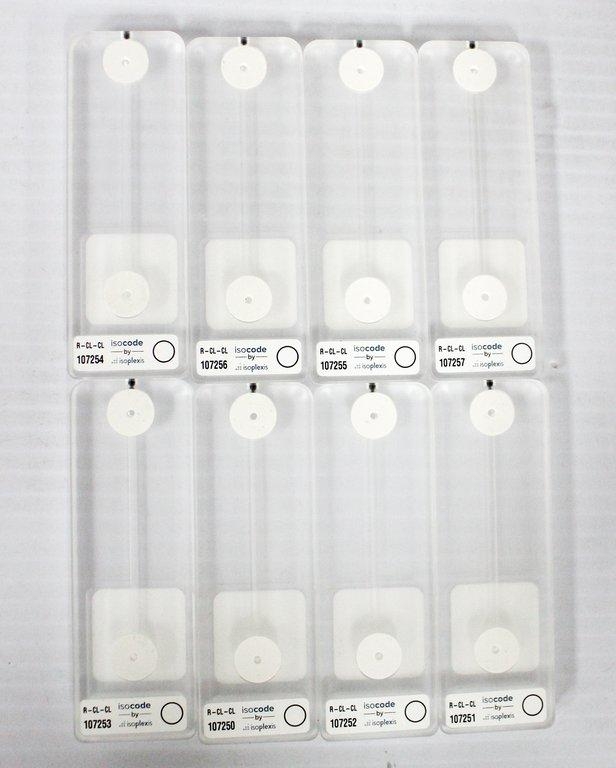

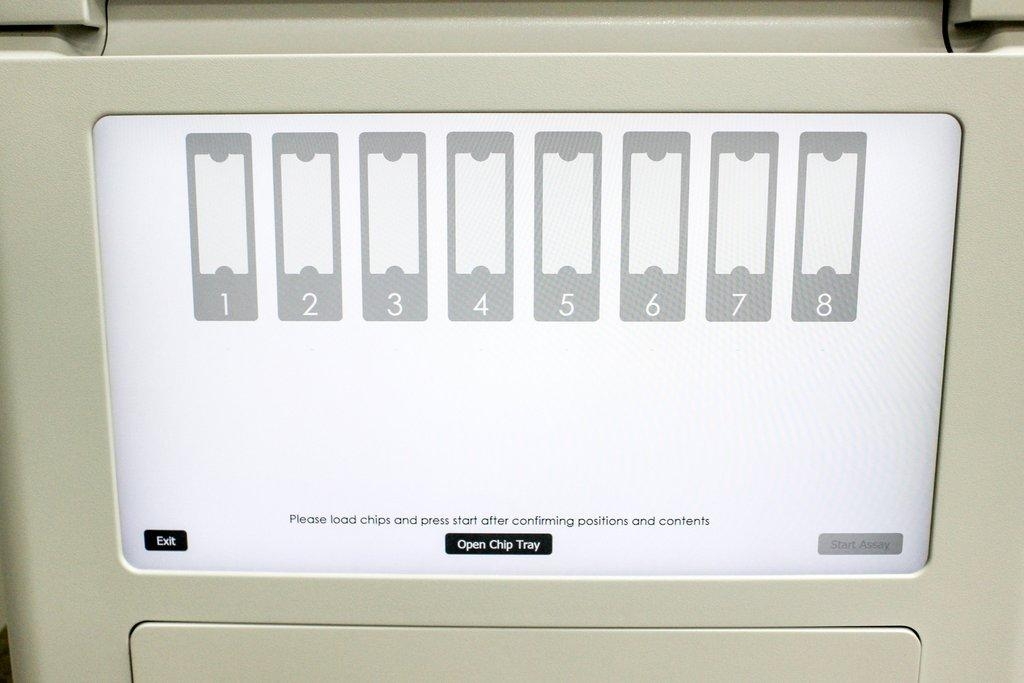

- Consumable Capacity: Up to 8 disposable IsoCode chips per run with barcode tracking
- Reagent Compatibility: Disposable single cartridge
- Cell Capacity: Over 1,250 isolated cells per chip, 10,000 isolated cells per run
- Throughput: Up to 36 analytes per isolated single-cell, 360,000 single-cell secreted protein data points per run
- Hands-On Time: < 3 minutes per sample
- Run Time: < 24 hours from sample loading to results
- On-Board Incubator: Temperature 37 ± 2°C, CO2 concentration 5 ± 1%
- Laser Wavelengths: 405 nm, 437 nm, 638 nm
- Power Requirements: 100-240VAC, 50/60Hz, 14A max
- Dimensions: WxDxH: 28.5 x 28 x 30.5 inches (72.5 x 71 x 77.5 cm)
Weight
Imperial: 300.0 Pounds
Metric: 136.08 Kilograms
Shipping Dimensions
Imperial: 33.6 lb x 33.6 lb x 37.2 lb
Metric: 85.34 cm x 85.34 cm x 94.49 cm
Harmonized Code
9027.80
Harmonized Code Details
Harmonized code 9027.80 refers to Instruments and apparatus for physical or chemical analysis. This coding is selected based on the IsoLight-1000-1’s use in protein analysis and its advanced functionality in scientific research.
