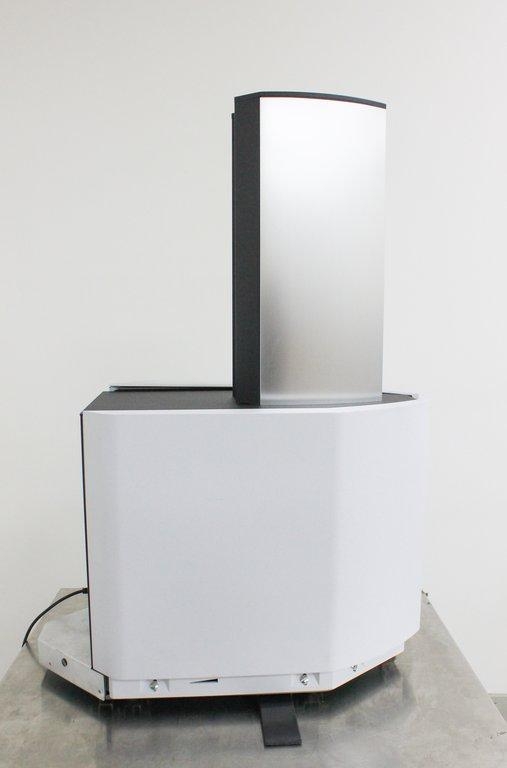

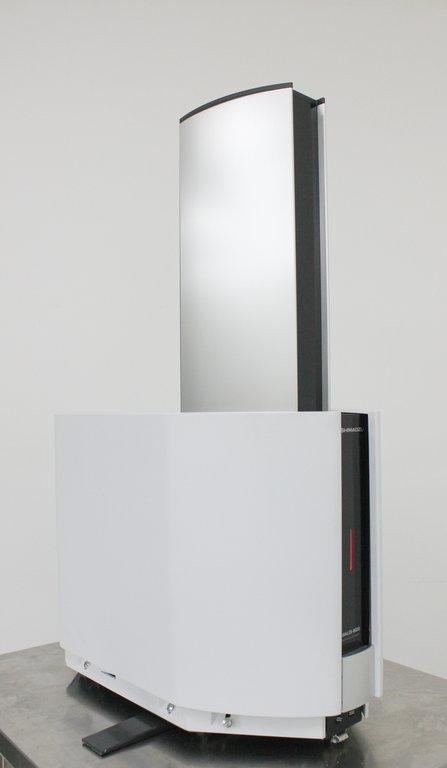

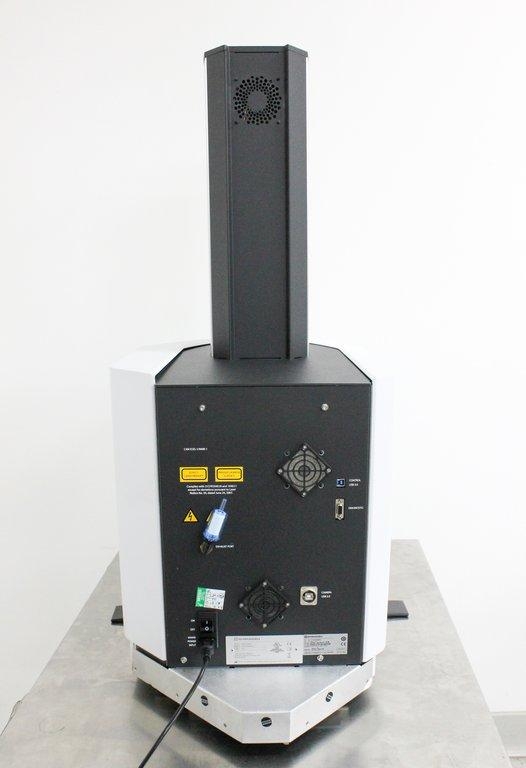

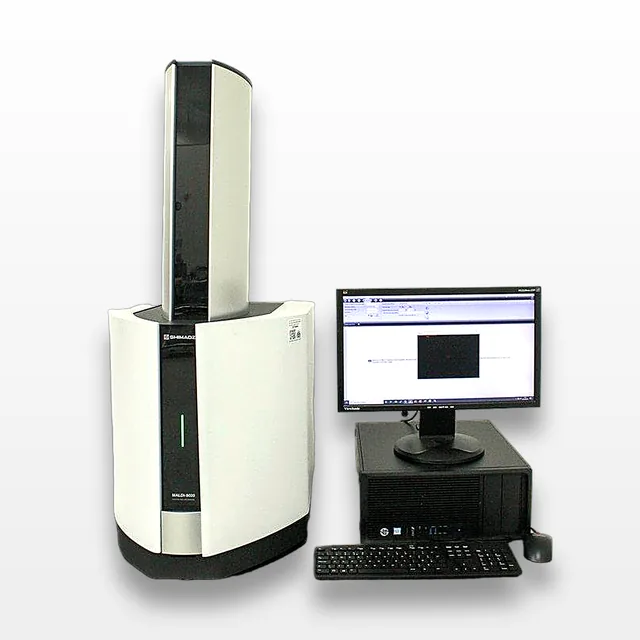

Shimadzu MALDI-8020 Benchtop Mass Spectrometer with Imaging & Laser
Shimadzu
Details
-
CategoryMass Spectrometry
-
Dimension27.0in x 24.0in x 42.0in
-

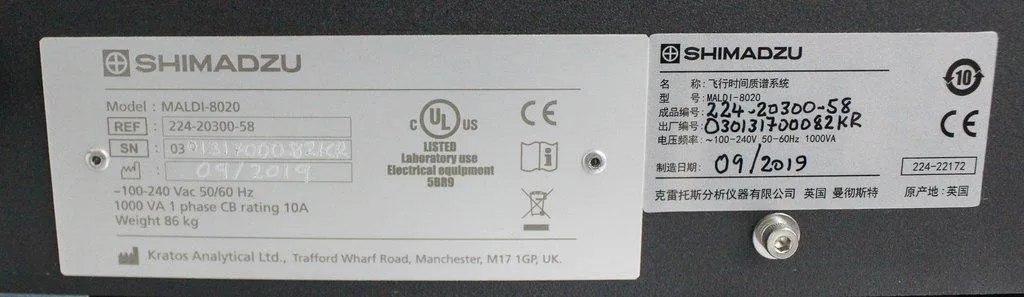

Serial030131700082KR
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

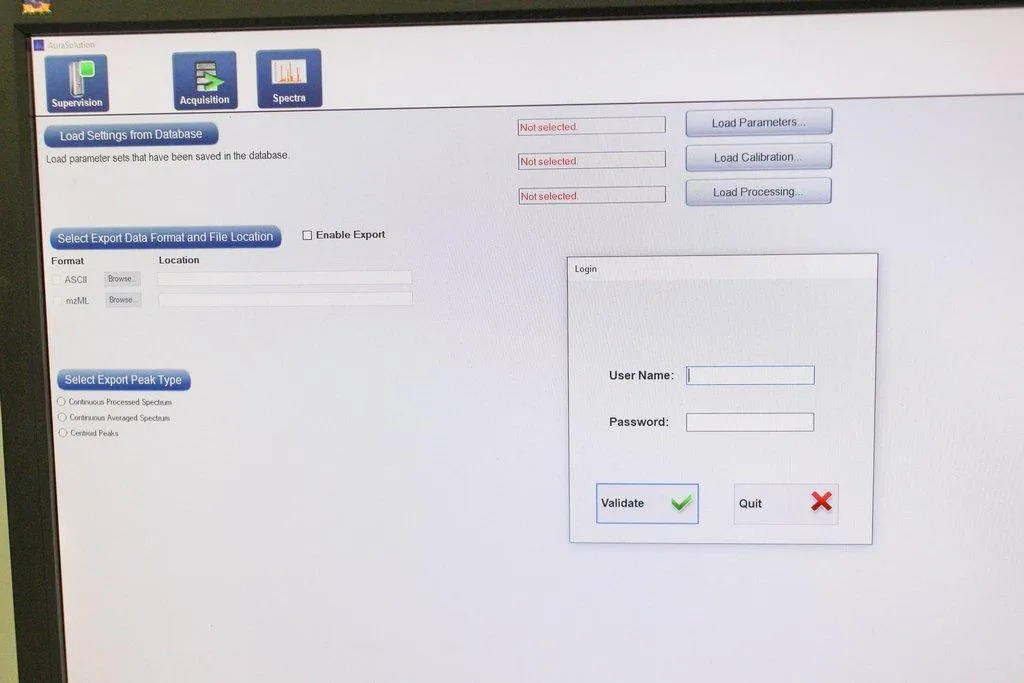

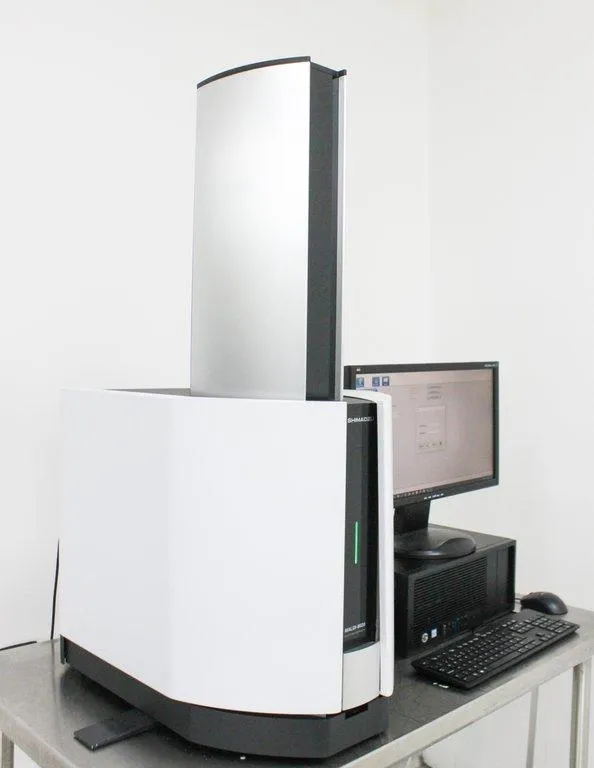

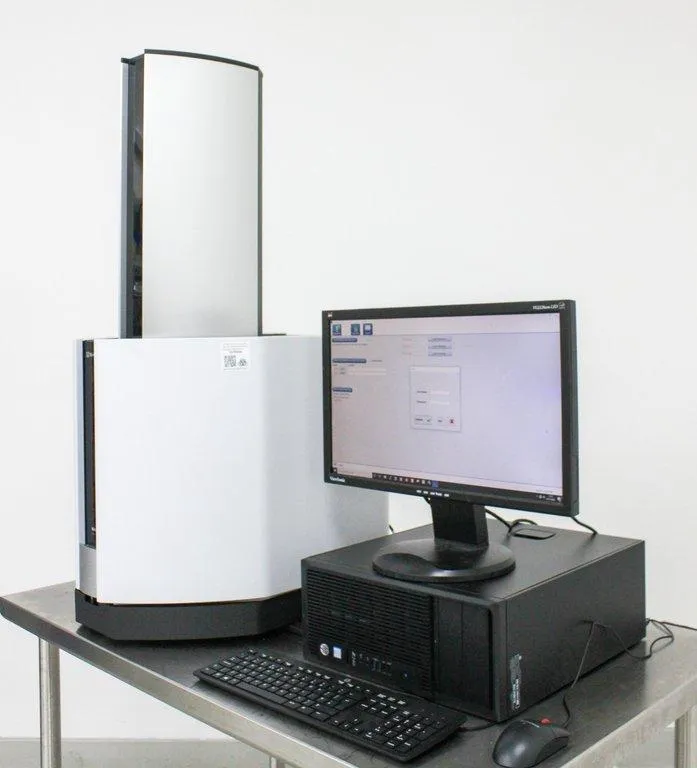

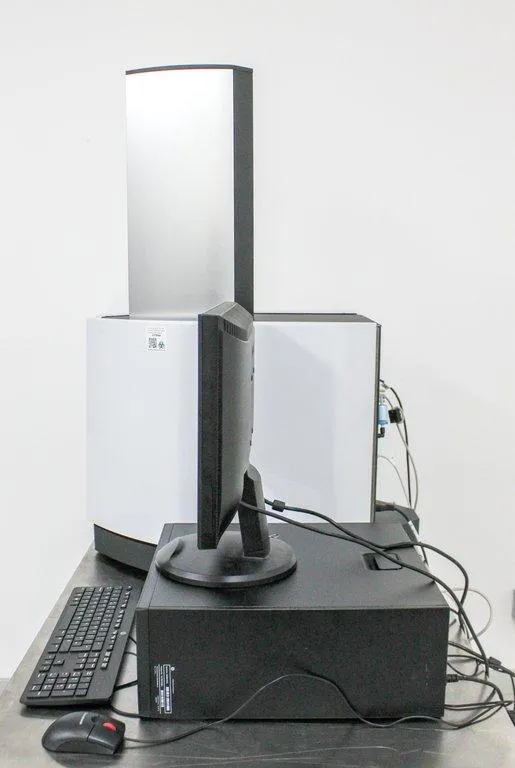

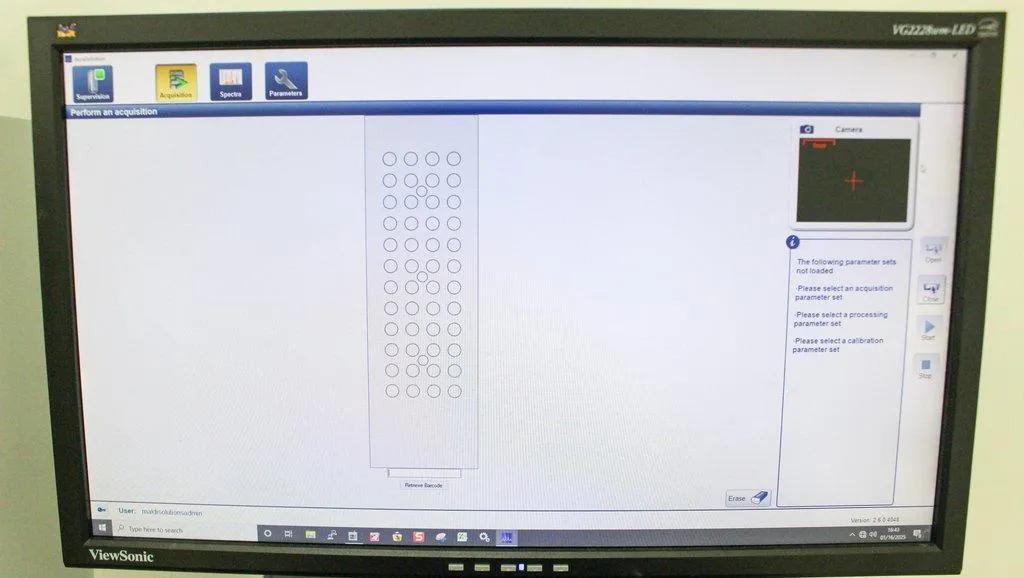

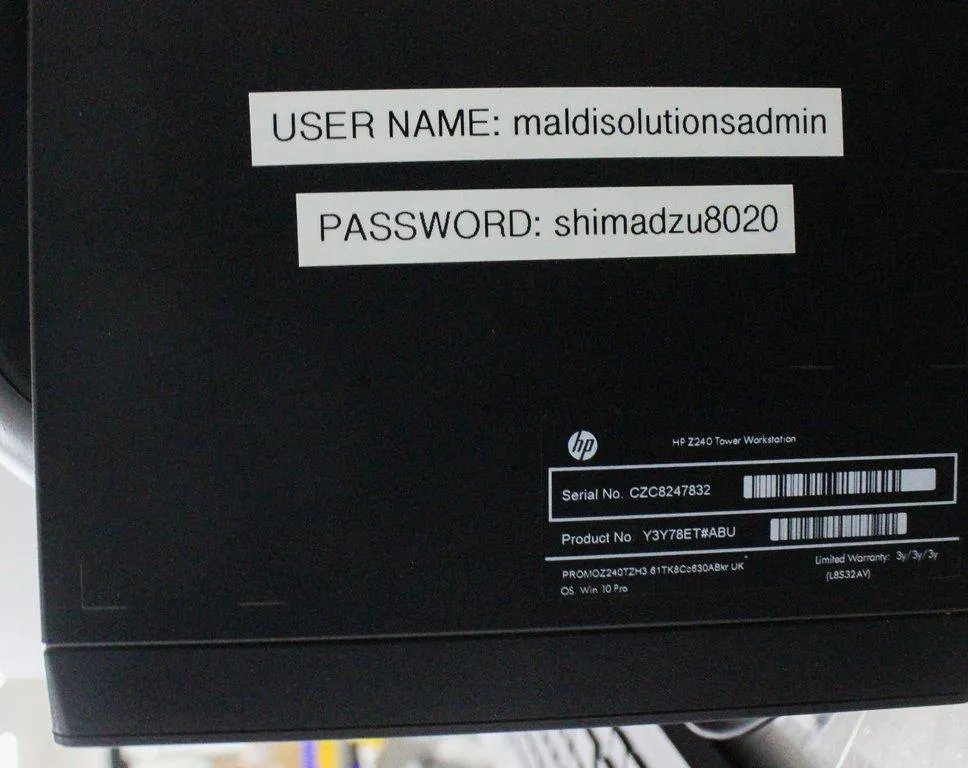

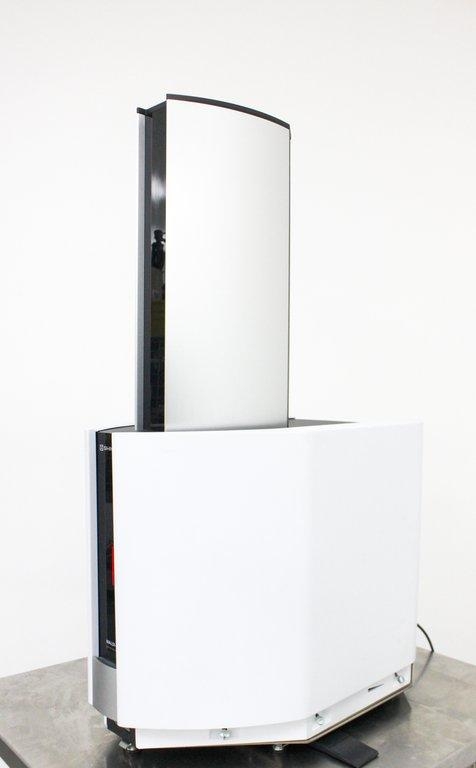

The Shimadzu MALDI-8020 is a benchtop linear MALDI-TOF mass spectrometer designed for high-speed, high-accuracy applications. Despite being in fair condition with some cosmetic defects and inability to reach optimum vacuum status, this system offers significant potential for peptide, protein, and polymer characterization. Featuring a 200 Hz solid-state laser and a compact design, the MALDI-8020 enhances laboratory efficiency with its rapid sample introduction and widebore ion optics for superior sensitivity and resolution. The unit includes optics cleaning technologies and quiet operation. Software CDs/Files and a user manual are included, but computer is not included.
Technician comment

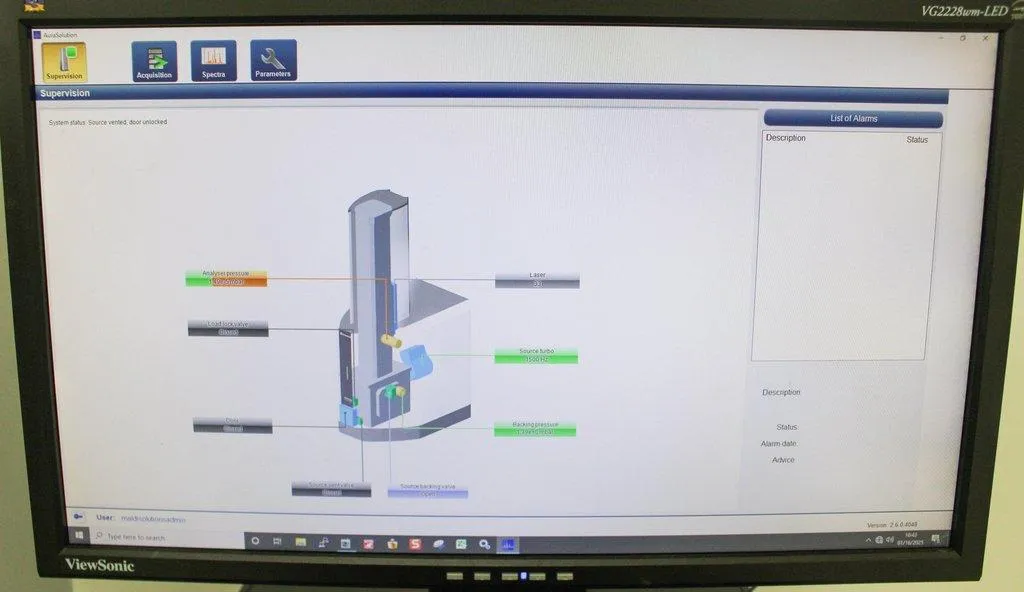

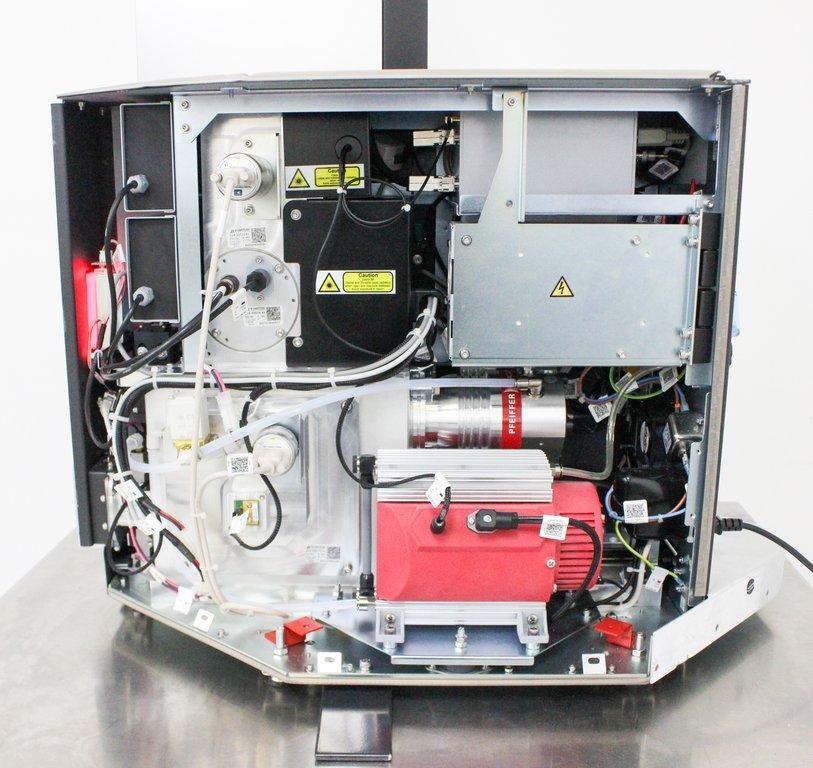

Startup initially ok, turbo gets to full speed, 1500 Hz. Source vac gets to full green (operating vacuum). Analyzer vacuum does not reach optimum e-6 mbar ready status. After approx 90 minutes it had vac error and shut down. The fore vac pump may need rebuild / replace. 307302000 laser shots.
Key Features
- Benchtop Linear MALDI-TOF Mass Spectrometer
- 200 Hz Solid-state Laser
- WideBore Ion Optics for High Sensitivity
- TrueClean Automated Optics Cleaning
- EasyCare Technology
- Quiet Operation (<55 dB)
Specifications
- Laser Speed: 200 Hz
- Resolution: >5000 FWHM – ACTH 18-39 (m/z 2465)
- Polarity: Linear Positive
- Size: 450 mm x 745 mm x 1055 mm
- Sound Level: Quiet (<55 dB)
- Includes User Manuals and Software CDs/Files
- Compact and Easy to Transport
Weight
Imperial: 243.6 Pounds
Metric: 110.5 Kilograms
Shipping Dimensions
Imperial: 32.4 lb x 28.8 lb x 50.4 lb
Metric: 82.3 cm x 73.15 cm x 128.02 cm
Harmonized Code
9027.20.40
Harmonized Code Details
9027.20.40 - Mass spectrometers: Laboratory equipment for physical or chemical analysis. This code is applicable due to the equipment type and function.
