Shimadzu MALDI-8020 Mass Spectrometer Benchtop, Dual-Polarity, Imaging
Shimadzu
Details
-
CategoryMass Spectrometry
-
Dimension27.0in x 24.0in x 42.0in
-
Serial030131700075KR
-
Shipping TypeFreight
-
Manufacturing2019-07-01
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description
The Shimadzu MALDI-8020 Benchtop Linear MALDI-TOF Mass Spectrometer, manufactured in 2019, is designed for high-speed and precise analysis while conserving laboratory space. Despite minor operational issues such as a vacuum system that only pumped to about 50% and lacking a computer, this unit is highly versatile for applications ranging from peptide and protein analysis to polymer characterization. The system features a compact design with advanced imaging capabilities through its 200 Hz solid-state laser, rapid-moving sample stage, and fast sample data acquisition, making it an efficient addition to high-throughput environments. Although the vacuum system displayed incomplete functionality during testing, the 200 Hz laser and proprietary ion optics technologies like WideBore and TrueClean enhance sensitivity and resolution, facilitating the detailed molecular analysis necessary for research applications.
Technician comment

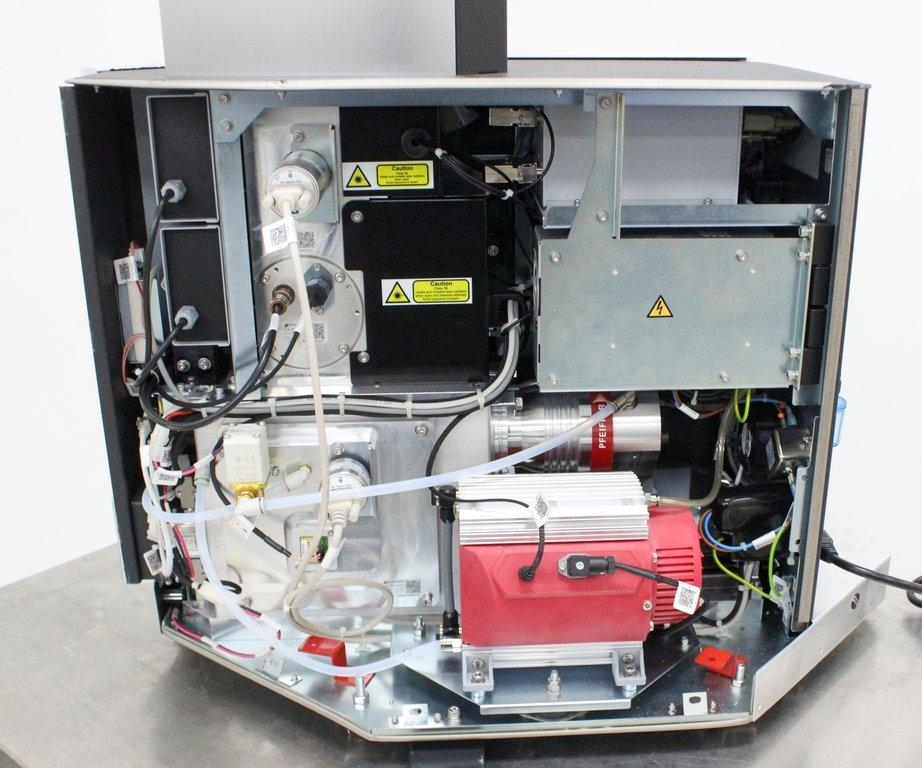

Vacuum system starts does not have a PC. We used another system PC to test. Source vacuum only pumped to about 50% vacuum. Turbo pump did get to 1500Hz speed (normal) but analyzer vacuum did not achieve operation status <5.0 e-6mbar. 307302000 laser shots.
Key Features
- Linear MALDI-TOF system with MS Imaging capabilities
- 200 Hz solid-state laser for fast throughput
- WideBore ion optics technology for high sensitivity
- TrueClean technology for automated cleaning
- EasyCare technology for tuning optics
- Compact 450 mm wide design
- Quiet operation with oil-free diaphragm pump
Specifications
- Manufacturer: Shimadzu
- Model: MALDI-8020
- Voltage: 100-240V
- Hertz: 50Hz/60Hz
- Laser Speed: 200 Hz
- Resolution: >5000 FWHM – ACTH 18-39 (m/z 2465)
- Polarity: Linear Positive
- Sound: <55 dB
- Manufacture Date: 2019-07-01
- Serial Number: 030131700075KR
Weight
Imperial: 243.6 Pounds
Metric: 110.5 Kilograms
Shipping Dimensions
Imperial: 32.4 lb x 28.8 lb x 50.4 lb
Metric: 82.3 cm x 73.15 cm x 128.02 cm
Harmonized Code
9027.80.25
Harmonized Code Details
9027.80.25 - Instruments and apparatus for physical or chemical analysis: Mass spectrometers. This code is used for equipment used in analytical or laboratory environments for mass spectrometry.
