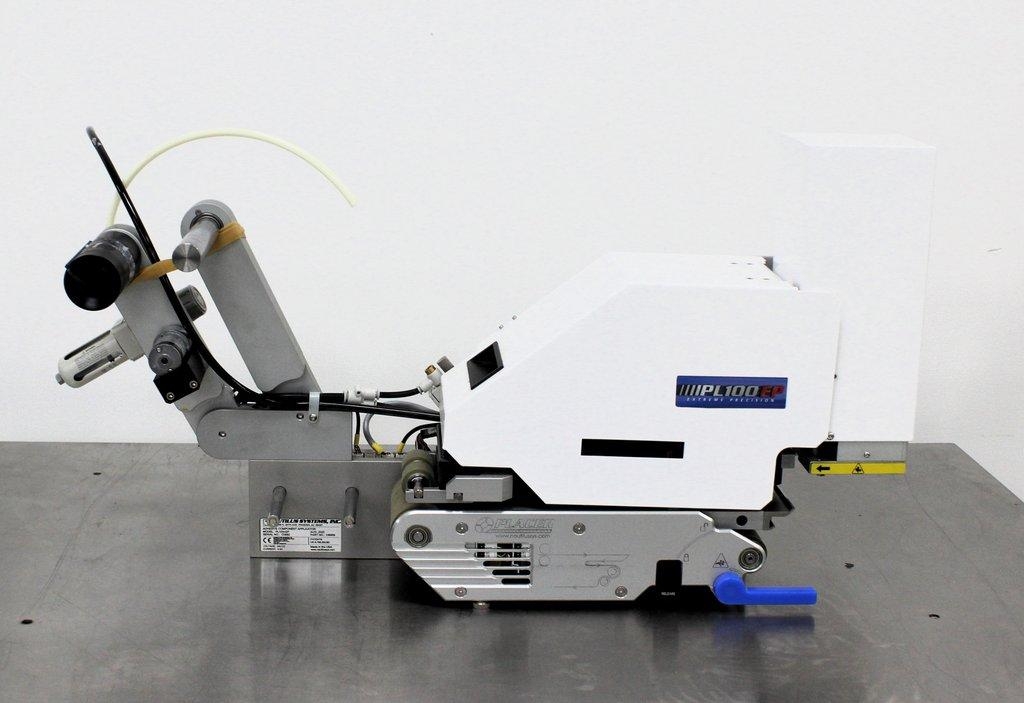

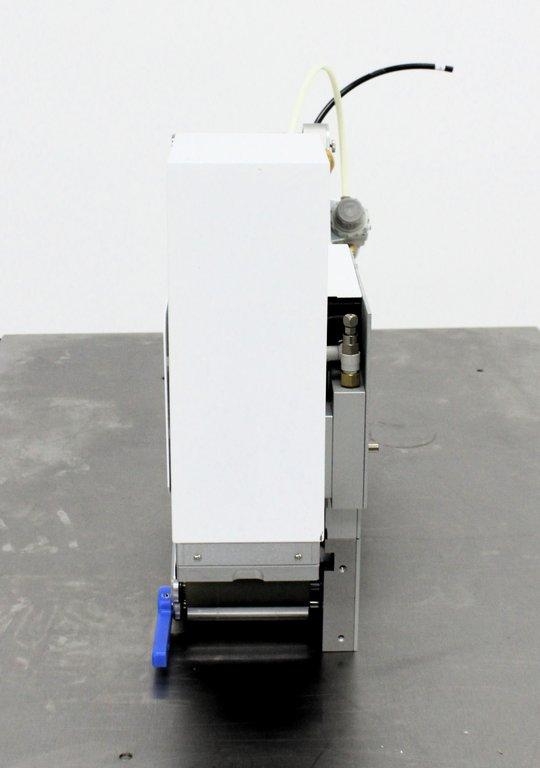

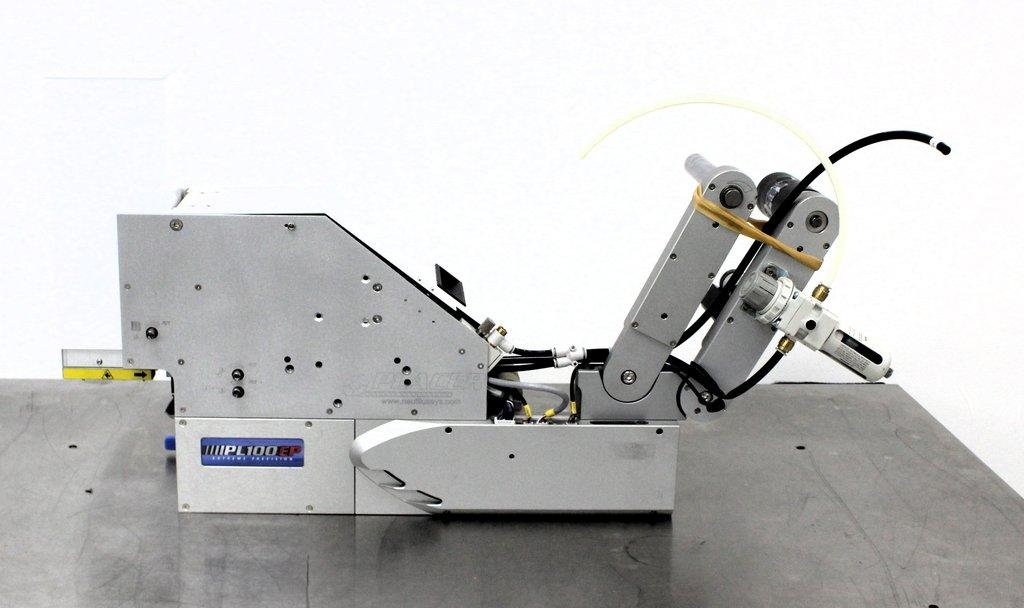

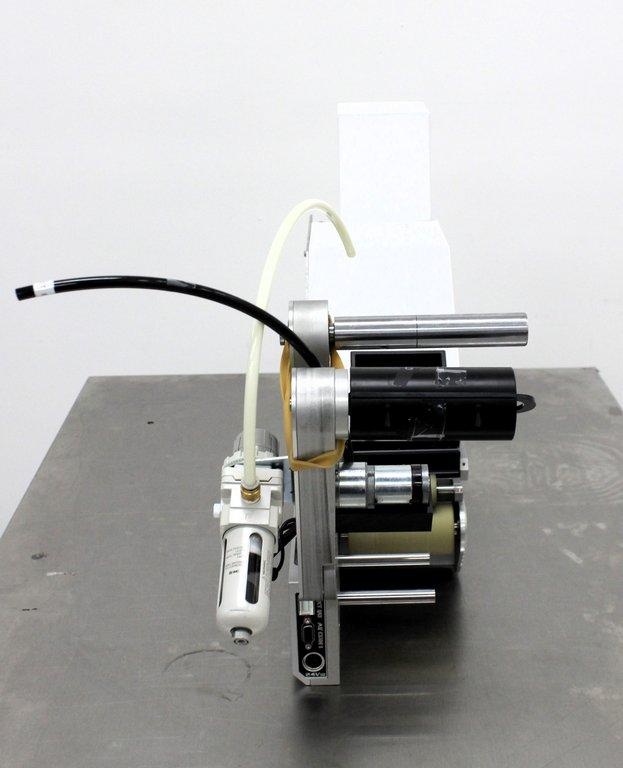

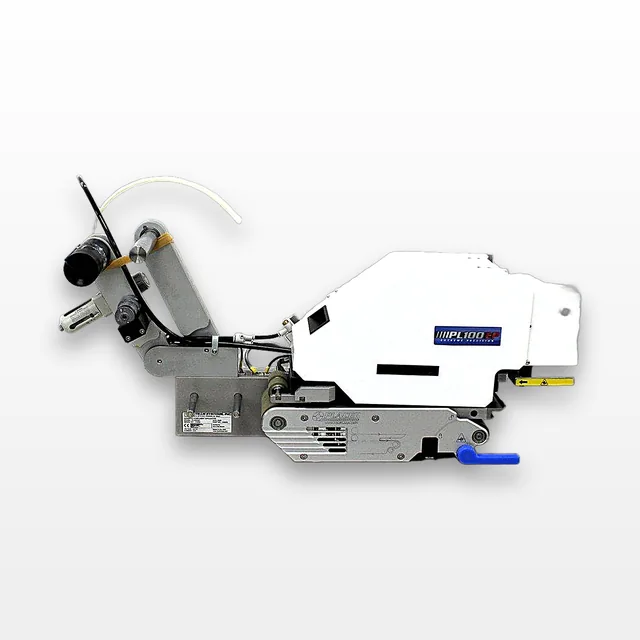

Nautilus PL100i-EP Automation Adhesive Applicator 100x100mm Capacity
Nautilus Systems
Details
-
CategoryRobotic / Automation
-
Dimension28.0in x 6.0in x 18.0in
-

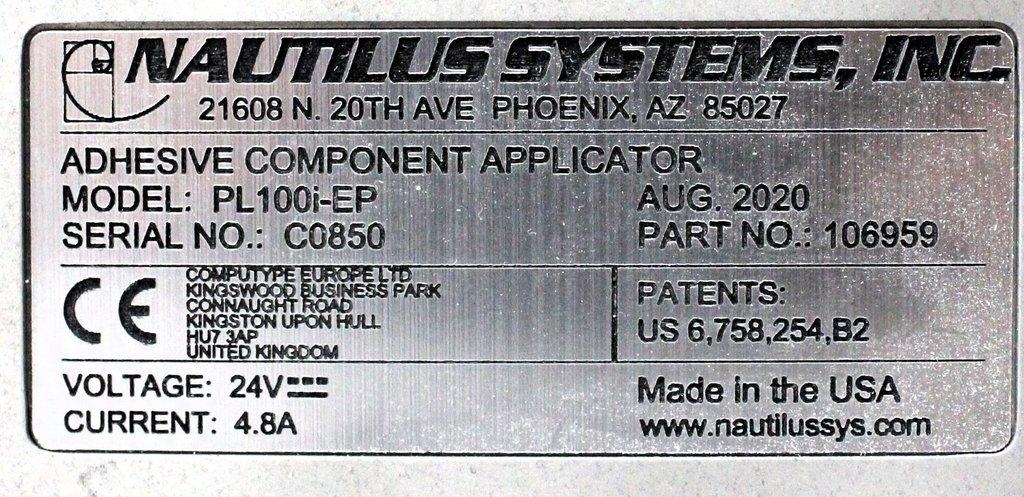

SerialC0850
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz24VDC/ 120V / 60Hz US
Description
The Nautilus Systems Adhesive Component Applicator PL100i-EP is engineered for precision placement of die-cut adhesive components up to 100 x 100mm. Designed for seamless integration into automated assembly lines, the PL100EPi offers an EP Package with an impressive accuracy of +/- 0.035mm. A closed-loop feedback system optimizes material travel, ensuring precise feed location. It includes essential hardware: pneumatic precision-guided Tamp actuator assembly, Payoff assembly, and powered Take up assembly. Accessories, such as a Vacuum Chuck and Blade Guide Pad, offer rapid, tool-free changeover tailored to specific materials. Ideal for various component shapes and materials, the 16-Key Applicator Interface Module enhances operator interaction.
Technician comment
We were able to power the unit on with a spare power supply, however power supply is not included in this set. There other parts missing, see photos.
Key Features
- Precision placement of adhesive components
- Supports sizes up to 100 x 100mm
- Closed-loop feedback system for accuracy
- Integration-ready hardware
- Rapid, tool-free changeover
- 16-Key Applicator Interface with LCD Display
Specifications
- Component Capacity: Up to 100 x 100mm
- EP Accuracy: +/- 0.035mm
- Power Requirement: 24VDC/120V, 60Hz
- Base Unit Features: Tamp Actuator (150mm stroke), Payoff, Powered Take-Up
- Interface: 16-Key Applicator Interface Module
- Condition Description: Used, unit has minor error or cosmetic defect
Weight
Imperial: 60.0 Pounds
Metric: 27.22 Kilograms
Shipping Dimensions
Imperial: 33.6 lb x 7.2 lb x 21.6 lb
Metric: 85.34 cm x 18.29 cm x 54.86 cm
Harmonized Code
903180
Harmonized Code Details
903180 - Measuring or checking instruments, appliances and machines, n.e.s. This code is applicable due to the measuring and placement functionality of the PL100i-EP, aligning with instruments used in checking or automating processes.
