Neslab HX 750 Recirculating Chiller Industrial Medical Cooling 24000W
Neslab
Details
-
CategoryChiller / Heater
-
Dimension93.0in x 46.0in x 63.0in
-
Serial101115064
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz208-230V / 60Hz US
Description

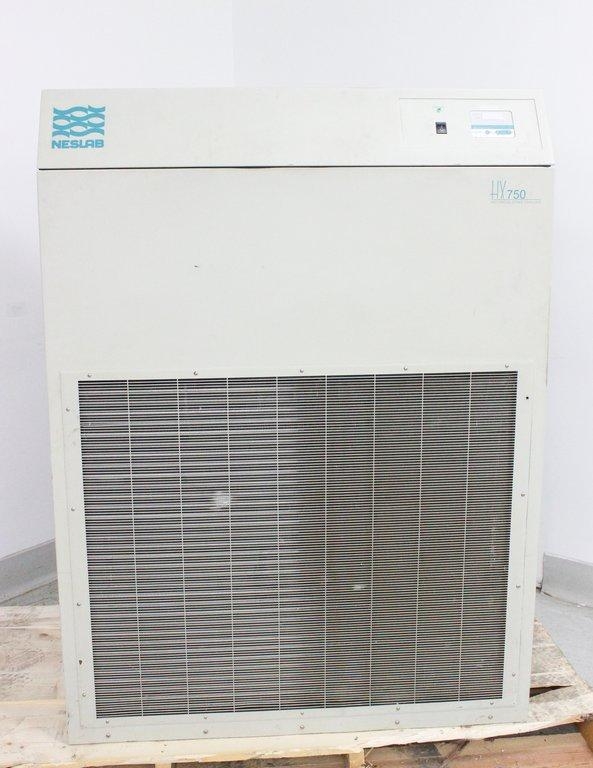

The Neslab HX 750 Recirculating Chiller, a dependable solution renowned for large-scale cooling applications. Designed with versatility, it offers cooling capacities up to 24000 watts, serving industries such as laser technology, industrial processes, semiconductor manufacturing, medical fields, and printing. This unit provides tight temperature stability, crucial for critical process control. Flexible configurations include air-cooled and water-cooled condensers and multiple pumping options. It efficiently operates within a temperature range of -15°C to +90°C using an intuitive controller. It features hot gas by-pass for temperature stability, stainless steel reservoir, and evaporator coils for durability, and integrated fluid pressure gauge for process optimization. While the unit has cosmetic defects and requires hardwiring for power, its salvage value remains substantial in professional settings.
Technician comment

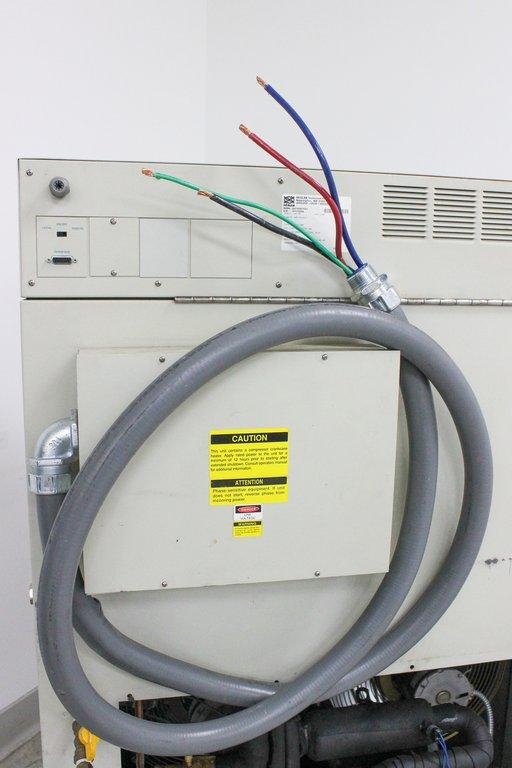

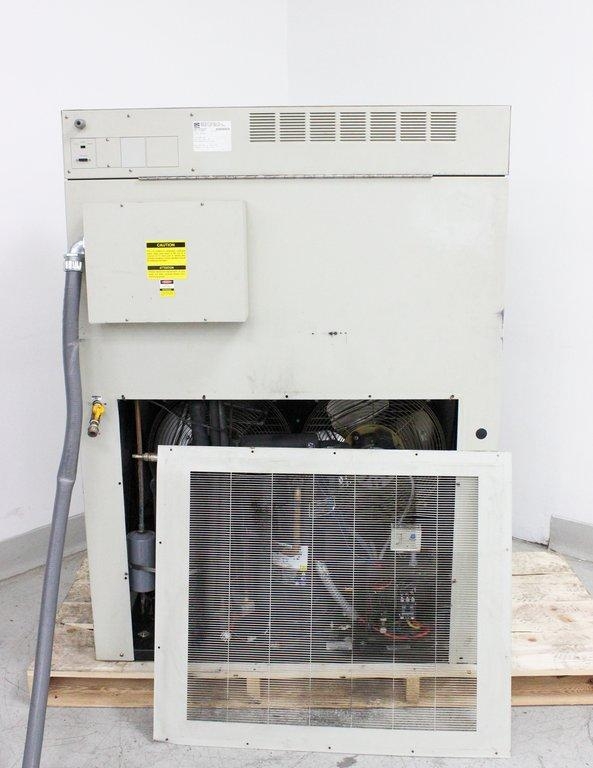

Unit requires hardwiring to 208–230V to test or power on; no plug‑type power cord is installed. Back panels are missing mounting screws, with minor cosmetic wear present. Equipment is preowned, previously operated in a working laboratory environment. See photos for cosmetic condition details.
Key Features
- Cooling capacity up to 24000 watts
- Temperature range from -15°C to +90°C
- Air-cooled and water-cooled condensers
- Multiple pumping options
- Stainless steel reservoir and evaporator coils
- Hot gas by-pass system for stability
- Auto Refill and Auto Restart functionalities
- High/Low Temperature Alarms
Specifications
- Make/Model: Neslab HX 750
- Cooling Capacity: 24000 watts
- Temperature Range: -15°C to +90°C
- Voltage: 208-230V, 60Hz US
- Condensers: Air-cooled and water-cooled options
- Construction: Stainless steel reservoir and evaporator coils
- Integrated Pressure Gauge: Fluid pressure gauge for optimal process needs
- Features: Auto Refill, Auto Restart, Low Level Alarm, and Analog I/O
Weight
Imperial: 1165.2 Pounds
Metric: 528.53 Kilograms
Shipping Dimensions
Imperial: 111.6 lb x 55.2 lb x 75.6 lb
Metric: 283.46 cm x 140.21 cm x 192.02 cm
Harmonized Code
841869
Harmonized Code Details
841869 - Refrigeration equipment; heat exchange units, other. Selected for industrial chillers which do not fall under more specific categories.
