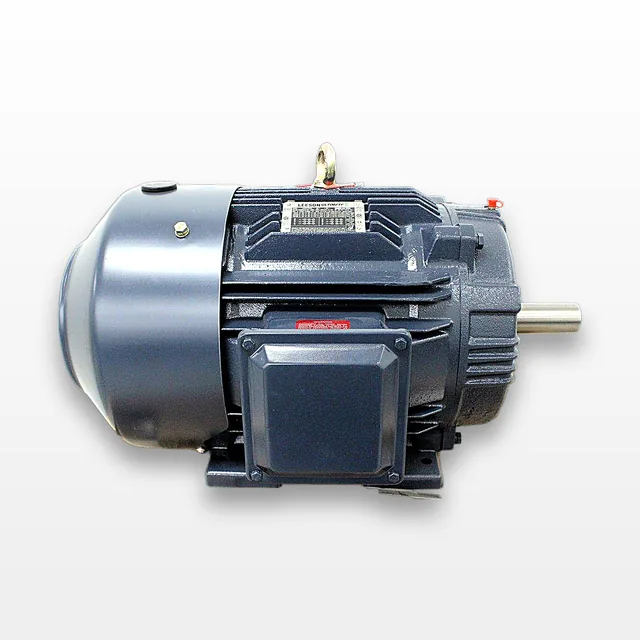

Leeson D256T17FB8A 20 HP General Purpose Motor, 3 Phase, 1800 RPM, 230/460V
Leeson
Details
-
CategoryMiscellaneous
-
Dimension28.0in x 18.0in x 16.0in
-
Serial
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz208V-230V / 60Hz US
Description

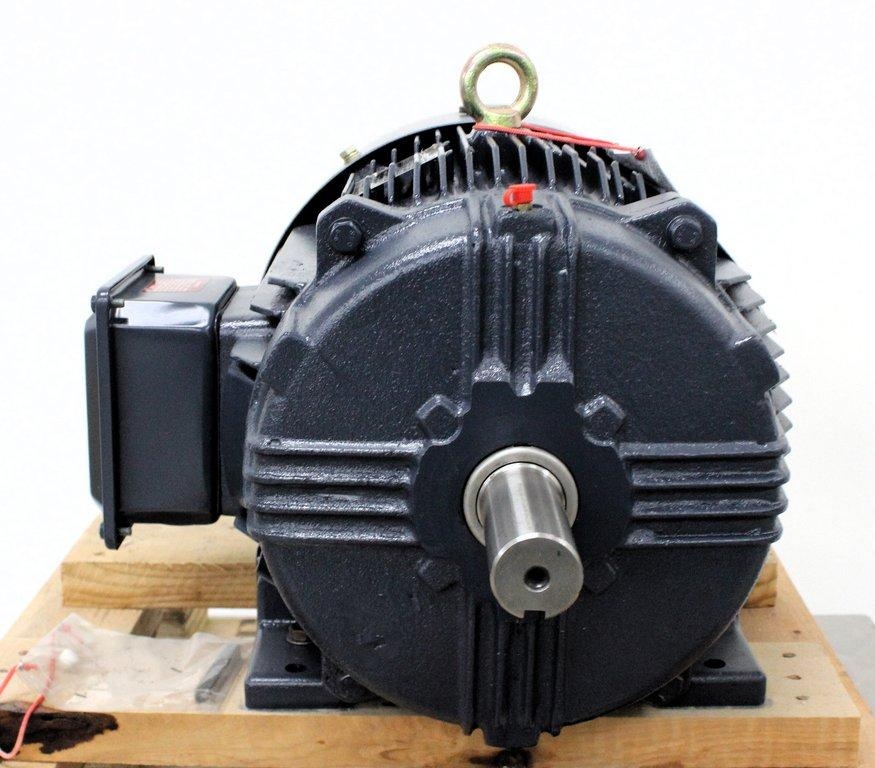

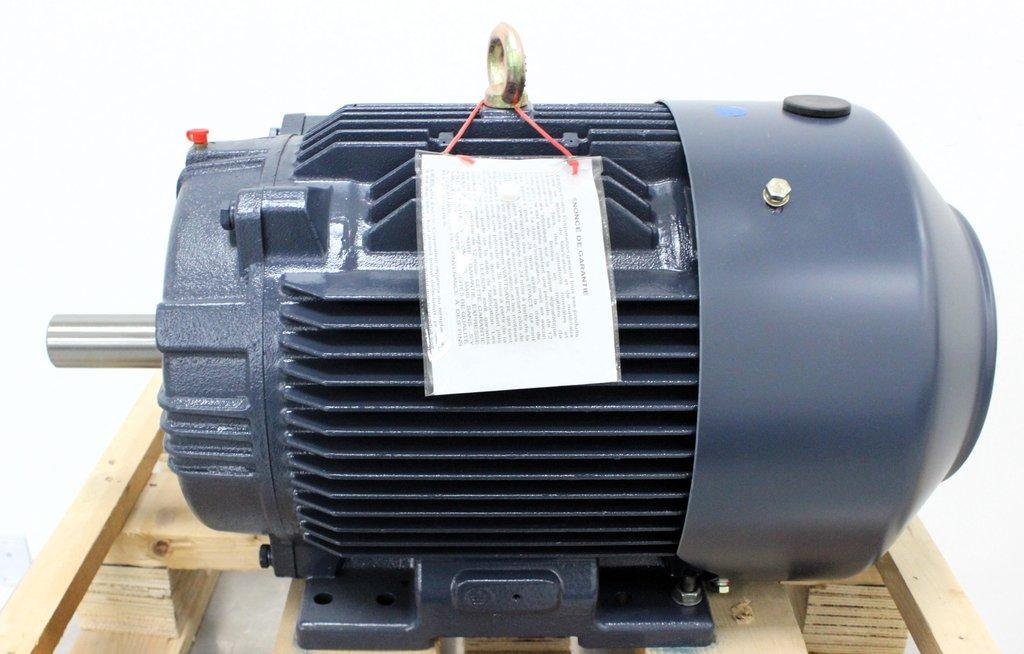

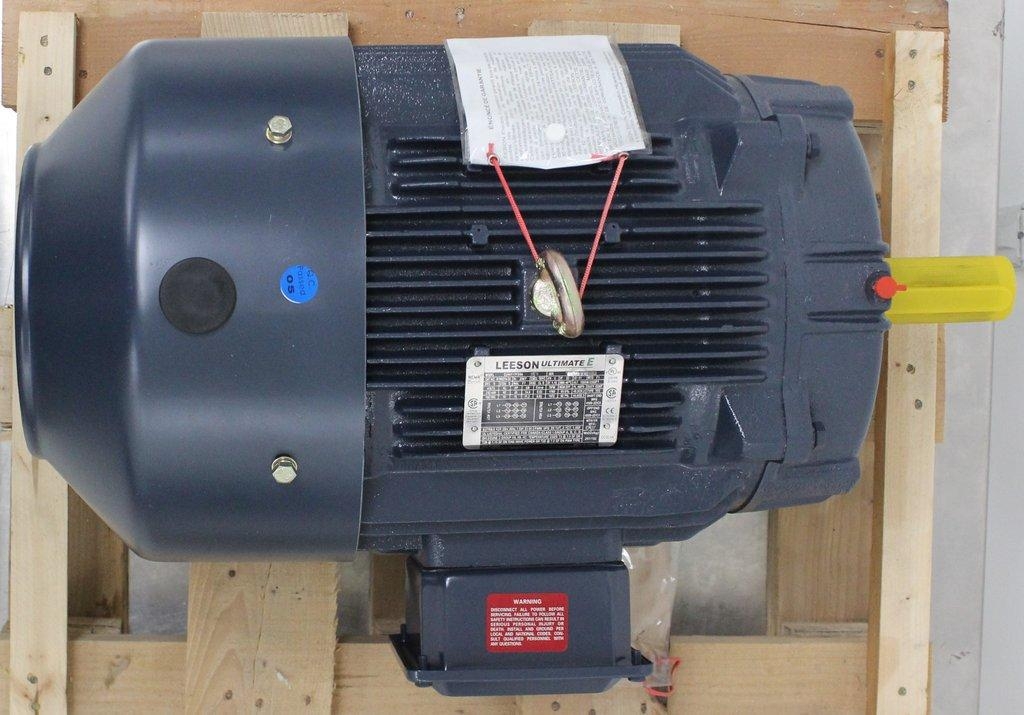

The Leeson D256T17FB8A is a 20 HP General Purpose Motor featuring a 3-phase design and operating at 1800 RPM. With a power rating of 14.9 kW and voltage capabilities of 230/460 V, this motor is designed for robust performance in industrial applications. It exhibits a squirrel cage inverter-rated electrical type and supports both line and inverter starting methods. The motor's reversible rotation and rigid base mounting enhance versatility in operation. Constructed with a 256T frame, it incorporates a totally enclosed fan cooled (TEFC) enclosure, ensuring optimal motor longevity and reliability by protecting against dust and moisture. Despite bearing visible signs of wear, it powers on and performs basic tests satisfactorily, indicating no known functionality issues. Key features include a cast iron frame, a horizontal motor orientation, ball bearings, and a 1.625-inch shaft diameter with a 4-inch extension. The motor's compact dimensions and 291-pound weight make it suitable for diverse industrial uses.
Key Features
- 20 HP motor with 3-phase design
- 1800 RPM operational speed
- 230/460 V voltage capacity
- 256T frame with cast iron construction

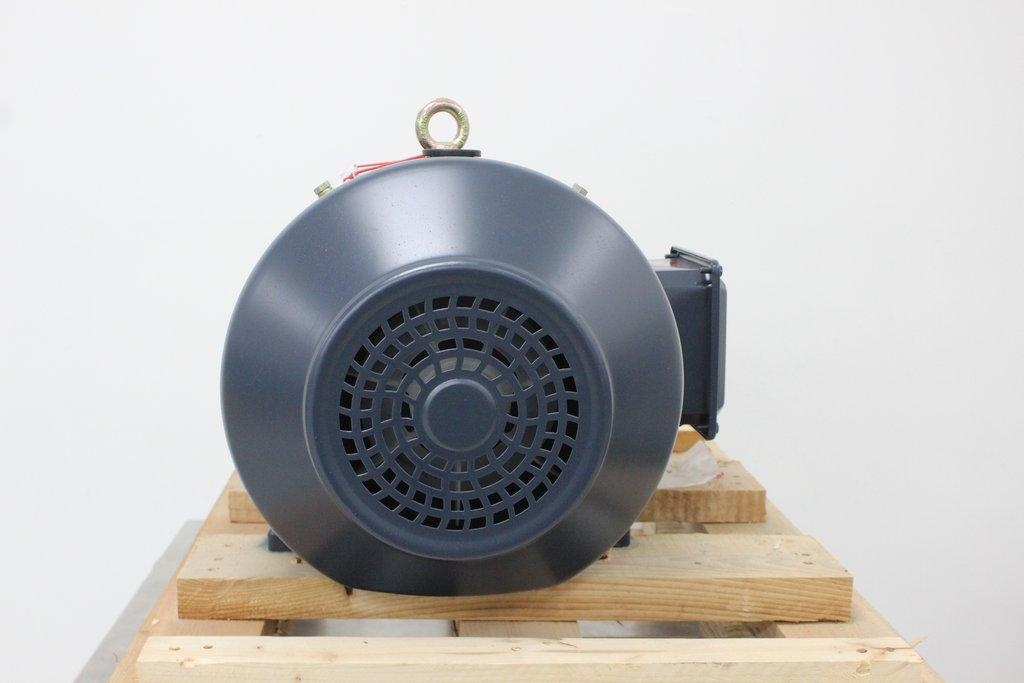

- Totally enclosed fan cooled (TEFC) enclosure
- Reversible rotation and rigid base mounting
- Squirrel cage inverter rated
- Ball bearing support on both ends

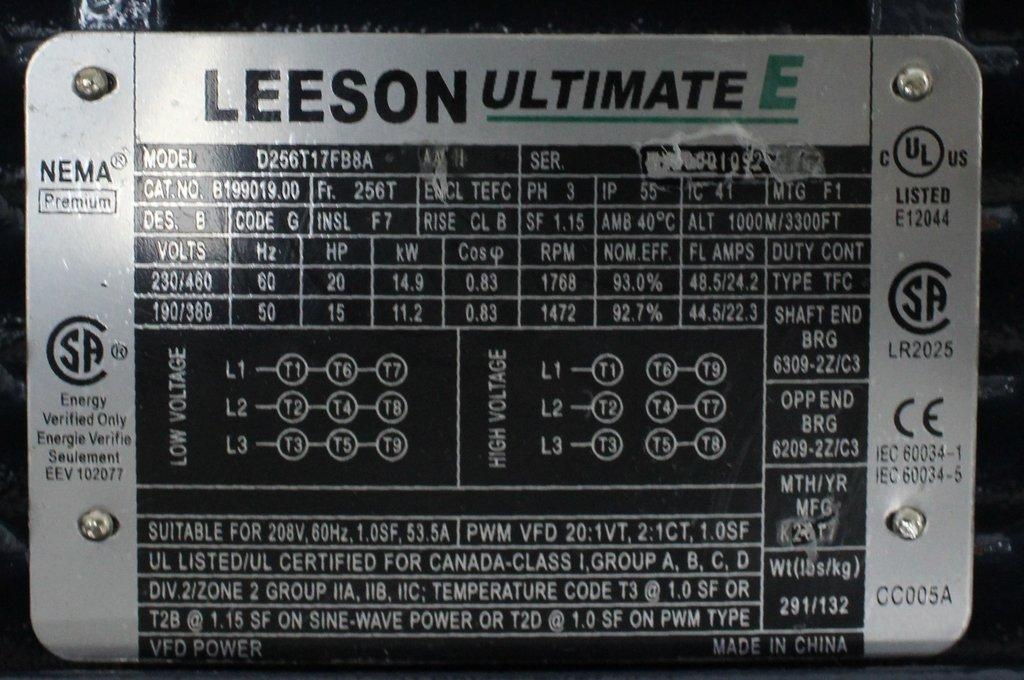

Specifications
- Output: 20 HP, 14.9 kW
- Frequency: 60 Hz
- Voltage: 230/460 V
- Current: 48.5/24.2 A
- Speed: 1768 RPM
- Frame: 256T
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Electrical Type: Squirrel Cage Inverter Rated
- Starting Method: Line or Inverter
- Rotation: Reversible
- Mounting: Rigid Base
- Motor Orientation: Horizontal
- Drive End Bearing: Ball
- Opp Drive End Bearing: Ball
- Frame Material: Cast Iron
- Shaft Type: T
- Overall Length: 25.89 in

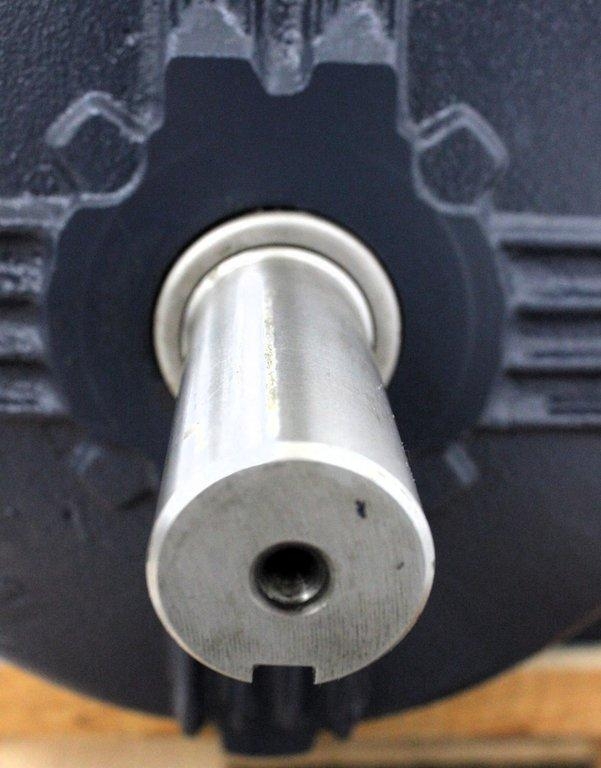

- Shaft Diameter: 1.625 in
- Shaft Extension: 4 in
- Assembly/Box Mounting: F1/F2 CAPABLE
Weight
Imperial: 349.2 Pounds
Metric: 158.39 Kilograms
Shipping Dimensions
Imperial: 33.6 lb x 21.6 lb x 19.2 lb
Metric: 85.34 cm x 54.86 cm x 48.77 cm
Harmonized Code
8501.52.4000
Harmonized Code Details
Harmonized code 8501.52.4000 refers to AC motors, multi-phase, exceeding 750 W but not exceeding 75 kW. This code is applicable due to the motor's power output of 14.9 kW within the specified range.
