Top L1319-C90 LED Light 40W 60W Explosion Proof IP67 Heat Resistant
Top Hi-Tech
Details
-
CategoryFacility
-
Dimension17.0in x 28.0in x 11.0in
-
SerialDoes Not Apply
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

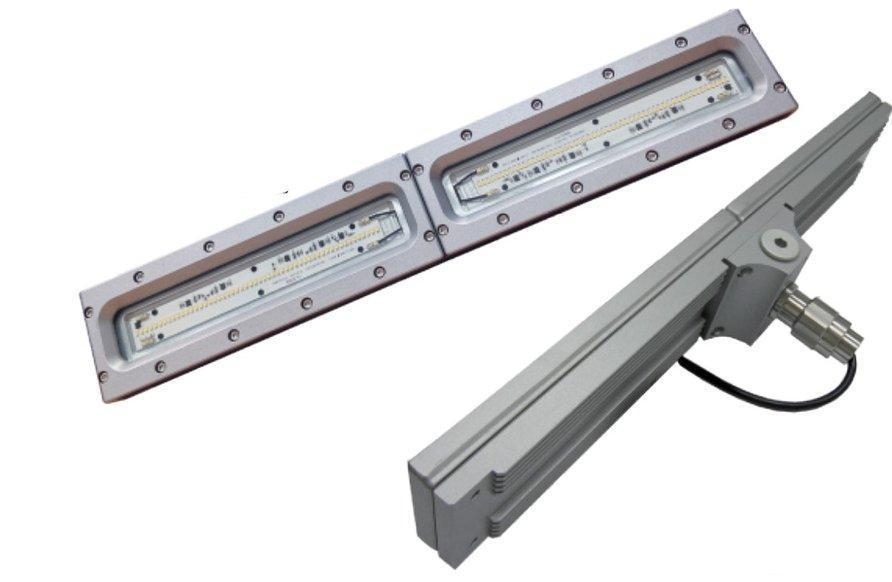

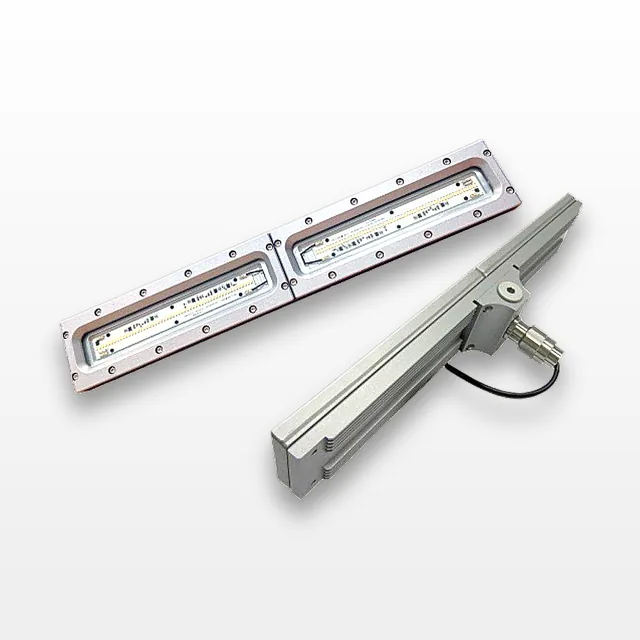

Introducing the Top Hi-Tech Explosion Proof LED Lighting Model L1319-C90. Designed for zones 1, 2, 21, and 22, this new device offers a robust service life, low energy consumption, and instant start-up capabilities. With high luminance output, the fixture provides options for warm or cool white illumination, reducing the carbon footprint while excelling in environments up to 100℃. It features an IP67 rating, ensuring protection against dust and water. Constructed from aluminum alloy, it handles high temperatures, ideal for tunnel installations. Available in 40W and 60W variants, it supports multiple voltages and temperatures ranging from -40°C to 55°C.
Key Features
- Explosion Proof LED Lighting
- Suitable for Zones 1, 2, 21, 22
- High Luminance Output
- IP67 (NEMA 6) Rating
- Heat Resistant up to 100℃
- Aluminum Alloy Construction
Specifications
- Model: L1319-C90
- Voltage Options: 100V / 110V / 200V / 220V AC
- Power Options: 40W / 60W
- Current Ratings: 40W 100V: 0.40A, 110V: 0.36A; 60W 100V: 0.60A, 110V: 0.54A
- Color Temperature: 3000K (Warm White) / 5000K (Cool White)
- Temperature Range: -40°C to +55°C
- cosθ ≧ 0.9
- Light Angles: X-axis 116°, Y-axis 113°
- Frequency: 50 / 60 Hz
- Material: Aluminum Alloy and Tempered Glass
- Lifespan: 60,000 Hours
- IP Rating: IP67
Weight
Imperial: 24.0 Pounds
Metric: 10.89 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 33.6 lb x 13.2 lb
Metric: 51.82 cm x 85.34 cm x 33.53 cm
Harmonized Code
94054099
Harmonized Code Details
9405.40.99 - Other electric lamps and lighting fittings. This code is used as it pertains to electric lamps with special characteristics suitable for industrial applications including explosion-proof environments.
