Acorn S2260-PAN-RA Safety Shower Recessed Eye-Face Wash System Stainless
Acorn Safety
Details
-
CategoryFacility
-
Dimension32.0in x 38.0in x 9.0in
-
SerialDoes Not Apply
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

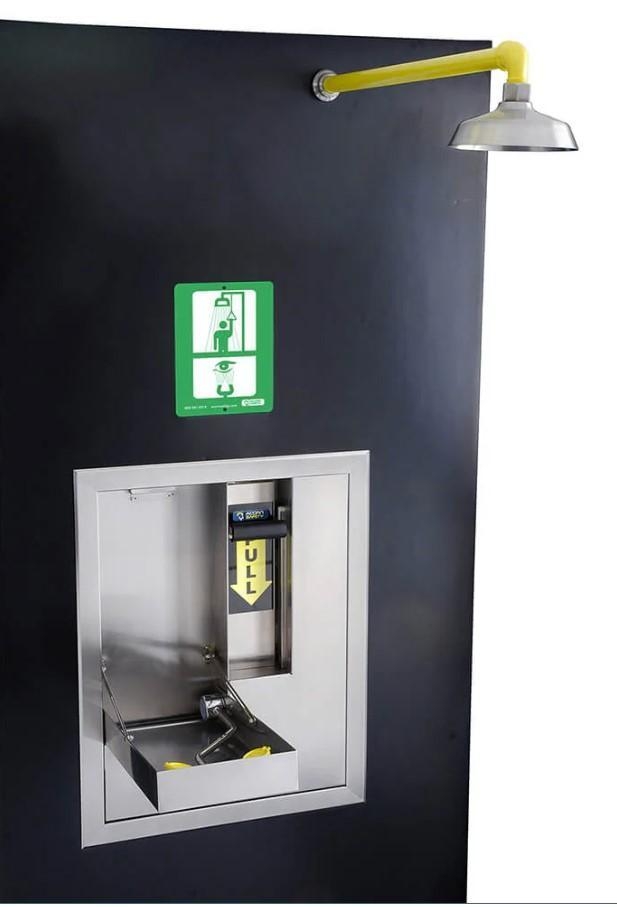

The Acorn Safety S2260-PAN-RA is a versatile and barrier-free emergency fixture designed for optimal safety in laboratory and industrial environments. This new, premium unit combines a recessed-activated eye-face wash system with an emergency shower, both crafted from high-quality ABS plastic and stainless steel. The eye-face wash features durable yellow spray heads, providing antimicrobial protection, and swings down for automatic water activation. The stainless-steel emergency showerhead offers a regulated flow of 20 GPM. This safety equipment, while ADA-compliant when installed correctly, includes a wall-mounted, vandal-resistant enclosure for secure use. With suitable dimensions, the Acorn Safety Combo is a reliable and efficient choice for safety compliance.
Key Features
- Recessed eye-face wash combo
- Stainless steel horizontal mount emergency shower
- Barrier-free design
- ADA compliant at proper installation height
- 8-1/8" diameter stainless steel showerhead

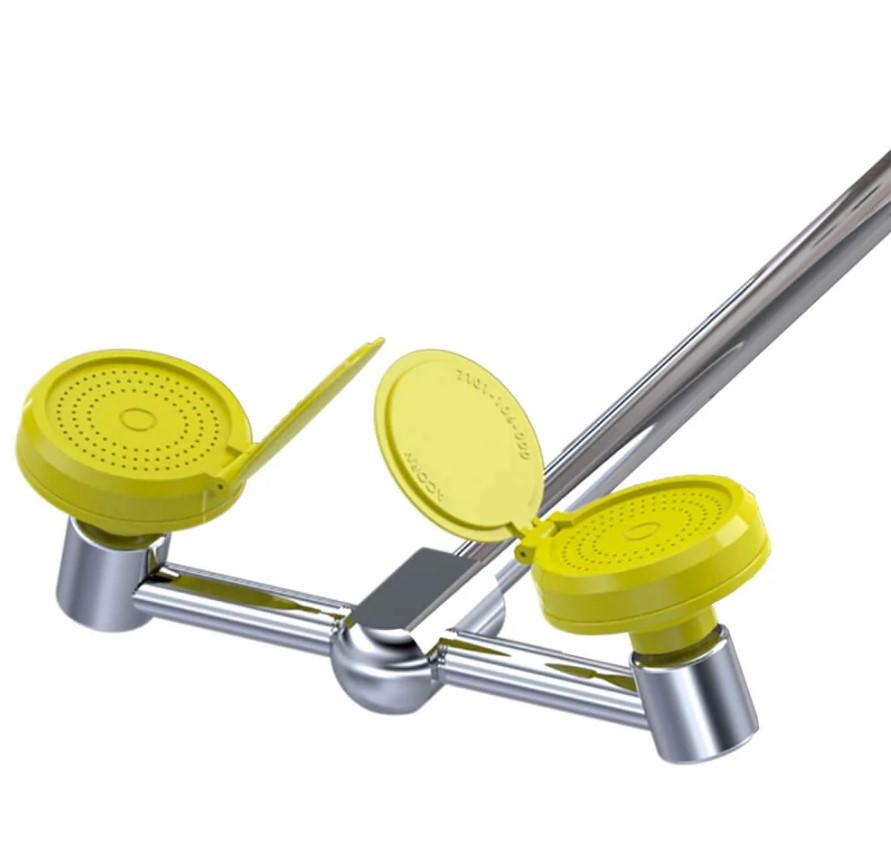

- ABS plastic eye-face wash spray heads
- 20 GPM shower flow regulator
- Anti-microbial integrated protection
- Vandal-resistant enclosure
Specifications
- Model: S2260-PAN-RA
- Eye-Face Wash Material: ABS plastic, Stainless steel
- Eye-Face Washer Spray Heads: Yellow plastic with flow control and filters
- Shower Valve: 1" chrome-plated brass, stay-open ball valve
- Shower Supply: 1" NPT female threaded brass inlet

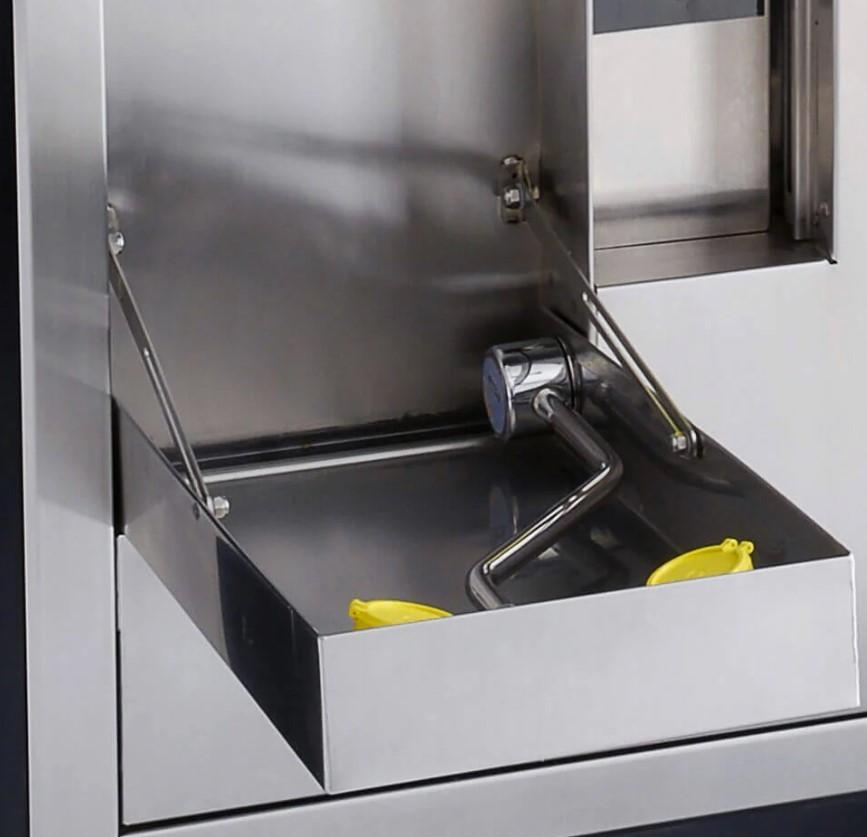

- Eye-Face Wash Valve: 316 stainless steel, swing-down activation
- Eye-Face Wash Supply: 1/2" NPT female threaded brass inlet
- Piping: 1" galvanized steel, yellow powder-coated
- Universal Sign: ANSI-compliant
- Weekly Test Tag Included
Weight
Imperial: 96.0 Pounds
Metric: 43.54 Kilograms
Shipping Dimensions
Imperial: 38.4 lb x 45.6 lb x 10.8 lb
Metric: 97.54 cm x 115.82 cm x 27.43 cm
Harmonized Code
392690
Harmonized Code Details
392690 - Other articles of plastics and articles of other materials of headings 3901 to 3914 - selections based on ABS plastic construction for safety apparatus and fittings.
