Acorn Safety S2260-PAN-RA Face Wash Station with Emergency Shower
Acorn Safety
Details
-
CategoryMiscellaneous
-
Dimension32.0in x 38.0in x 9.0in
-
SerialDoes Not Apply
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

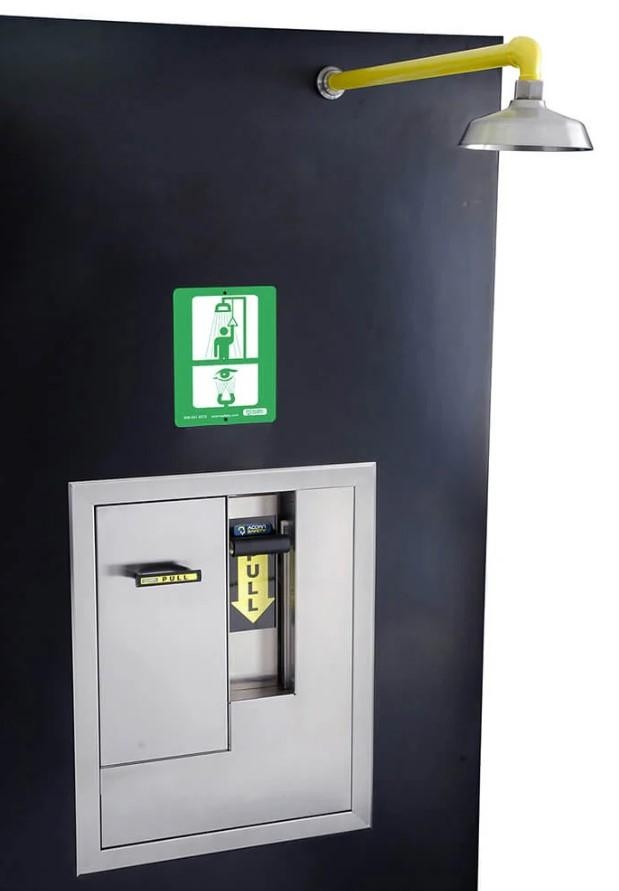

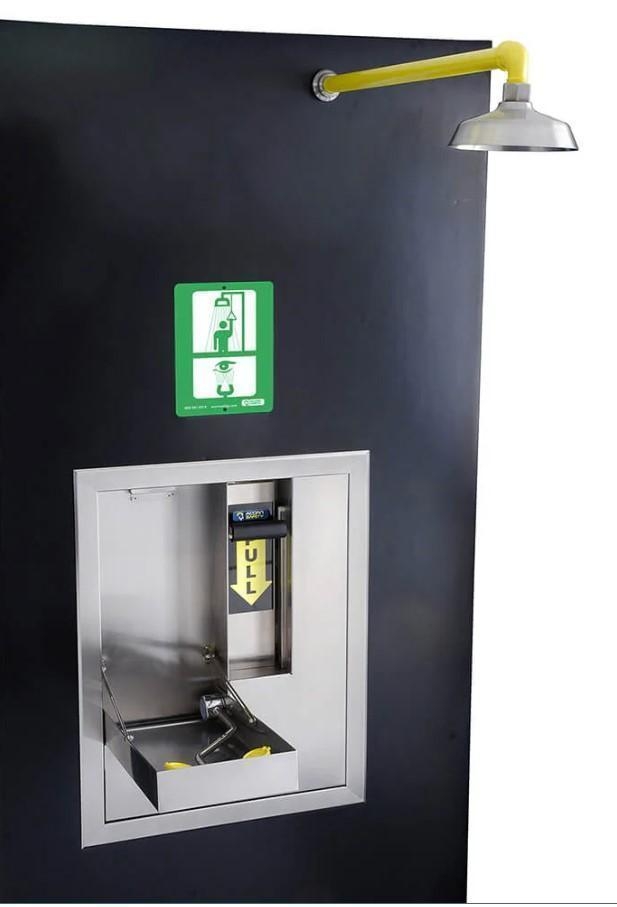

The Acorn Safety S2260-PAN-RA is a barrier-free eye-face wash station, complete with ABS plastic spray heads and a horizontal stainless steel emergency showerhead. Perfectly suited for immediate response situations, this unit boasts an automatic water flow activation feature that operates when the eye-face wash swings down and stops upon returning to storage. Compatibility with certain ADA requirements is achieved when installed correctly. Its robust build includes a stainless steel 8-1/8" diameter showerhead with a 20 GPM flow regulator, a 1" NPT brass water supply inlet for the shower, and a 1/2" NPT inlet for the eye-face wash supply. Equipped with an integrated anti-microbial agent and a vandal-resistant enclosure, this station ensures both hygiene and security during use. Additional features include a galvanized steel pipe construction, yellow powder-coated finish, ANSI-compliant universal sign, and a weekly test tag to maintain function integrity.
Technician comment
Acorn Safety S2260-PAN-RA FASH WASH STATION
Key Features
- Barrier-free design
- Recessed-activated eye-face wash
- Automatic water flow control
- 8-1/8" stainless steel showerhead
- 20 GPM flow regulator
- 1" NPT brass inlet for shower
- 1/2" NPT brass inlet for eye-face wash
- Anti-microbial agent in ABS material
- Vandal-resistant access panel
Specifications
- Showerhead: 8-1/8" diameter stainless steel with 20 GPM flow regulator
- Shower Valve: 1" rough chrome plated brass stay-open ball valve
- Shower Water Supply: 1" NPT female threaded brass inlet
- Spray Head Assembly: ABS yellow plastic with internal flow controls and filters
- Eye-Face Wash Valve: 316 stainless steel valve housing
- Eye-Face Wash Water Supply: 1/2" NPT female threaded brass inlet
- Piping: Schedule 40, 1" galvanized steel, yellow powder-coated
- Universal Sign: ANSI-compliant
- Weekly Test Tag: Waterproof test card
Weight
Imperial: 96.0 Pounds
Metric: 43.54 Kilograms
Shipping Dimensions
Imperial: 38.4 lb x 45.6 lb x 10.8 lb
Metric: 97.54 cm x 115.82 cm x 27.43 cm
Harmonized Code
84248970
Harmonized Code Details
84248970: Machinery for dispersing liquids or powders, industrial type; suitable for safety and emergency equipment, including emergency showers and eye wash stations.
