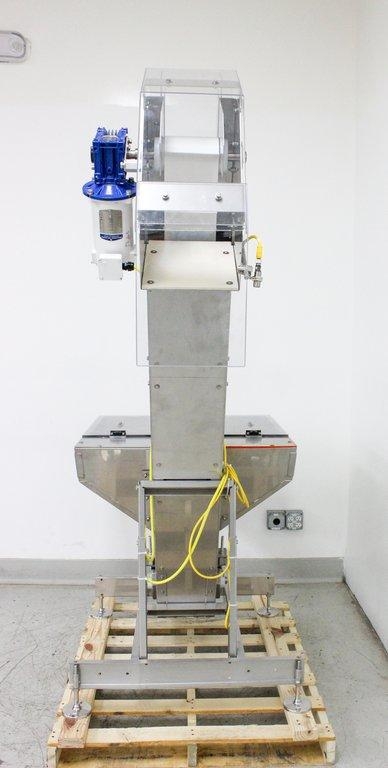

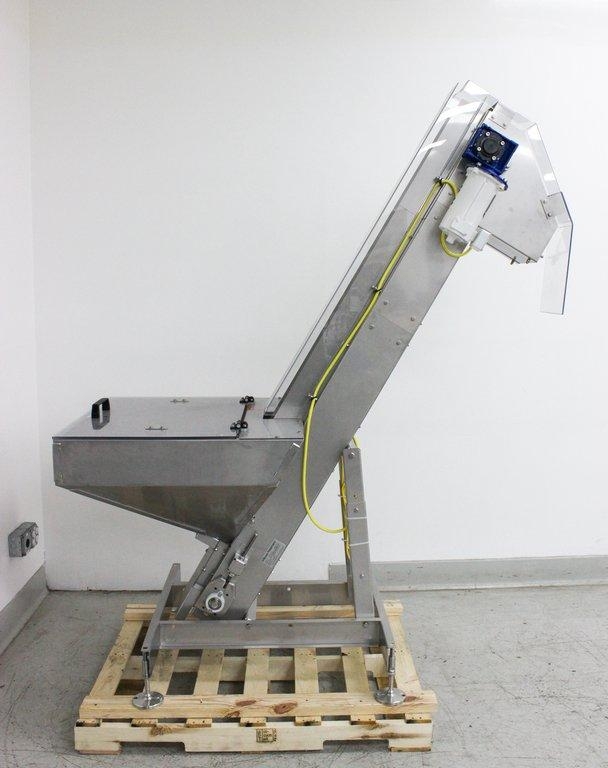

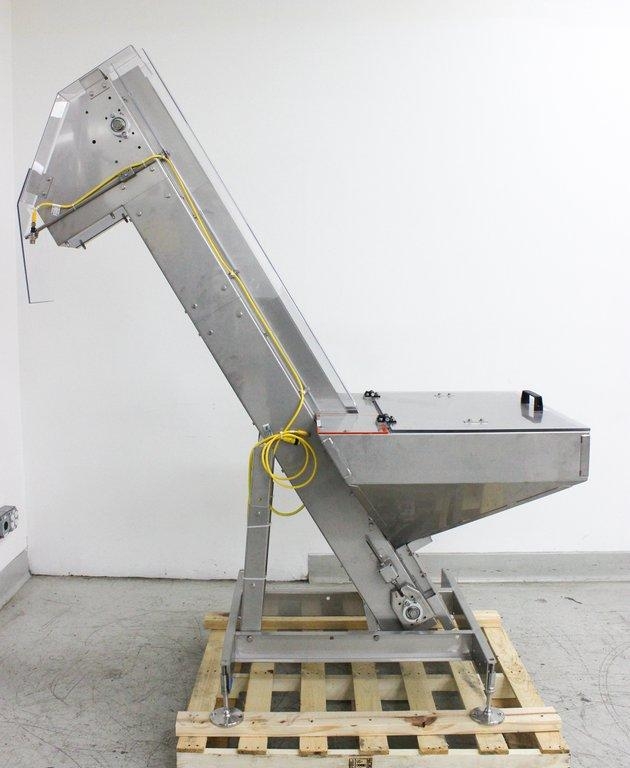

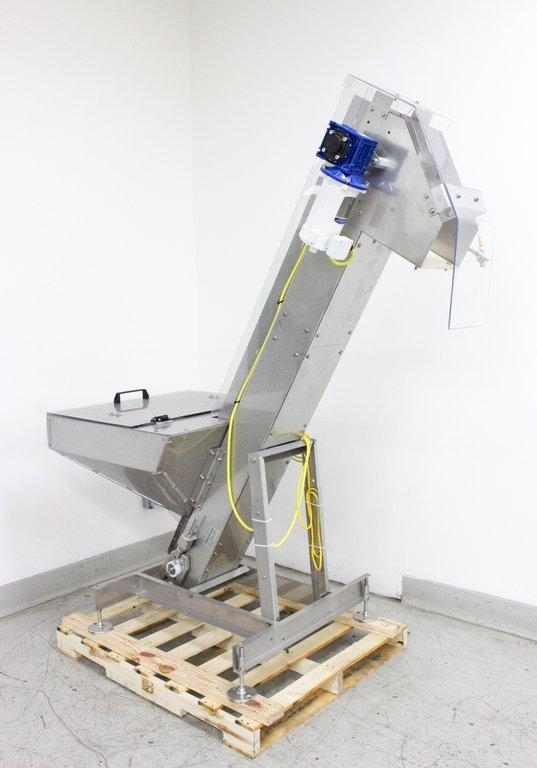

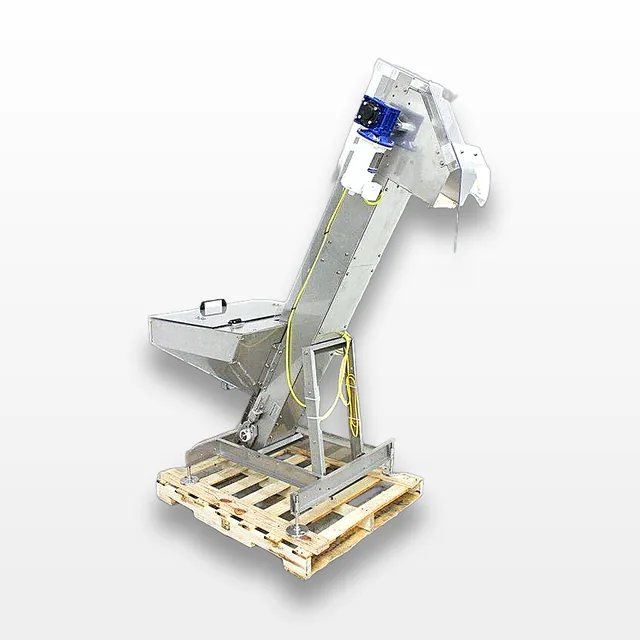

Shibuya Hoppmann EP04/06 Prefeeder Stainless Steel 4-6cuft Up to 35fpm
Shibuya Hoppmann
Details
-
CategoryProduction / Manufacturing
-
Dimension69.0in x 38.0in x 91.0in
-

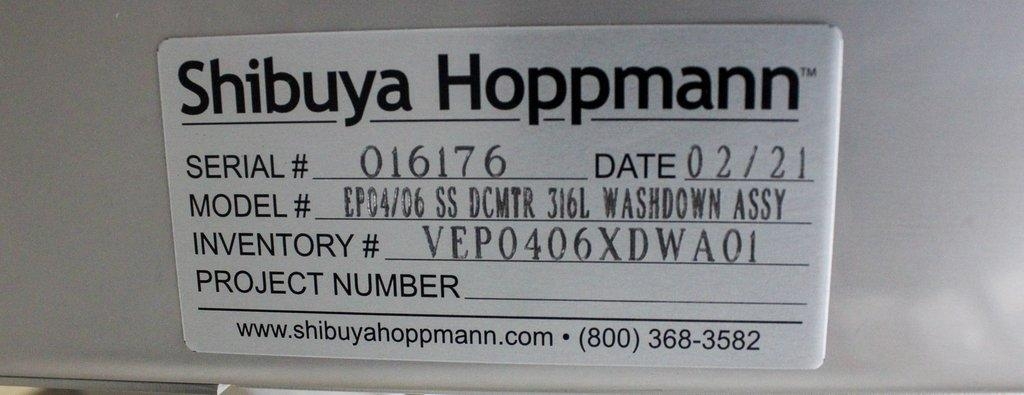

Serial016176
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

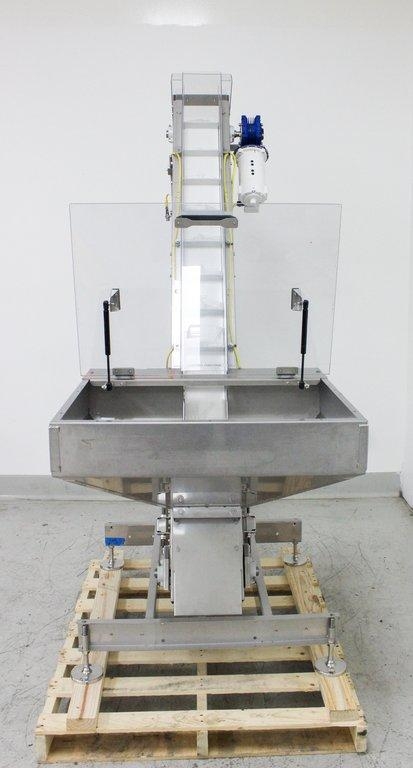

The Shibuya Hoppmann EP04/06 Elevating Prefeeder is expertly manufactured to manage small, lightweight components efficiently, thanks to its robust design and stainless steel construction. With a hopper capacity between 4 to 6 cubic feet, this prefeeder can deliver products at a steady belt speed of up to 35 feet per minute. Its cleated elevator belt, with a cleat height of 1.50 inches and a pitch of 6.00 inches, maximizes product handling capabilities. Further assurance of efficient product metering is achieved through a heavy-duty variable speed AC motor running on 208-230/460V with 1/4 horsepower. Despite unable to fully test, the unit powers on and performs basic functions with no indications of dysfunction noted. Standard features include FDA/USDA approved materials and a hopper clean-out door. Optional upgrades are available, such as safety covers and elevator extensions.
Key Features
- Stainless steel construction
- FDA/USDA approved belting materials
- 4-6 cubic foot hopper capacity
- 35 feet/minute average belt speed

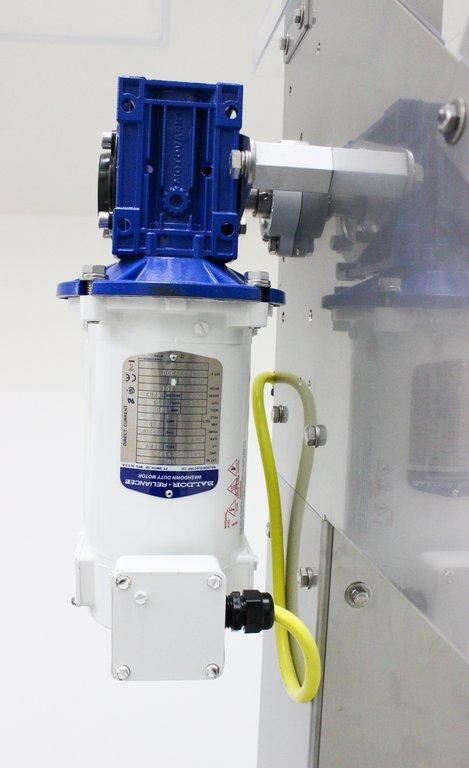

- AC motor with 208-230/460V, 1/4hp
- 1.50-inch cleat height, 6.00-inch cleat pitch
Specifications
- Overall Height: 66 ± 1.25 inches / 1676.4 mm
- Overall Width: 36 inches / 914.4 mm
- Overall Length: 62 inches / 1674.8 mm
- Lower Chassis Footprint: 47 inches / 1193.8 mm
- Discharge Height: 43 ± 1.25 inches / 1092.2 ± 32 mm
- Load Height: 32 ± 1.25 inches / 812 ± 32 mm
- Belt Width: 6 inches / 152.4 mm
- Total Equipment Weight: 250 lbs / 113.4 kg
- Available Options: safety cover package, elevator extensions, hopper extensions
Weight
Imperial: 300.0 Pounds
Metric: 136.08 Kilograms
Shipping Dimensions
Imperial: 82.8 lb x 45.6 lb x 109.2 lb
Metric: 210.31 cm x 115.82 cm x 277.37 cm
Harmonized Code
842890
Harmonized Code Details
842890: Other machinery for the industrial handling of materials, justified by the Shibuya Hoppmann EP04/06's purpose in sorting small lightweight components.
