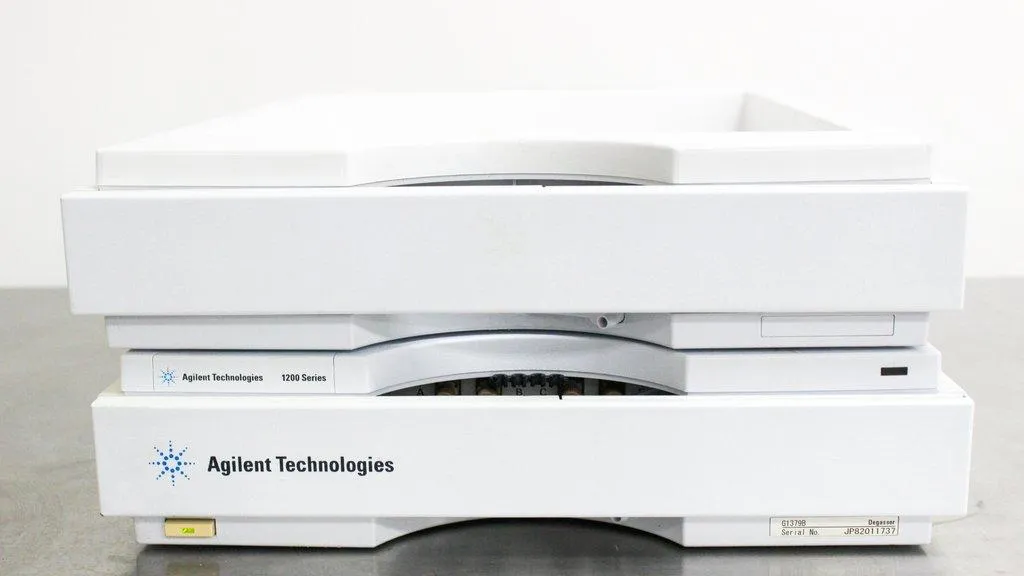

Agilent G1379B Solvent Degasser, HPLC, 4-Channel Vacuum System, Good Condition
Agilent
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension18.0in x 14.0in x 7.0in
-
SerialJP82011737
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Agilent G1379B 1200 Series Solvent Degasser with Solvent Tray effectively removes dissolved gases from High-Performance Liquid Chromatography (HPLC) solvents, ensuring reliable sample analysis. It includes a 4-channel vacuum container with microstructured membranes and a vacuum pump system. Designed for safe and efficient degassing, the unit maintains a partial vacuum using a controlled leak in the proportional valve. Although this used unit shows minor cosmetic wear typical from previous use, it has been subject to power-on tests and basic operational checks, suggesting it functions properly despite being untested in full. This device operates within an ambient temperature of 0 to 55°C and supports pH ranges from 1 to 14, optimizing versatility across a variety of HPLC techniques. It facilitates a maximum flow rate of 0 - 5 ml/min per channel, suitable up to 2000 m in altitude. Power requirements include dual voltage compatibility at 120V/220V, supporting operations across varying laboratory power settings.
Technician comment

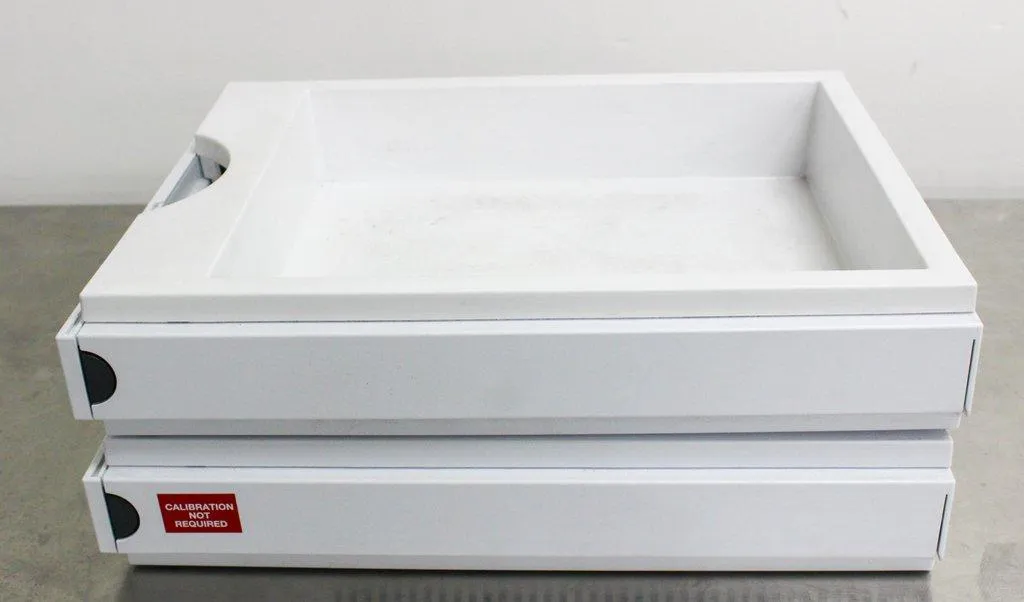

Includes: G1379B Degasser & Solvent Tray.
Key Features
- Reliable solvent degassing for HPLC systems
- 4-channel vacuum container with microstructured membranes
- Controlled leak proportional valve for stable vacuum creation
- Max flow rate: 0-5 ml/min per channel
- Compatible with pH 1-14
Specifications
- Make: Agilent
- Model: G1379B
- Sub-Model: 1200 Series Degasser
- Maximum flow rate: 0 - 5 ml/min per channel
- Number of channels: 4
- Internal volume per channel: Typically 1 ml per channel
- RS232 output for diagnostics
- Ambient operating temperature: 0 - 55°C
- Ambient non-operating temperature: -40 - 70°C
- Humidity: < 95% at 25 - 40°C, non-condensing
- Operating Altitude: Up to 2000 m (6500 ft)
- Non-operating altitude: Up to 4600 m (14950 ft)
- Voltage: 120V/220V, Hertz: 50Hz/60Hz
Weight
Imperial: 22.8 Pounds
Metric: 10.34 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 16.8 lb x 8.4 lb
Metric: 54.86 cm x 42.67 cm x 21.34 cm
Harmonized Code
902290
Harmonized Code Details
Harmonized Code 902290 - Parts and accessories of articles of heading 9022. Suitable for laboratory analysis and testing instruments, reflecting its integration with HPLC systems.
