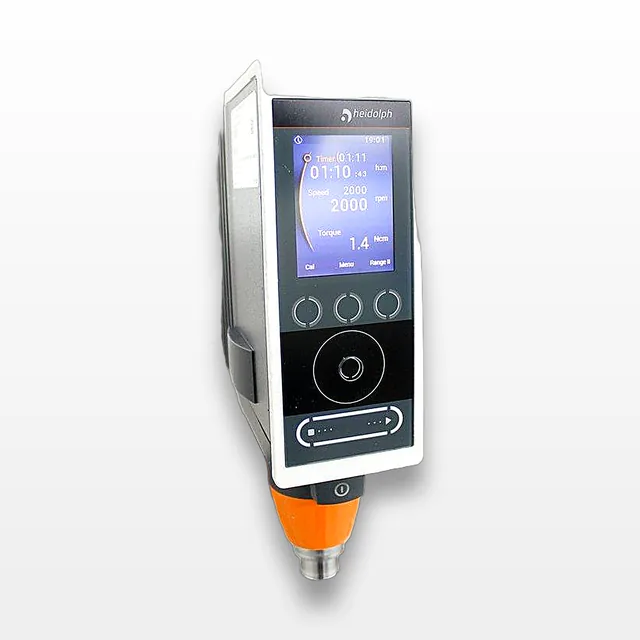

Heidolph Hei-Torque 400 Overhead Stirrer Viscosities 250,000 mPas 100L Volume
Heidolph
Details
-
CategoryHomogenizer / Stirrer
-
Dimension17.0in x 13.0in x 4.0in
-

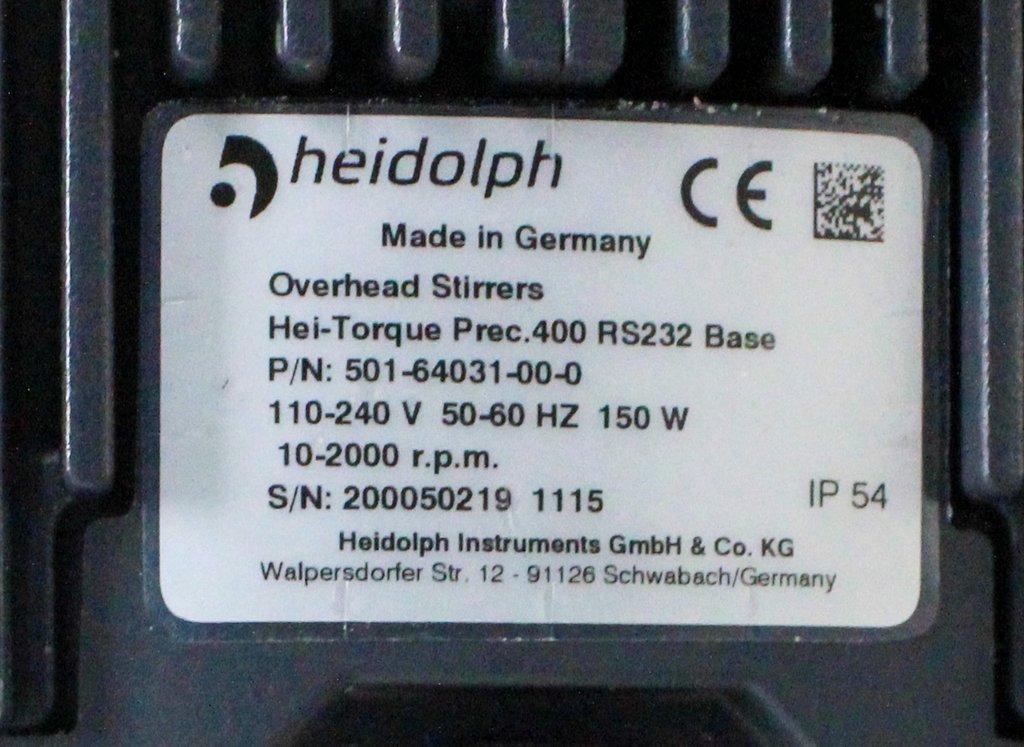

Serial200050219 1115
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Heidolph Hei-Torque 400 laboratory stirrer is ideal for high-efficiency stirring tasks, managing viscosities up to 250,000 mPas or volumes up to 100 liters. It features a robust two-gear stage design, with a speed range of 10-400 rpm for viscous media and up to 2,000 rpm for general stirring applications. Instrument integration is flexible with USB and RS232 interfaces for connection to PCs and PLCs, and remote operation for up to 4 devices with the free Hei-Control software. It is excellent for use in fume hoods and reactor superstructures, ensuring noise-minimized stirring with advanced engine technology. Although in fair condition with missing control knob, this stirrer maintains full functionality and includes a detachable power cord.
Technician comment

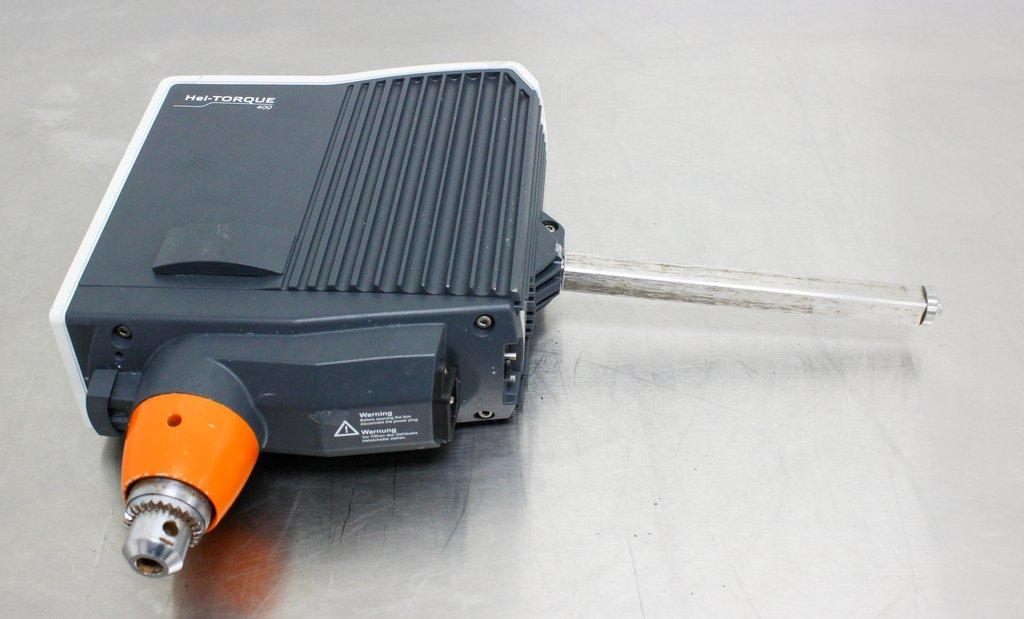

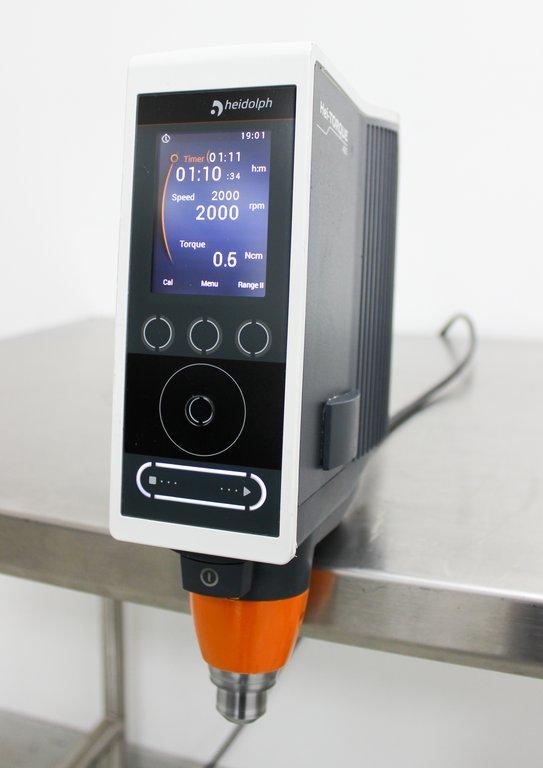

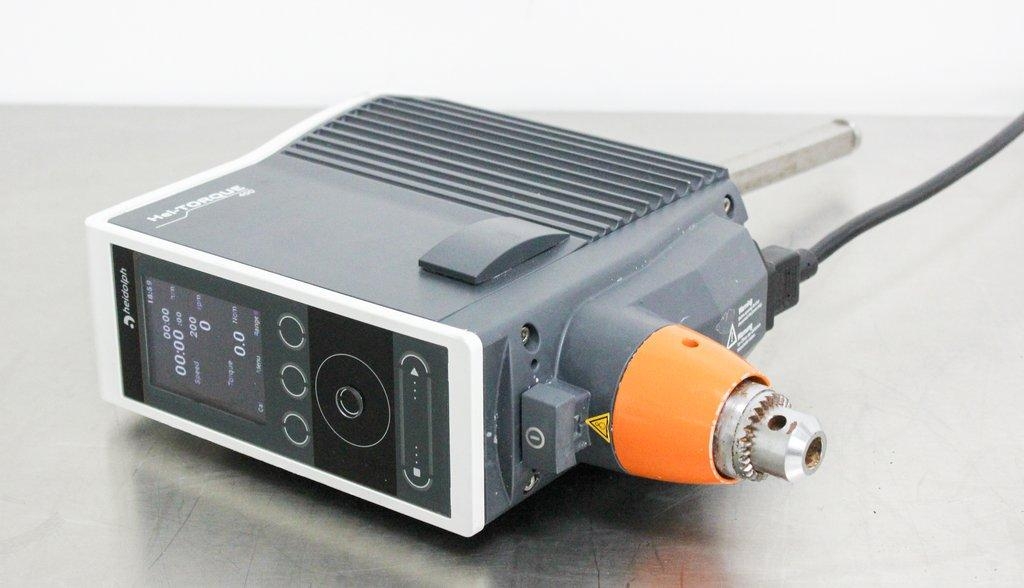

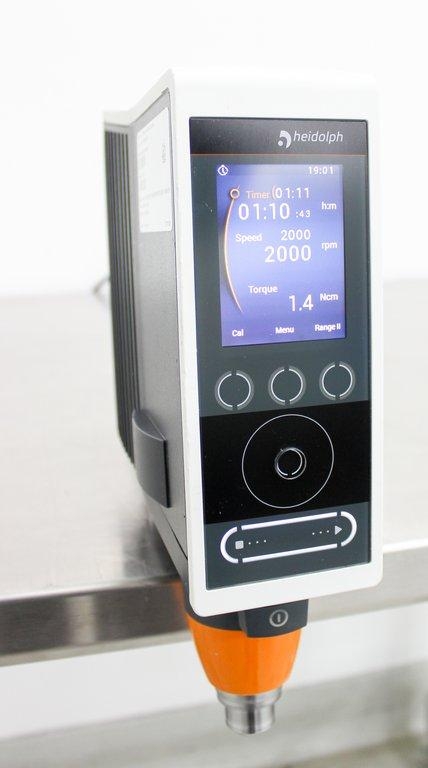

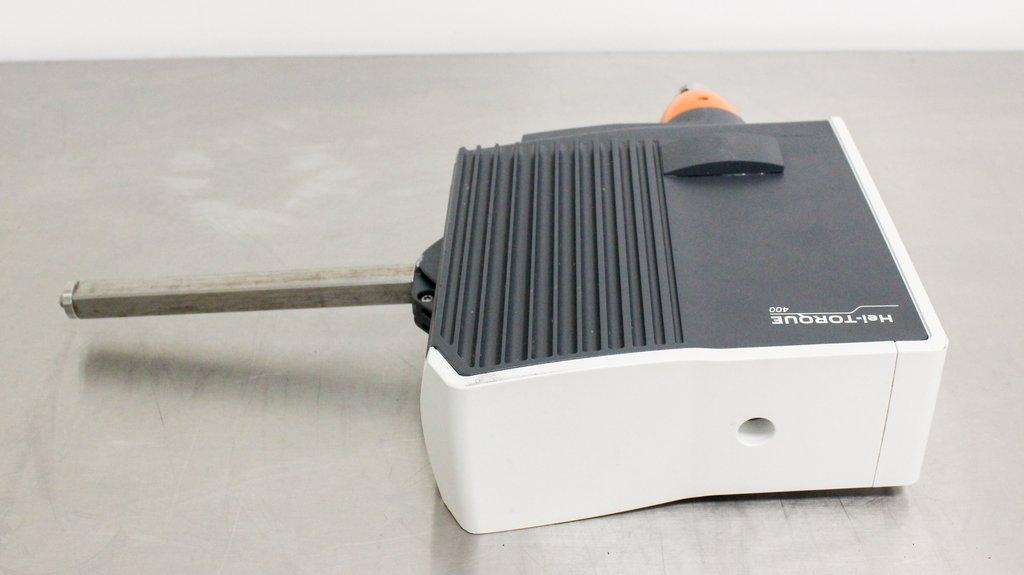

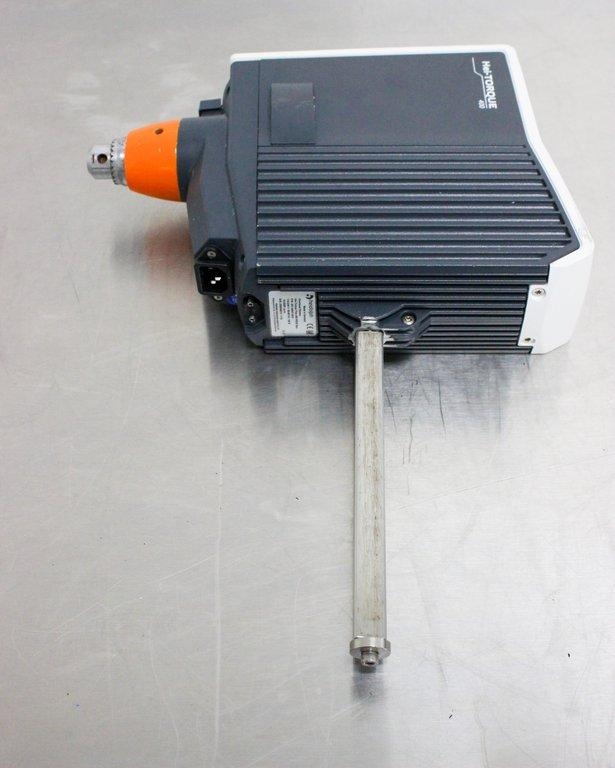

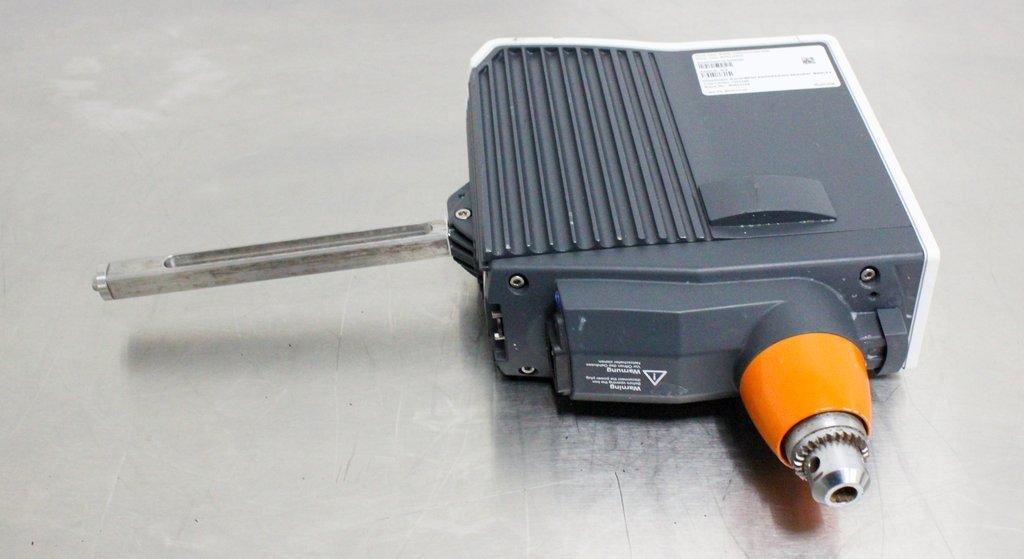

Heidolph Hei-Torque 400 was tested to reach max set point RPM. Unit is preowned with slight wear from normal use. Only what is pictured included. Does not include stand. Note: (Control knob is missing but doesn't affect functionality.) See photos for details.
Key Features
- Handles viscosities up to 250,000 mPas
- Stirs volumes up to 100 liters (H2O)
- Powerful 2-gear stage design
- Speed range: 10-400 rpm (low) to 2,000 rpm (high)
- Integrated USB and RS232 interfaces
- Remote control with Hei-Control software
- Quick-action chuck with safety ring
Specifications
- Speed Range: Gear I 10 - 400 rpm; Gear II 20 - 2,000 rpm
- Max Torque: 400 Ncm
- Volume capacity: 100 liters
- Viscosity handling: 250,000 mPas
- Safety-related start/stop touch-function
- Motor: EC motor
- Control: Electronic
- Protection class: IP54
- Power Input: 150 W
- Dimensions (W × H × D): 93 × 350 × 247 mm
- Weight: 5.3 kg
Weight
Imperial: 15.6 Pounds
Metric: 7.08 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 15.6 lb x 4.8 lb
Metric: 51.82 cm x 39.62 cm x 12.19 cm
Harmonized Code
84798200
Harmonized Code Details
84798200 - Mixing, kneading machinery (including for agglomerating, shaping, or molding solid mineral fuels, ceramic paste, etc). Based on the make and model, this code is suitable for describing overhead stirrers used in laboratory settings.
