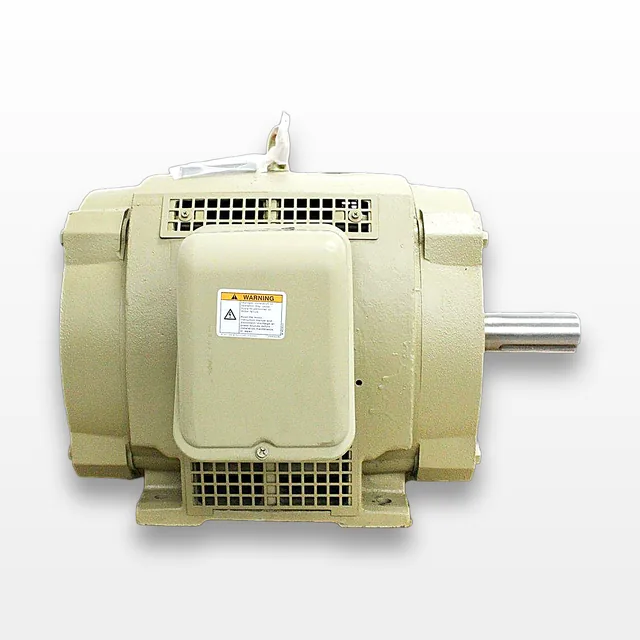

GE 5KS324ATE205A 40 HP Industrial AC Motor 1780 RPM, ODP Design
GE
Details
-
CategoryOther
-
Dimension22.0in x 27.0in x 20.0in
-
Serial60177338
-
Shipping TypeFreight
-
Voltage / Hertz230V-460V / 50Hz/60Hz
Description
The GE Model 5KS324ATE205A is a preowned 40 horsepower, three-phase induction motor tailored for demanding industrial applications. Featuring a NEMA 324T frame and an open drip-proof (ODP) enclosure, this motor ensures optimal cooling and ventilation. Operating at 230/460 volts and 60 Hz with a nominal speed of 1780 RPM, it boasts a high NEMA nominal efficiency of 94.1%, qualifying it as both NEMA Premium® and Energy Saver® Premium. Capable of withstanding higher temperatures with its Class F insulation, this motor is robust against transient overloads. Dual-rated for 50 Hz operation, it can be utilized internationally at 200/400 volts and 1475 RPM. Although it shows minor cosmetic wear typical of previous use, it appears to function as intended and powers on for basic testing. A top choice for applications where energy efficiency and reliability are paramount.
Technician comment
Preowned motor removed from a working environment, showing minor cosmetic wear consistent with normal use. Unit requires hardwiring for complete operational testing; see photos for additional condition details.
Key Features
- 40 HP three-phase induction motor
- 1780 RPM nominal speed
- NEMA Premium® efficiency (94.1%)
- Open Drip Proof (ODP) enclosure
- Dual-rated for 50 Hz international use
Specifications
- Manufacturer: General Electric (GE)
- Model: 5KS324ATE205A
- Voltage: 230/460 V (60 Hz), 200/400 V (50 Hz)
- Amperage: 97/48.5 A (60 Hz), 112.2/56.1 A (50 Hz)
- RPM: 1780 (60 Hz), 1475 (50 Hz)
- Frame: 324T
- Phase: 3
- NEMA Nominal Efficiency: 94.1%
- Horsepower: 40 HP
- Enclosure Type: Open Drip Proof (ODP)
- Insulation Class: F
- Service Factor: 1.15
- Bearings: 6312 (DE and ODE)
- Grease Type: Chevron SRI-2
Weight
Imperial: 690.0 Pounds
Metric: 312.98 Kilograms
Shipping Dimensions
Imperial: 26.4 lb x 32.4 lb x 24.0 lb
Metric: 67.06 cm x 82.3 cm x 60.96 cm
Harmonized Code
8501.53.8040
Harmonized Code Details
8501.53.8040 - Electric AC motors, multi-phase, exceeding 150 kW. Used for motors like the GE 5KS324ATE205A, widely applied in industrial settings for their high power and efficiency.
