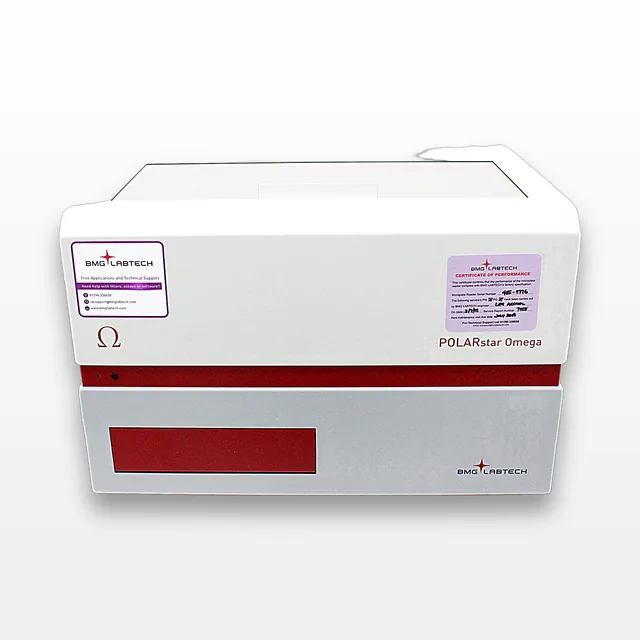

BMG LABTECH POLARstar Omega Microplate Reader Full Spectrum Multi-Detection
BMG LABTECH
Details
-
CategoryAnalytical
-
Dimension19.0in x 18.0in x 12.0in
-

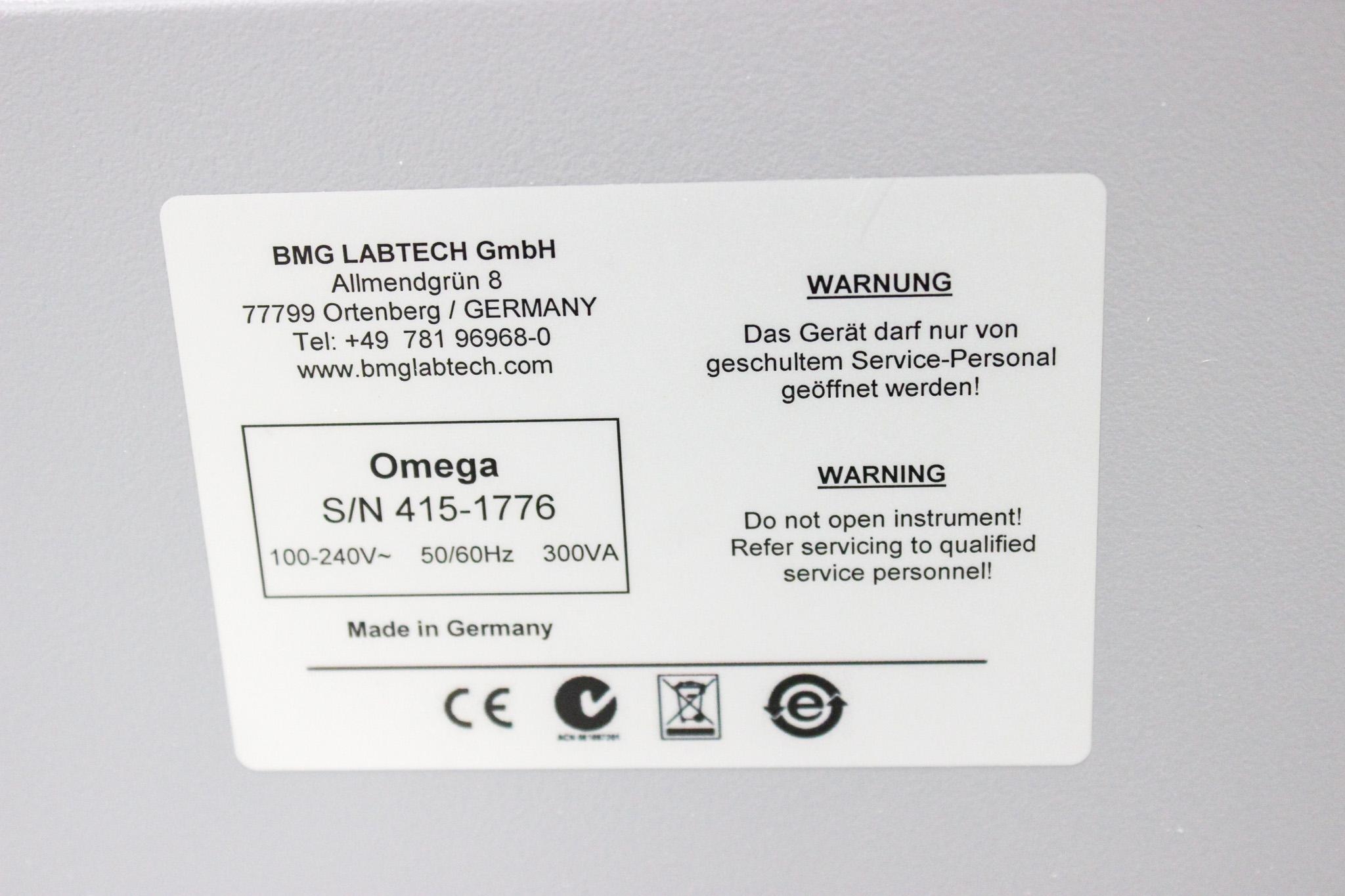

Serial415-1776
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The BMG LABTECH POLARstar Omega is a versatile, high-speed multi-mode microplate reader designed for comprehensive absorbance and fluorescence polarization applications. Manufactured in Germany, this unit offers six detection modes, including standard fluorescence, time-resolved fluorescence, fluorescence polarization, UV/Vis absorbance, and luminescence. Notable features include a simultaneous dual emission detection system ideal for assays like FRET and TR-FRET, ultra-fast UV/Vis spectrometer, and precise temperature control for optimal assay conditions. It supports plate formats from 6 to 1536 wells and is compatible with robotic systems for high-throughput screening. Though unable to conduct full functional tests, the unit powers on and shows no apparent functional issues despite minor cosmetic wear. Note that the computer and software are not included, and the unit requires software for complete functionality.
Technician comment

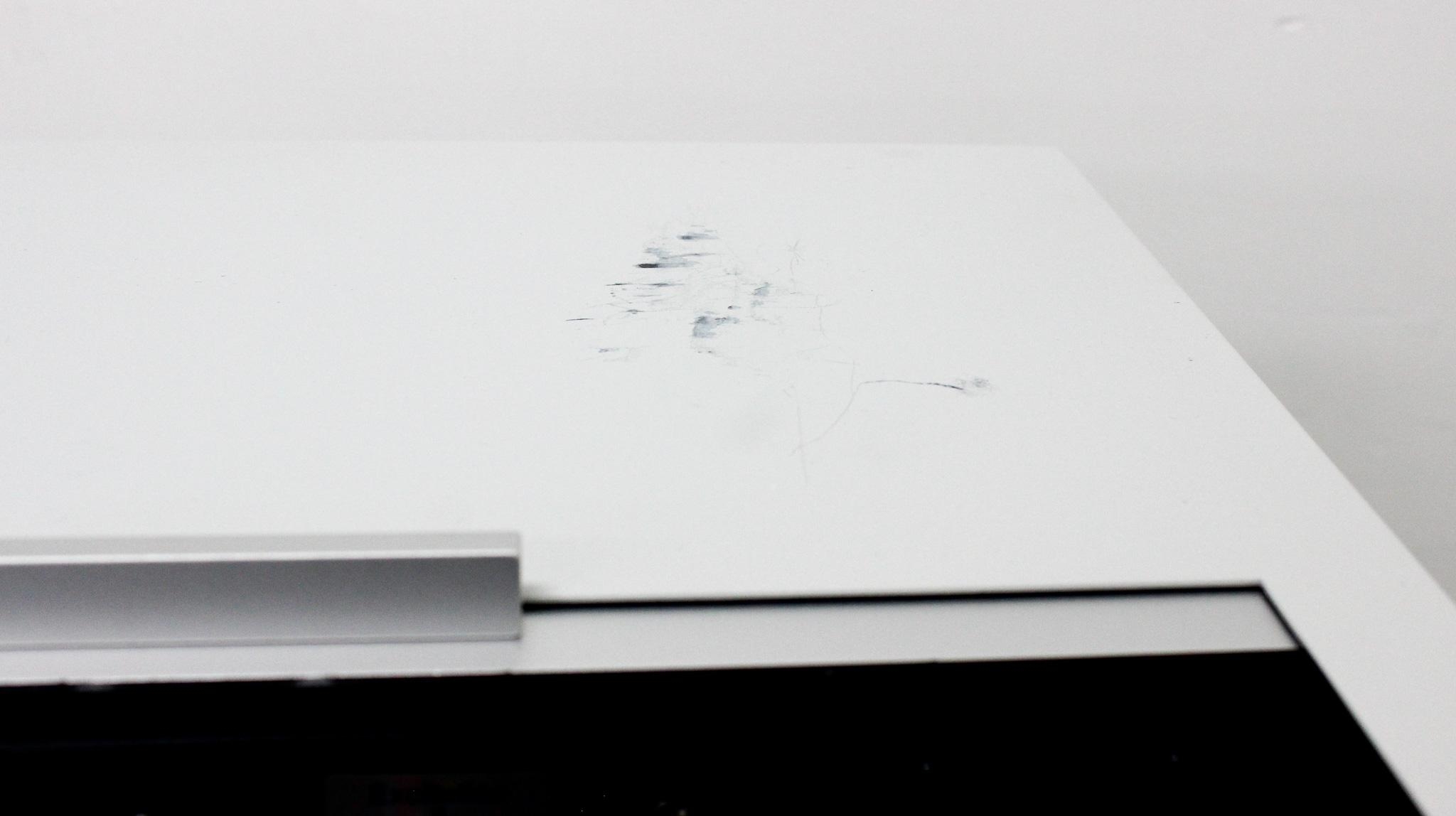

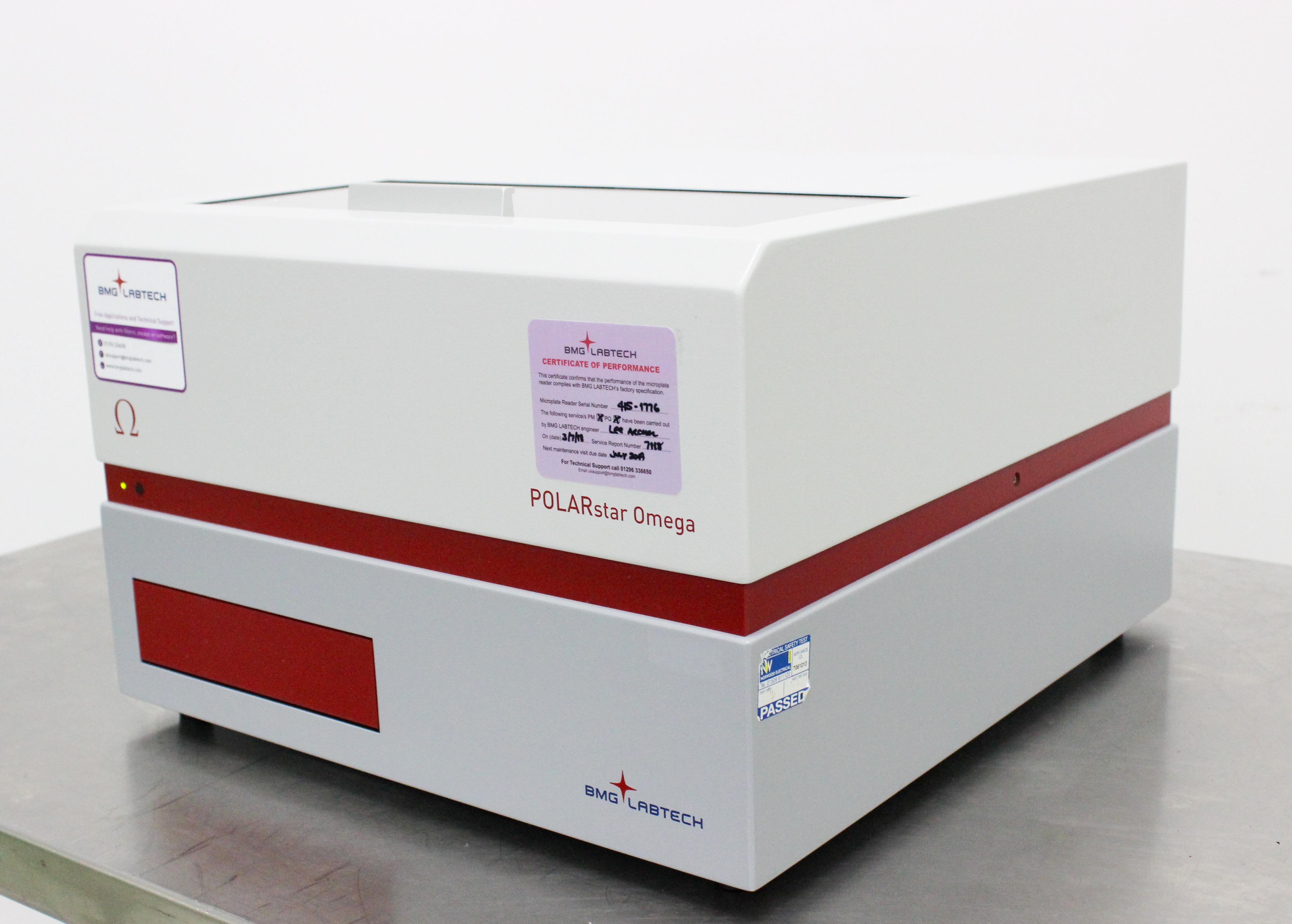

Need software to fully test. Unit is preowned from a working environment. Unit has minor scratches on top panel. See photos for details.
Key Features
- High-speed full spectrum absorbance detection
- Simultaneous dual emission fluorescence detection
- Six detection modes including fluorescence and luminescence
- Precise temperature control with optional extended range to 60°C
- Compatible with robotic systems and up to 1536-well plates
Specifications
- Incubation range: Ambient +5...45°C (60°C option)
- Light source: High energy xenon flashlamp
- Dispensing speed: 100 to 420 µl/s
- Filter: Excitation and emission filter wheel for 8 filters each
- Measurement time for 96-well plate: 9 seconds
- Dynamic range: 8 Orders (LUM), 8 Orders FI, 7 Orders (high end TRF)
- Measurement range: 220 - 850 nm

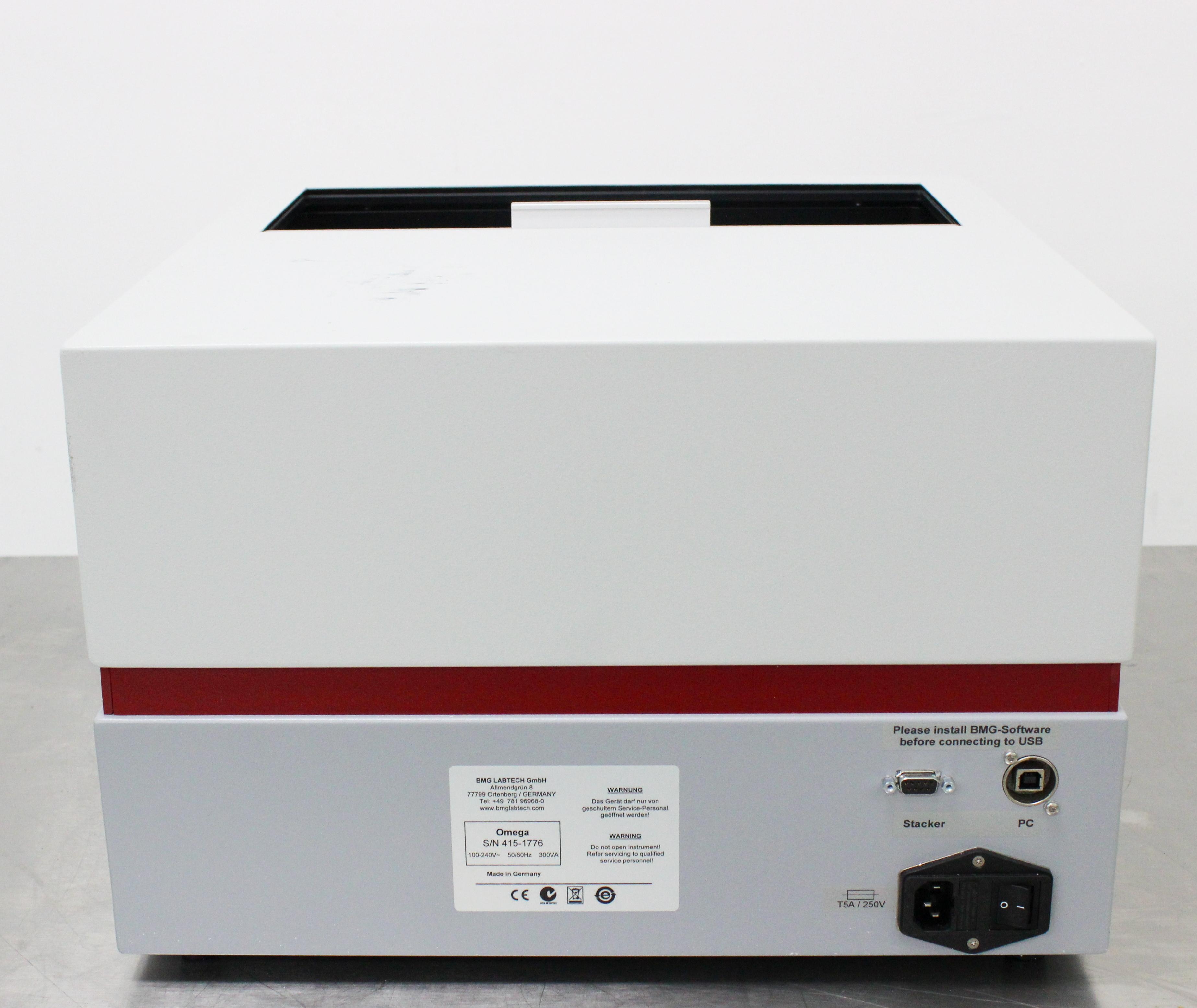

- Interfaces: USB
- Plate types: 6 to 1536-well plates
- Temperature stability: ±0.2°C
Weight
Imperial: 74.4 Pounds
Metric: 33.75 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 21.6 lb x 14.4 lb
Metric: 57.91 cm x 54.86 cm x 36.58 cm
Harmonized Code
9027.50
Harmonized Code Details
HS Code 9027.50 covers instruments and apparatus for physical or chemical analysis such as spectrometers and microplate readers. This code is appropriate for the POLARstar Omega due to its capabilities in fluorescence and absorbance detection.
