Dr Schneider PC SL-030B Surface Resistance Meter, Measures Temperature & Humidity
Dr Schneider PC
Details
-
CategoryTesting Equipment
-
Dimension15.0in x 4.0in x 10.0in
-

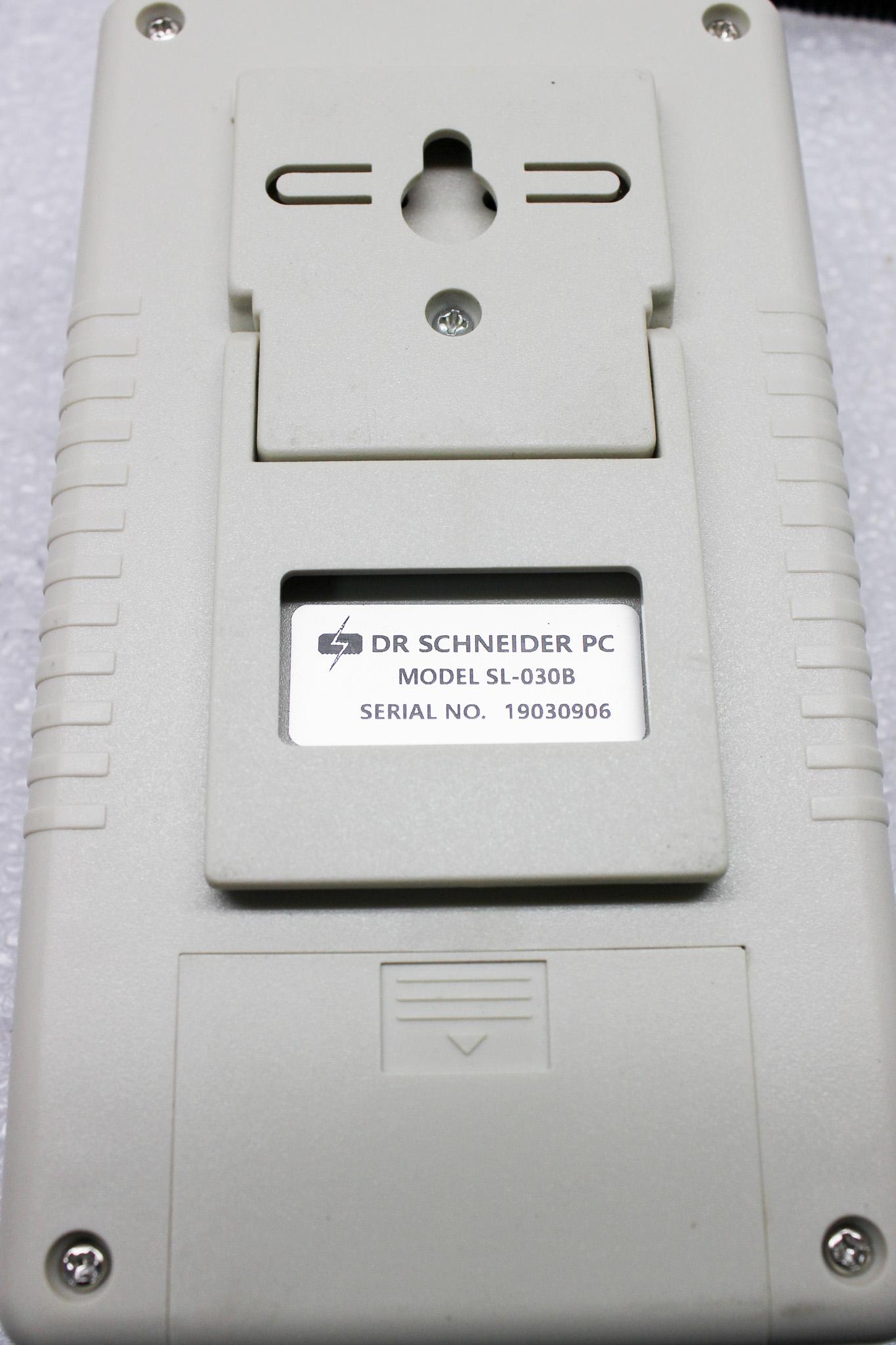

Serial19030906
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

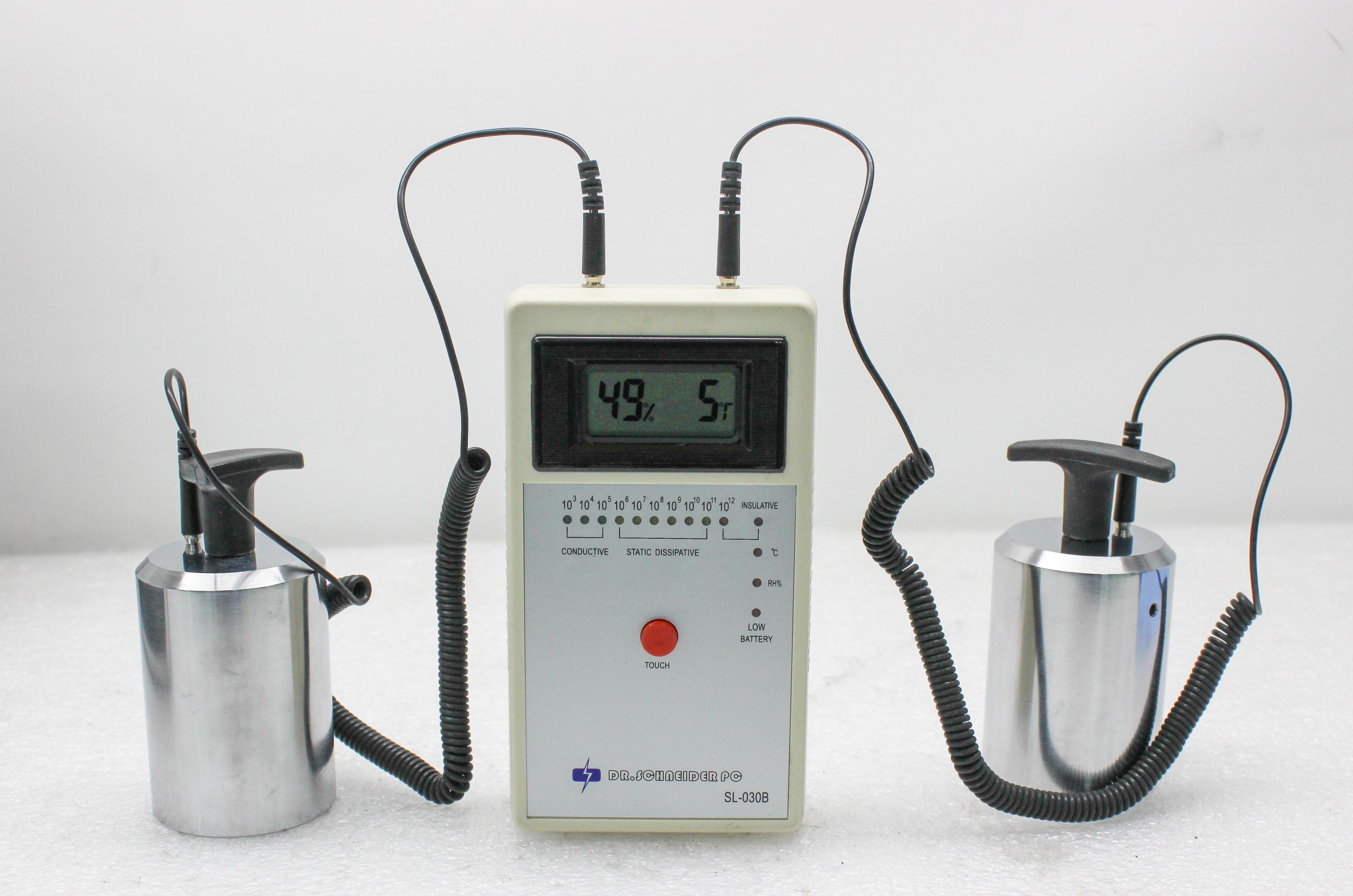

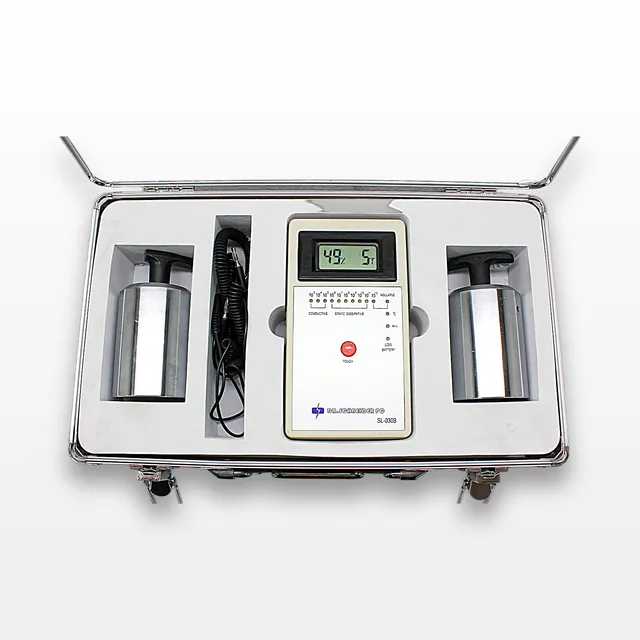

The Dr Schneider PC SL-030B is a hammer type surface resistance meter designed to assess environmental temperature and humidity. This instrument is equipped with a digital display that illuminated readings for both temperature and humidity ranges (0°C-100°C and 0-100% RH respectively). Despite being in fair condition with minor cosmetic defects, the device offers valuable measurement capabilities, especially for environments where surface resistance monitoring is crucial. Note that the LCD temperature display may not show correctly due to a pressure spot on the screen. The SL-030B is powered by a DC 9V battery offering continuous use up to 40 hours, making it ideal for uses such as clean room equipment monitoring, electrostatic discharge testing, and more.
Technician comment
LCD temperature display not showing correctly due to pressure spot on screen.
Key Features
- Hammer type surface resistance meter
- Measures temperature and humidity
- Digital LCD display
- Powered by DC 9V battery
- 40 hours battery life
Specifications
- Measurement Range: 10-10
- Temperature Measurement: 0°C-100°C
- Humidity Measurement: 0-100% RH
- Instrument Weight: 350g
- Hammer Weight: 2.5±0.2kg
- Dimensions: 170mm (H) x 100mm (L) x 40mm (W)
- Power Supply: DC 9V
- Battery Life: 40 hours continuous use
- Digital Display: Yes, low battery indicator
Weight
Imperial: 16.8 Pounds
Metric: 7.62 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 4.8 lb x 12.0 lb
Metric: 45.72 cm x 12.19 cm x 30.48 cm
Harmonized Code
9027
Harmonized Code Details
Harmonized code 9027 refers to instruments and apparatus for physical or chemical analysis. This code is appropriate as the SL-030B is used for measuring surface resistance, temperature, and humidity in clean room and ESD environments.
