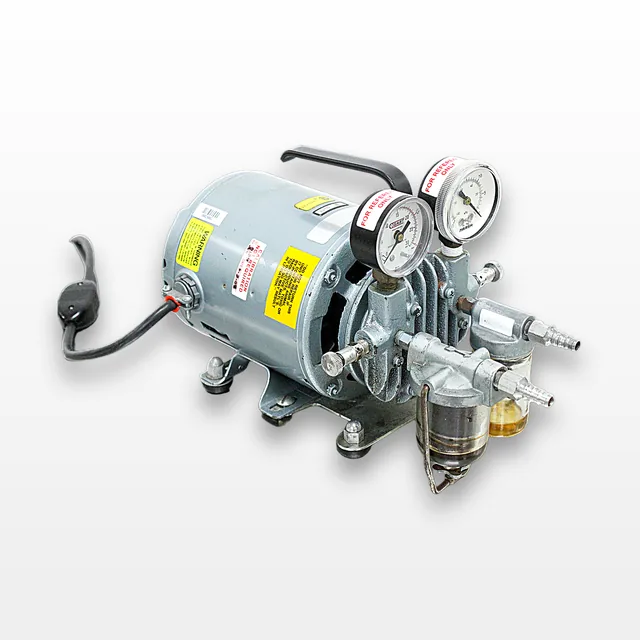

Emerson SA55JXGTD-4144 Pump Vacuum Pump 0.17 HP 1725 RPM 115 V 60 Hz UL CSA Cert
Emerson Electric Co., Motor Division
Details
-
CategoryPump
-
Dimension7.0in x 14.0in x 8.0in
-
Serial2690
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz115 v / 60Hz US
Description

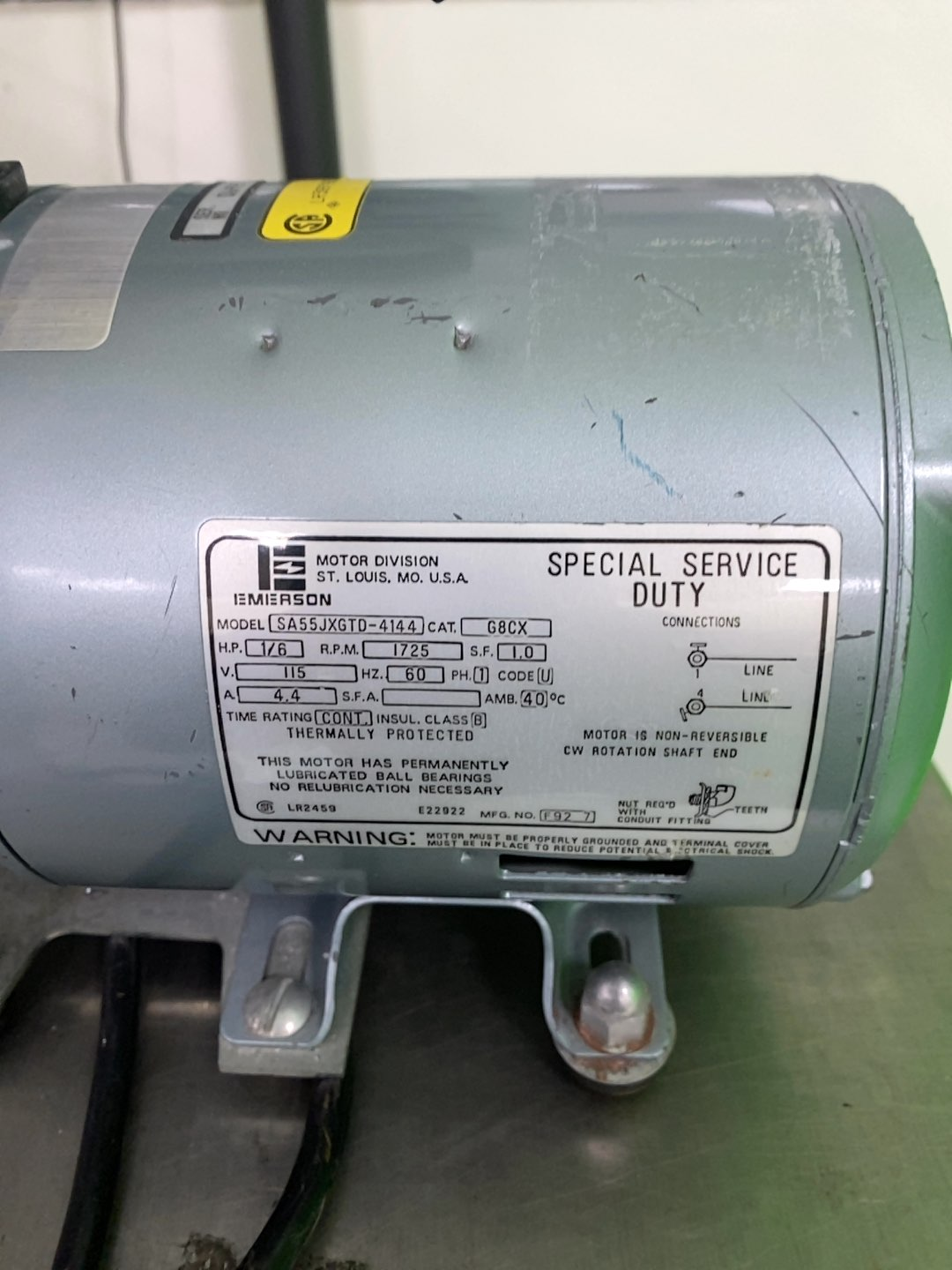

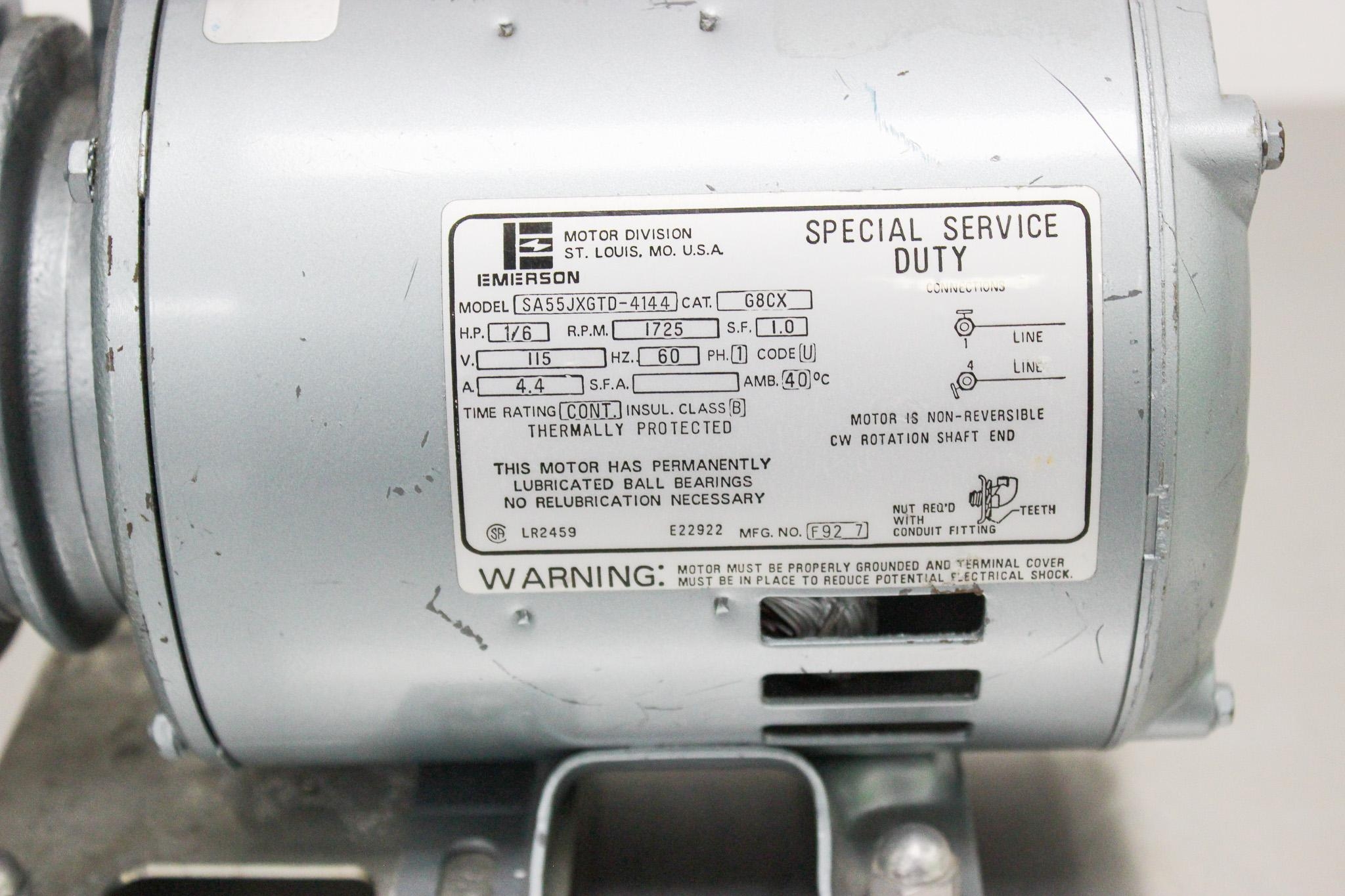

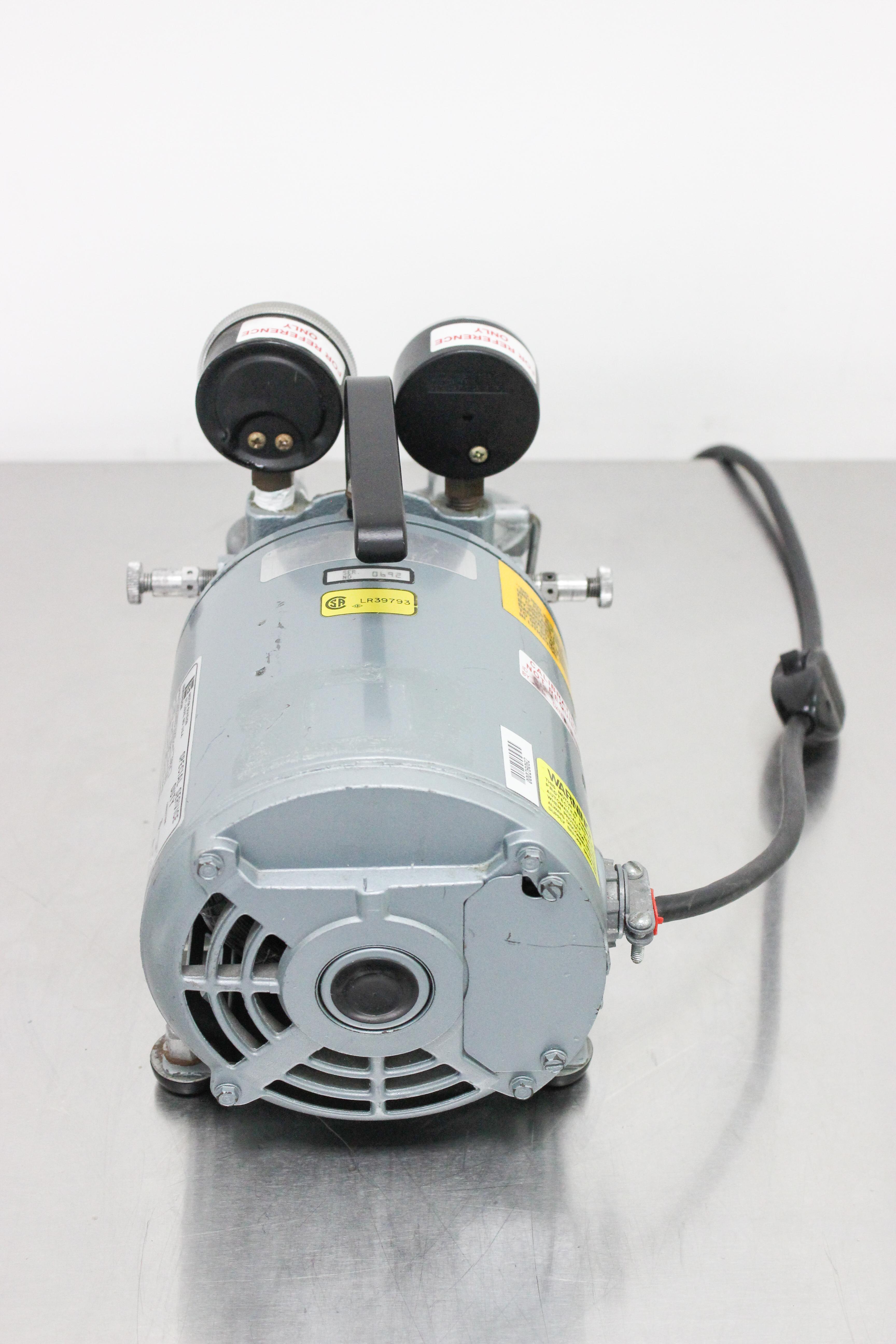

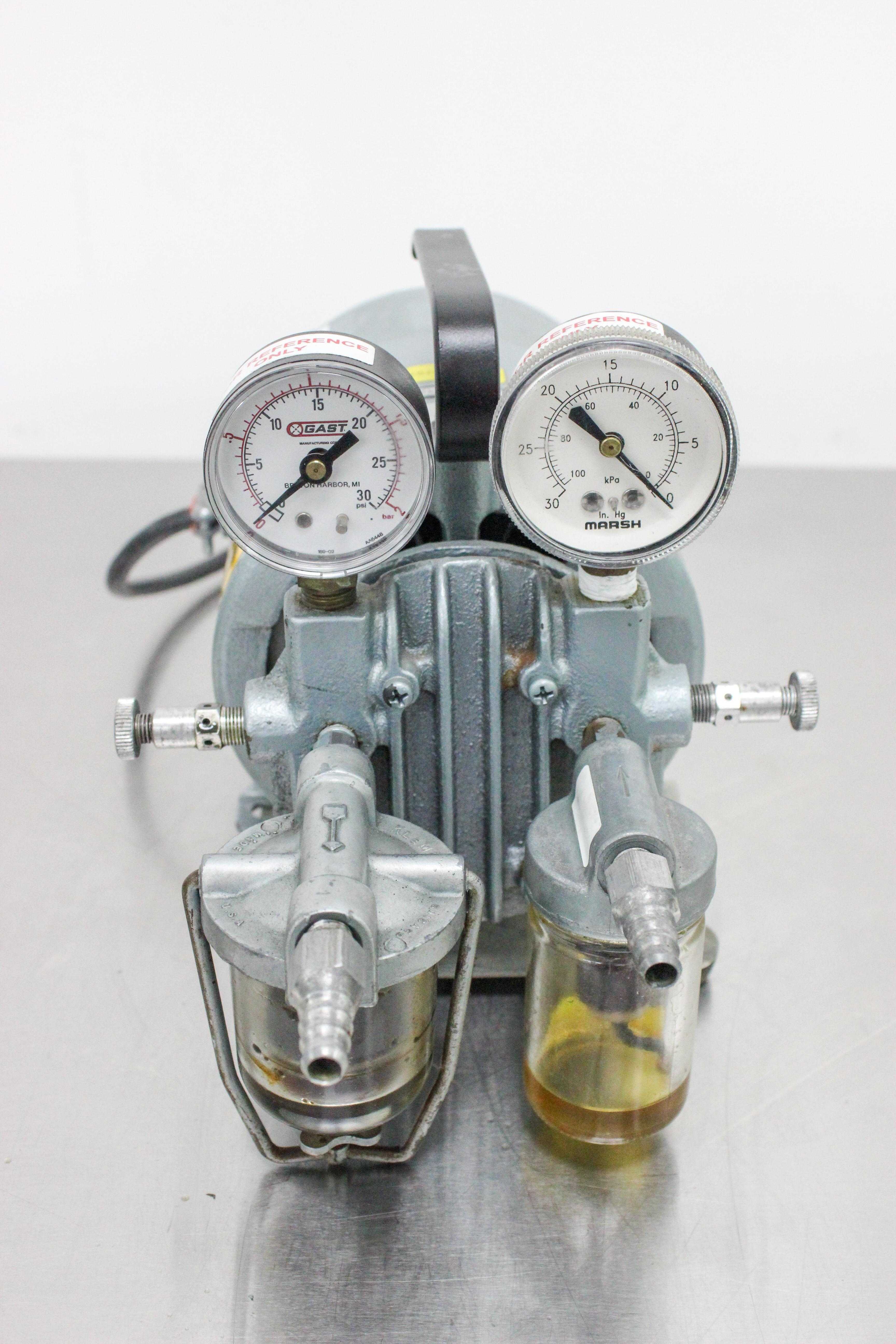

Emerson SA55JXGTD-4144 rotary vane vacuum pump, Sub-Model G8CX, in Very Good condition. This compact, single-phase unit is driven by an Emerson AC induction motor rated 0.17 HP (1/6 HP) at 1725 RPM, 115 V, 60 Hz, drawing 4.4 A. It is thermally protected, continuous duty with NEMA MG 1 compliance, insulation class B, service factor 1.0, and a max ambient of 40 C. The motor is non-reversible with clockwise rotation at the shaft end. Permanently lubricated ball bearings minimize maintenance. UL listed and CSA certified. Direct-on-line starting simplifies integration into lab benches or light industrial skids. Suitable for light-duty vacuum applications such as filtration, degassing, aspiration, sample drying, and small fixtures in educational labs, R and D, and pilot areas. Power cord included. Serial: MFG. NO. 92 7. Year of manufacture not specified. Warranty is AS-IS; passes function tests and shows little to some cosmetic wear.
Key Features
- Single-phase rotary vane vacuum pump for light-duty laboratory and industrial use
- Emerson AC induction motor, 0.17 HP (1/6 HP) at 1725 RPM, 115 V, 60 Hz, 4.4 A
- Thermally protected, continuous duty, NEMA MG 1, insulation class B, service factor 1.0
- Non-reversible CW rotation at shaft end for consistent operation
- Permanently lubricated ball bearings; no relubrication required
- Direct-on-line start for simple wiring and fast deployment
- UL listed (E22022) and CSA certified (LR2459) for safety compliance
- Max ambient 40 C; appropriate for typical lab environments
- Compact footprint for benchtop integration and equipment skids
- Very Good condition; passes function tests; power cord included
Specifications
- Make and Model: Emerson SA55JXGTD-4144 (Sub-Model G8CX)
- Serial Number: MFG. NO. 92 7
- Pump Type: Rotary vane vacuum pump, light-duty
- Motor: Single-phase AC induction, 0.17 HP (1/6 HP)
- Speed: 1725 RPM nominal
- Electrical: 115 V, 60 Hz, 1-phase, 4.4 A
- Duty/Rating: Continuous duty, Service Factor 1.0, Insulation Class B
- Thermal Protection: Integrated overload protection
- Rotation: Clockwise at shaft end; non-reversible
- Bearings: Permanently lubricated ball bearings
- Controller/Start: Direct-on-line (across-the-line)
- Environmental: Max ambient 40 C

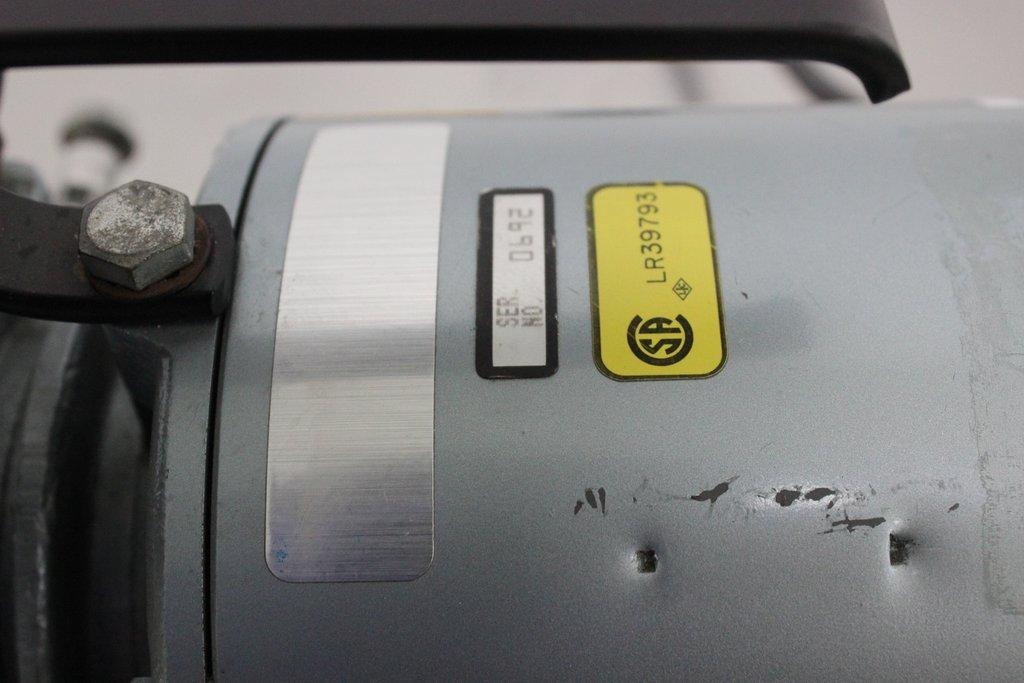

- Certifications: UL listed (File E22022); CSA certified (File LR2459)
- Standards: NEMA MG 1; Locked-rotor kVA code U
- Country of Origin: USA
- Condition: VG (Very Good); functions as intended, minor cosmetic wear
- Warranty: AS-IS
- Included: Power cord
- Not Included: Power/data cables, computer, software, service records, user manuals
- Applications: Vacuum filtration, degassing, aspiration, sample drying, light fixturing
- Safety Notes: Must be properly grounded; terminal cover must be installed
- Weight and Size: Approx 119 lb; 7 x 14 x 8 in (L x W x H)
- Performance Notes: Ultimate vacuum and flow rate not specified on data plate
Weight
Imperial: 142.8 Pounds
Metric: 64.77 Kilograms
Shipping Dimensions
Imperial: 8.4 lb x 16.8 lb x 9.6 lb
Metric: 21.34 cm x 42.67 cm x 24.38 cm
Harmonized Code
8414100000
Harmonized Code Details
HS 8414.10.00 - Vacuum pumps. This unit is a rotary vane vacuum pump assembly, which falls under vacuum pumps in heading 8414.
