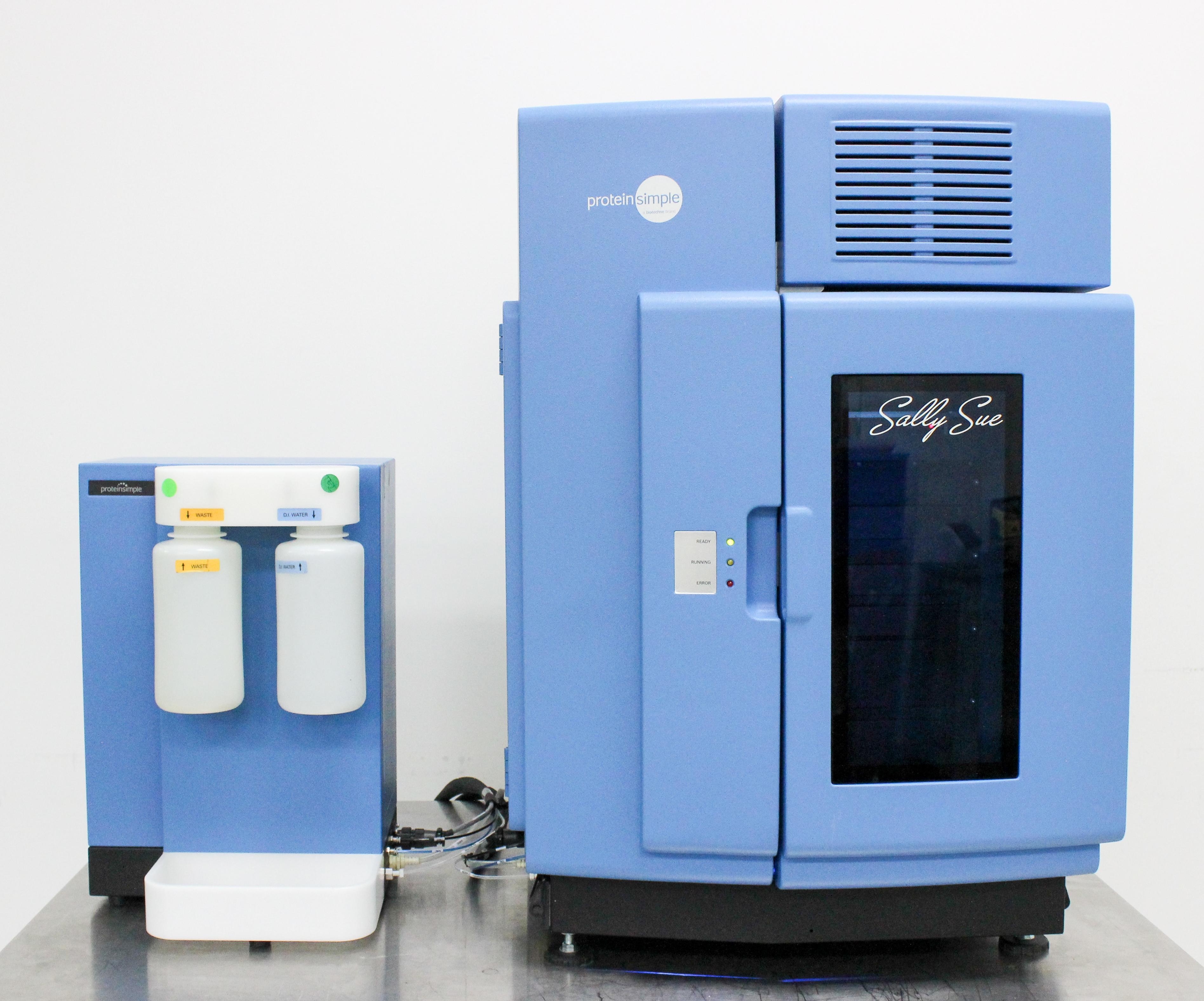

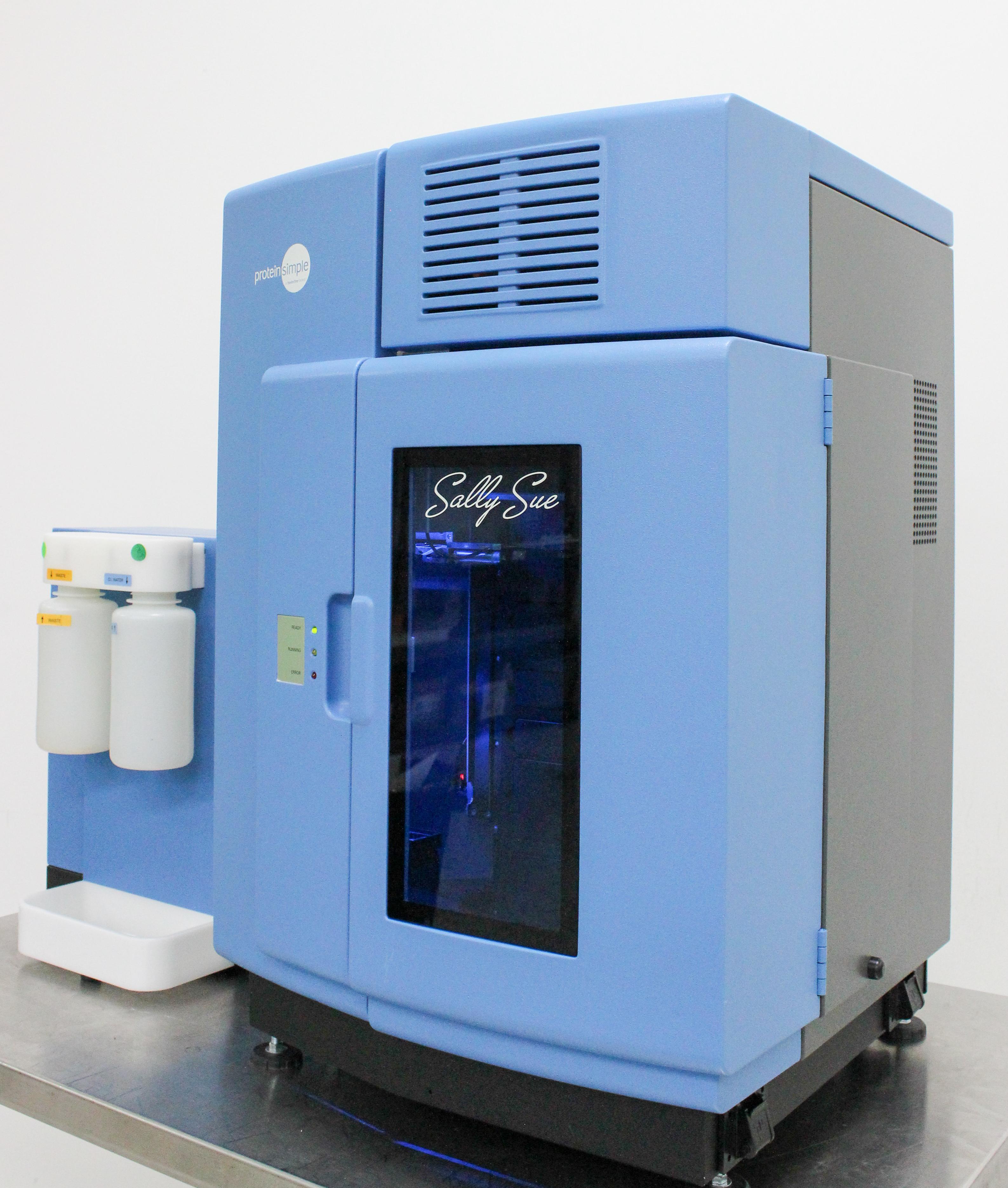

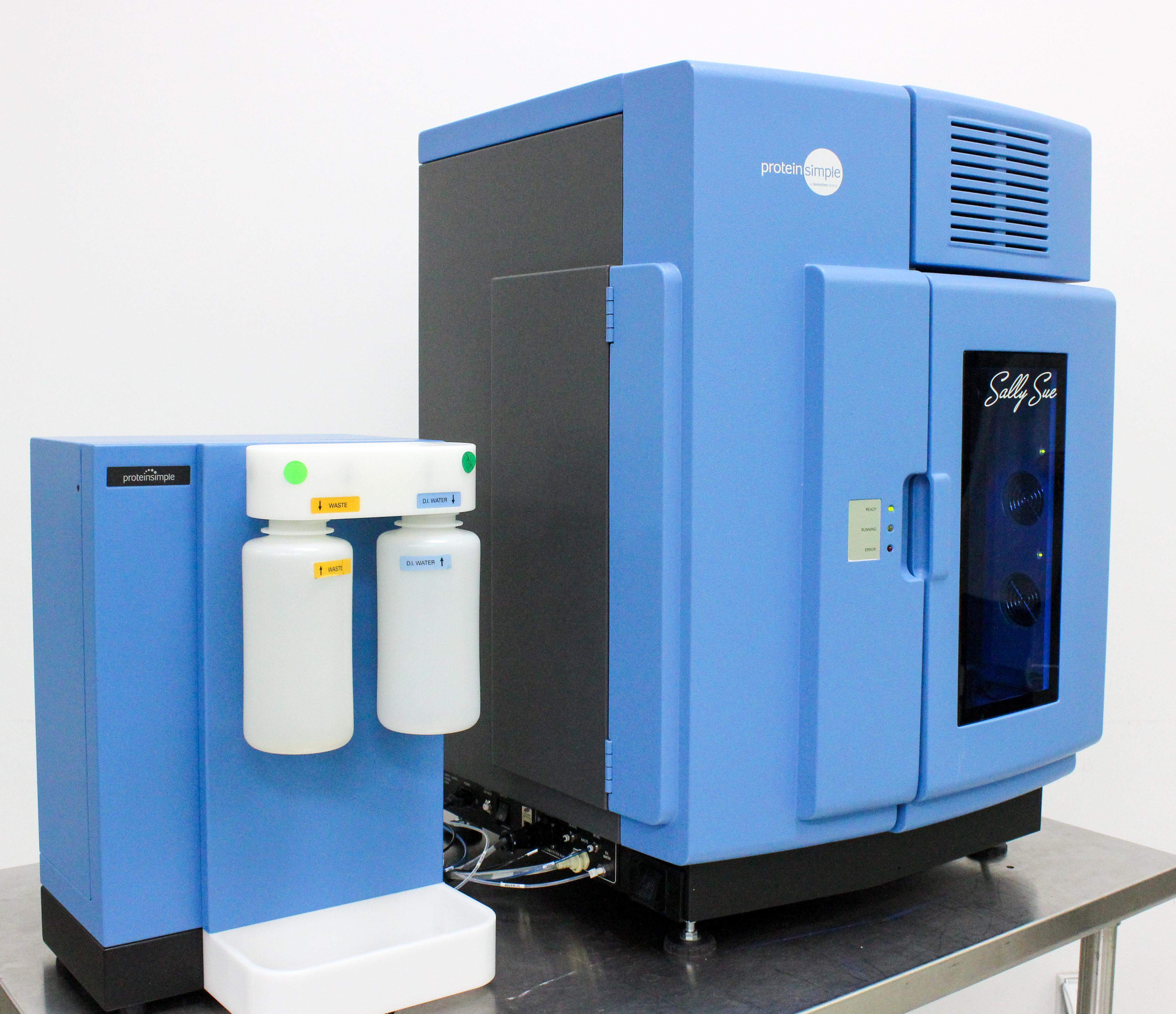

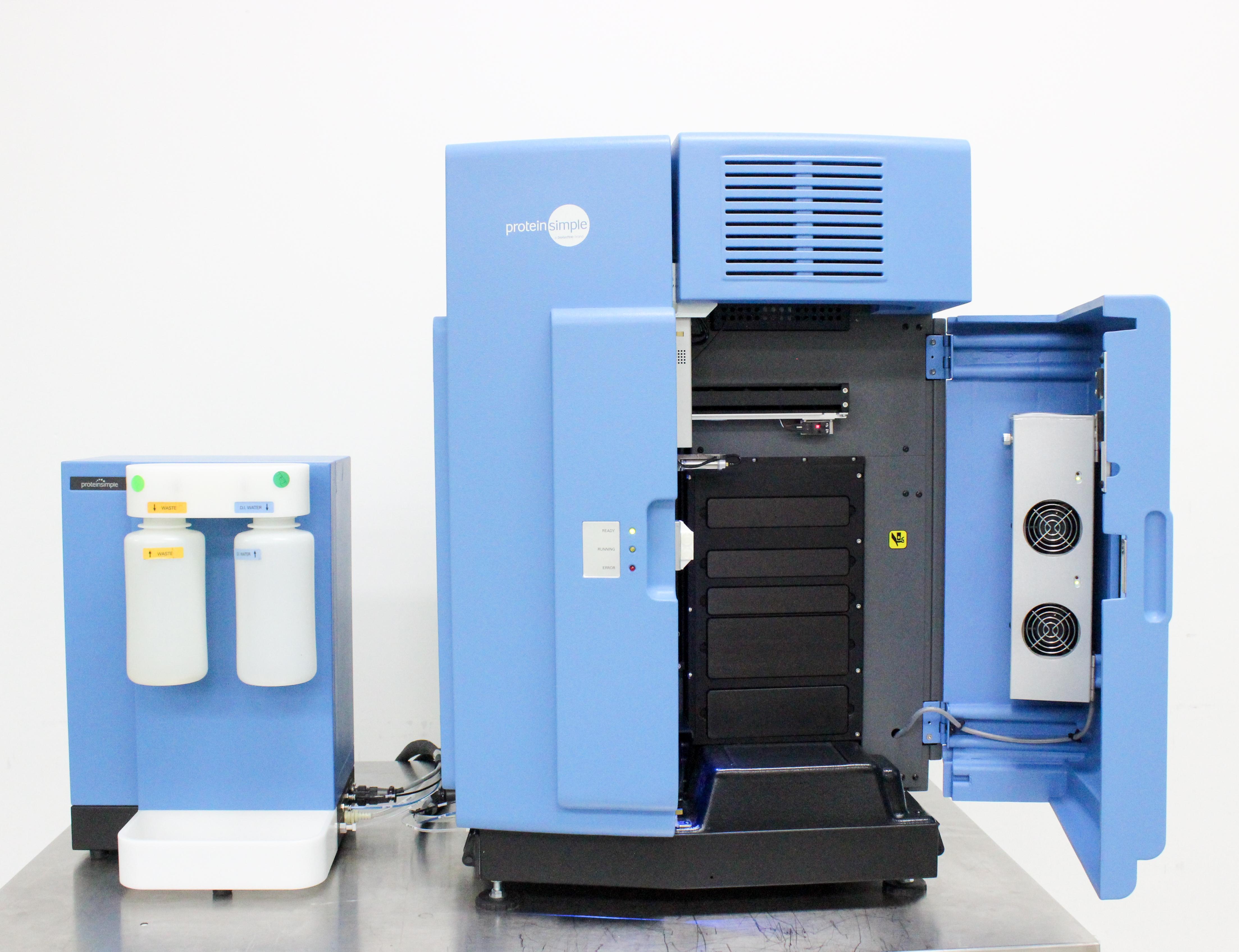

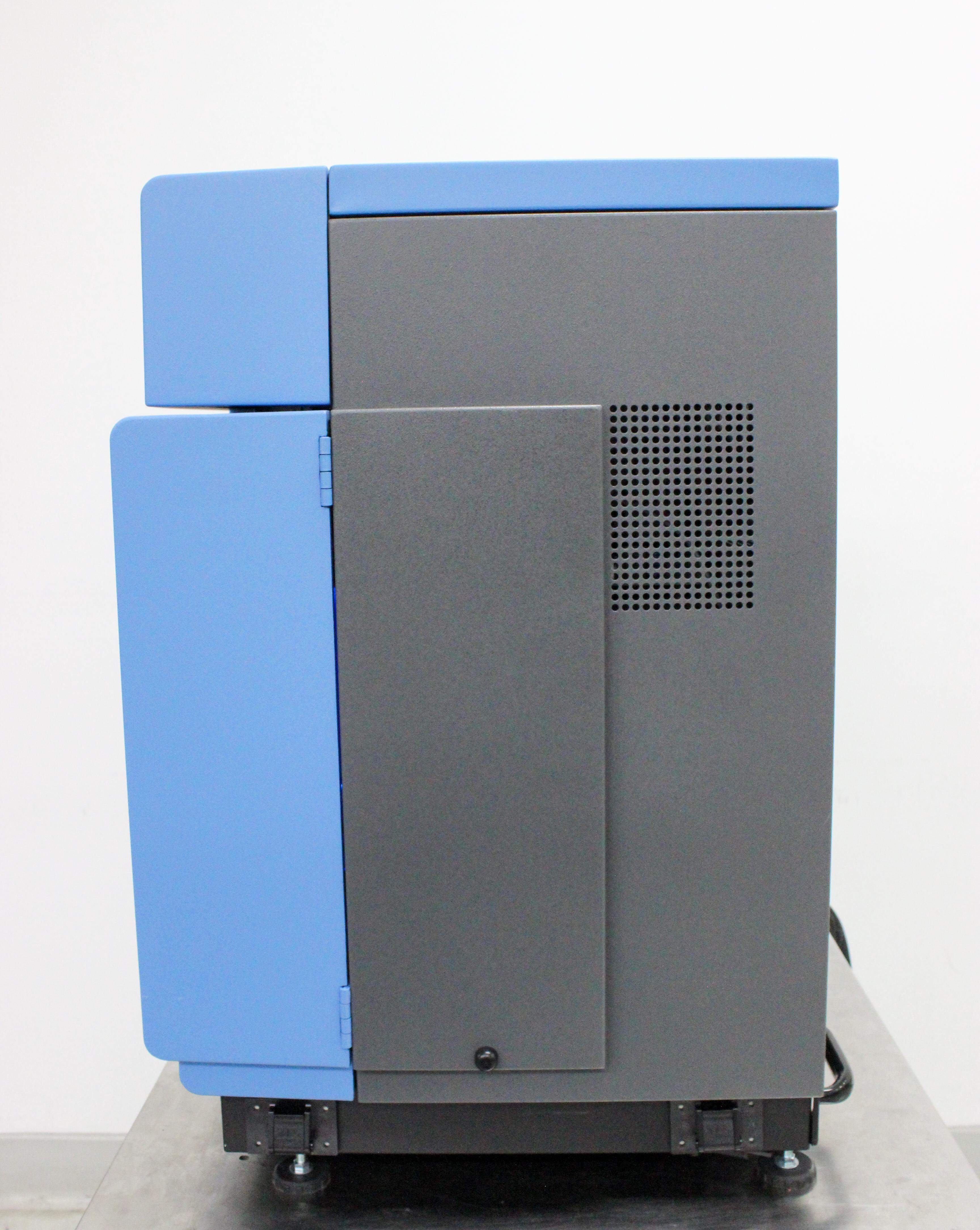

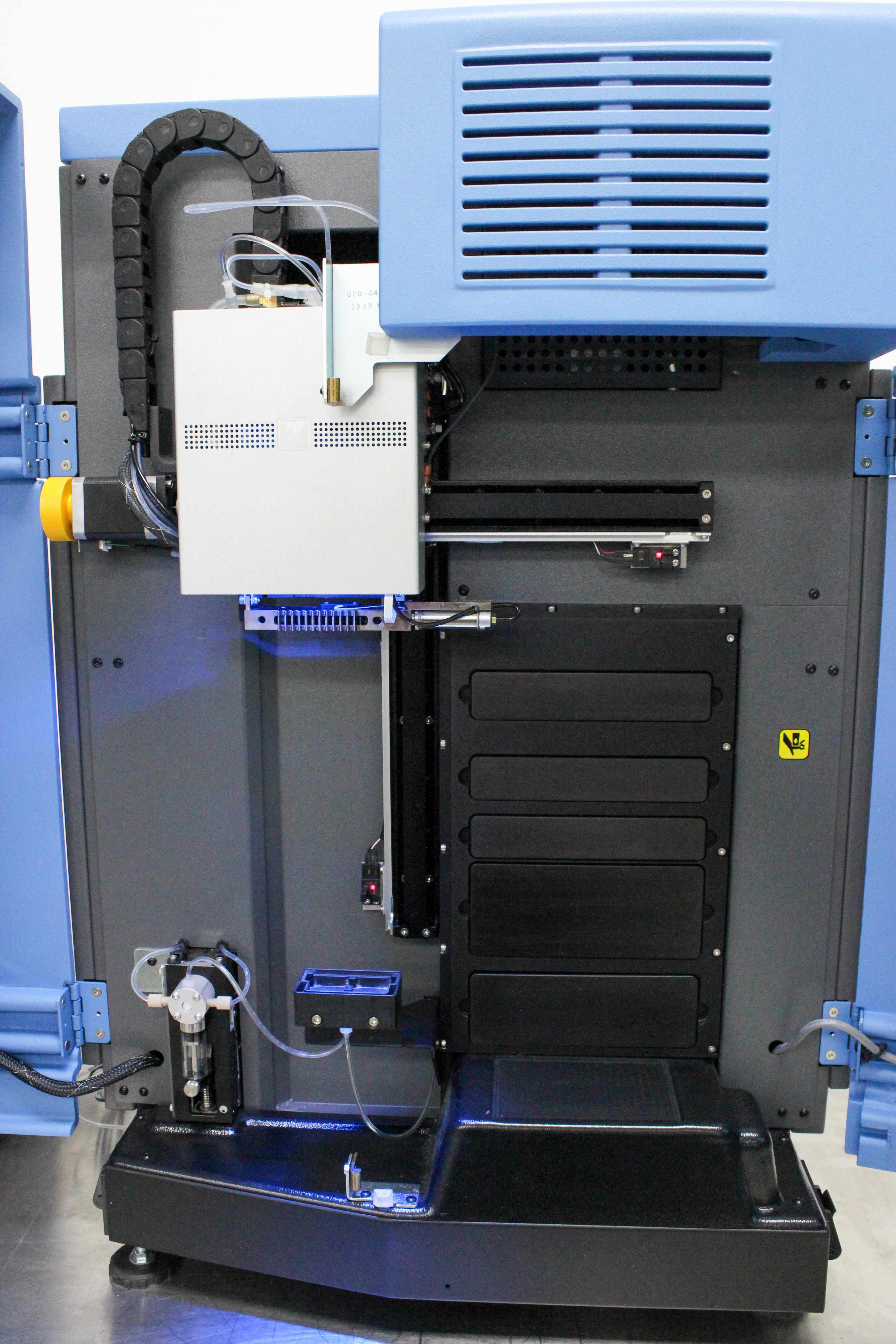

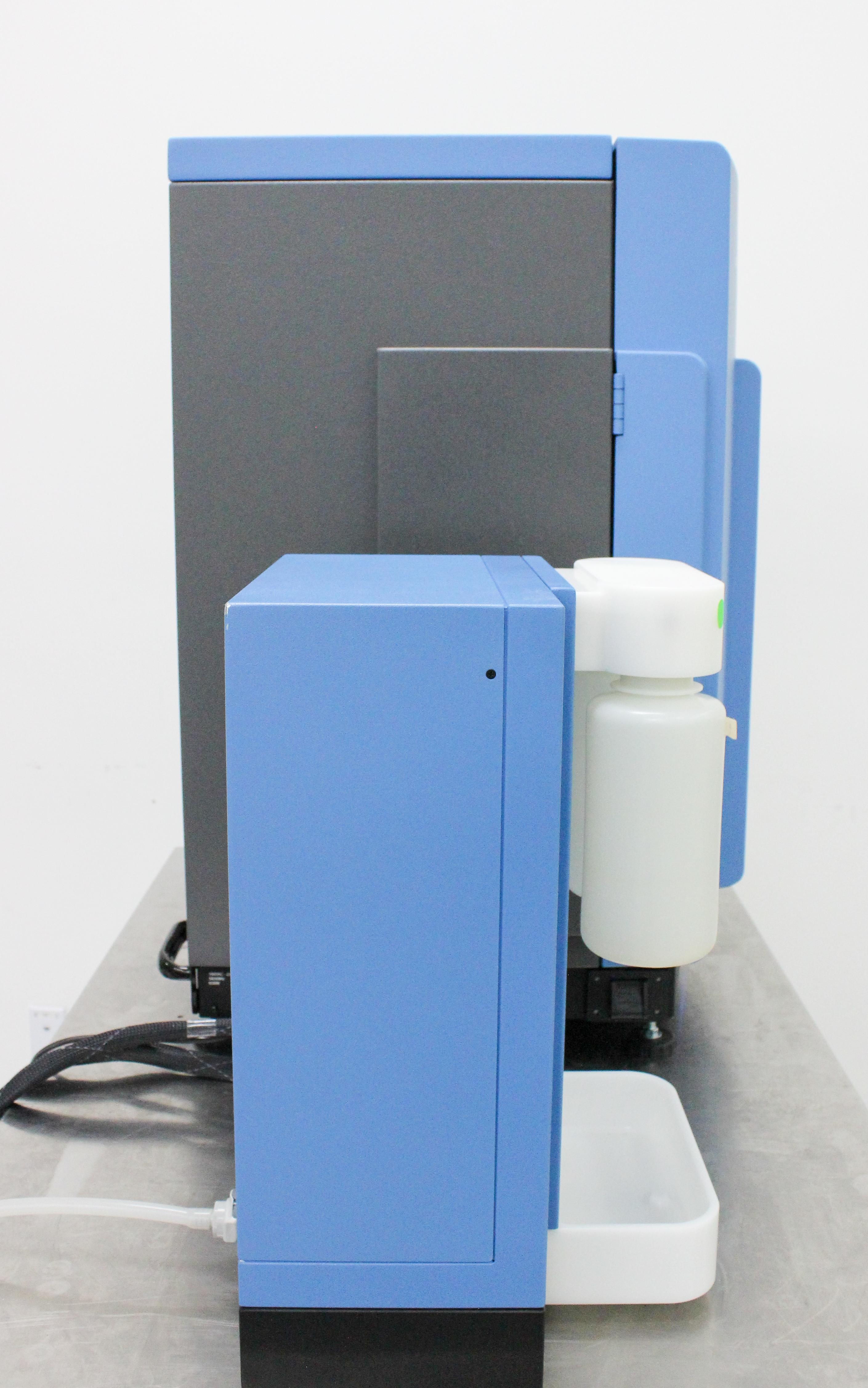

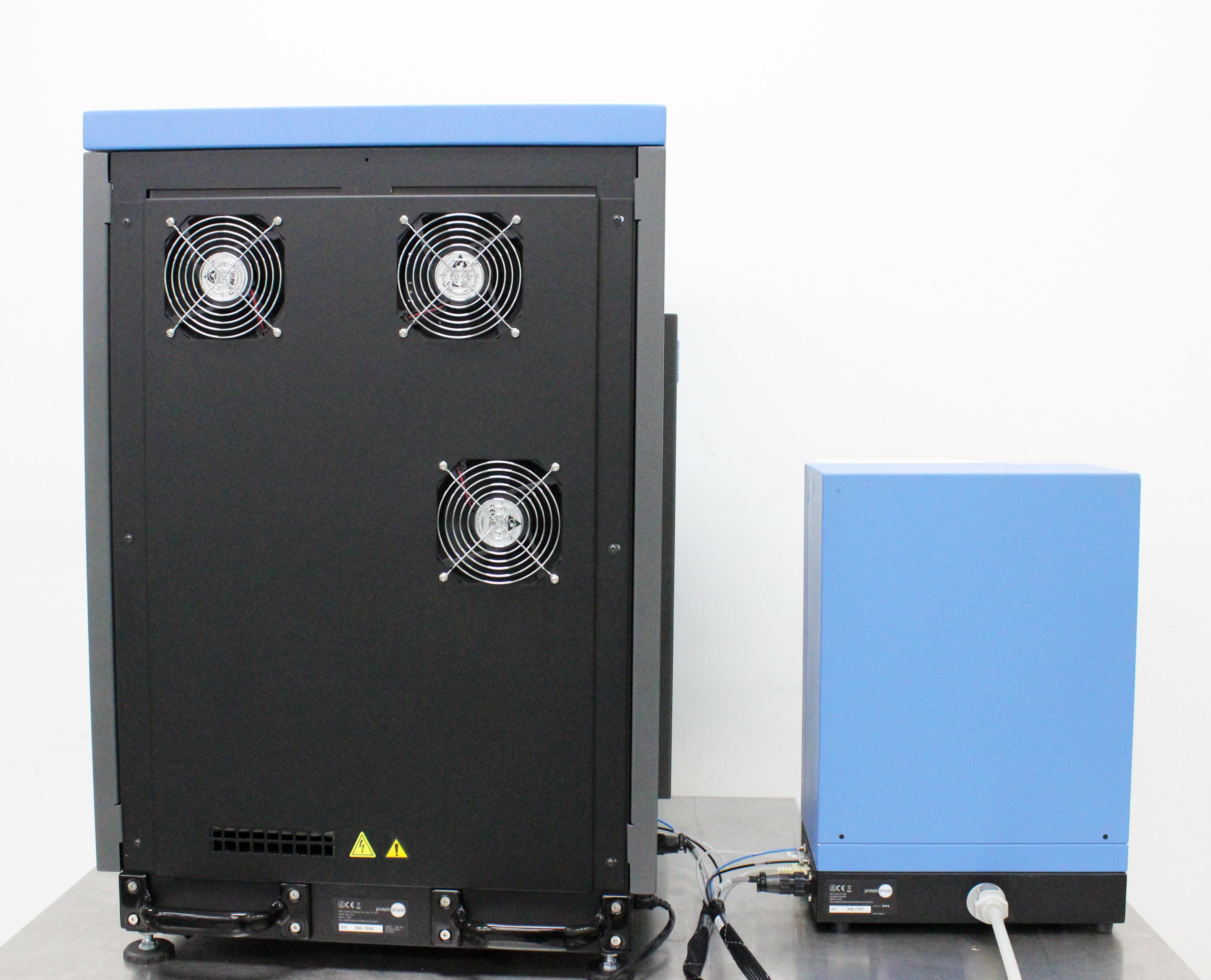

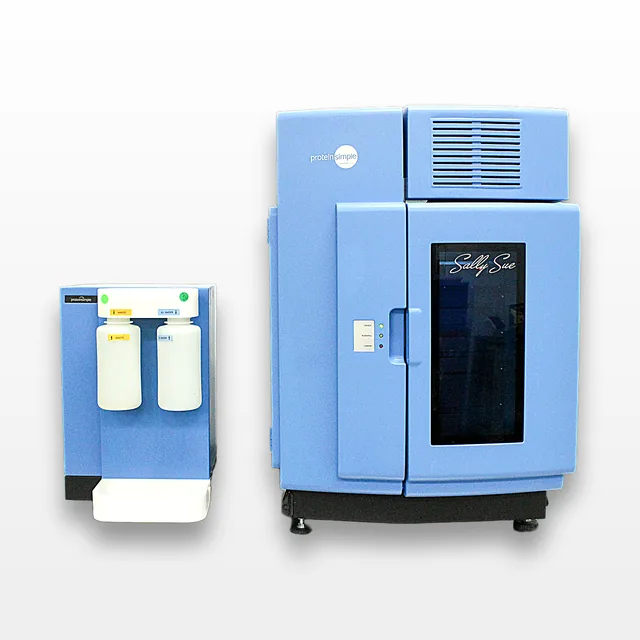

Proteinsimple Sally Sue with Aux Module Simple Western Automated Immunoassay
Proteinsimple
Details
-
CategoryAnalytical
-
Dimension24.0in x 42.0in x 34.0in
-

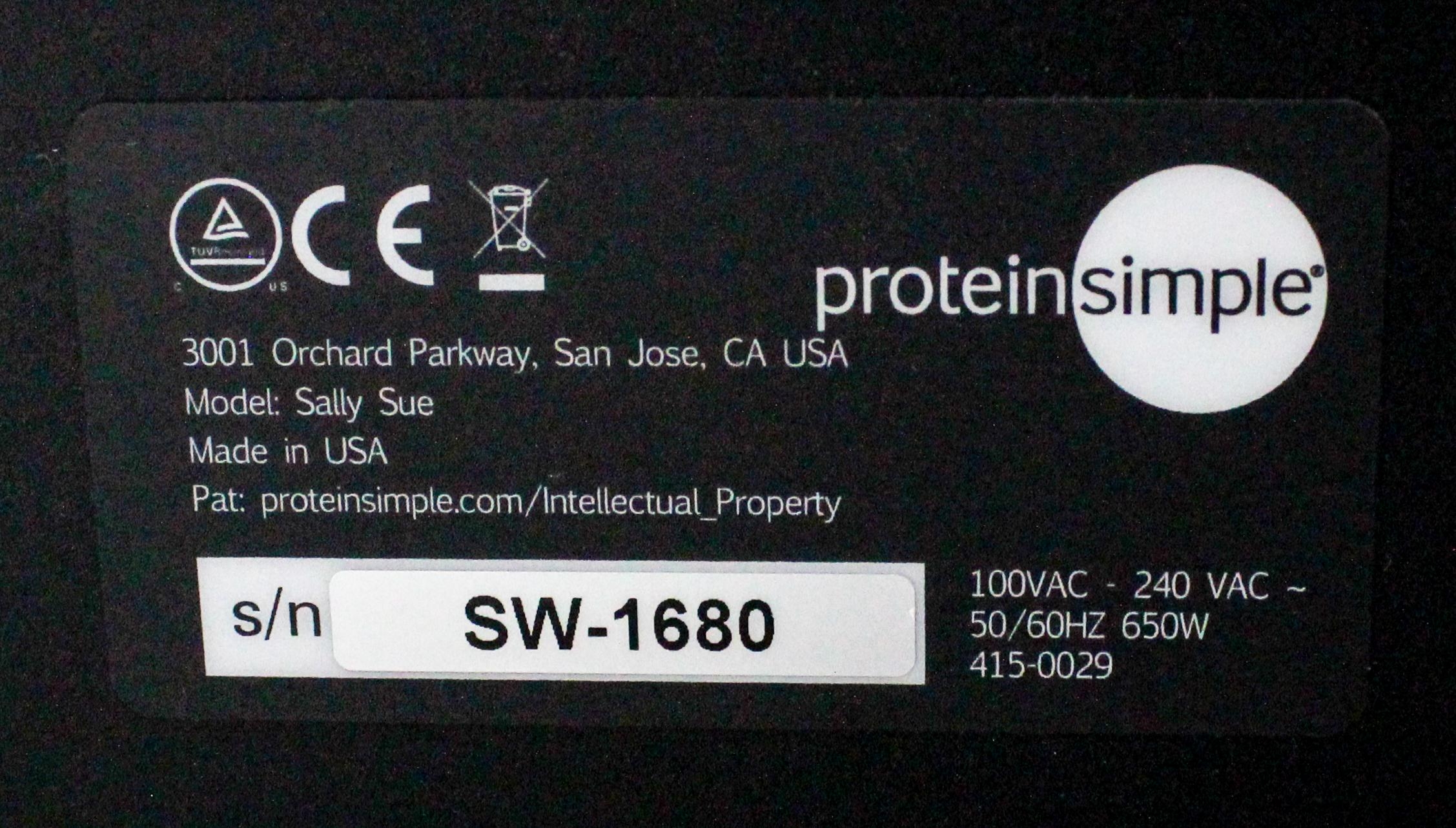

SerialSW-1680
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Proteinsimple Sally Sue with Auxiliary Module is an advanced automated immunoassay system employing capillary electrophoresis for gel-free, blot-free, hands-free protein analysis. This unit, part of the Simple Western family, automates sample loading, size separation, immunoproblem, washing, detection, and quantitative data analysis for a complete and efficient solution. Although the full functionality couldn’t be verified due to software requirements, the device powers on and performs basic tests without errors, indicating potential operability. This system, originally from a functional lab environment, maintains a good cosmetic condition with no known functionality issues, making it an efficient choice for labs focusing on high-throughput protein characterization, cancer research, and more.
Technician comment
ProteinSimple Sally Sue with Auxiliary Module powers on without errors. Full functionality could not be verified as the system requires software for testing. Unit was removed from a working laboratory environment and is in excellent cosmetic condition.
Key Features
- Automated Simple Western system
- Capillary electrophoresis technology
- Hands-free protein analysis
- Processes up to 96 samples per run
- Quantitative data analysis capabilities
- Supports small sample volumes
Specifications
- Voltage: 120V/220V
- Hertz: 50Hz/60Hz
- Sample Required: 0.3-1.2 µg for Total Protein, 0.6-1.2 µg for Immunoassay
- Sample volume required: 3-12 µL/well
- Capillary: 5 cm, 100 µm, 400 nL
- Size Range: 2-440 kDa
- Max samples per run: 96
- Max run time: 14 hours
- Chemiluminescence: Yes
- Intra-assay CV: <15%
- Inter-assay CV: <20%
- Sensitivity: ng to Low pg
Weight
Imperial: 120.0 Pounds
Metric: 54.43 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 50.4 lb x 40.8 lb
Metric: 73.15 cm x 128.02 cm x 103.63 cm
Harmonized Code
9027905000
Harmonized Code Details
9027905000: Instruments and apparatus for physical or chemical analysis - This code is suitable as the Sally Sue uses capillary electrophoresis for physical analysis of proteins.
