Gilson prepELS II Detector HPLC System Detector Low-Nanogram Detection
Gilson
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension19.0in x 10.0in x 12.0in
-
SerialG1004166X
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Gilson prepELS II Detector, manufactured in the United States, is designed to complement any Gilson preparative or analytical system as well as other high-performance liquid chromatography (HPLC) systems. This instrument, known for its analytical capabilities, can detect analytes down to low-nanogram levels, handling flow rates up to 75 mL/min with robust splitting packages. Featuring unique filtering technology, it significantly reduces baseline noise, preserving peak height and shape. Equipped with Thermo-Split Technology, it allows users precise temperature management and a gentle vapor split, optimizing it for varied mobile phases. This unit powers on and passes initial tests, but it hasn't been fully tested due to the lack of software. With minor cosmetic wear, this detector originates from a functional lab environment, recognized for transforming sample masses of nanograms up to 5 mg without overwhelming the detector signal.
Technician comment

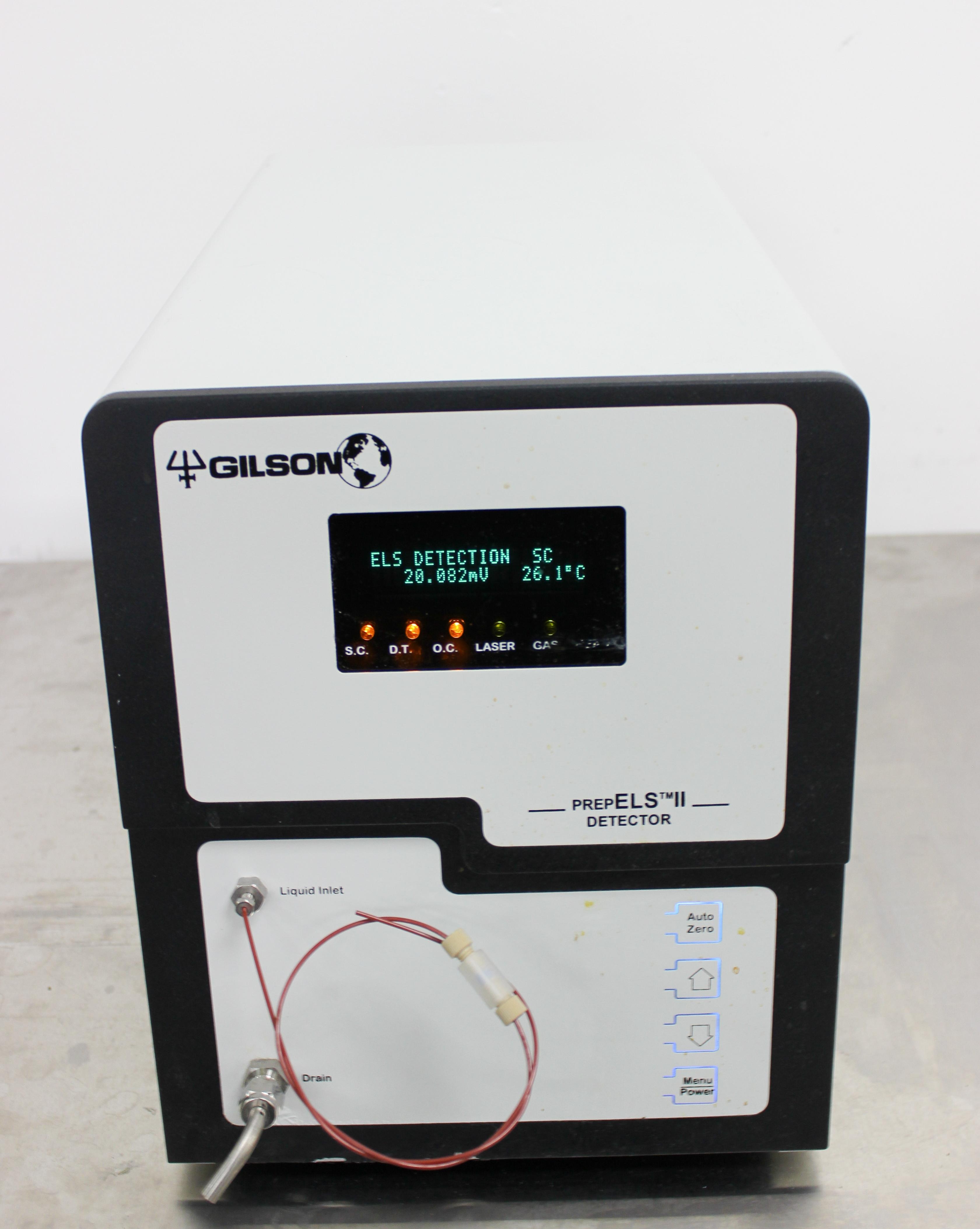

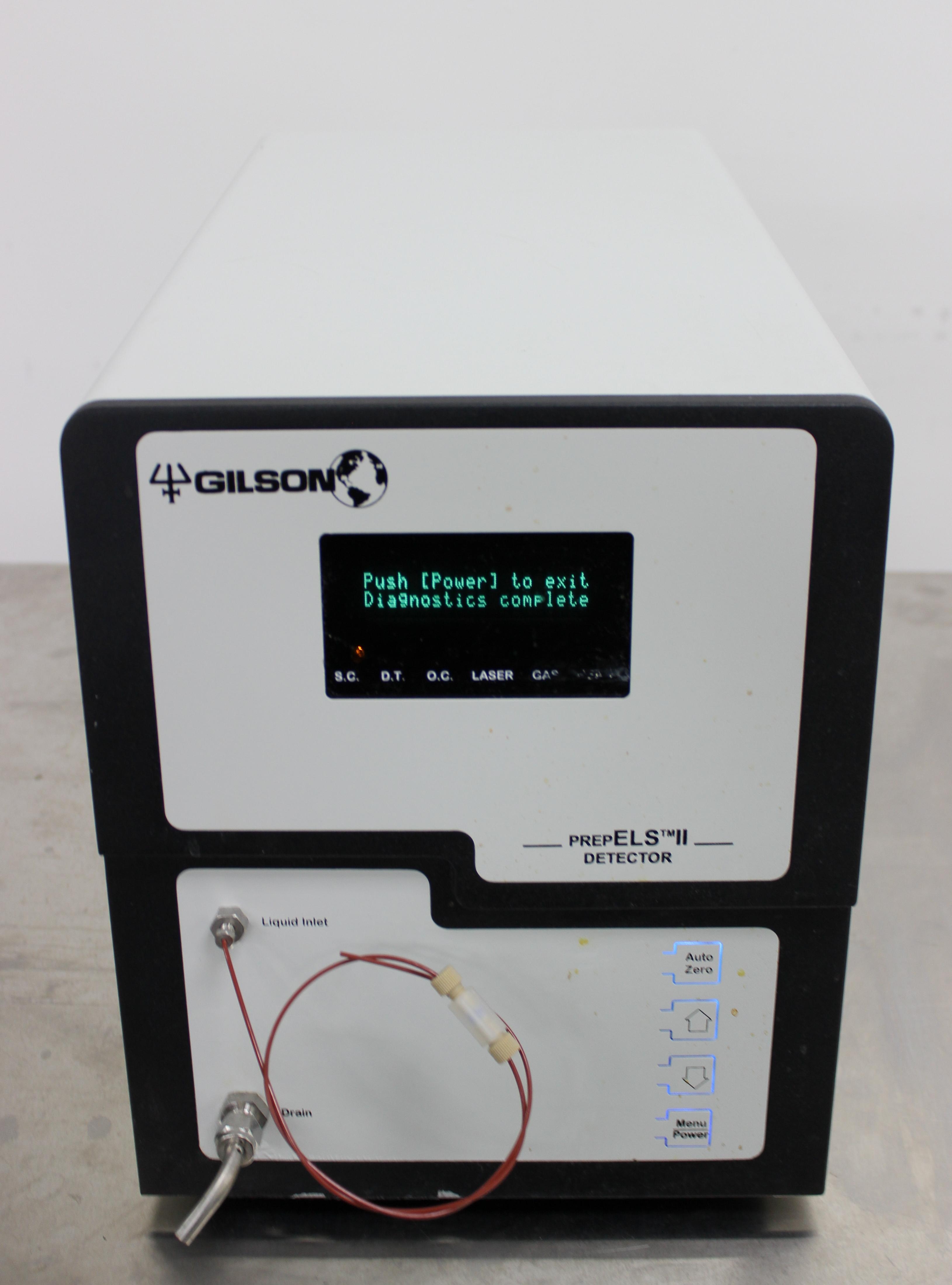

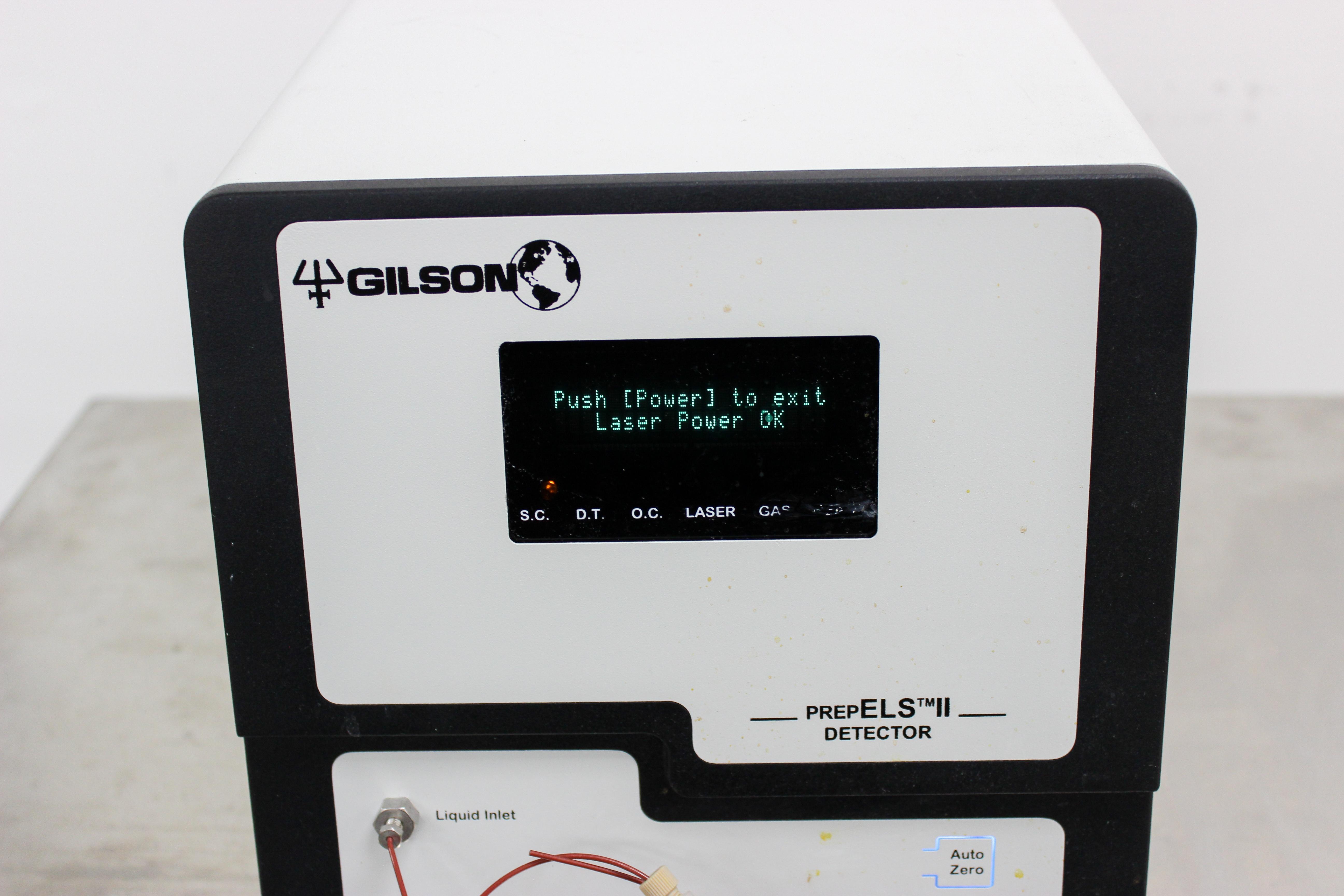

Gilson prepELS II powers on and initializes with no errors. Diagnostic shows no errors on startup. Laser Power is OK. Unit was unable to be fully tested due to lack of required software and consumables. Instrument is from a working laboratory environment. Minor stains around unit. See photos for details.
Key Features
- Low-nanogram level detection
- Flow rates up to 75 mL/min
- Thermo-Split Technology for temperature control
- Handling of sample masses from nanograms to 5 mg
- Unique filtering technology reduces baseline noise
Specifications
- Flow Rate Capacity: Up to 75 mL/min
- Detection Capability: Low-nanogram level
- Sample Mass Range: Nanograms to 5 mg
- Thermo-Split Technology for optimized processing
- Filtering Technology ensures noise reduction while maintaining peak integrity
- Voltage: 120V/220V
- Frequency: 50Hz/60Hz
- Unit Weight: Approx. 26 lb (11.8 kg)
- Unit Dimensions: 19in (48.3 cm) x 10in (25.4 cm) x 12in (30.5 cm)
Weight
Imperial: 31.2 Pounds
Metric: 14.15 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 12.0 lb x 14.4 lb
Metric: 57.91 cm x 30.48 cm x 36.58 cm
Harmonized Code
902730
Harmonized Code Details
Harmonized Code 902730 covers instruments and apparatus for physical or chemical analysis, like spectrometers and chromatographs. The Gilson prepELS II fits this category as it is an integral part of a chromatographic system used for analytical detection.
