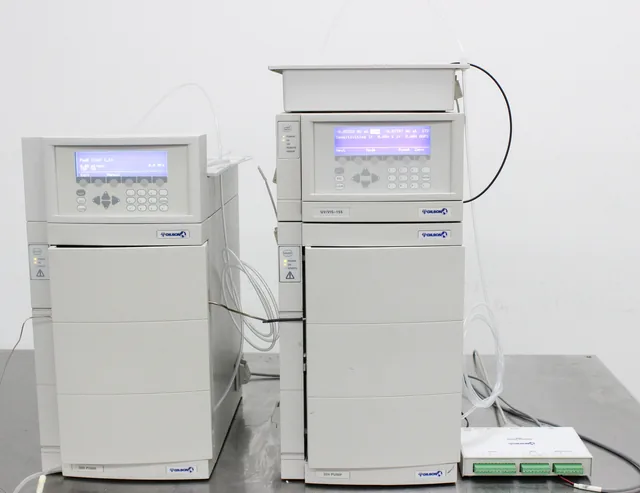

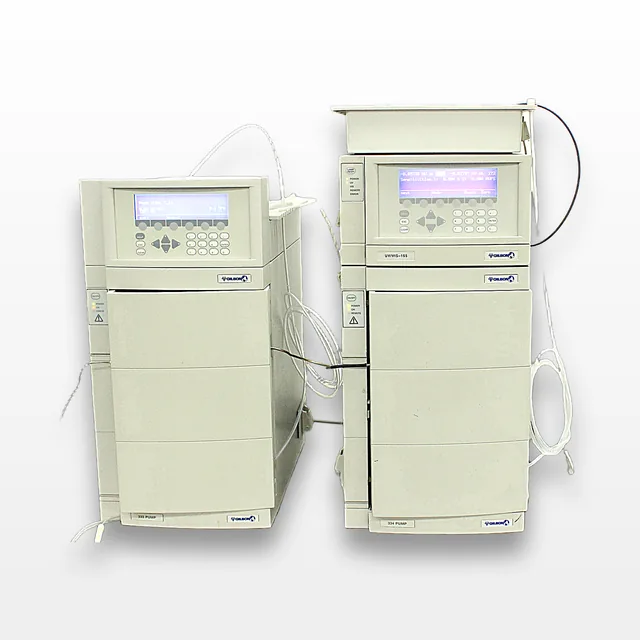

Gilson 333/334 HPLC Pumps with UV/VIS-155 Detector, 400 mL/min Flow Rate
Gilson
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension17.0in x 26.0in x 24.0in
-
Serial101C0G011
-
Shipping TypeFreight
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Gilson 333/334 Pumps with UV/VIS-155 Detector are essential components for preparative HPLC applications, facilitating precise chromatography separations in both normal and reversed-phase modes. With a flow rate ranging from 1 mL/min to 200 mL/min and pressures up to 3040 psi, these pumps are designed for high-performance liquid chromatography tasks. The system features multi-solvent selection, a variable-volume dynamic mixer, and can accommodate columns ranging from 10 mm to 50 mm ID. The UV/VIS-155 Detector provides dual wavelength detection, enhancing analytical capabilities. Despite minor cosmetic wear, it is operationally ready as it powers on without errors. Suitable for labs focusing on synthetic and biological compound purification, this system offers reliable performance with advanced control options through TRILUTION® LC software.
Technician comment
Gilson 333/334 Pumps with UV/VIS-155 Detector. The units power on with no errors observed during initial inspection. Full functional testing could not be performed as software is required. Equipment is from a working laboratory environment and shows minor stains around the exterior, which are purely cosmetic and do not affect functionality. Includes: Pump 333, Pump 334, UV/VIS Detector-155, 506C System Interface
Key Features
- Flow rate: 1-200 mL/min (up to 400 mL/min with additional pumps)
- Pressure: Up to 3040 psi (210 bar)
- Multi-solvent selection with optional four-solvent valve
- Variable-volume dynamic mixer for optimized gradient performance
- UV/VIS-155 Detector with dual wavelength detection
Specifications
- HPLC Pump Model: 333/334
- Flow Rate: 1 – 200 mL/min, accuracy ±1% or 5.3 µL/min
- Pressure Limit: 3040 psi (210 bar)
- Solvent Selection: Up to 8 solvents with four-solvent valve
- Detector: UV/VIS-155 with dual wavelength capability
- Software Control: TRILUTION® LC
- Liquid Contact Materials: 316 L stainless steel
Weight
Imperial: 156.0 Pounds
Metric: 70.76 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 31.2 lb x 28.8 lb
Metric: 51.82 cm x 79.25 cm x 73.15 cm
Harmonized Code
84212900
Harmonized Code Details
84212900 - Other filtering or purifying machinery and apparatus for liquids. Given the equipment's application in HPLC systems for preparative chromatography, this code is appropriate.
