WEG W40 NEMA Motor 40HP 4P 324T 230/460V 1800RPM Premium Efficient
WEG
Details
-
CategoryFacility
-
Dimension21.0in x 26.0in x 18.0in
-

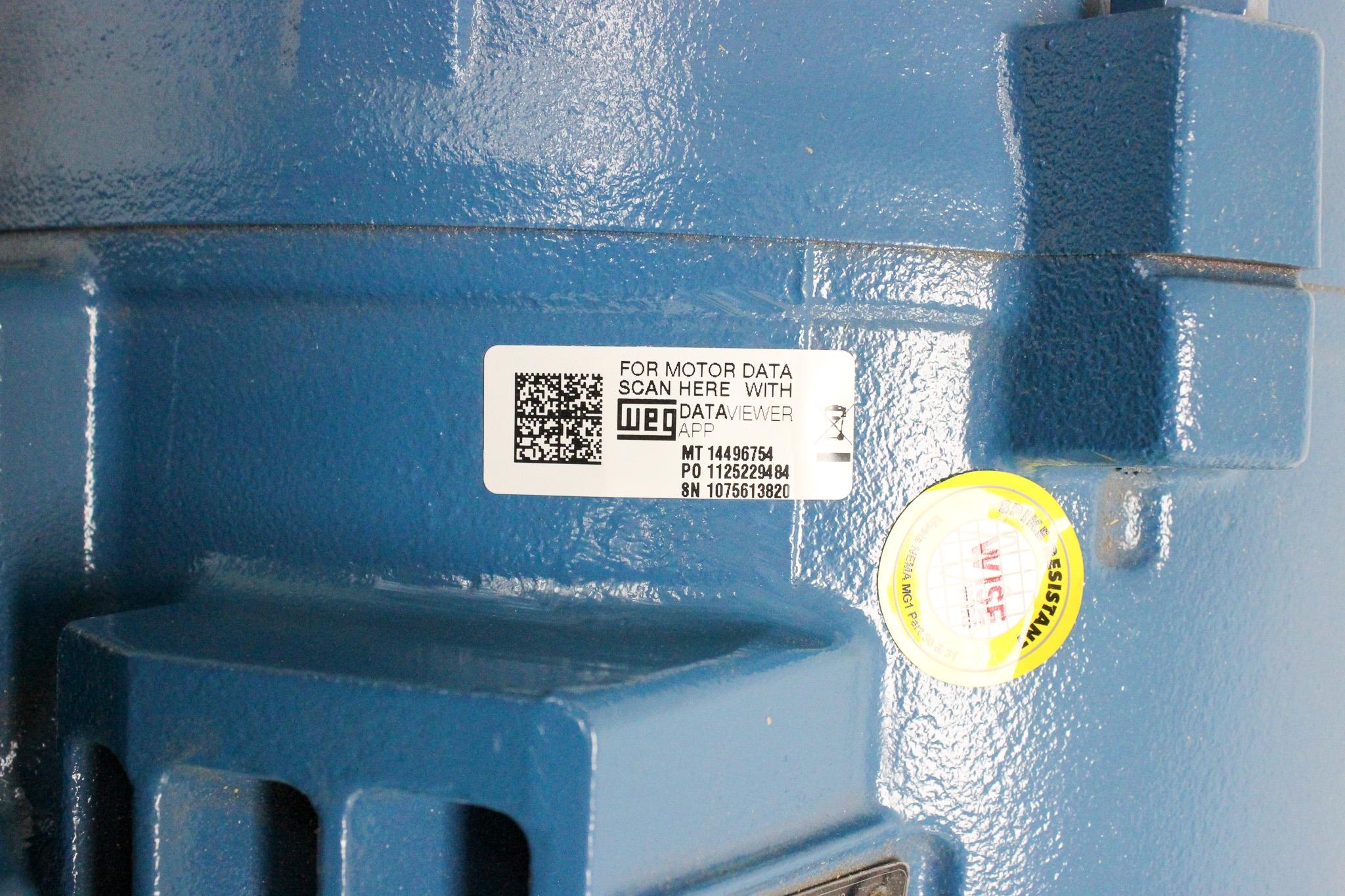

Serial1075613820
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230/460V / 60Hz US
Description

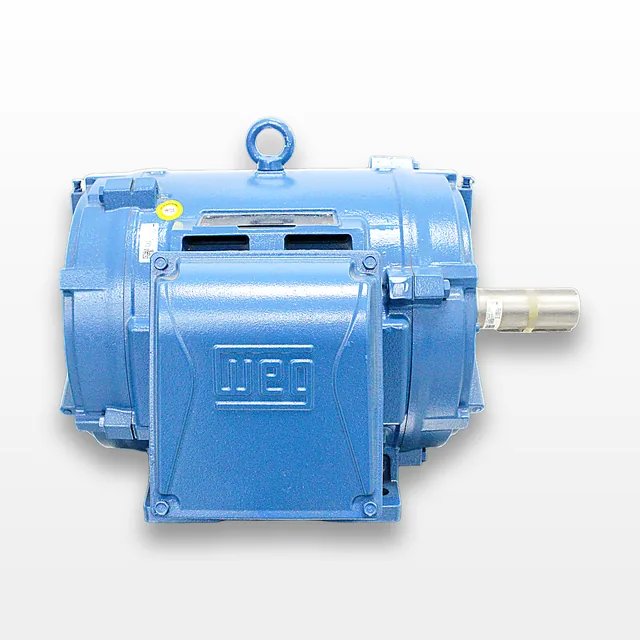

This WEG W40 NEMA Motor, model 04018OT3E324T, offers premium efficiency with a powerful 40 HP output. Specifically designed for environments where minimal dirt and moisture are present, this motor is ideal for various industrial applications. Its cast iron frame ensures excellent ventilation and heat dissipation, resulting in low vibration levels and high mechanical stiffness. The motor operates at standard 60/50 Hz frequency and supports a voltage range from 230/460/380 V, providing flexibility in usage. With a synchronous speed of 1800 RPM and an F-1 foot-mounted configuration, this electric motor is robust and efficient in performance. The degree of protection is rated at IP23 with an IC01 Open Drip Proof (ODP) enclosure, making it suitable for continuous operation under varying environmental conditions. Please note, computer is not included.
Technician comment

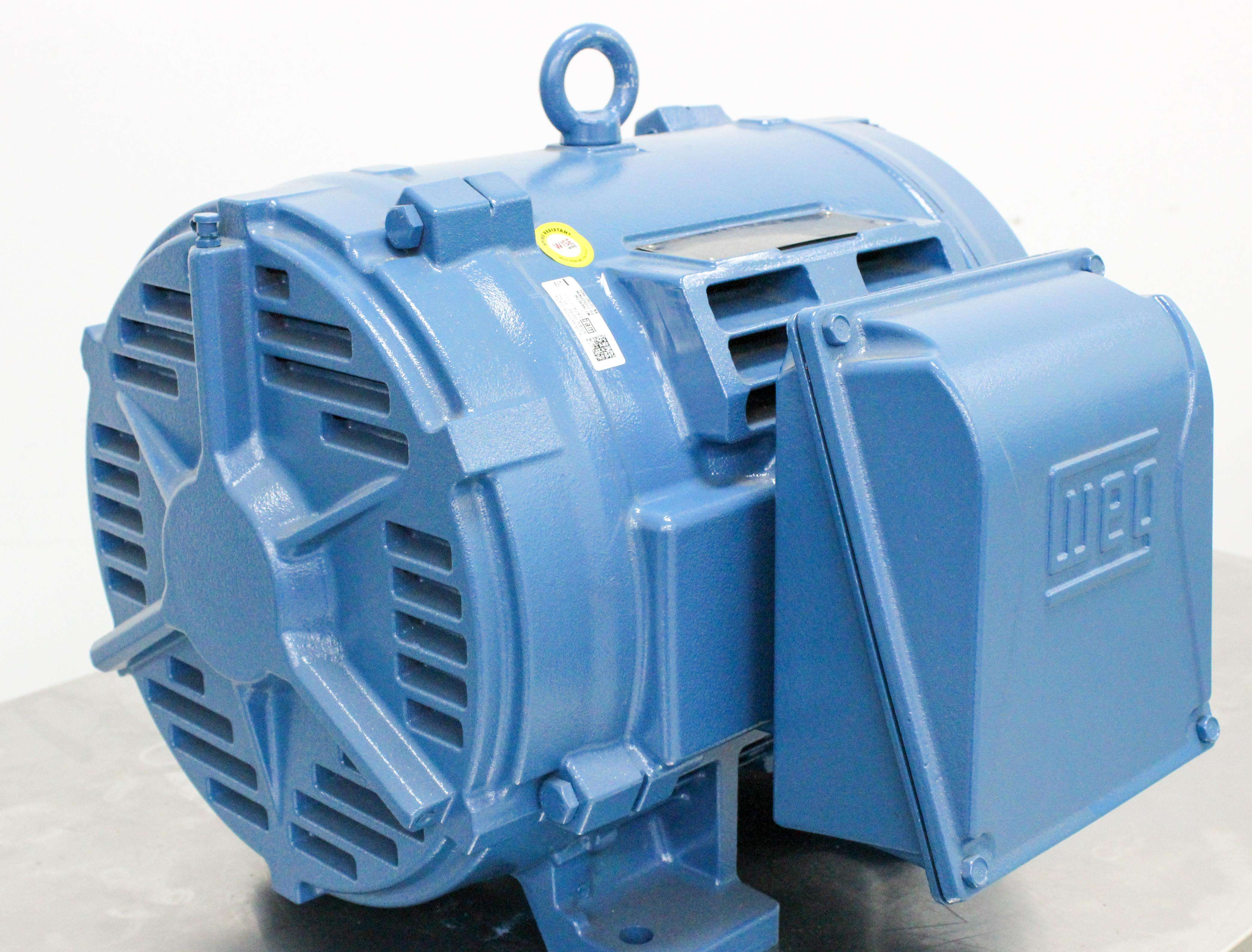

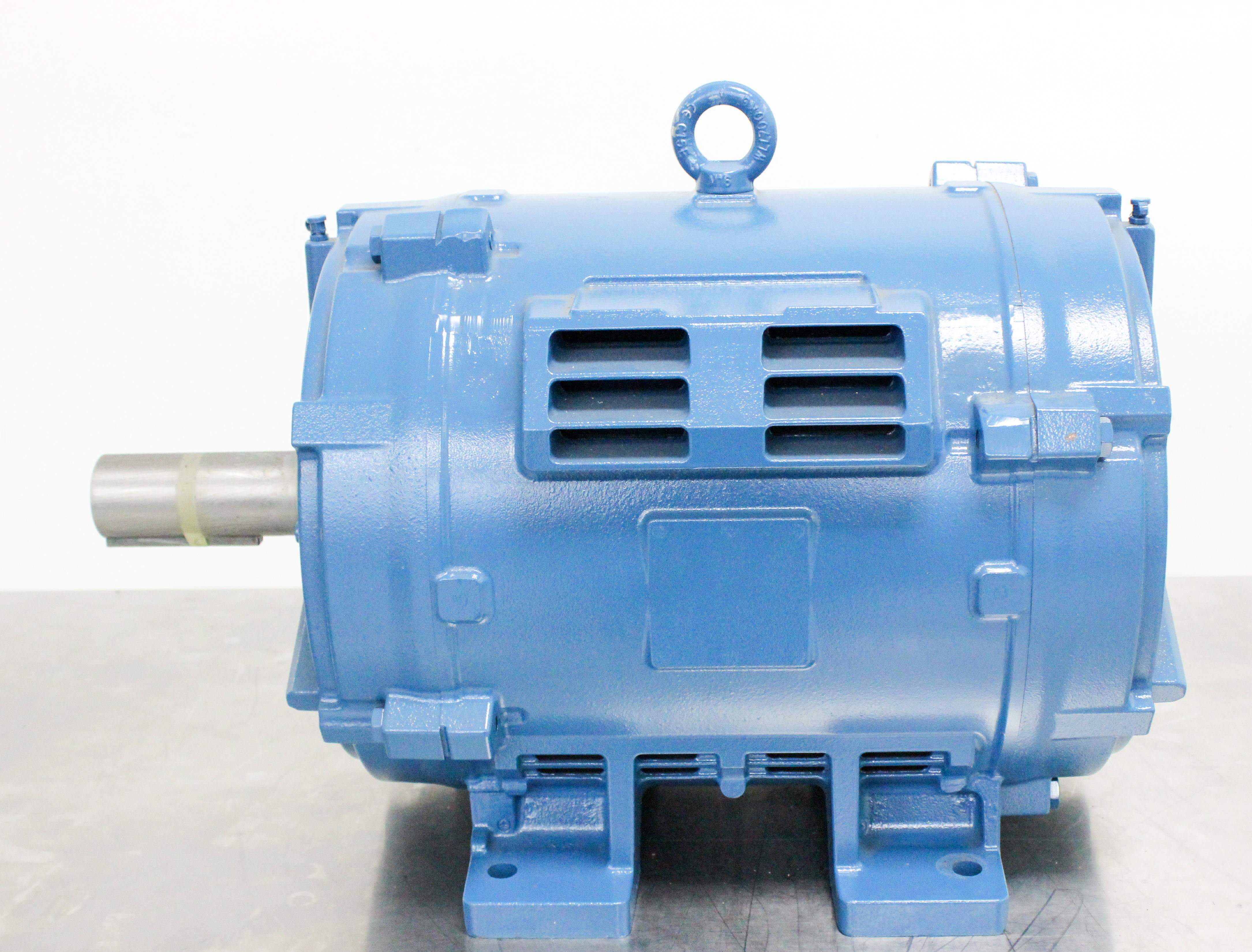

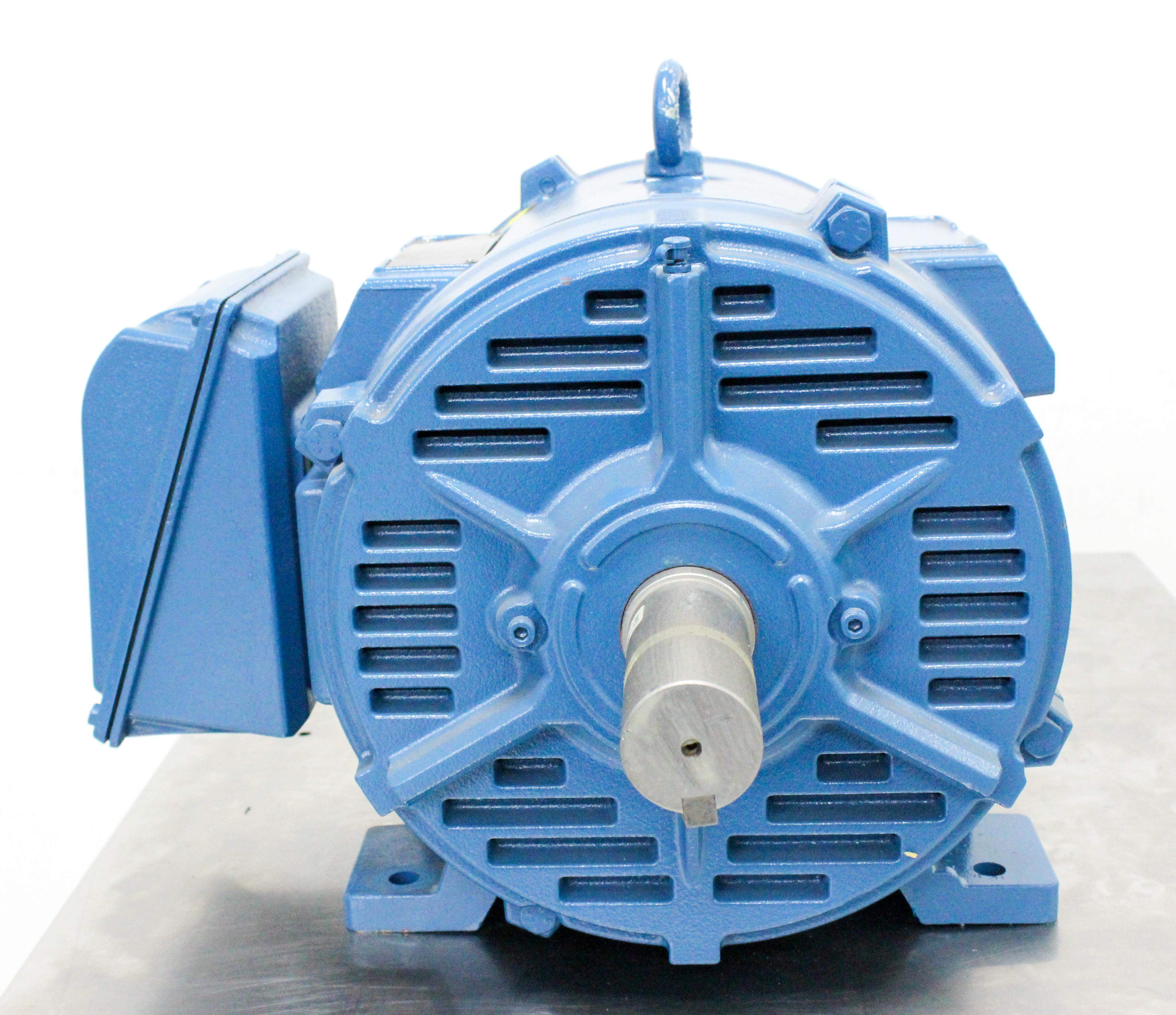

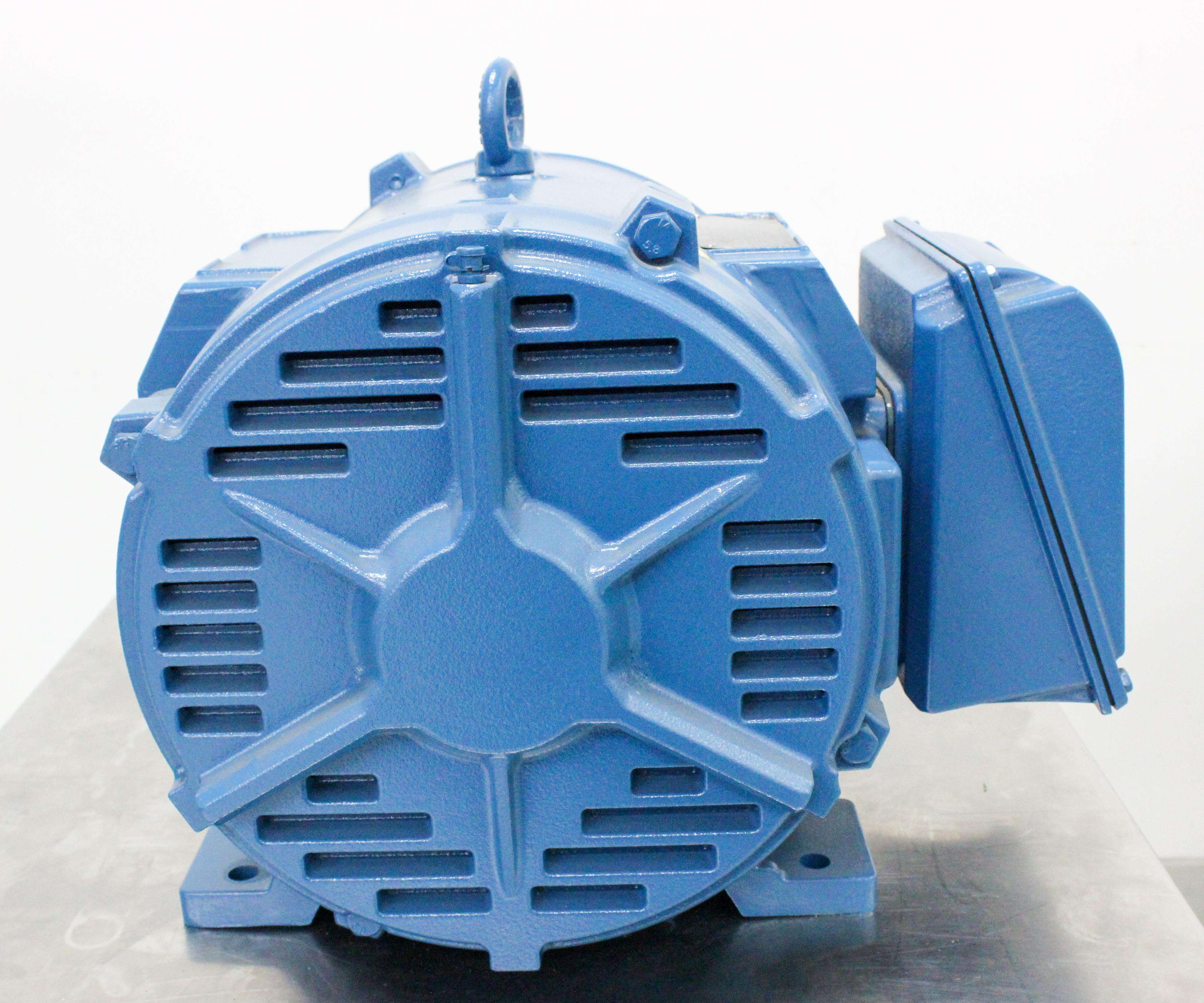

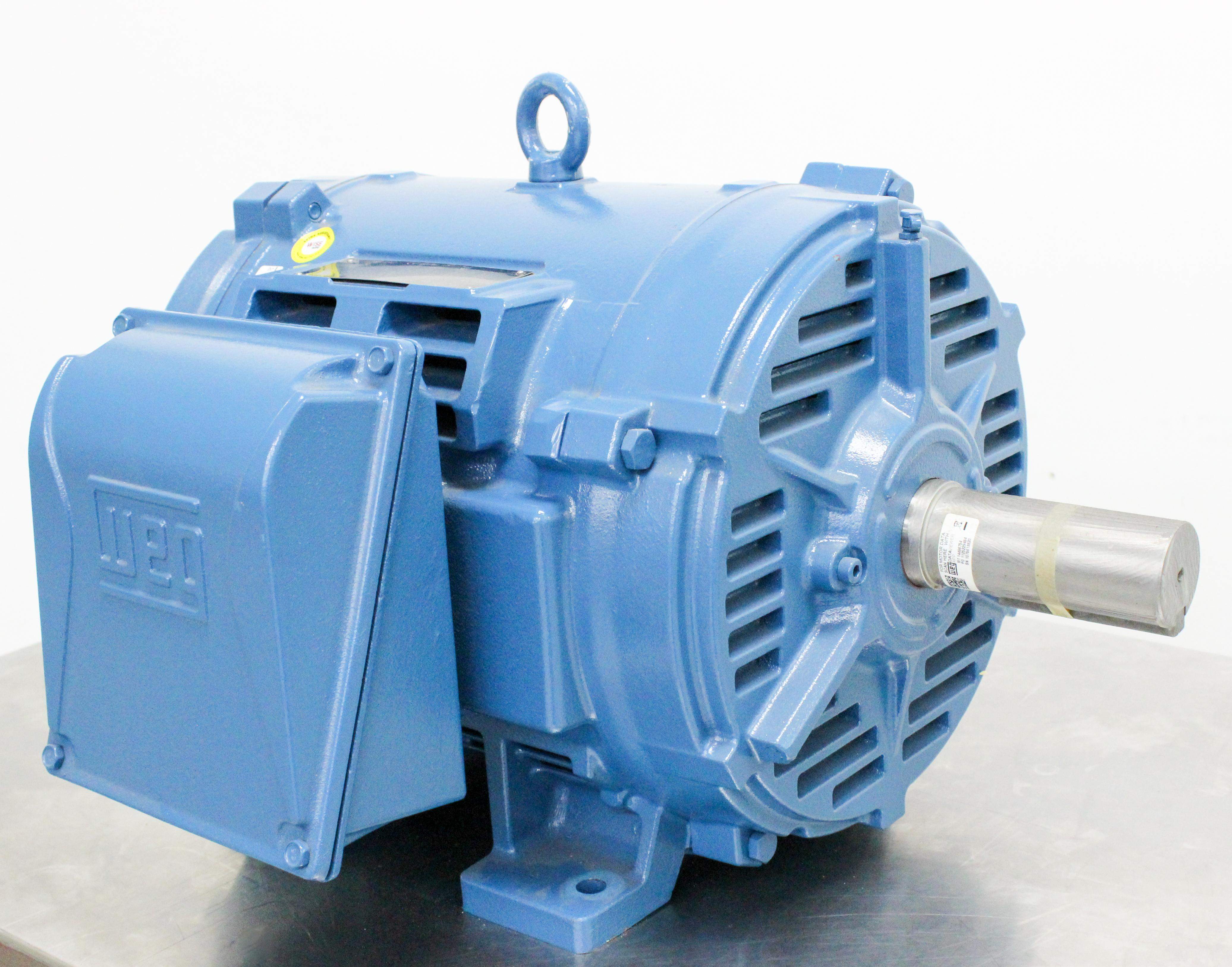

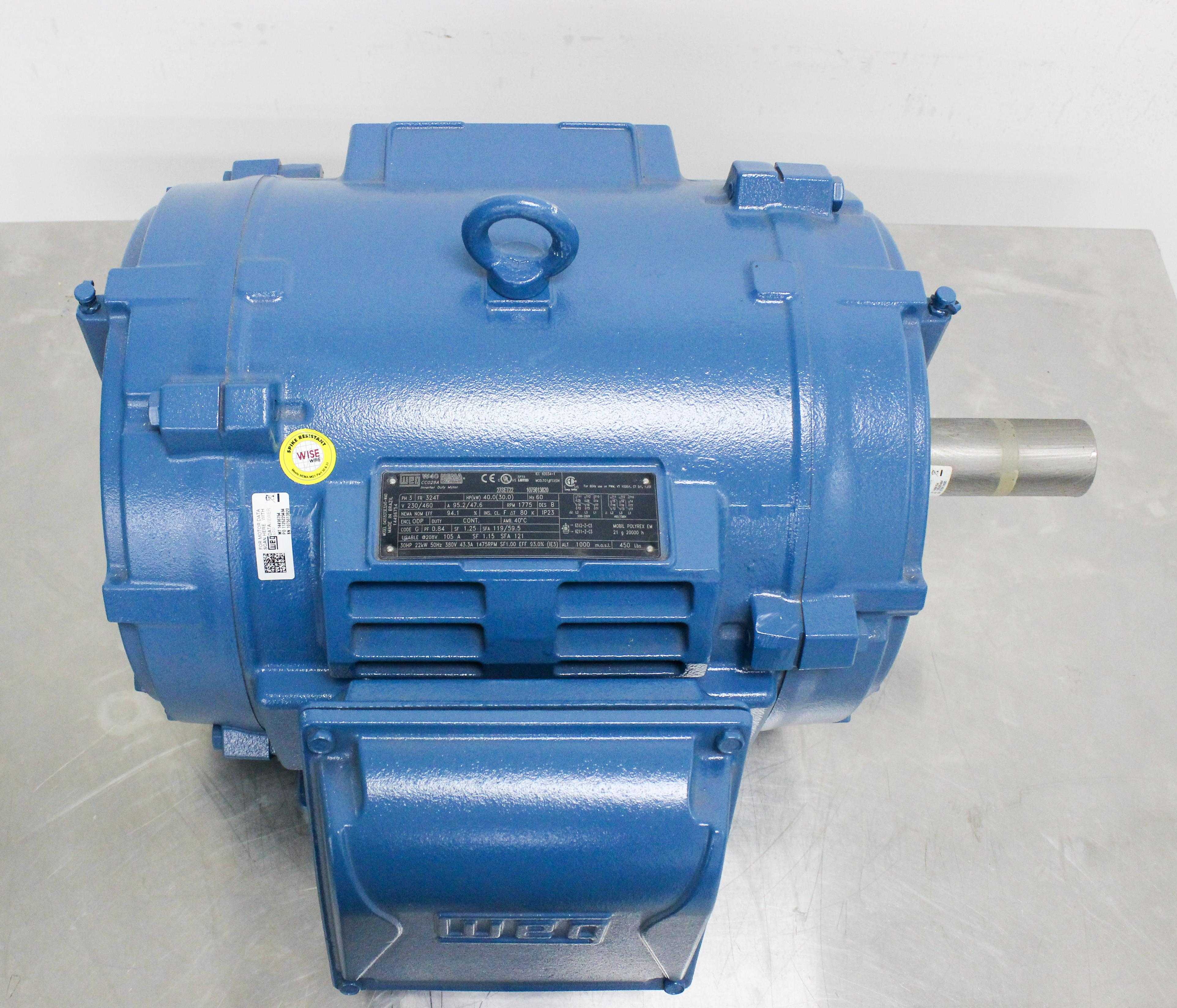

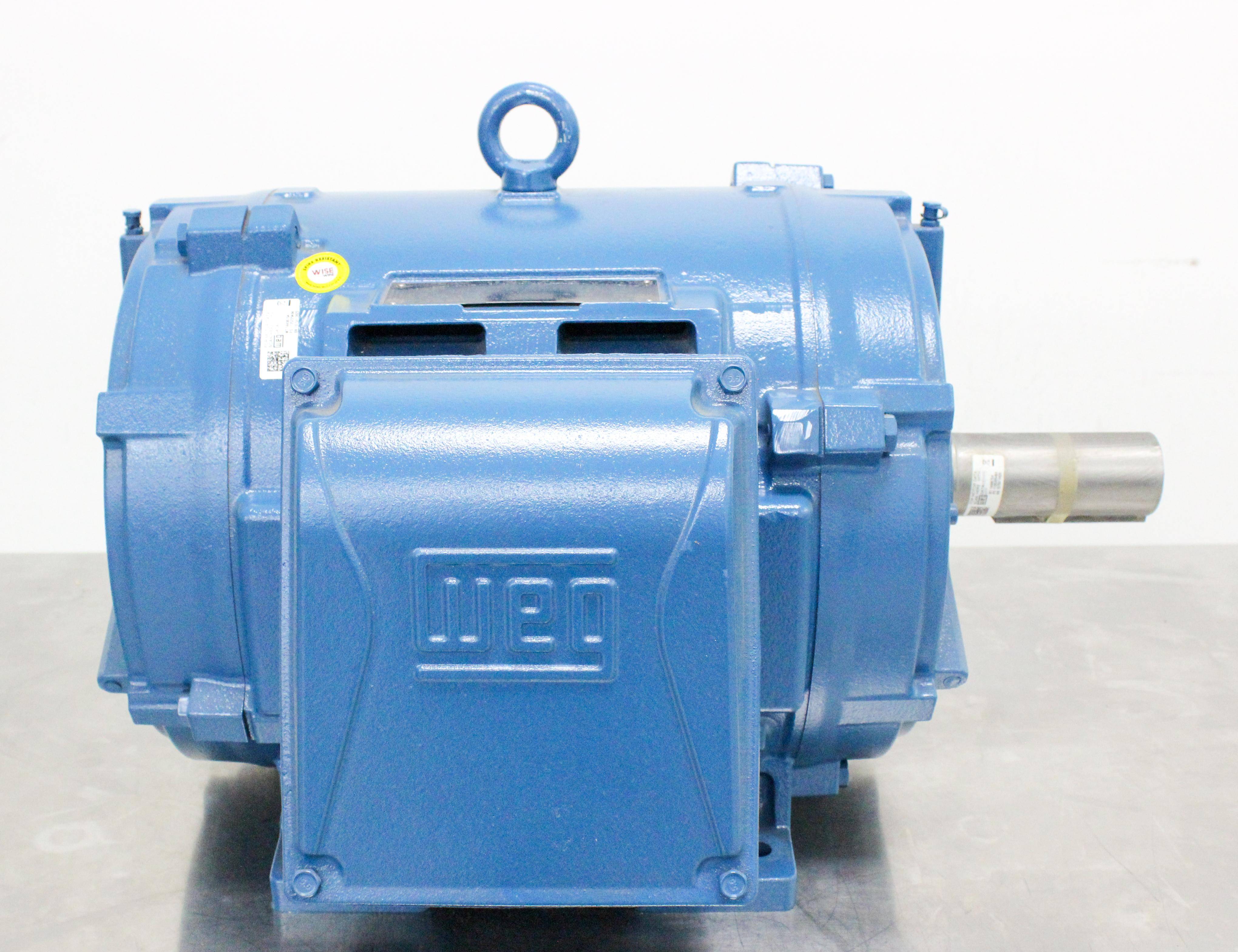

The W40 NEMA Premium Efficiency 40 HP motor was removed from a working environment and is in excellent like-new cosmetic condition. The housing, fan cover, and mounting feet are intact with no visible damage. The shaft rotates smoothly by hand without binding. No power or load testing was performed.
Key Features
- Premium Efficiency
- 40 HP Output
- 230/460/380V Voltage
- 1800 RPM Synchronous Speed
- Cast Iron Frame
- IP23 Protection
- IC01 ODP Enclosure
- Foot-Mounted
- Low Vibration Levels
- High Mechanical Stiffness

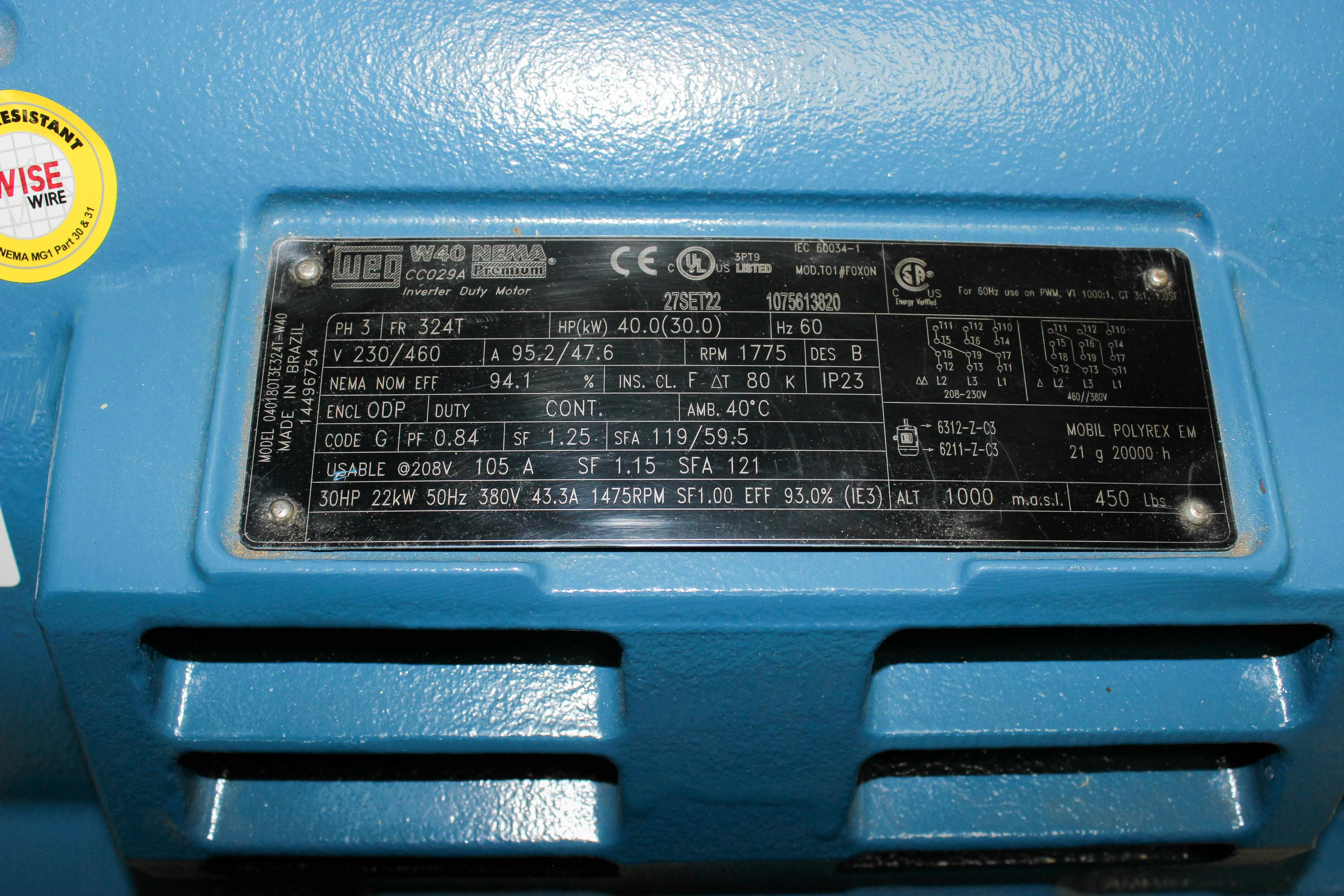

Specifications
- Frame: 324T
- Number of Poles: 4
- Rated Speed: 1775 RPM
- Slip: 1.39%
- Rated Current: 95.2/47.6 A
- Locked Rotor Amperes: 590/295 A
- Rated Torque: 118 ft.lb
- Locked Rotor Torque: 200%
- Breakdown Torque: 240%
- Ambient Temperature: -20°C to +40°C
- Altitude: 1000 m.a.s.l.
- Noise Level: 66.0 dB(A)
- Efficiency at 100% load: 94.1%
- Power Factor at 100% load: 0.84
- Insulation Class: F
- Service Factor: 1.25
- Temperature Rise: 80 K
- Duty Cycle: Continuous (S1)
- Design: B
Weight
Imperial: 535.2 Pounds
Metric: 242.76 Kilograms
Shipping Dimensions
Imperial: 25.2 lb x 31.2 lb x 21.6 lb
Metric: 64.01 cm x 79.25 cm x 54.86 cm
Harmonized Code
8501.52.4040
Harmonized Code Details
Harmonized code 8501.52.4040 refers to AC motors multi-phase with an output exceeding 22.38 kW but not exceeding 149.2 kW. This code is justified as the WEG W40 motor is an AC motor with a 30 kW (40 HP) output, fitting within the specified range.
