CorcoranPumps 6000D Centrifugal Pump 1100 GPM Baldor Motor 75 HP
CorcoranPumps
Details
-
CategoryPump
-
Dimension29.0in x 45.0in x 23.0in
-

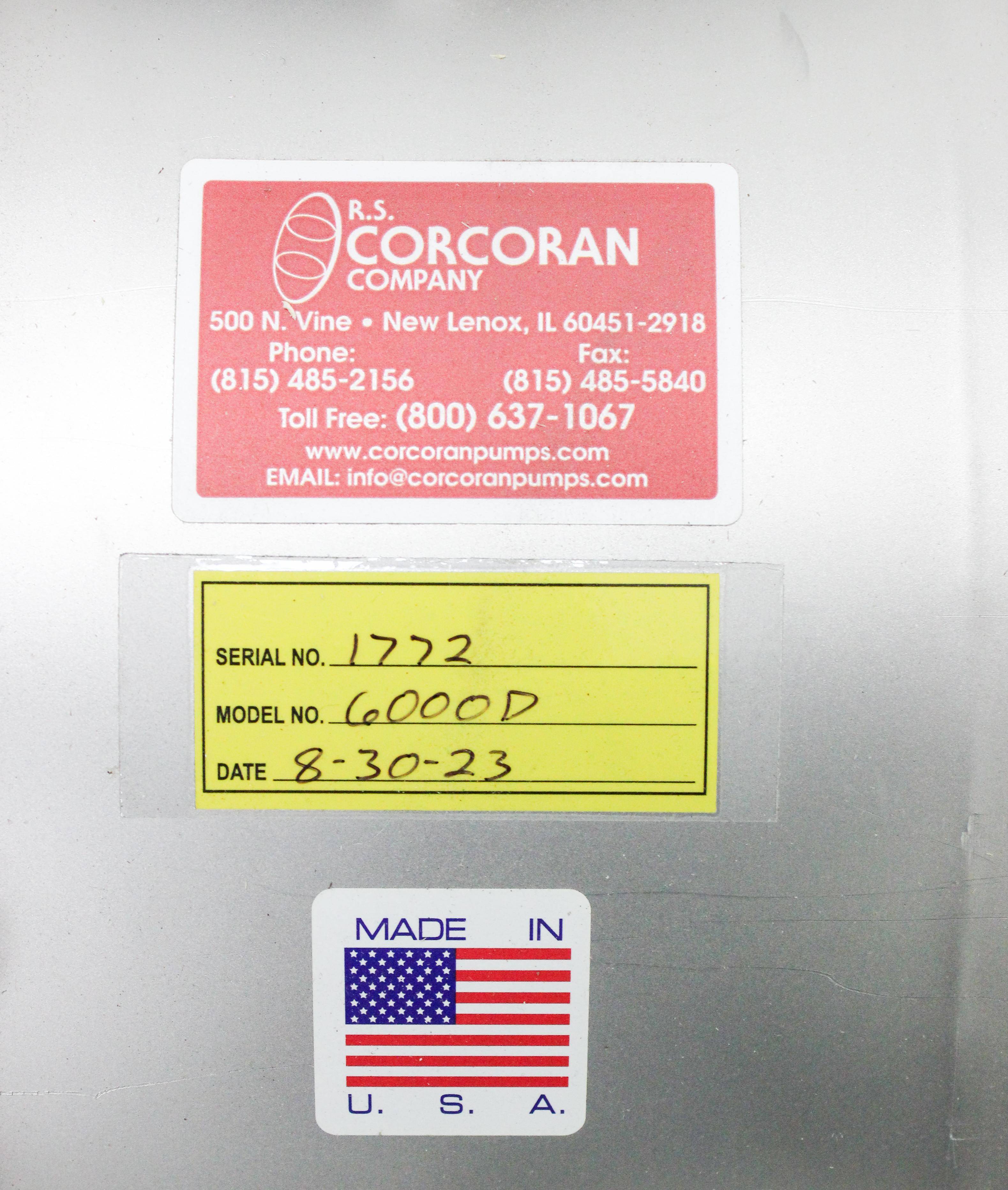

SerialA2304052035
-
Shipping TypeFreight
-
Manufacturing2023-08-30
-
Voltage / Hertz230/460V / 50Hz/60Hz
Description

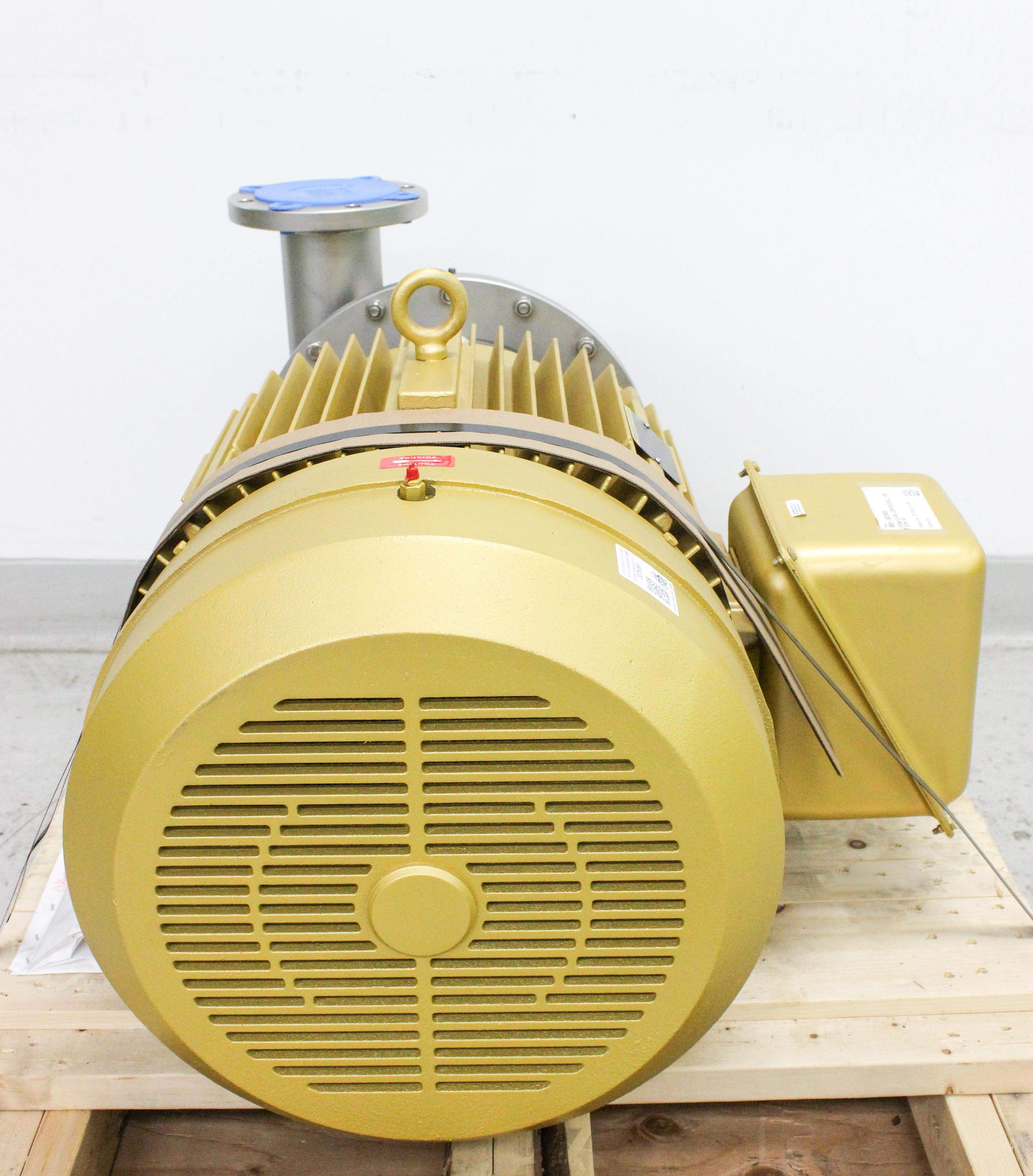

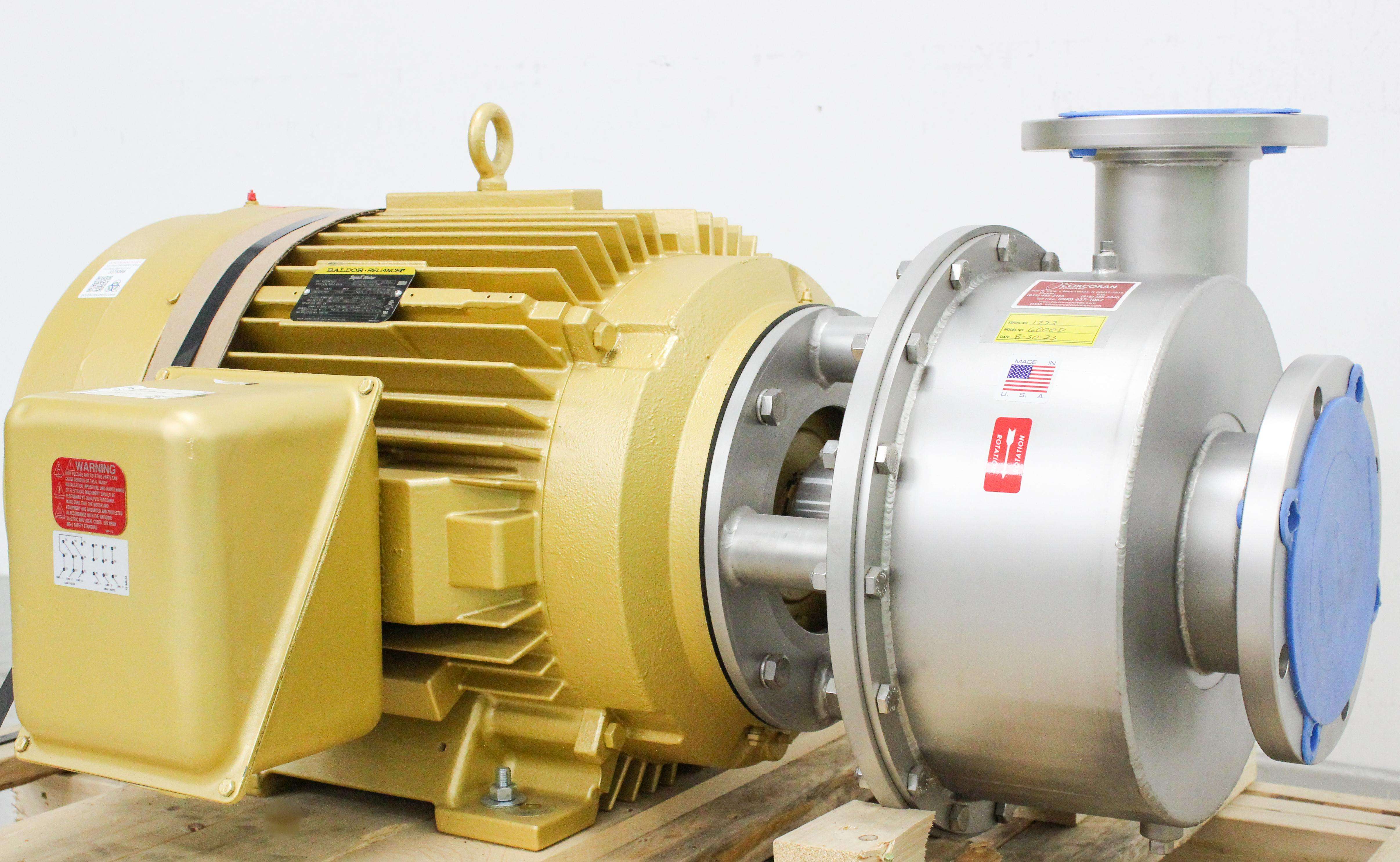

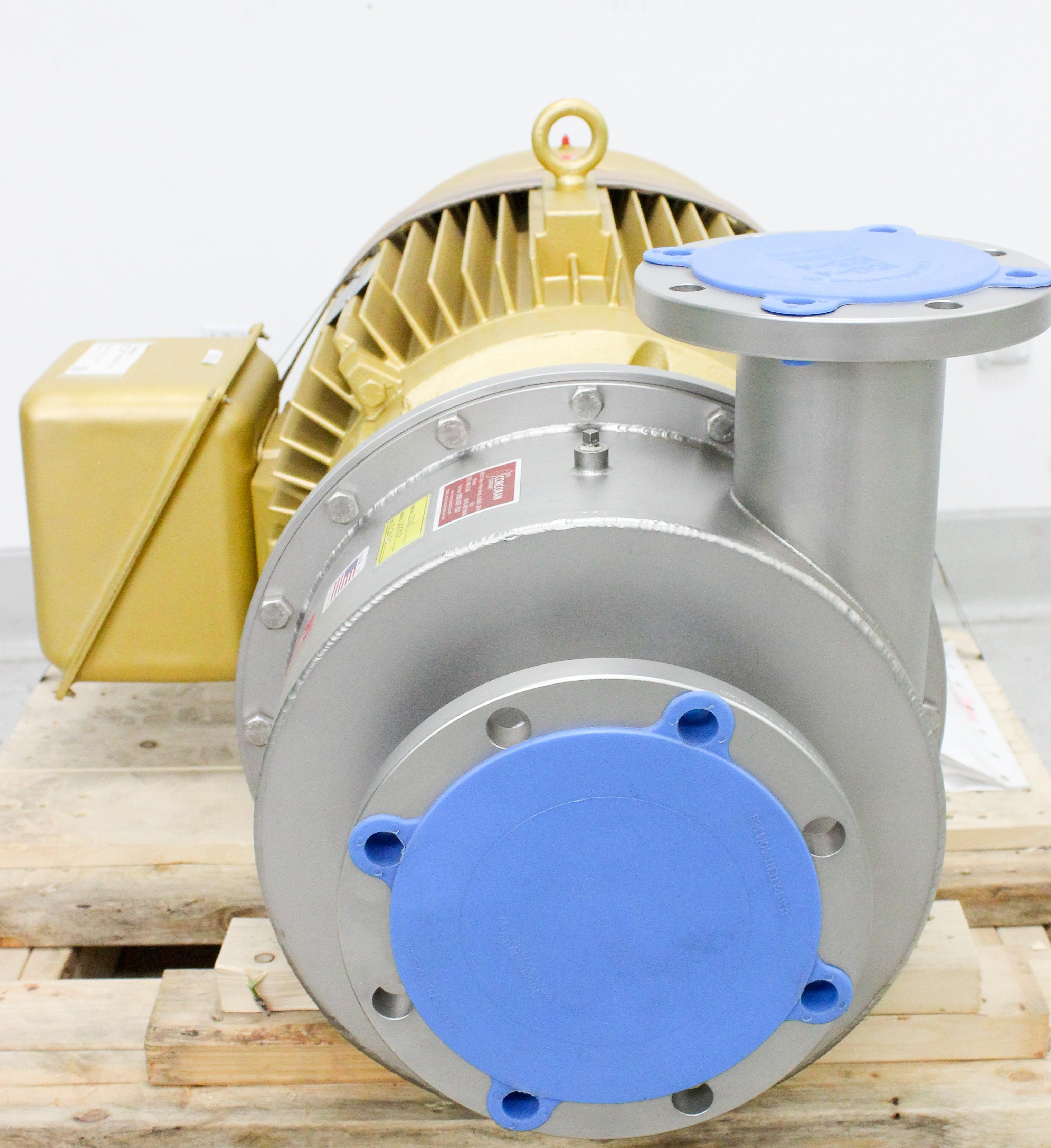

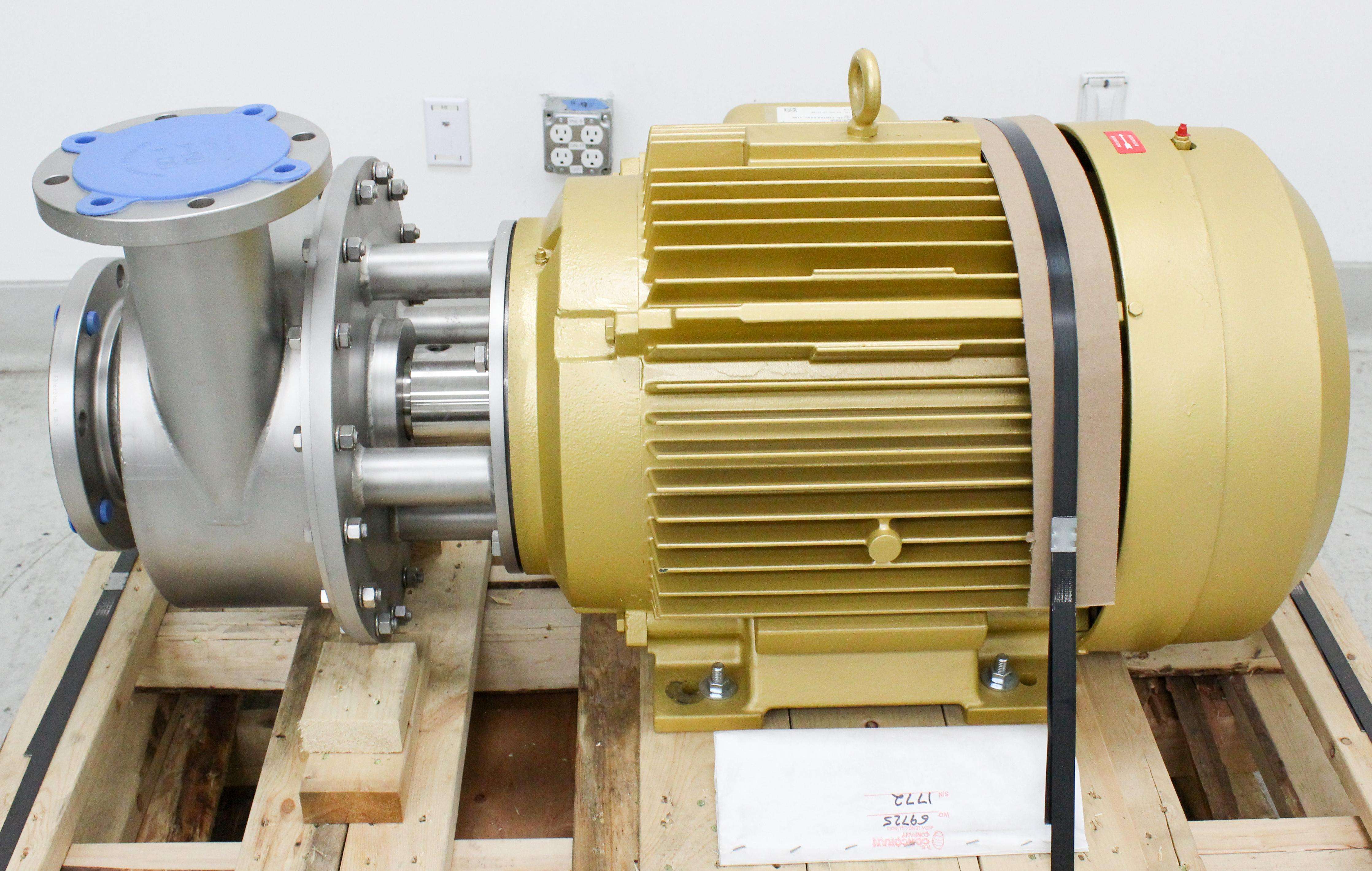

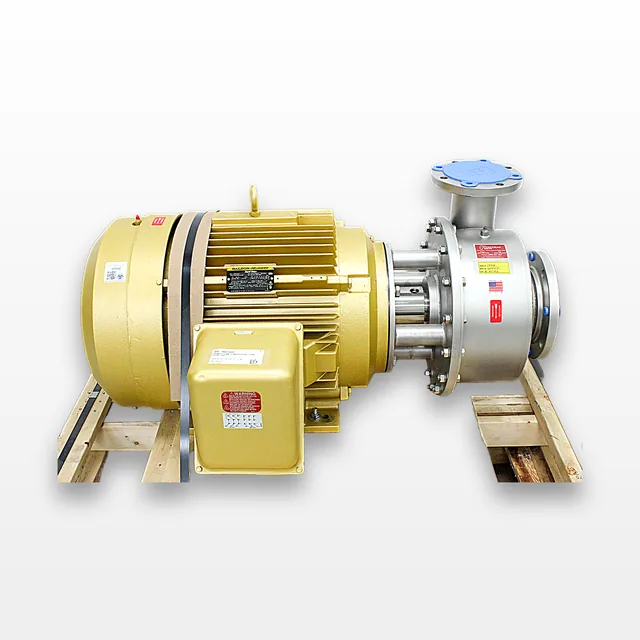

The CorcoranPumps 6000D, produced in August 2023, is a robust centrifugal pump featuring a Baldor Reliance Super E Motor CEM4316T with 75 HP and 1780 RPM. Engineered for high-efficiency operations, this pump supports various applications including pumps, fans, conveyors, machine tools, and gear reducers. Its construction includes stainless steel fittings and a fabricated carbon steel body, with an internal mechanical seal designed for axial thrust balance. Despite limited testing, the unit is in good cosmetic condition and was sourced from a functional environment. It requires a 230/460V power source to operate.
Technician comment

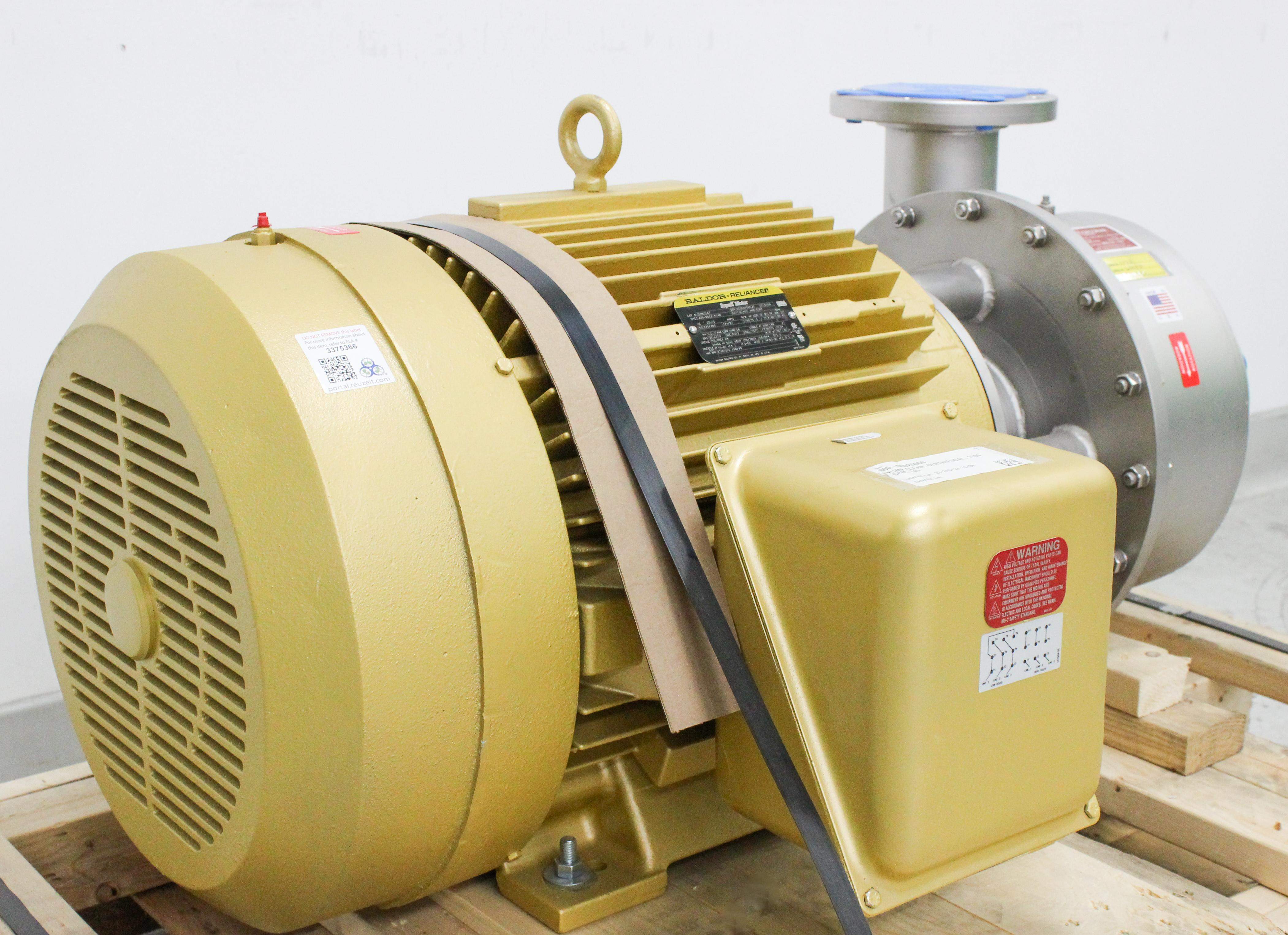

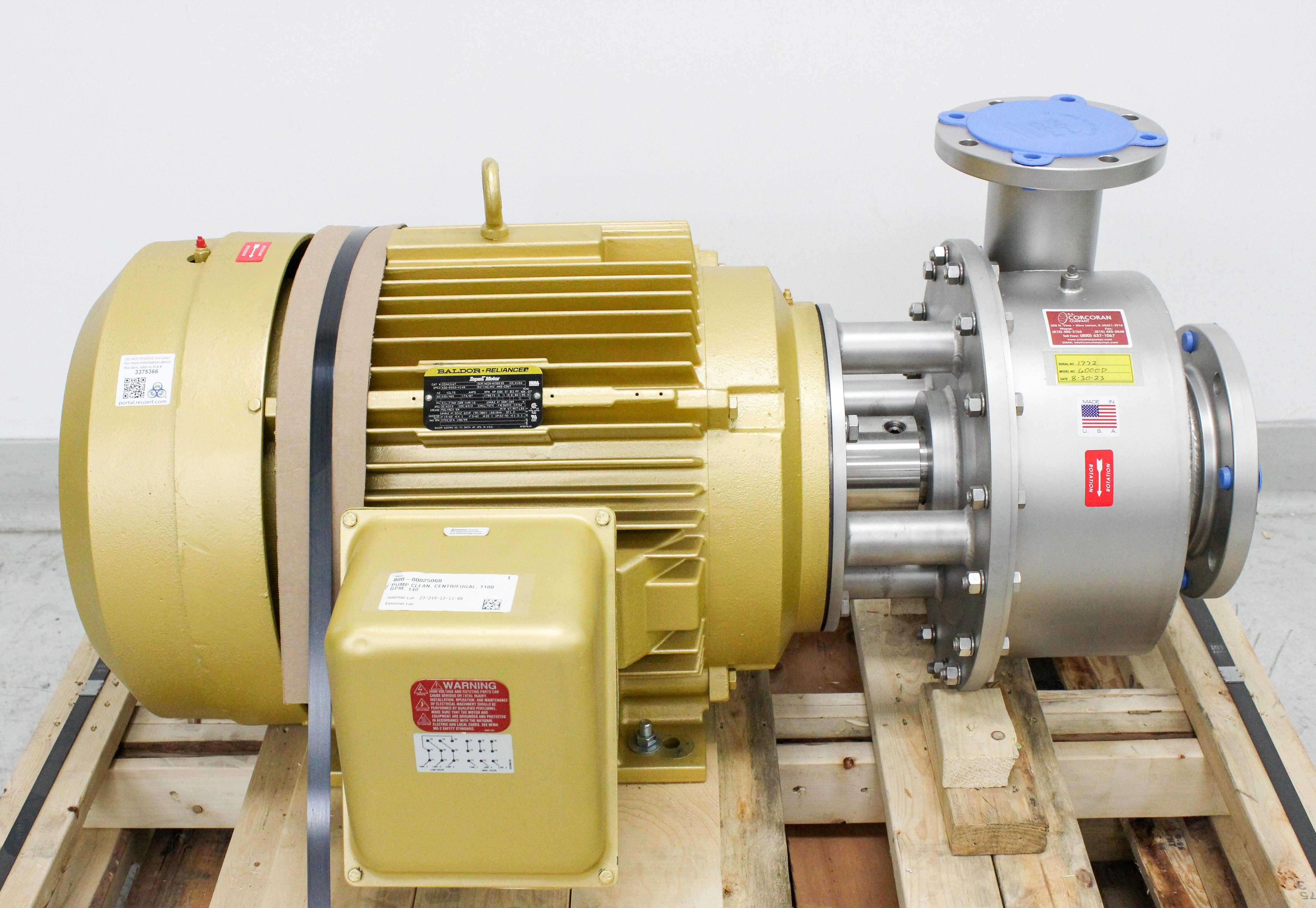

6000D pump and Baldor Reliance Super E Motor CEM4316T is excellent cosmetic condition with no visible damage to the housing or motor. The unit is preowned and comes from a working environment. Requires hardwiring to a 230/460V power source for operation.
Key Features
- Produces 1100 GPM
- High-efficiency NEMA Premium Motor
- 75 HP, 1780 RPM motor
- Constructed with stainless and carbon steel
- Operational in pumps, fans, conveyors
Specifications

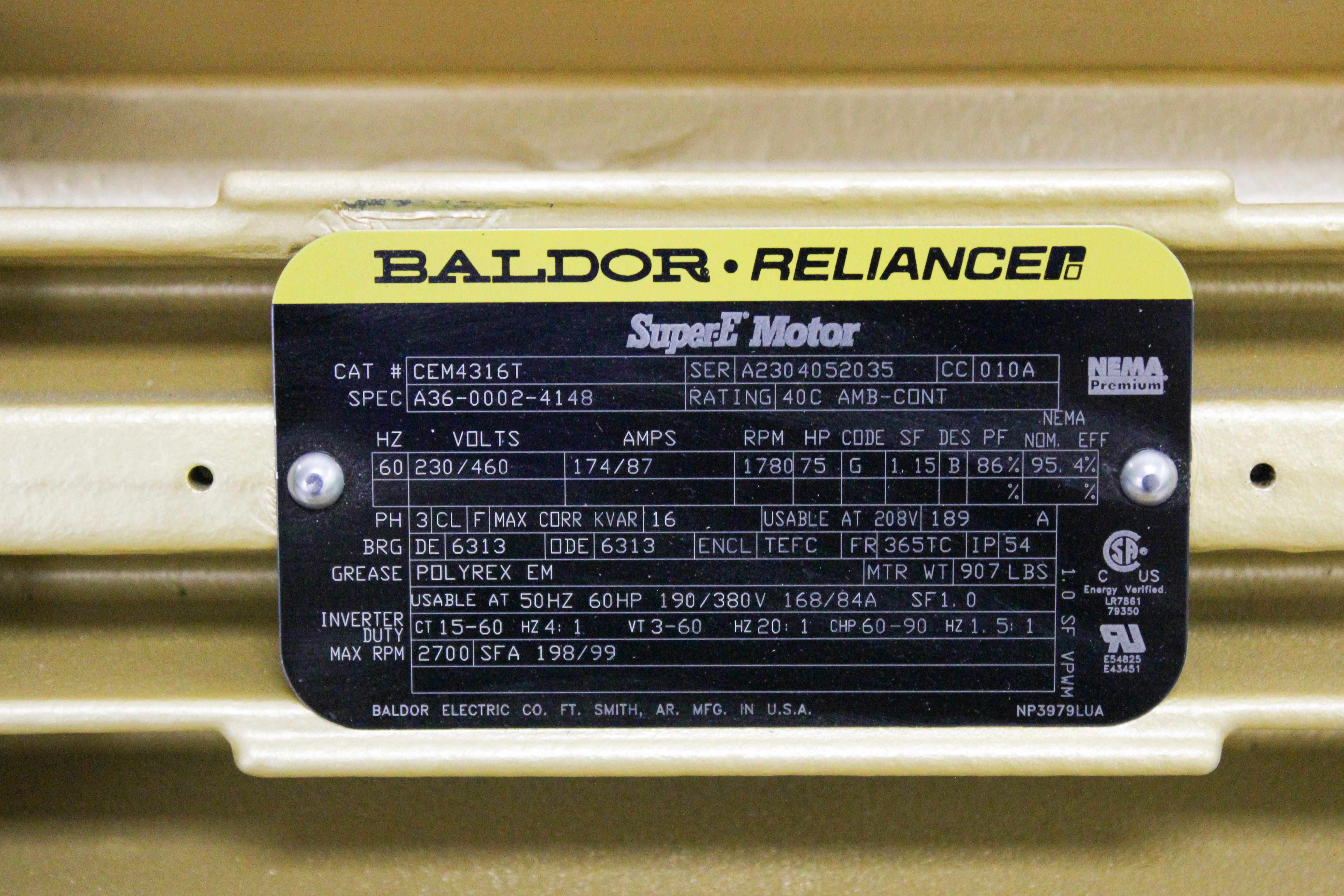

- CEM Super-E®/XE motor with NEMA Premium® efficiency
- Class F insulation
- 1.15 service factor
- Inverter ready per NEMA standard MG 1 Part 31.4.4.2
- Internal Mechanical Seal: 3.000" diameter
- Fully enclosed impeller: 12.25" diameter
- Motor: 75 HP, 1780 RPM, TEFC, 365 TSC with feet
- Voltage: 230/460V
- Hertz: 50Hz/60Hz
- Manufacture Date: August 30, 2023
- Serial Number: A2304052035
Weight
Imperial: 1088.4 Pounds
Metric: 493.69 Kilograms
Shipping Dimensions
Imperial: 34.8 lb x 54.0 lb x 27.6 lb
Metric: 88.39 cm x 137.16 cm x 70.1 cm
Harmonized Code
841370
Harmonized Code Details
841370 - Pumps; centrifugal, n.e.s. The CorcoranPumps 6000D aligns with this category as it is a centrifugal pump with specific functionalities applicable to industrial and laboratory environments.
