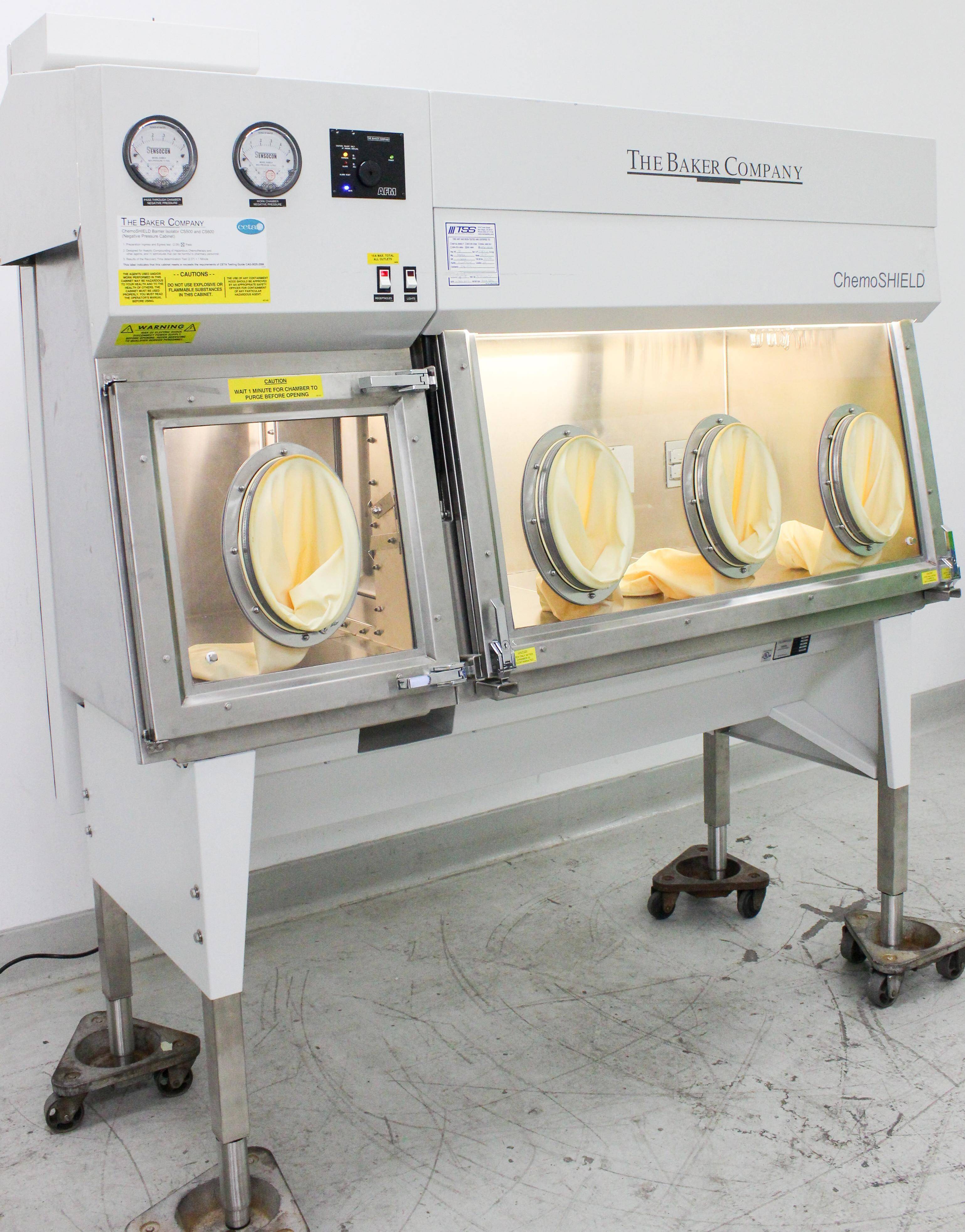

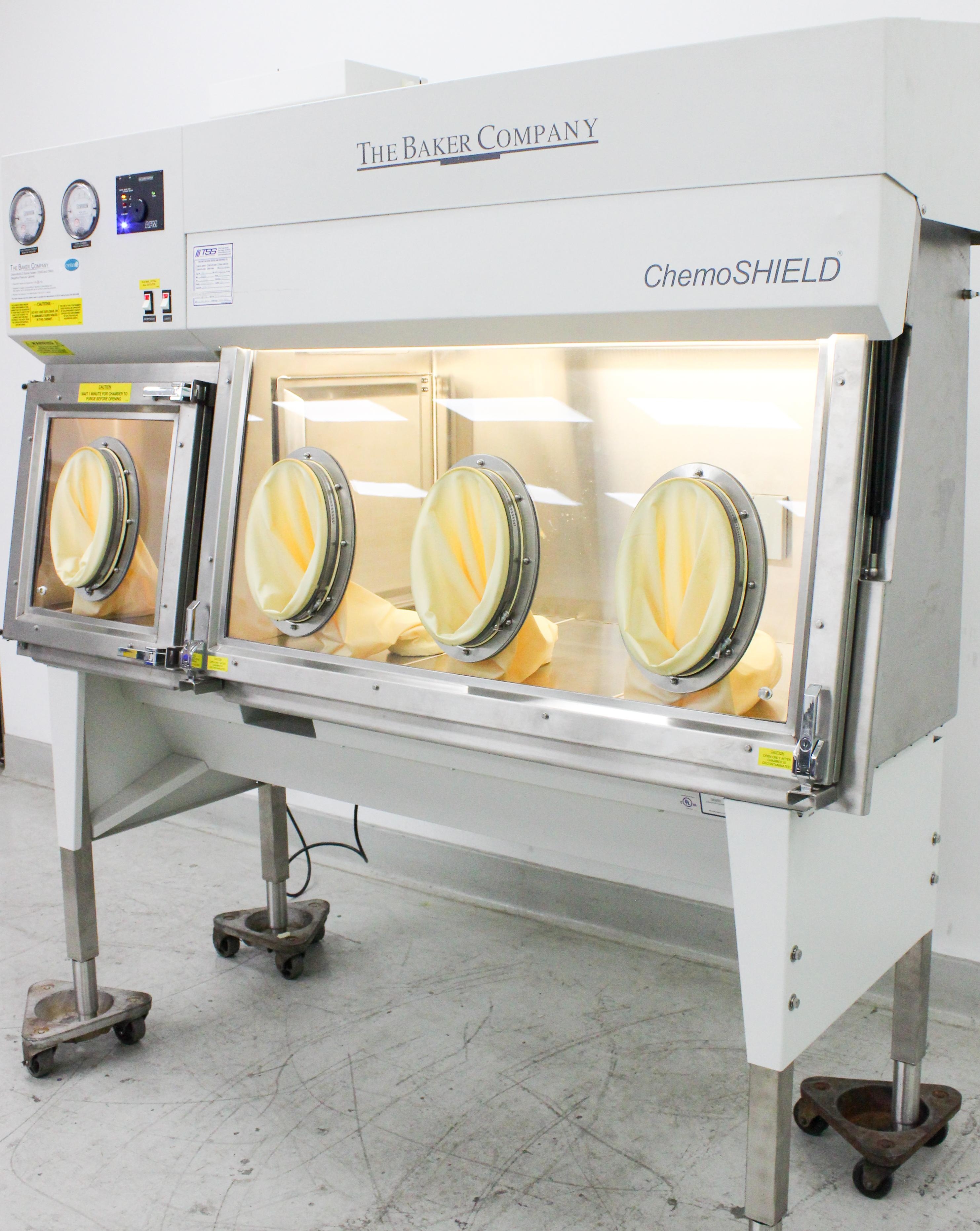

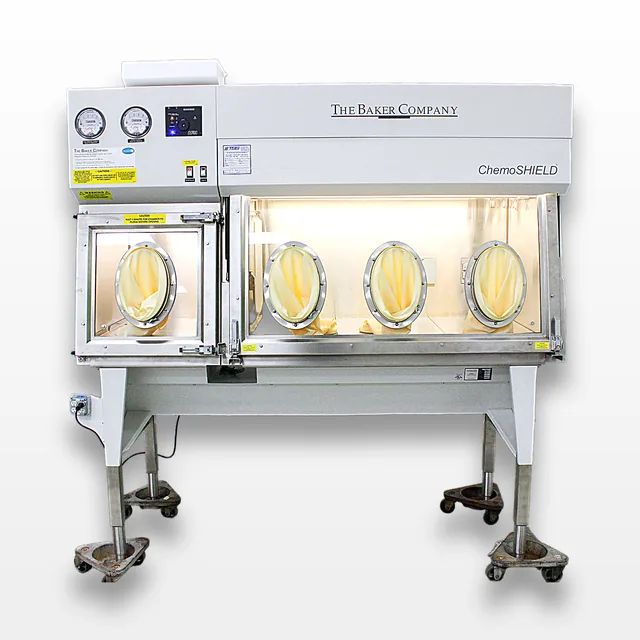

The Baker ChemoSHIELD CS600 Barrier Isolator Negative Pressure Cabinet
The Baker Company
Details
-
CategoryHood
-
Dimension35.0in x 75.0in x 79.0in
-

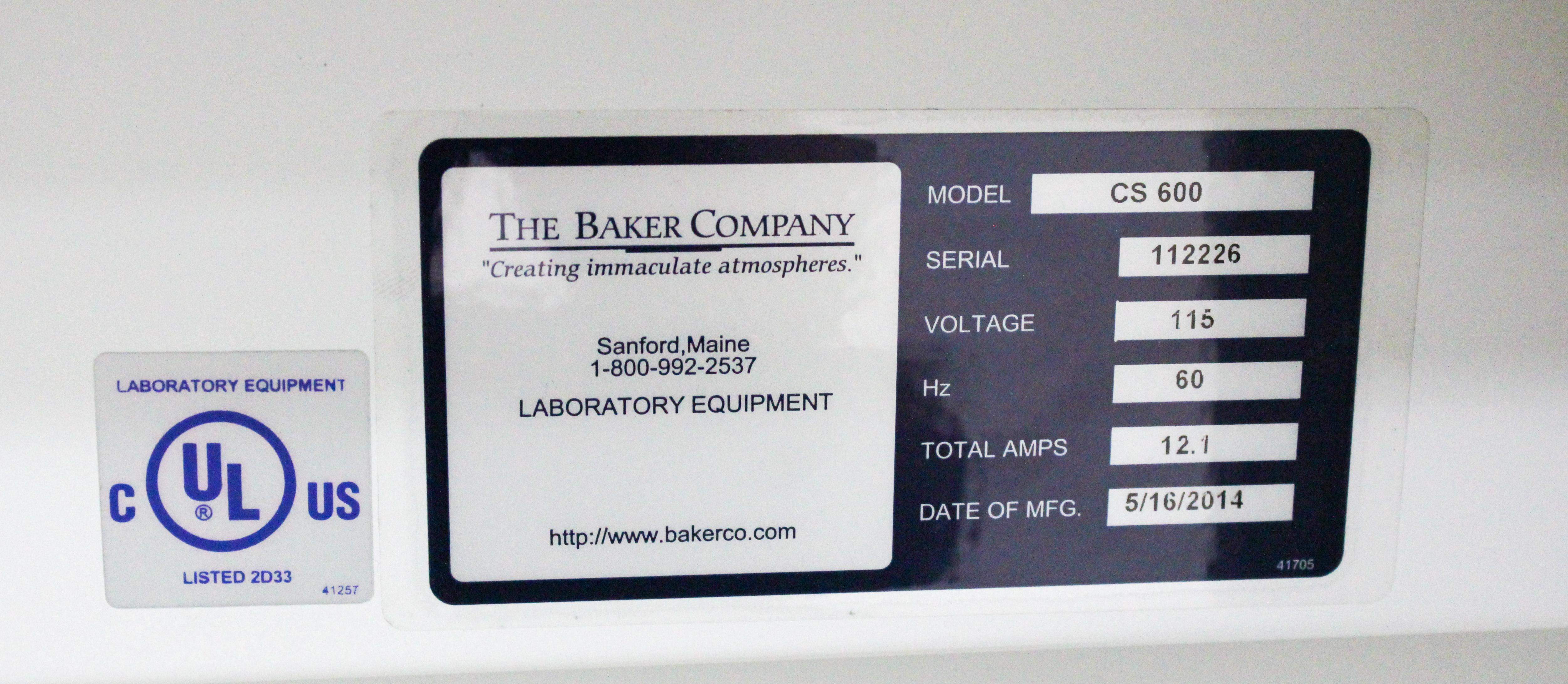

Serial112226
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

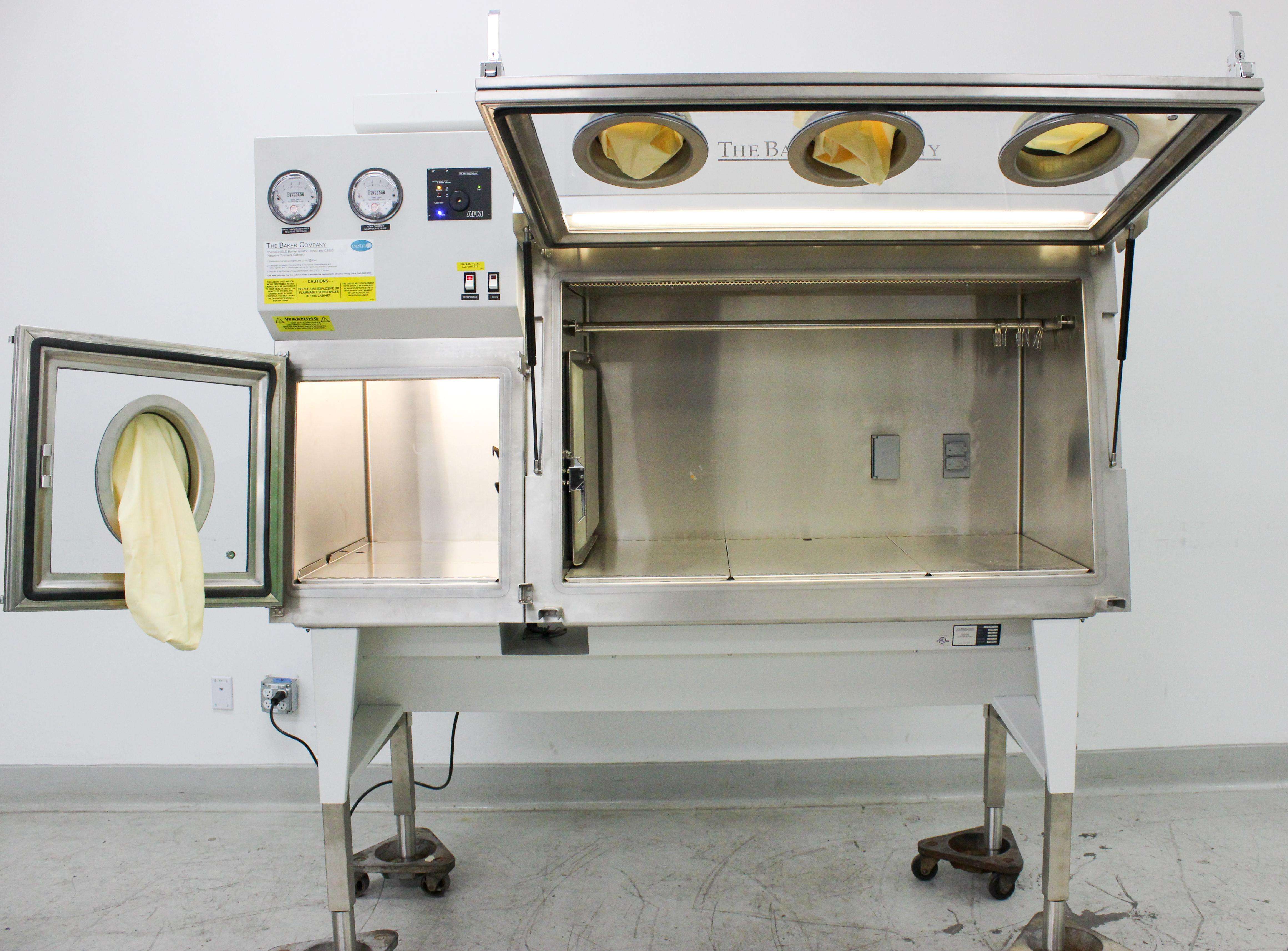

The Baker Company ChemoSHIELD CS600 Barrier Isolator is engineered for laboratory environments, featuring a robust design with a footprint of 75 x 35 3/4 inches. It operates as a negative pressure cabinet to ensure a contaminant-free workspace, perfect for hazardous drug-handling applications. Relying on facility exhaust systems, it eliminates the need for an internal motor, reducing maintenance needs. The unit effectively manages exhaust airflow at 375 CFM and includes optimal lighting with an average of 50 foot-candles in the main chamber. With minimal usage and maintained in excellent condition, this preowned unit is ready for integration into a range of laboratory settings. Dimensions and airflow dynamics make it ideal for facilities requiring stringent air quality maintenance.
Technician comment
Unit powers on properly. The ChemoSHIELD CS600 does not include an onboard motor or blower and relies on the facility’s exhaust system for airflow and static pressure, reducing overall maintenance needs. The unit is preowned from a laboratory environment and shows minor cosmetic wear consistent with normal use. Please note: regular preventative maintenance (PM) recommended including new filters, etc.
Key Features

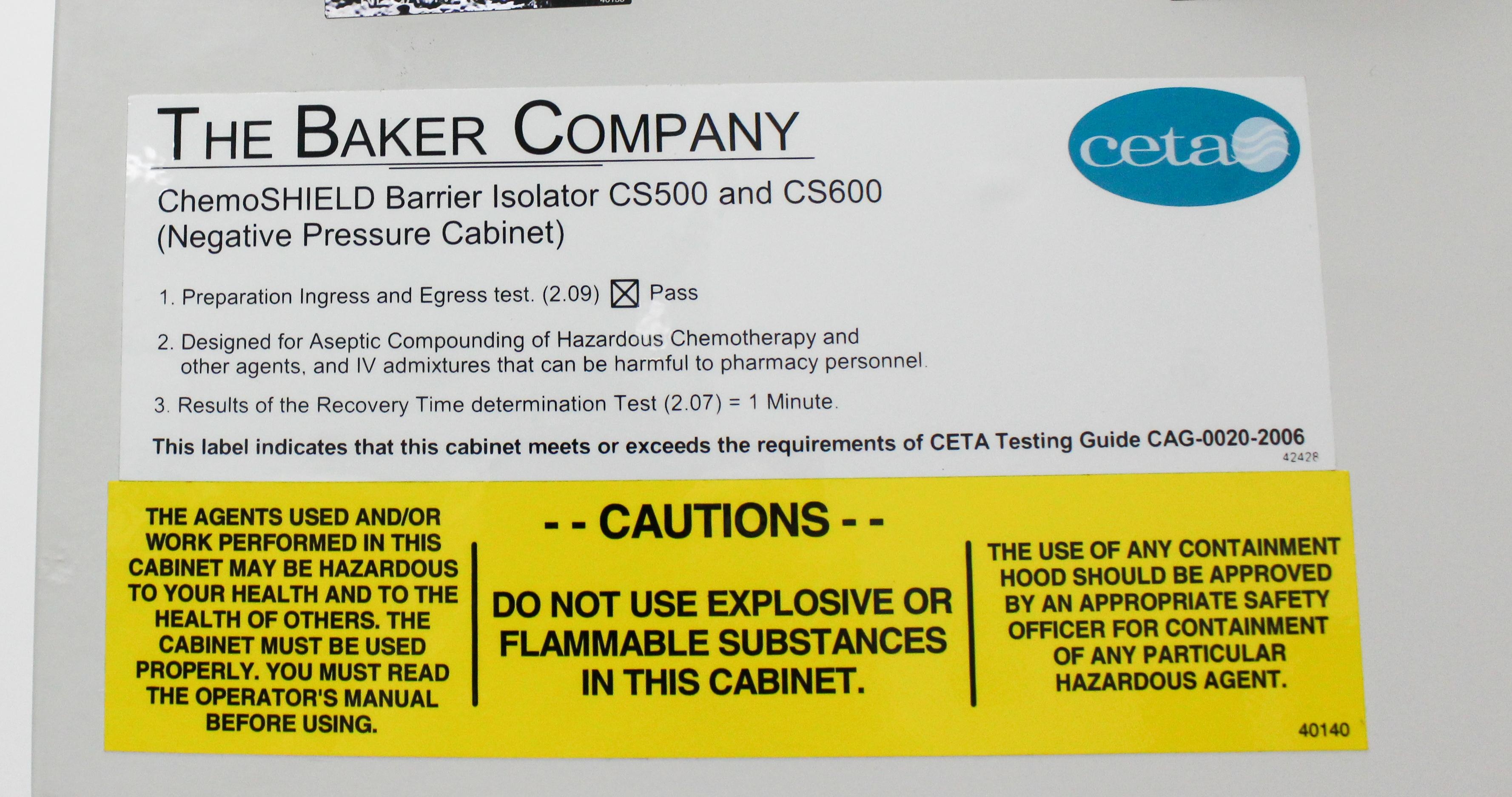

- Negative pressure containment for hazardous material handling
- Rely on facility exhaust system, no onboard motor
- 375 CFM exhaust airflow
- 50 foot-candles lighting in the main work chamber
- Minimal maintenance requirements
Specifications
- External Footprint: 75 x 35 3/4 inches (1905 x 908 mm)
- Height Range: 84 15/16 to 93 7/16 inches (2158 to 2374 mm)
- Interior Dimensions: 46 x 24 x 25 3/8 inches (1168 x 610 x 644 mm)
- Exhaust Airflow: 375 CFM (177 l/s)

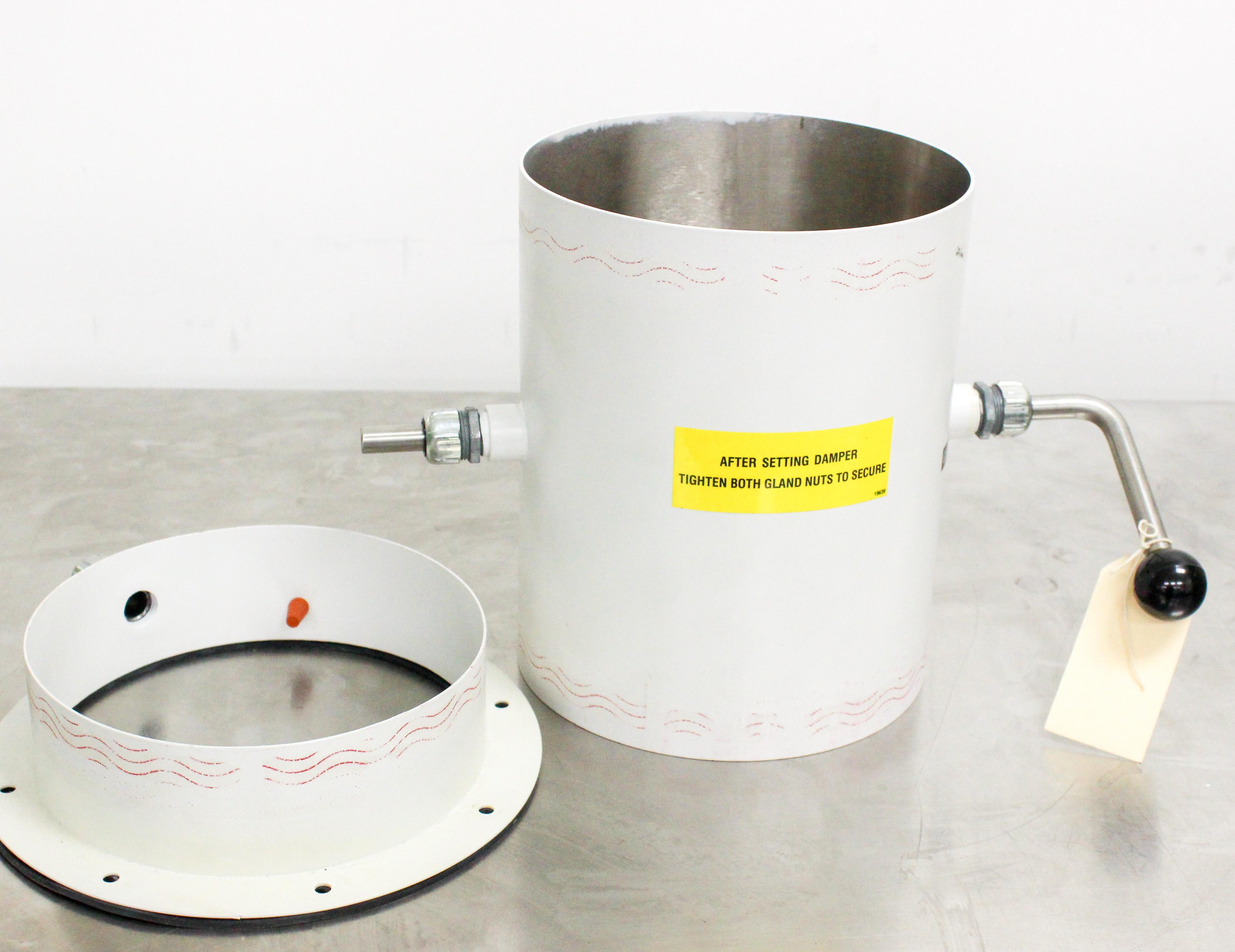

- Exhaust Duct Diameter: 8 inches
- No onboard motor/blower, relies on facility exhaust
- Air Recirculation/Exhaust: 0% / 100%
- Down Flow Velocity: Pass-Through 20 to 50 FPM, Main Chamber 10 to 40 FPM

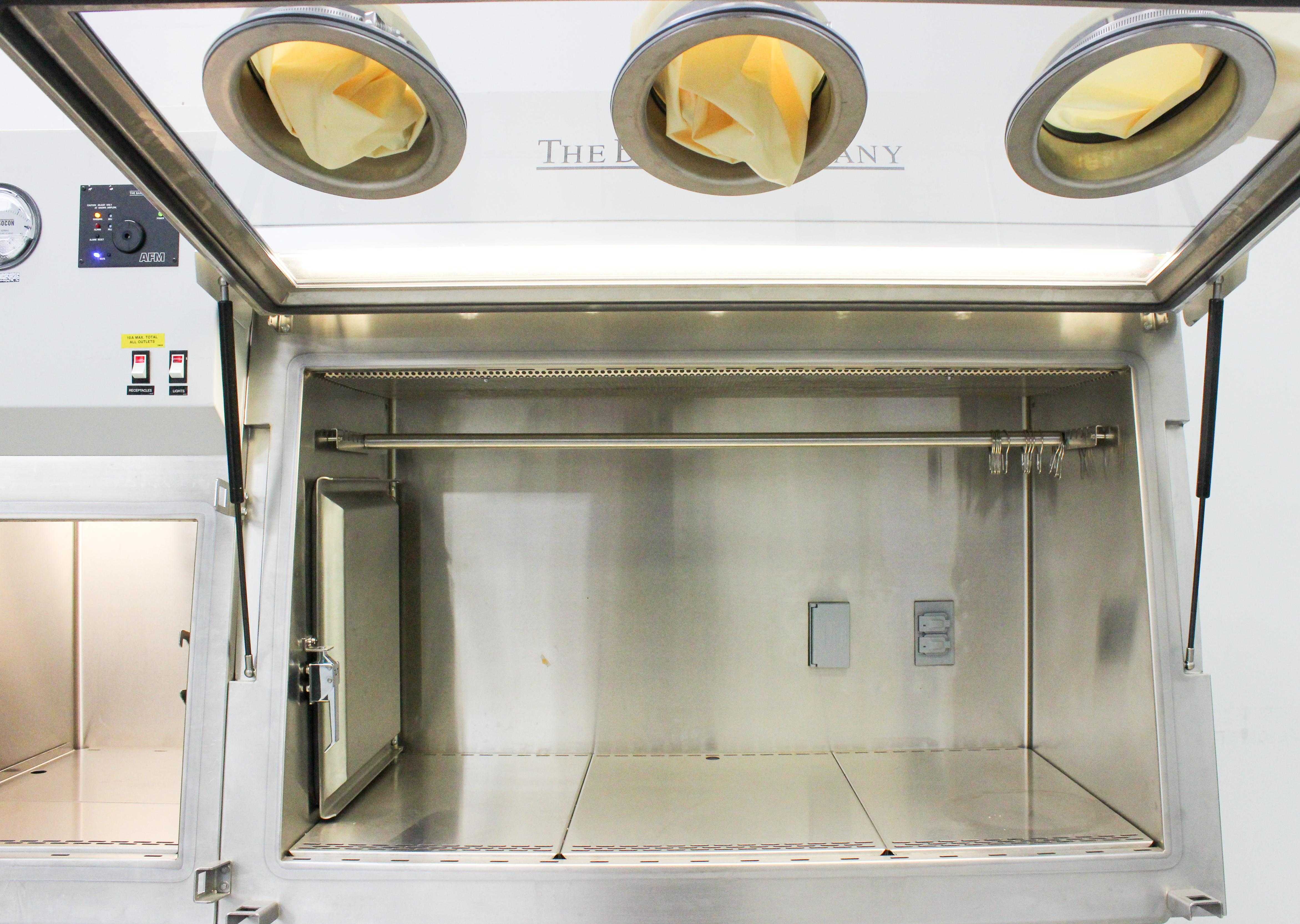

- Lighting: Pass-Through 45 foot-candles, Main Chamber 50 foot-candles on work surface
- Voltage: 120V, Frequency: 60Hz
Weight
Imperial: 684.0 Pounds
Metric: 310.26 Kilograms
Shipping Dimensions
Imperial: 42.0 lb x 90.0 lb x 94.8 lb
Metric: 106.68 cm x 228.6 cm x 240.79 cm
Harmonized Code
841460
Harmonized Code Details
841460 - Air or vacuum pumps; air or other gas compressors and fans; ventilating or recycling hoods incorporating a fan, whether or not fitted with filters, used because the unit relies on facility exhaust systems typical for these types of hoods.
