Apex Dynamics ATB240FC Spiral Bevel Gearbox for Servo Applications
Apex Dynamics Inc
Details
-
CategoryOther
-
Dimension26.0in x 29.0in x 19.0in
-

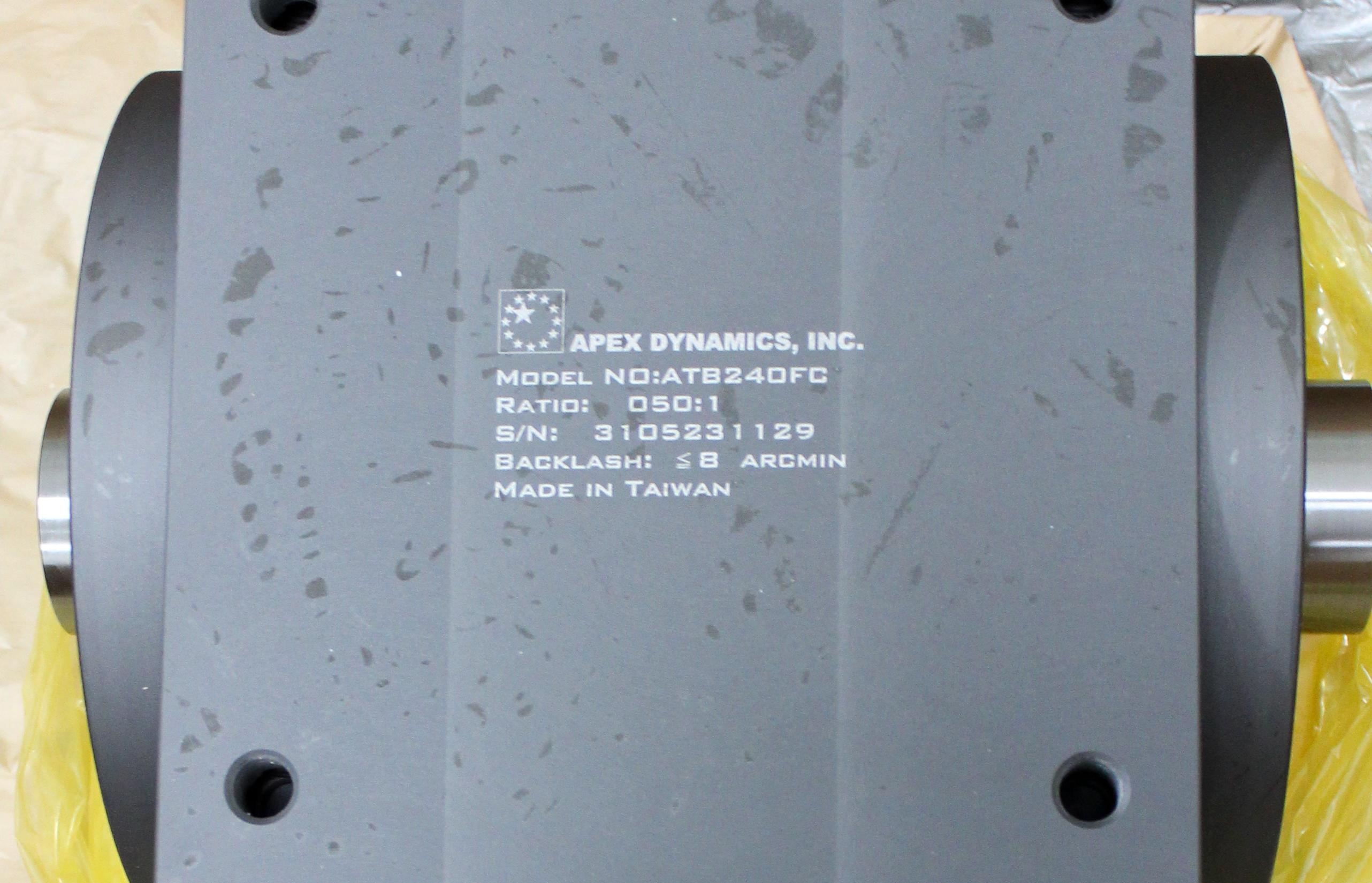

Serial3105231129
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

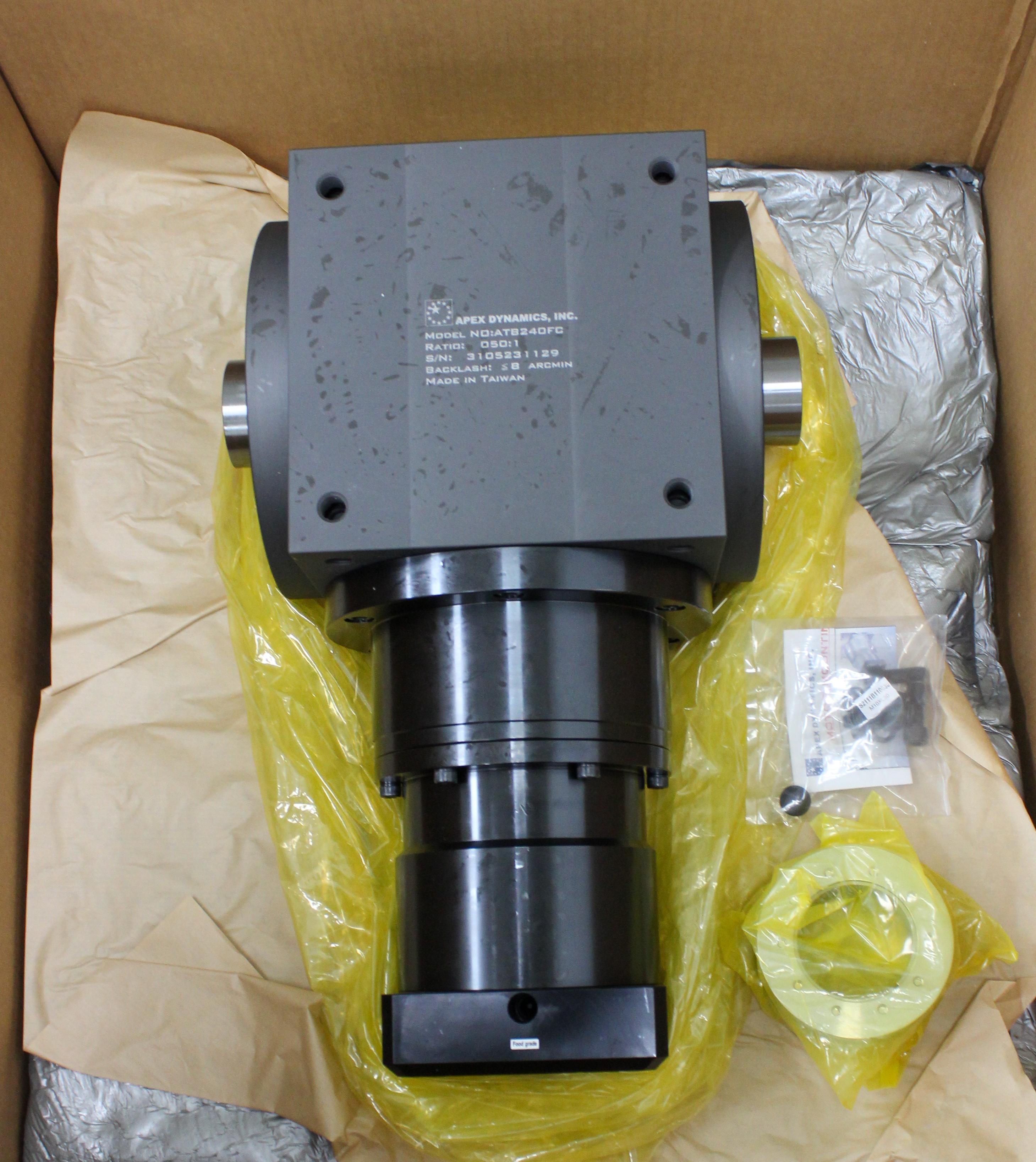

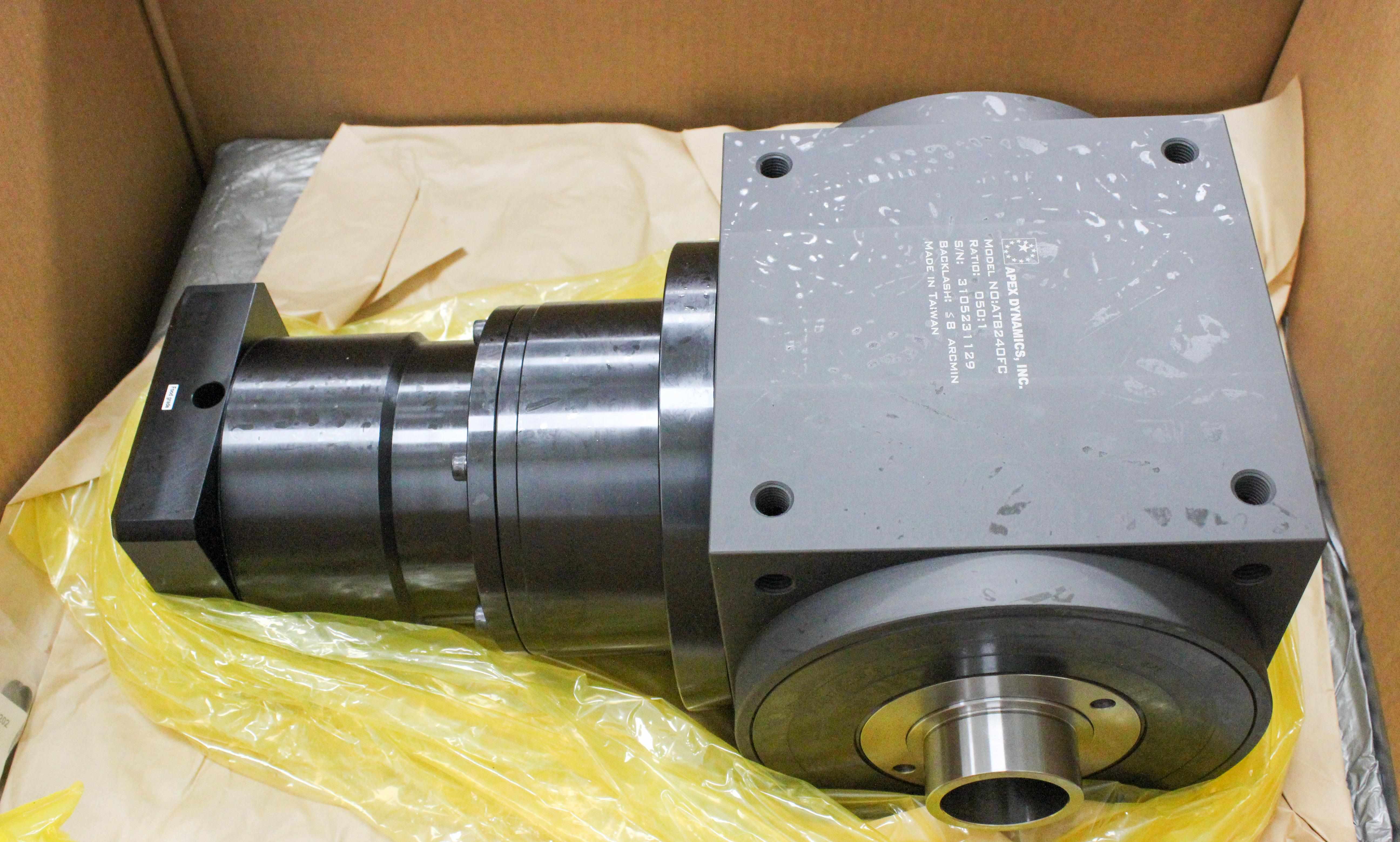

The Apex Dynamics ATB240FC is a precision right-angle spiral bevel gearbox specifically designed for integration with servomotors and other power transmission applications. Manufactured by Apex Dynamics, Inc. in Taiwan, this high-performance gearbox features a 50:1 reduction ratio and a maximum nominal output torque of 1,210 N·m. With an impressive efficiency rating of ≥94% and a backlash specification of ≤10 arcmin, the ATB240FC ensures optimal performance and reliability in demanding mechanical tasks. The blackened cast iron housing, complemented by stainless steel input and output shafts, ensures durability and resistance to wear. This model accommodates high radial loads up to 16,000 N and axial loads up to 8,500 N, making it ideal for heavy-duty applications. Operating within a temperature range of -10°C to +90°C, this gearbox is well-suited for diverse environments.
Technician comment
NEW
Key Features
- Model: ATB240FC
- Spiral bevel gearbox
- Designed for servomotors
- Ratio: 50:1
- High efficiency: ≥94%
- Backlash ≤10 arcmin
- High radial and axial load capacity
- Operating temperature: -10°C to +90°C
Specifications
- High-precision right-angle spiral bevel gearbox
- Made by Apex Dynamics Inc, Taiwan
- Model: ATB240FC
- Reduction ratio: 50:1
- Backlash: ≤8 arcmin
- Nominal output torque: 1,210 N·m
- Efficiency: ≥ 94%
- Maximum radial load: 16,000 N
- Maximum axial load: 8,500 N
- Noise level: ≤83 dB(A)
- Material: Blackened cast iron housing, stainless steel input/output shafts
- Operating temperature: -10°C to +90°C
Weight
Imperial: 480.0 Pounds
Metric: 217.72 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 34.8 lb x 22.8 lb
Metric: 79.25 cm x 88.39 cm x 57.91 cm
Harmonized Code
8483.40.50
Harmonized Code Details
8483.40.50 - Gear boxes, a tariff classification for devices consisting of gears enclosed in a housing used to increase torque and reduce or increase speed in mechanical power transmission. Suitable for the ATB240FC's function as a spiral bevel gearbox for servomotor applications.
