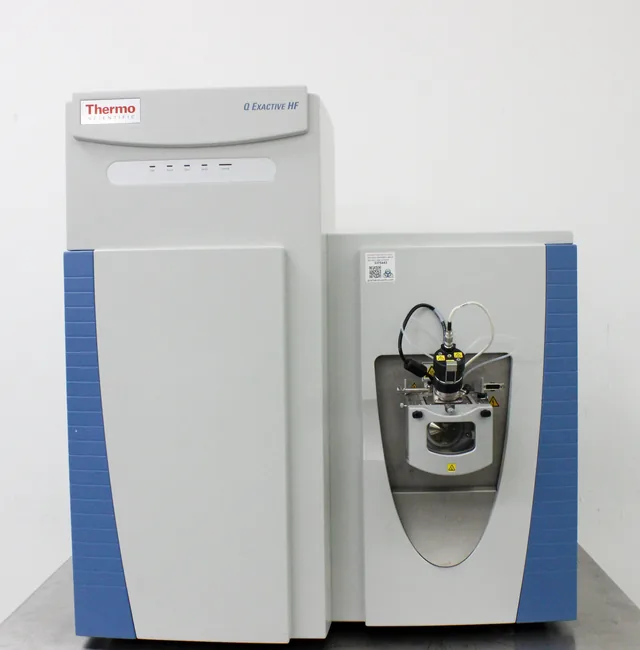

Thermo Q Exactive HF LC-MS/MS System 240000 Resolving Power 18Hz Scan
Thermo Scientific
Details
-
CategoryMass Spectrometry
-
Dimension30.0in x 34.0in x 37.0in
-

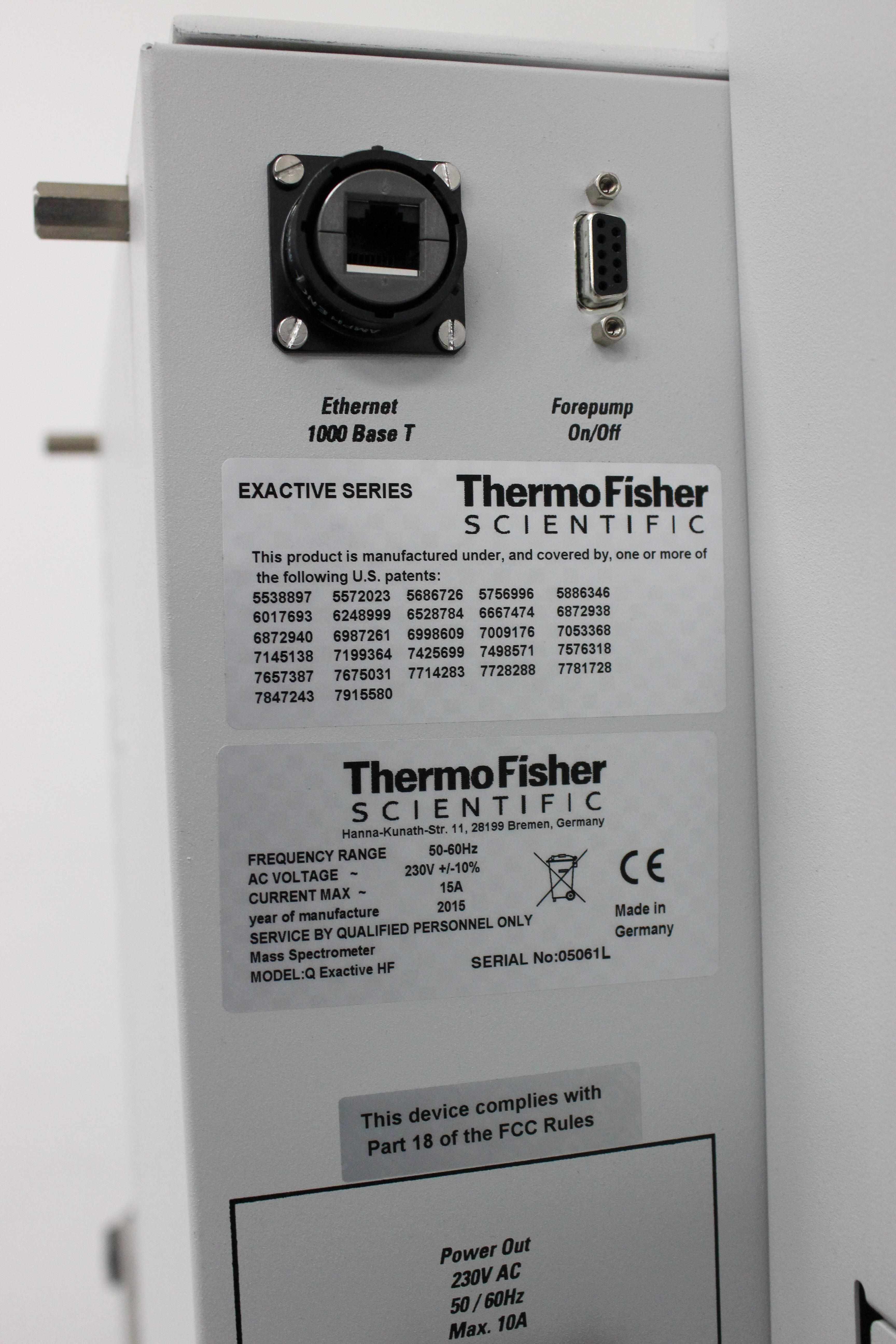

Serial05061L
-
Shipping TypeFreight
-
Manufacturing2015-01-01
-
Voltage / Hertz230V / 50Hz/60Hz
Description

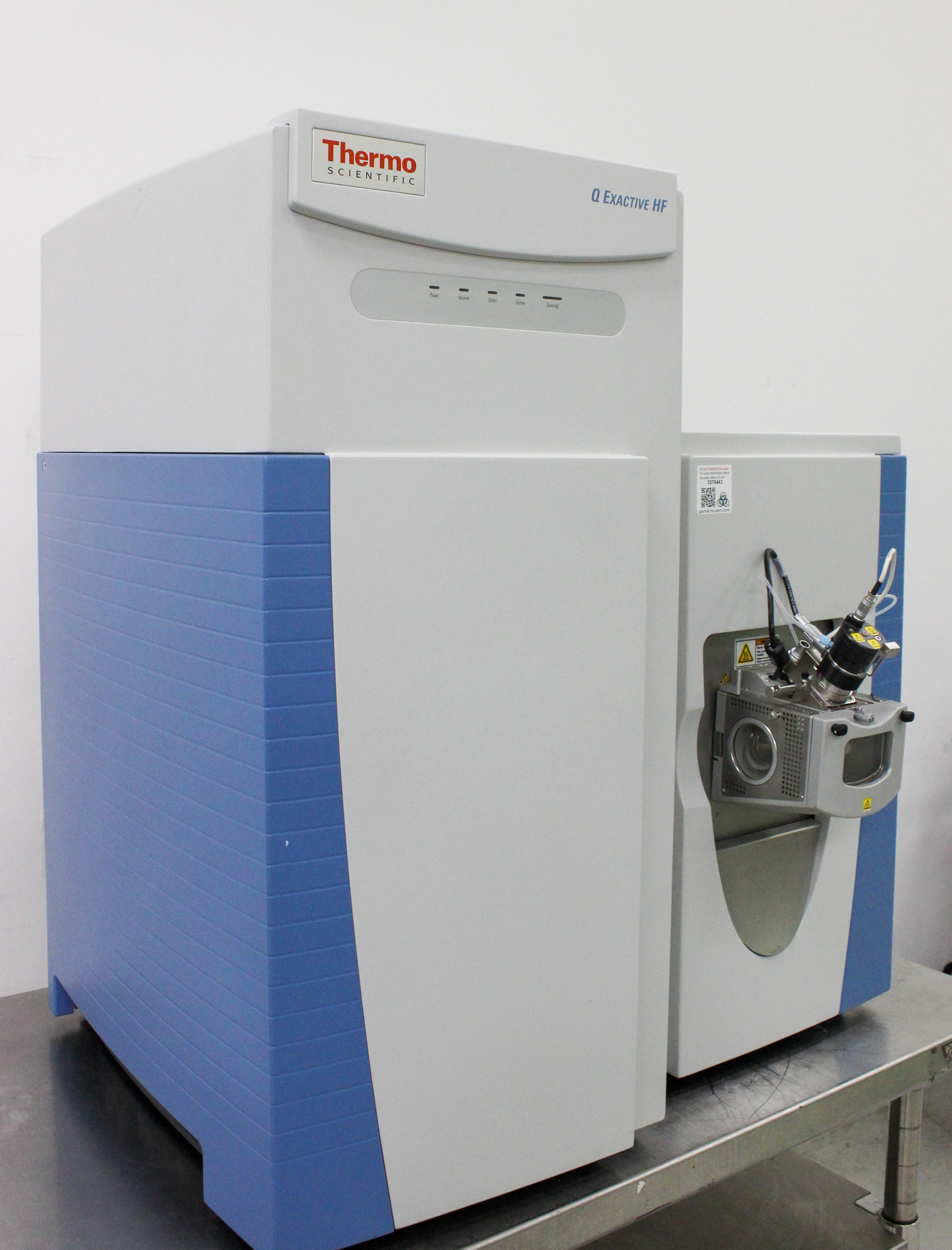

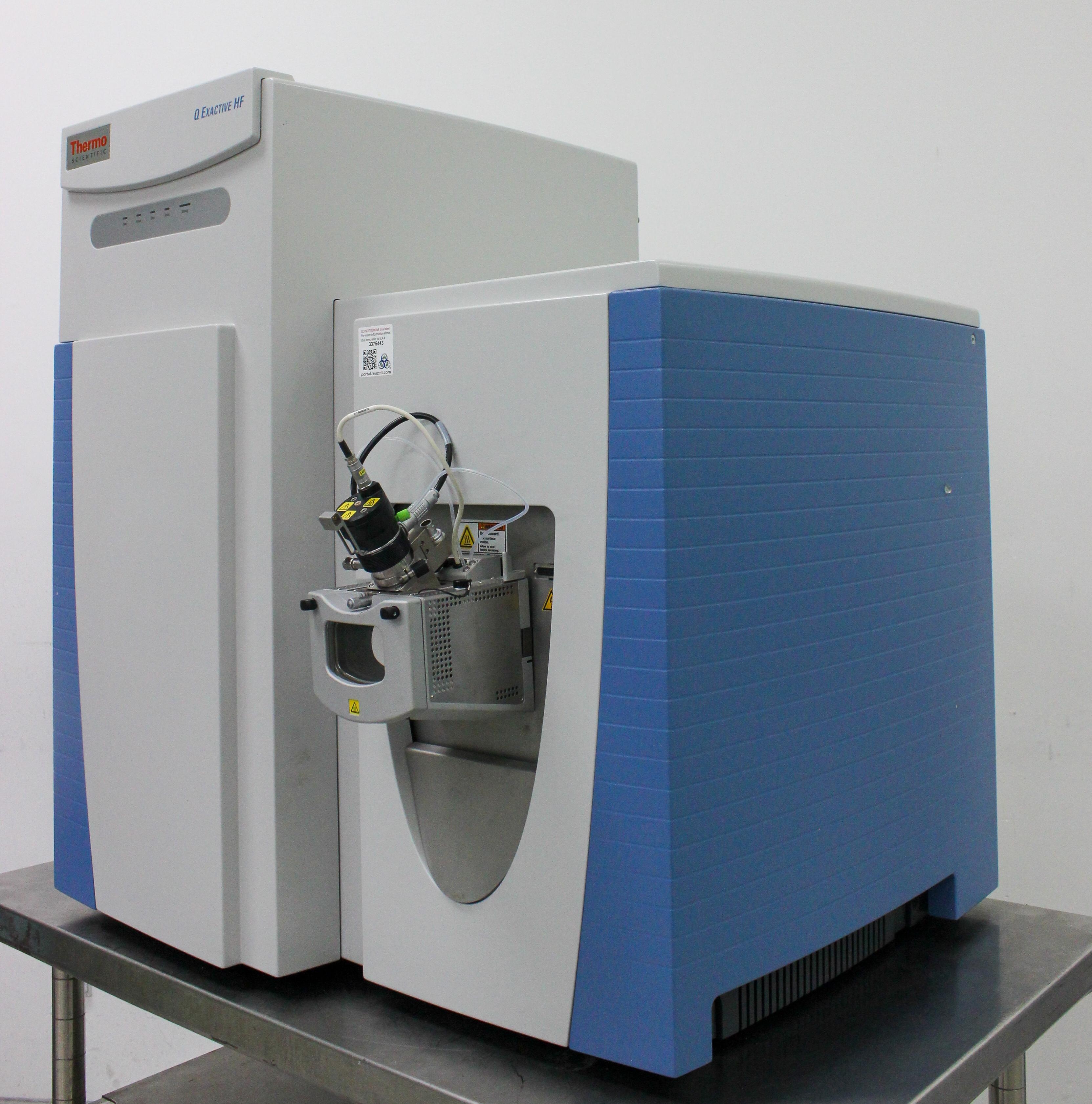

The Thermo Q Exactive HF, manufactured in 2015, is a benchtop LC-MS/MS system designed for high-resolution and accurate-mass analyses. Equipped with an Orbitrap Analyzer, it achieves up to 240,000 resolving power (FWHM) at m/z 200 and scan rates up to 18 Hz. Its Advanced Quadrupole Technology (AQT) enhances precursor isolation, while the Advanced Active Beam Guide (AABG) provides greater sensitivity and robust performance. The system supports multiple quantitation approaches, including SIM, PRM, and DIA, with routine sub ppm mass accuracy. Ideal for peptide, protein, and small molecule applications, this LC-MS/MS enables simultaneous identification, quantification, and confirmation. Note: Power cord included; computer and software not supplied.
Technician comment

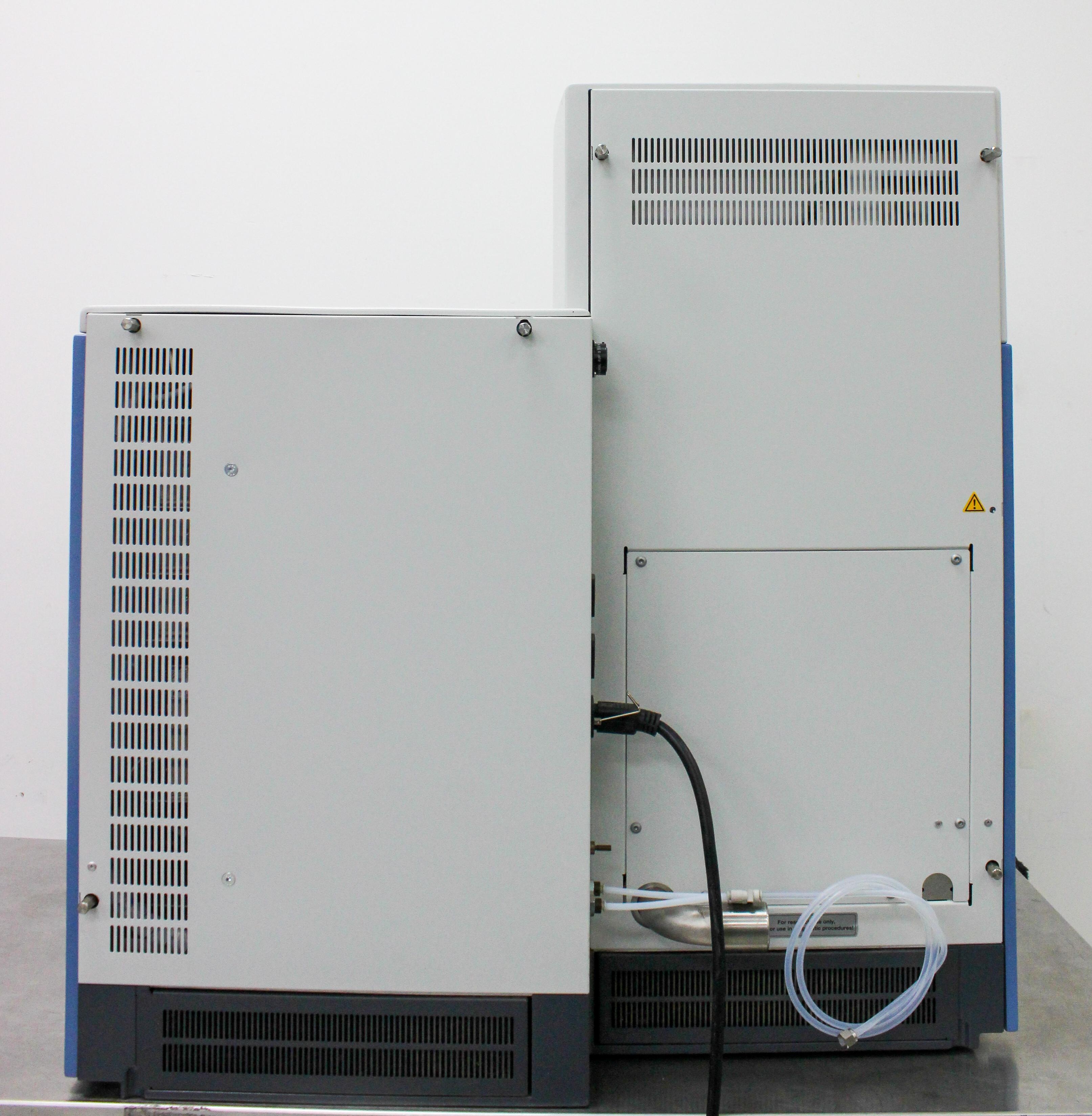

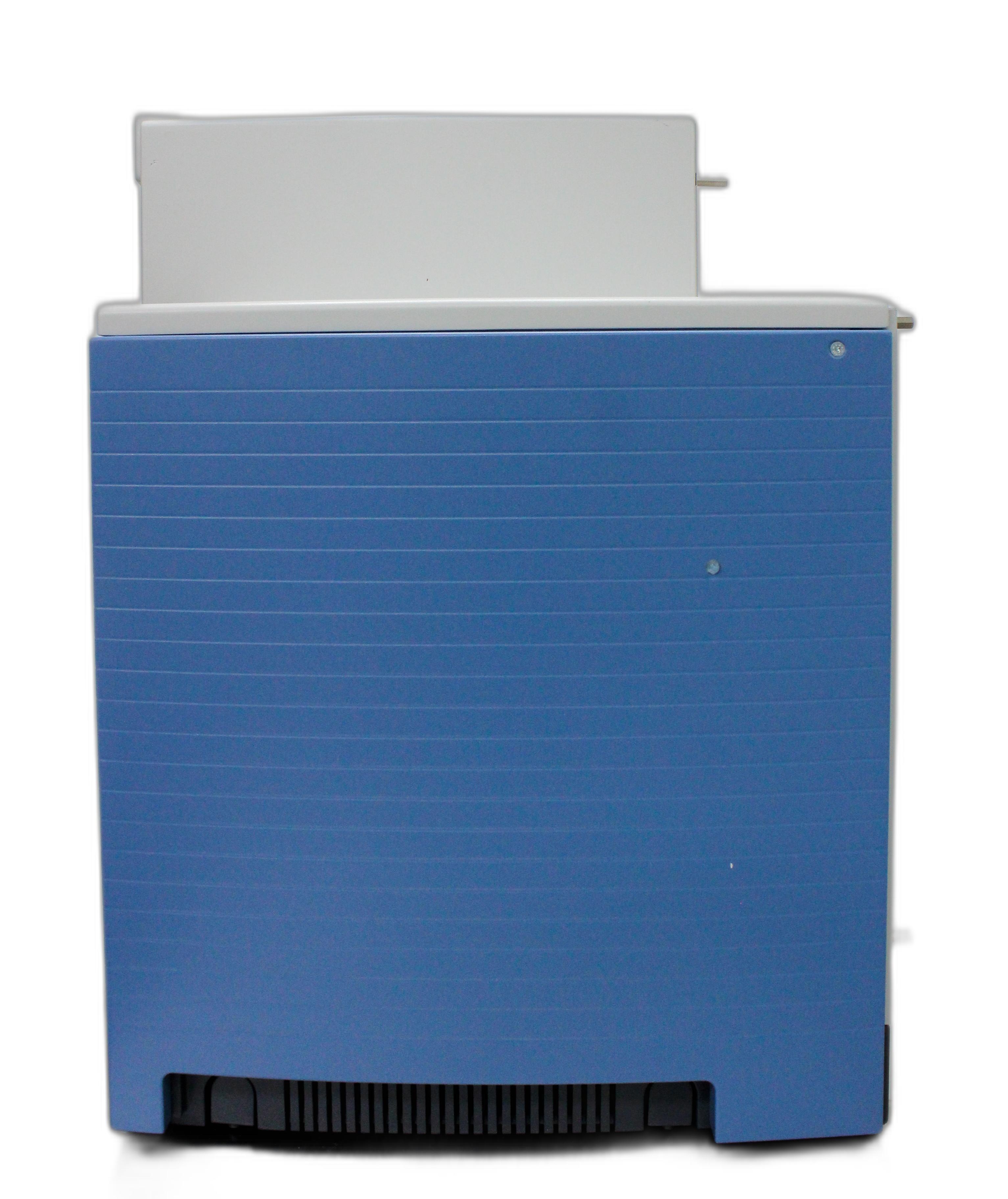

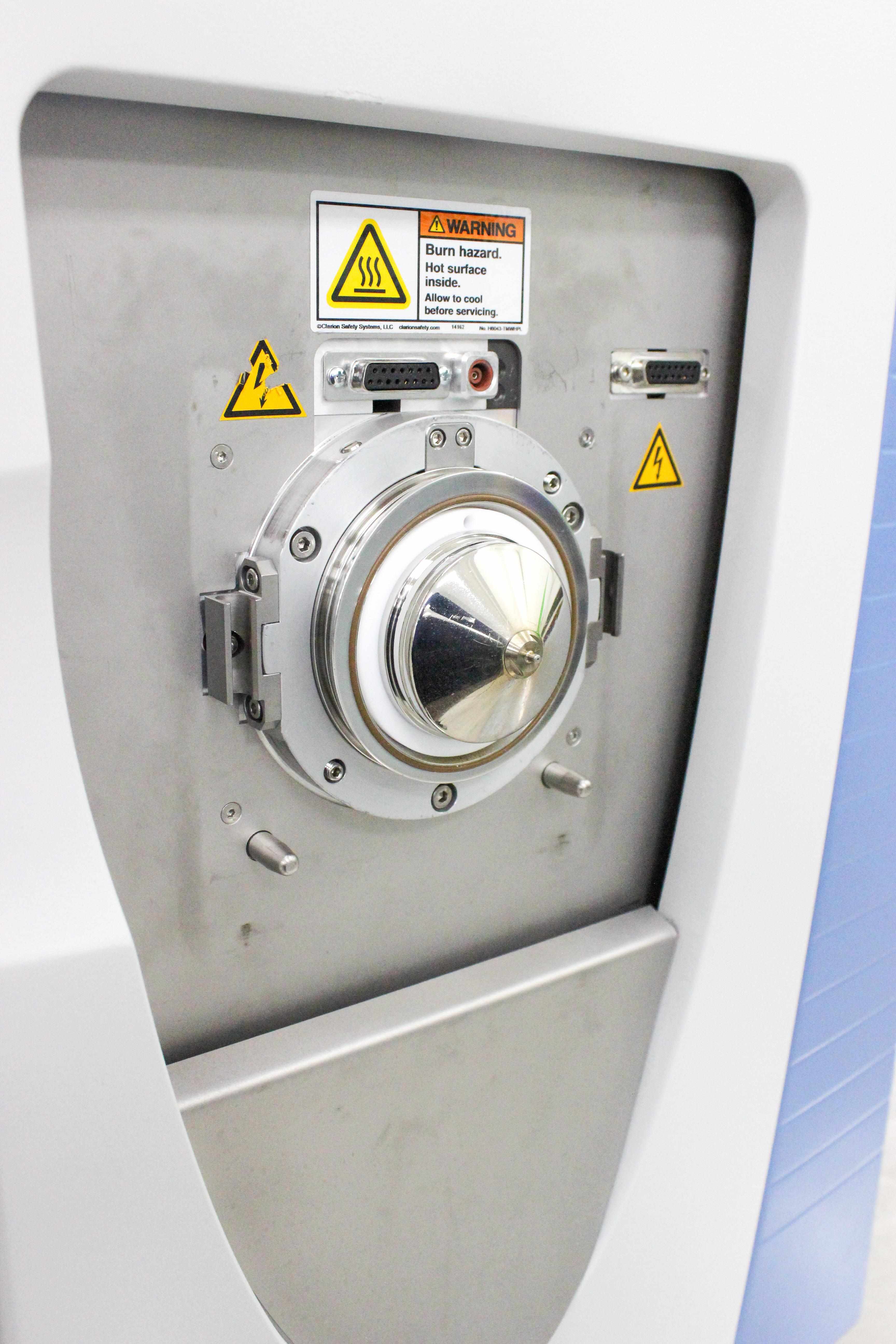

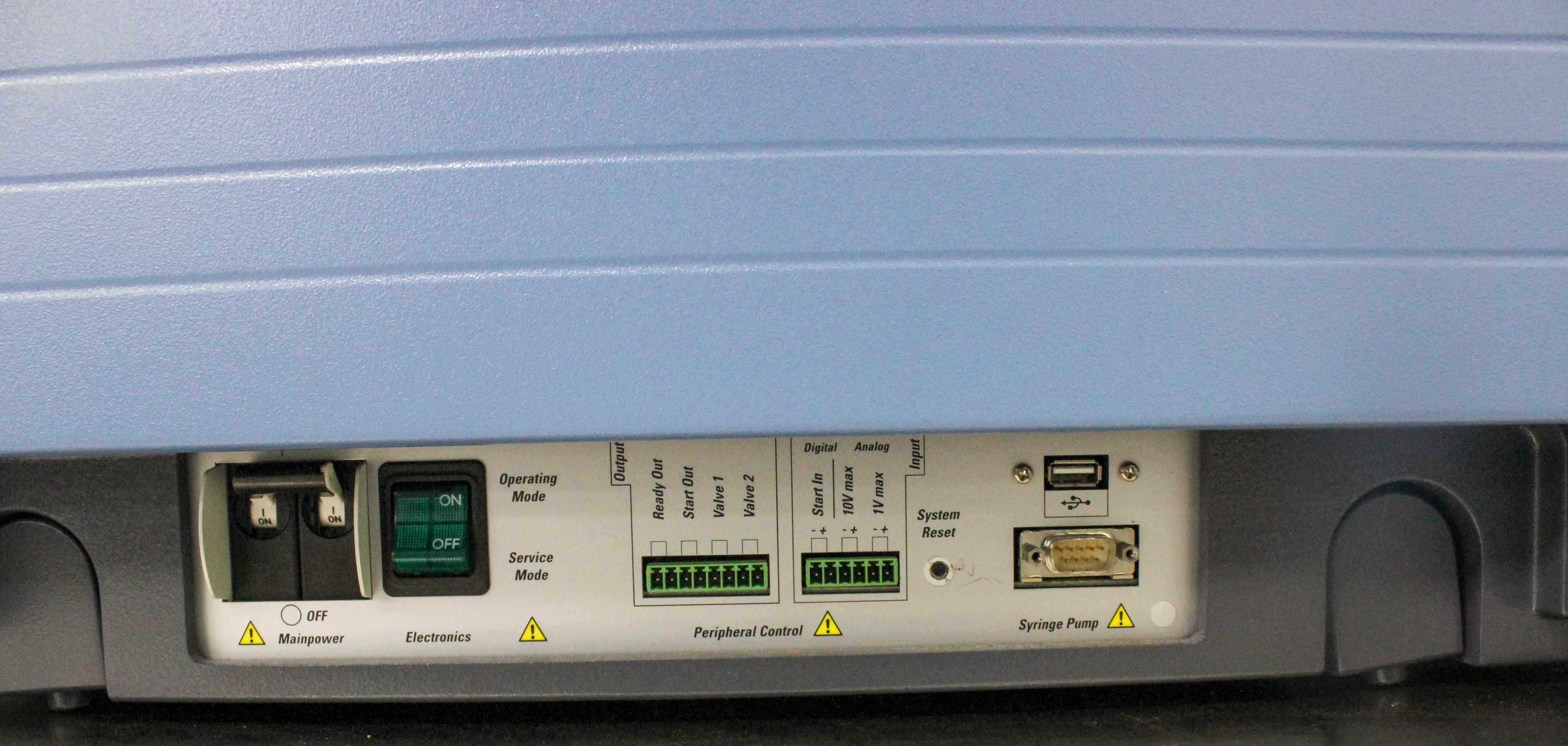

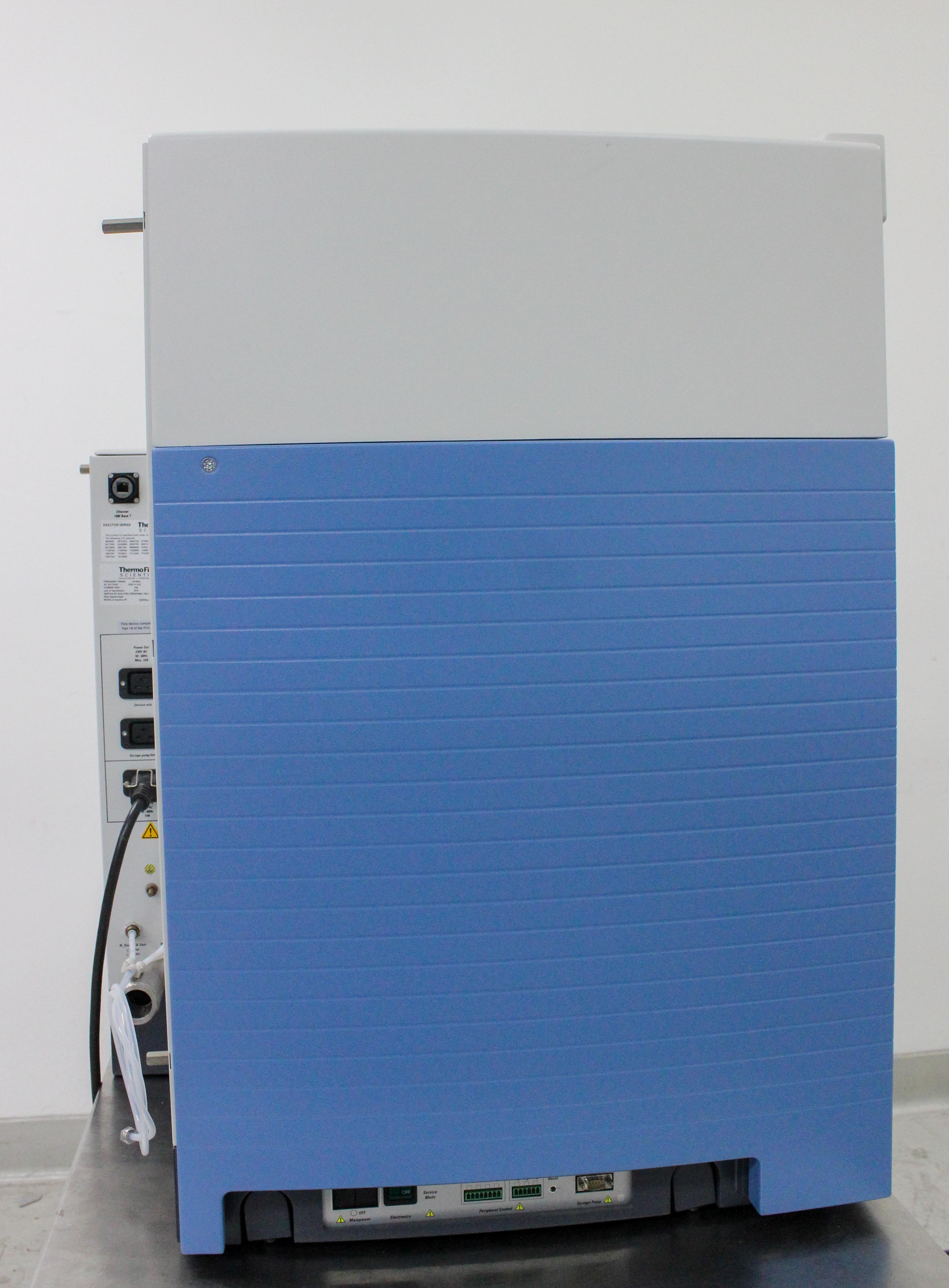

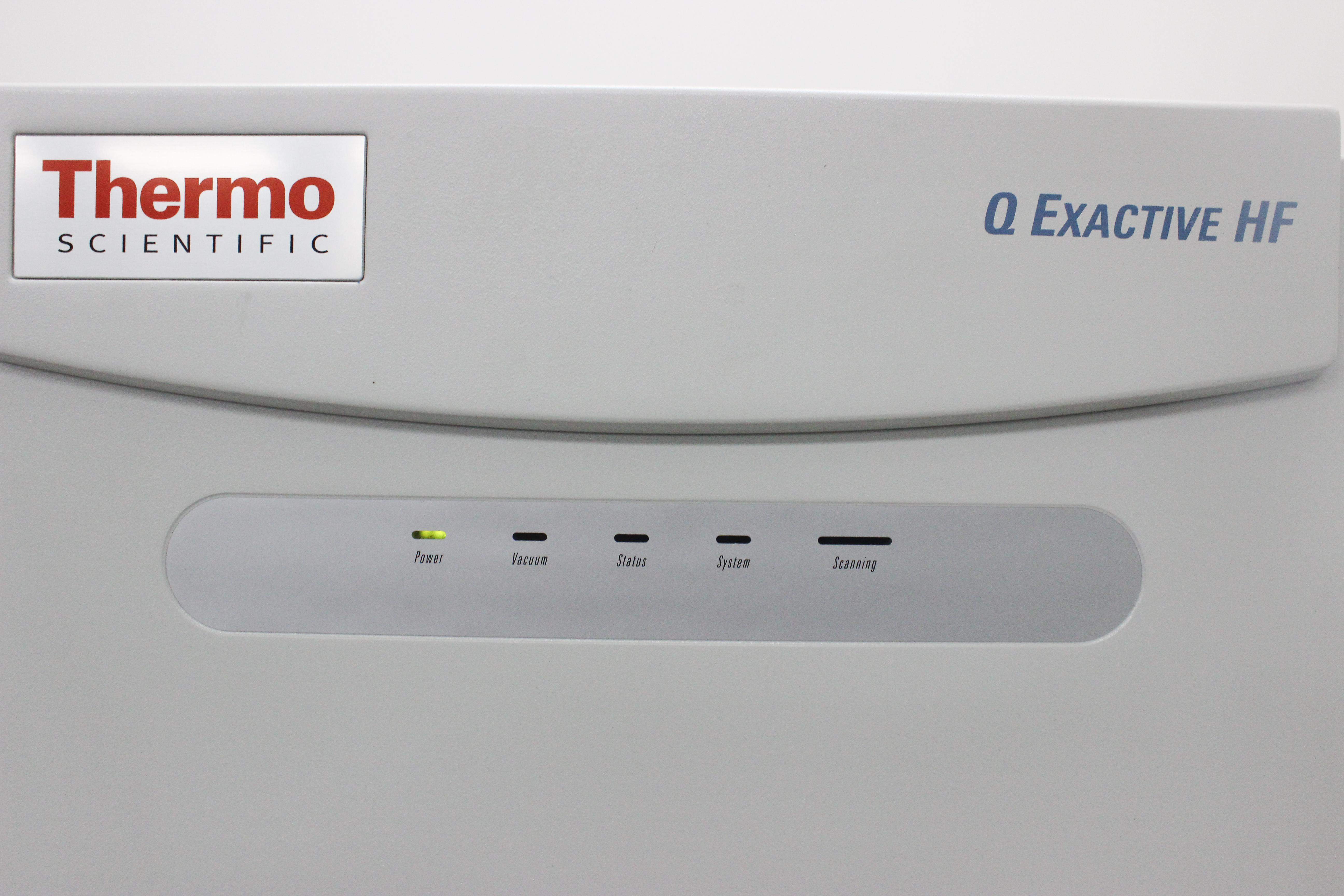

Q Exactive HF mass spectrometer was sourced from a working lab environment. System software, licenses, and PC not included. System will need to be validated/calibrated to ensure accurate results. Unit is in overall excellent condition with minor cosmetic wear. See photos for details. **Includes: Ion Source**
Key Features
- Orbitrap Analyzer with ultra-high-field technology
- 240,000 resolving power at m/z 200
- Advanced Quadrupole Technology (AQT)
- Advanced Active Beam Guide (AABG)
- Various quantitation methods: SIM, PRM, DIA
- Routine sub ppm mass accuracy
- Higher-Energy Collisional Dissociation (HCD)
Specifications
- Resolving power: 240,000 @ m/z 200
- Mass range: 50 to 6,000 m/z
- Scan rate: Up to 18 Hz at resolution setting of 15,000 @ m/z 200
- Mass accuracy: Internal <1 ppm RMS, External <3 ppm RMS
- Dynamic range: >5000:1
- Polarity switching: One full cycle in <1 sec
- Dimensions: 37 x 33 x 36 inches
- Weight: 400 pounds
Weight
Imperial: 480.0 Pounds
Metric: 217.72 Kilograms
Shipping Dimensions
Imperial: 36.0 lb x 40.8 lb x 44.4 lb
Metric: 91.44 cm x 103.63 cm x 112.78 cm
Harmonized Code
902730
Harmonized Code Details
902730 - Spectrometers, spectrophotometers & spectrographs using optical radiations. Ideal for the listing due to its primary function as a mass spectrometer system using optical technology.
