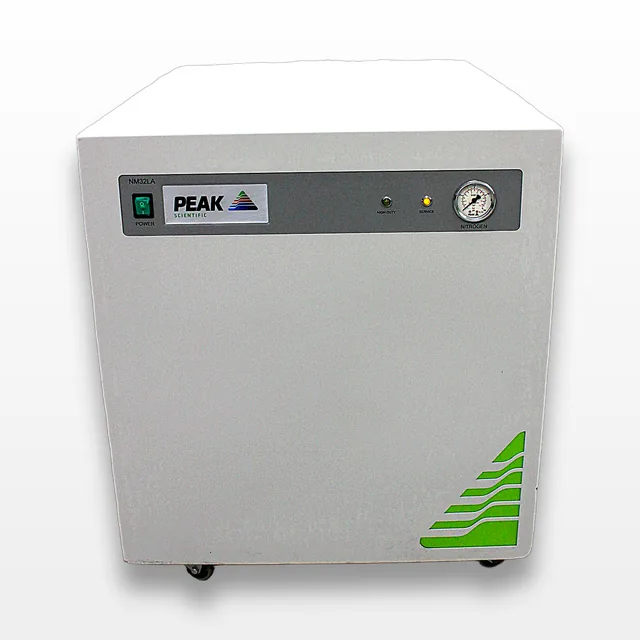

Peak Scientific NM32LA Nitrogen Generator 32L/min Flow 230V Fair Condition
Peak Scientific
Details
-
CategoryPharma
-
Dimension30.0in x 24.0in x 28.0in
-
SerialA-14-08-126
-
Shipping TypeFreight
-
Voltage / Hertz230V / 50Hz/60Hz
Description
The Peak Scientific NM32LA Nitrogen Generator is a reliable and robust solution for on-site gas generation, designed for LC-MS applications. This unit, in fair condition, is compressor-based, eliminating the need for an external air supply. It includes advanced compressors to minimize noise and vibration. The unit shows a service light on with 3743 operational hours, indicating overdue maintenance. Capable of delivering up to 32 liters per minute of nitrogen gas, it is suitable for most LC-MS instruments. It offers a maximum pressure of 6.90 bar/100 psi, a start-up time of 30 minutes, and operates within a temperature range of 5°C to 30°C. Notable features include minimized setup, cost efficiency, and a safe, practical nitrogen supply. The system is not equipped with additional software, power/data cables, or service records, and is recommended for a full service before use.
Technician comment
This pre-owned NM32LA nitrogen generator comes from an active lab setup. It powers on smoothly, initializes properly, and shows the front panel service light on with 3743 hours, signaling overdue maintenance. No extra tests or calibration done—recommend full service & maintenance before use.
Key Features
- Compressor-based system
- Eliminates need for external air supply
- Delivers up to 32 liters per minute
- Maximum pressure of 6.9 bar/100 psi
- Operating temperature 5°C - 30°C
- Noise level 54 dBA @ 1m
- Minimal setup required
Specifications
- Voltage: 230V, 50/60Hz
- Current: 7A
- Max Flow Rate: 32L/min (1.13cfm)
- Max Outlet Pressure: 6.90 bar/100 psi
- Noise Level: 54 dBA @ 1m
- Particles: < 0.1 μm
- Start Up Time: 30 minutes
- Dimensions: 60 x 75 x 71.2 cm / 23.6 x 29.5 x 28 inches
- Weight: 103kg / 226.6lbs
- Heat Output: 5729 BTU
Weight
Imperial: 271.2 Pounds
Metric: 123.01 Kilograms
Shipping Dimensions
Imperial: 36.0 lb x 28.8 lb x 33.6 lb
Metric: 91.44 cm x 73.15 cm x 85.34 cm
Harmonized Code
84196000
Harmonized Code Details
84196000 - Machinery for liquefying air or gas, such as gas generators. This code is applicable for the NM32LA model as it is specifically designed for generating nitrogen gas used in laboratory settings.
