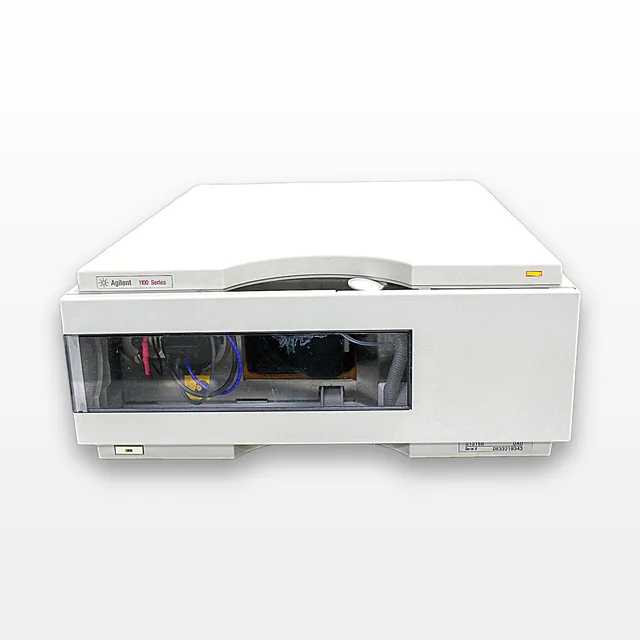

Agilent G1315B DAD 1100 Series Diode Array Detector, 190-950 nm Range
Agilent
Details
-
CategoryAnalytical
-
Dimension18.0in x 14.0in x 6.0in
-
SerialDE33219343
-
Shipping TypeFedEx Ground
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Agilent 1100 Series G1315B Diode Array Detector is engineered for exceptional optical performance, accommodating a wavelength range of 190-950 nm through its 1024-element photodiode array. Featuring deuterium and tungsten lamps, it ensures the highest intensity and lowest detection limits. This pre-owned unit, sourced from a working laboratory, powers on and passes basic functionality checks, exhibiting no front-panel errors. However, comprehensive testing with chromatography control software is needed. With programmable slit widths from 1-16 nm, this detector provides complete optimization of sensitivity and spectral resolution. The unit also includes essential features like built-in holmium oxide filter for wavelength accuracy and temperature control for baseline stability, alongside advanced diagnostics and error detection.
Technician comment
Module powers on and shows no front‑panel errors during basic startup check. Unit will require connection to chromatography control software for comprehensive testing. This unit is preowned and was sourced from a working lab environment. See photos for details.
Key Features
- 1024-element photodiode array
- Wavelength range: 190-950 nm
- Deuterium and tungsten lamps
- Programmable slit: 1-16 nm
- Built-in holmium oxide filter
- Temperature control for stability
Specifications
- Detection type: 1024-element photodiode array
- Light source: Deuterium and tungsten lamps
- Wavelength range: 190-950 nm
- Short term noise: ± 1 x 10-5 AU at 254 and 750 nm
- Drift: 2 x 10-3 AU/hr at 254 nm
- Linear absorbance range: > 2 AU
- Wavelength accuracy: ± 1 nm
- Wavelength bunching: 1-400 nm
- Slit width: 1, 2, 4, 8, 16 nm
- Control and evaluation: Agilent ChemStation for LC
Weight
Imperial: 31.2 Pounds
Metric: 14.15 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 16.8 lb x 7.2 lb
Metric: 54.86 cm x 42.67 cm x 18.29 cm
Harmonized Code
9027.30.40
Harmonized Code Details
9027.30.40 - Spectrometers and spectrographs using optical radiations (UV, IR, visible light); used in laboratories for chemical analysis, suitable for diode array detectors such as the Agilent G1315B.
