Leybold Sogevac SV65 BI FC Vacuum Pump VG Condition 200-240V 50/60Hz
Leybold Sogevac
Details
-
CategoryPump
-
Dimension23.0in x 14.0in x 15.0in
-
Serial31002825040
-
Shipping TypeFreight
-
Voltage / Hertz200-240V / 50Hz/60Hz
Description

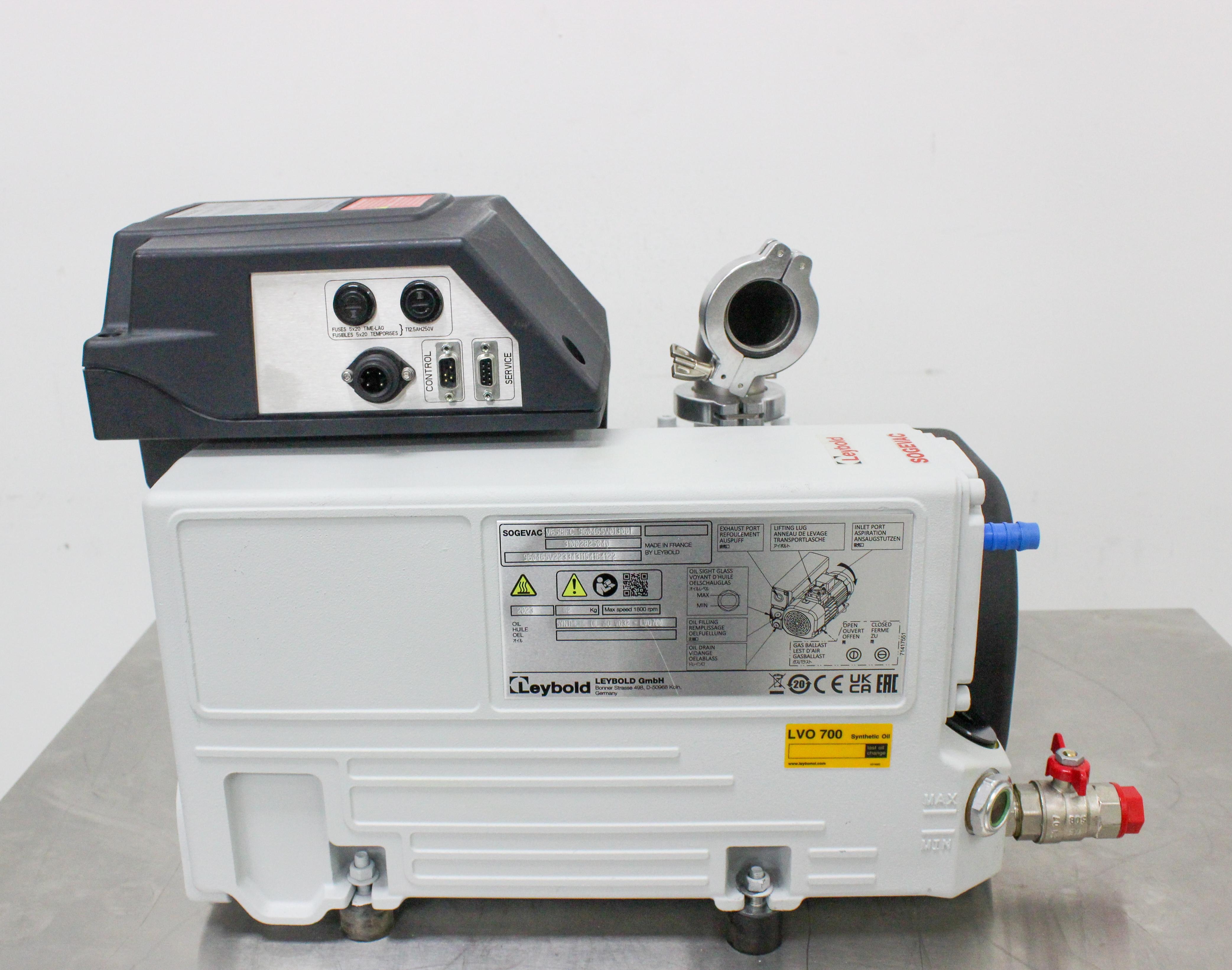

The Leybold Sogevac SV65 BI FC is a space-efficient oil-sealed vacuum pump designed to minimize design constraints in development and offer seamless pump replacements in field applications. Engineered with improved lubrication circuits and mechanical tolerances, it ensures a consistently low noise level across various working pressures. This model integrates essential circuits into primary components for enhanced reliability and extended maintenance intervals. With a tested ultimate pressure of 0.103 mbar, this unit is perfect for vacuum processing, leak testing, and more. Please note that the unit does not include power/data cables, a computer, or software.
Technician comment

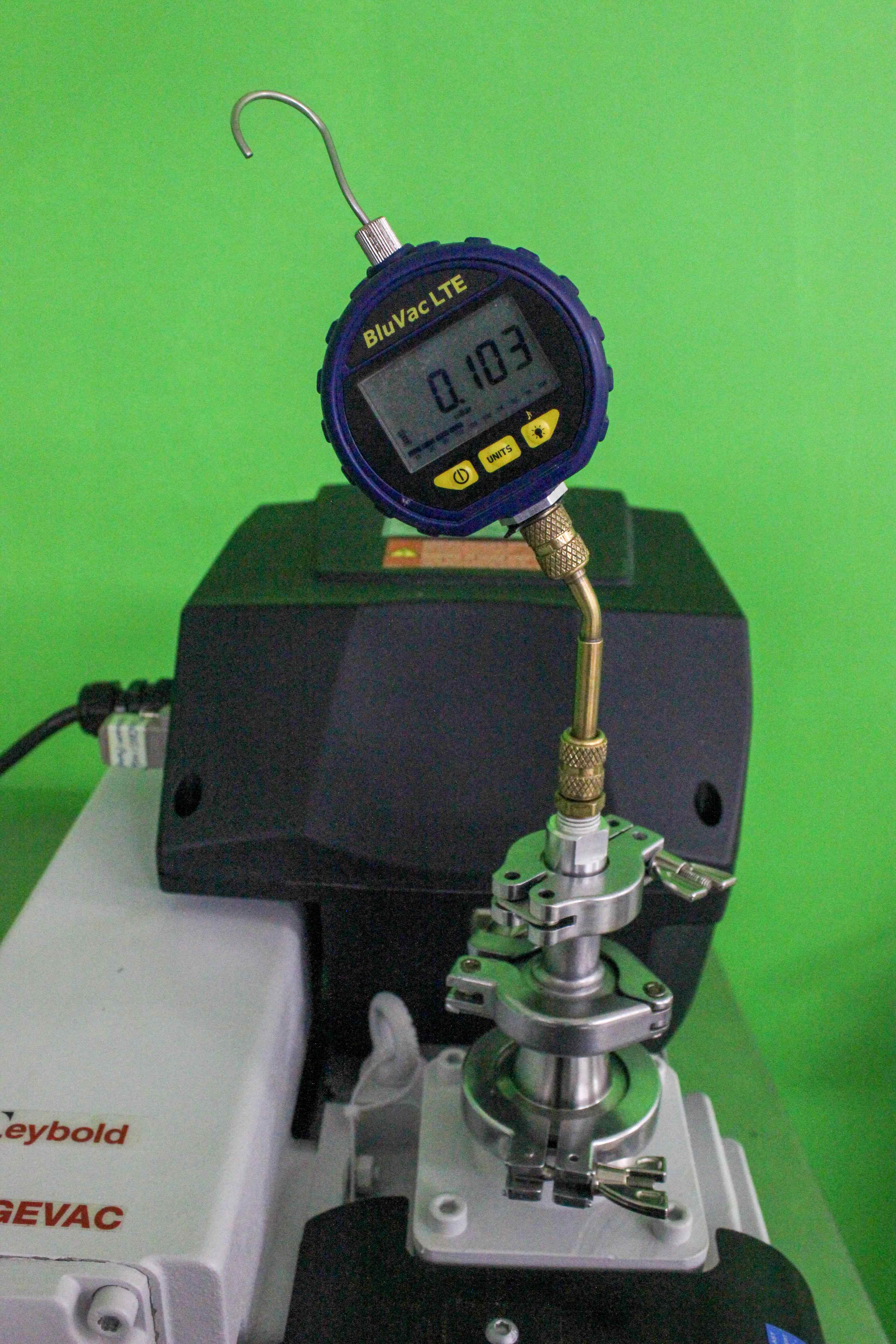

Sogevac SV65 tested and achieved an ultimate pressure of 0.103 mbar, within the expected rough‑vacuum performance range for this model. Unit was sourced from a working lab environment. See photos for details.
Key Features
- Compact design and small footprint
- Consistent low noise level
- Integrated functions with no external pipes
- Simplified maintenance access
- Ultimate pressure of 0.103 mbar
Specifications
- Voltage: 200-240V
- Frequency: 50Hz/60Hz
- Gas ballast system with flow of 0.5 m3/h
- Oil capacity: 2 liters
- Recommended Oil: Leybold LVO700 Synthetic Vacuum Pump Oil
- Tested ultimate pressure: 0.103 mbar
Weight
Imperial: 153.6 Pounds
Metric: 69.67 Kilograms
Shipping Dimensions
Imperial: 27.6 lb x 16.8 lb x 18.0 lb
Metric: 70.1 cm x 42.67 cm x 45.72 cm
Harmonized Code
84141000
Harmonized Code Details
This code covers vacuum pumps, classifying it alongside similar mechanical devices used to remove gas molecules from a sealed volume to create a partial vacuum, making it applicable to the product's function.
