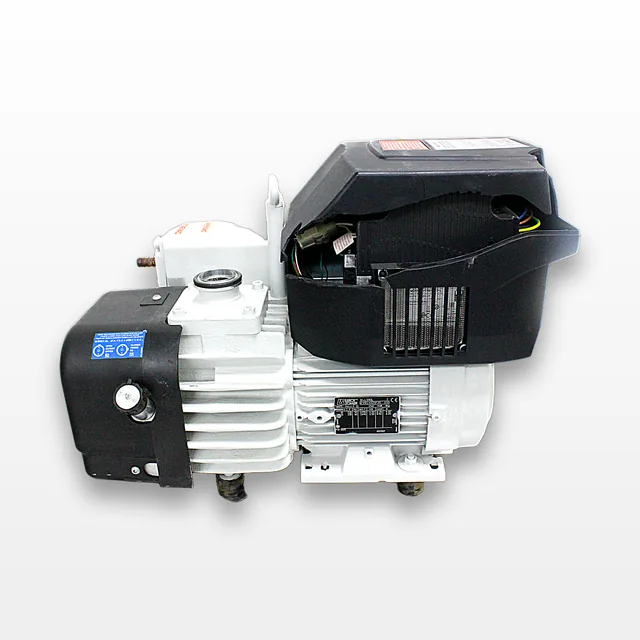

Leybold Sogevac SV65 BI FC Vacuum Pump Oil Sealed Low Noise Fair Condition
Leybold Sogevac
Details
-
CategoryPump
-
Dimension20.0in x 14.0in x 15.0in
-
Serial31002205665
-
Shipping TypeFreight
-
Voltage / Hertz230V / 50Hz/60Hz
Description
The Leybold Sogevac SV65 BI FC is an advanced oil-sealed vacuum pump designed to optimize space with its compact design. It is crafted to perform efficiently with minimal noise levels, offering improved reliability and reduced maintenance demands. This unit has a fair condition rating due to a damaged plastic housing cover that does not affect its operation or vacuum performance, which was tested up to 0.097 mbar. The unit integrates lubrication circuits and a gas ballast system into its major components, supporting extended durability and comfort in the working area. Despite some cosmetic defects, it remains a versatile choice for applications such as vacuum packaging, central vacuum systems, degassing, drying/filling, freeze drying, and more, without requiring special adaptations in the field.
Technician comment
Vacuum performance was tested and the pump achieved 0.097 mbar. Plastic housing cover is damaged but does not affect operation or performance. Overall condition is fair and results are within expected specifications. See photos for details.
Key Features
- Oil-sealed vacuum pump
- Upgraded electronic drive
- Compact design and small footprint
- Consistent low noise levels
- Integrated functions with no external pipes
- Simplified maintenance
Specifications
- Vacuum Performance: Achieved 0.097 mbar
- Power Supply: 230V, 50Hz/60Hz
- Oil Capacity: 2 liters
- Gas Ballast: 0.5 m3/h
- Recommended Oil: Leybold LVO700 Synthetic
- Features accessible maintenance points
Weight
Imperial: 153.6 Pounds
Metric: 69.67 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 16.8 lb x 18.0 lb
Metric: 60.96 cm x 42.67 cm x 45.72 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 - Vacuum pumps used in various industries, categorized under pumps for liquids, even when fitted with a measuring device. This code applies due to the equipment being a specialized vacuum pump.
