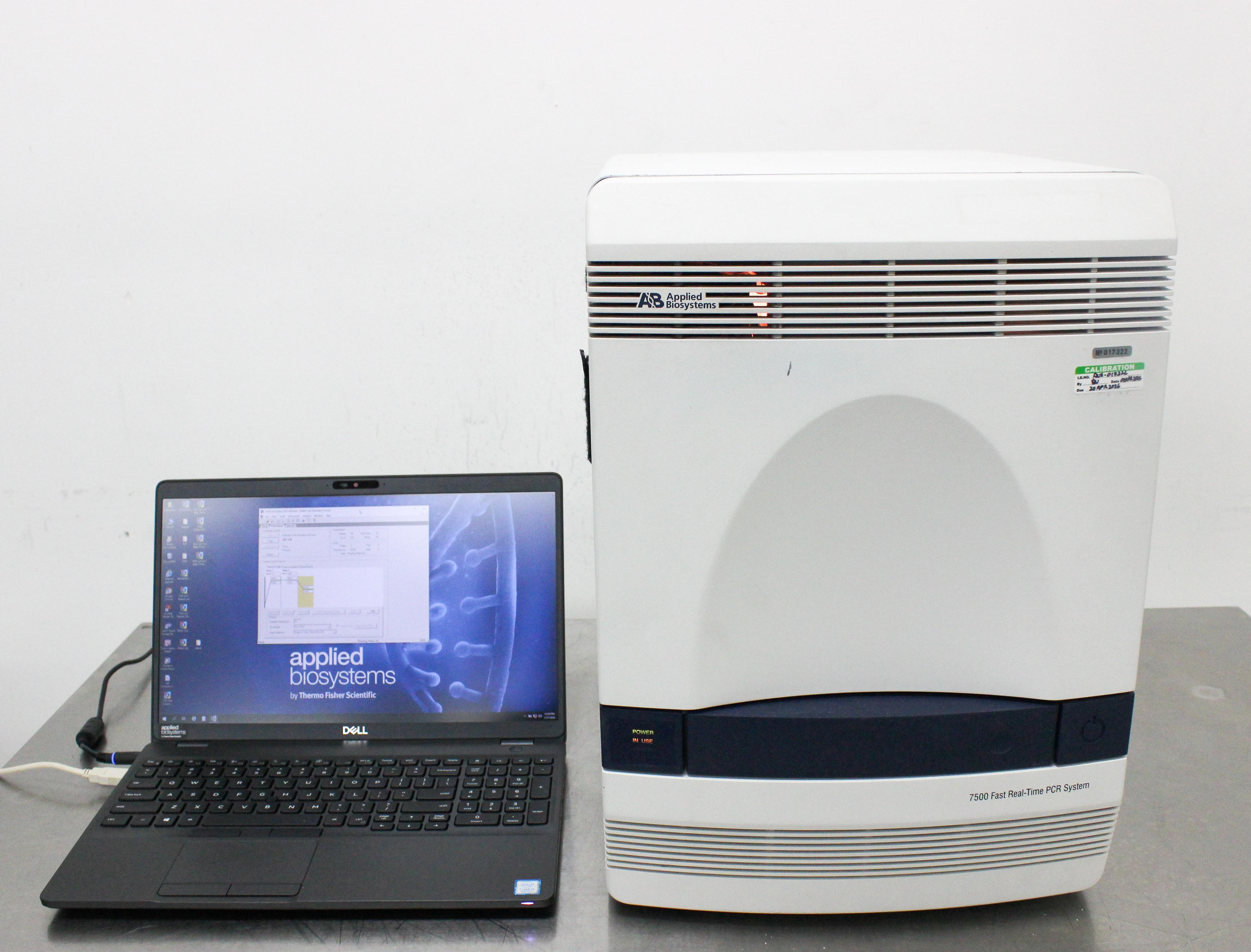

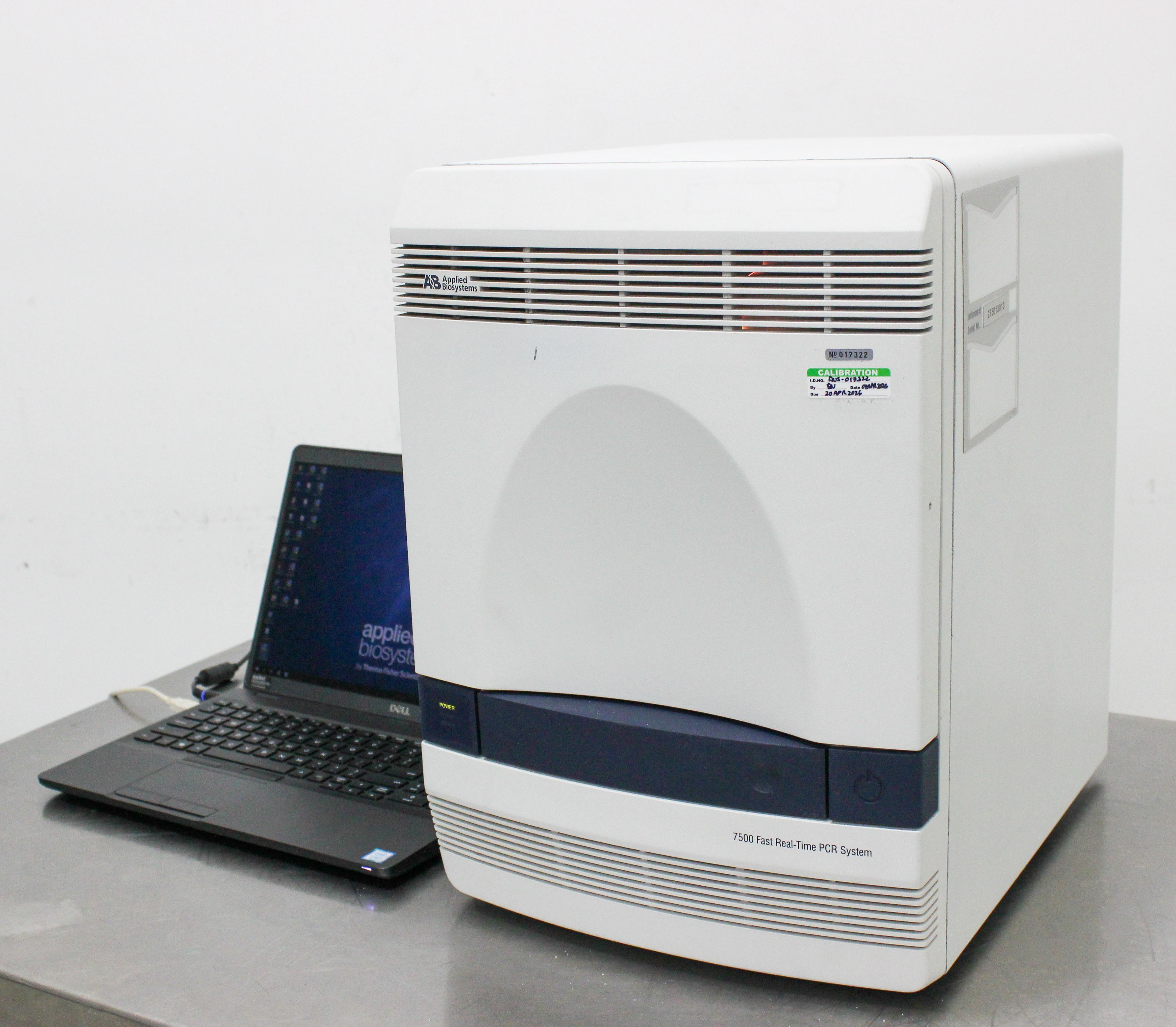

ABI 7500 Fast Real-Time PCR Thermal Cycler 96-Well Fast Results Includes Software
Applied Biosystems
Details
-
CategoryMolecular Biology
-
Dimension18.0in x 14.0in x 20.0in
-

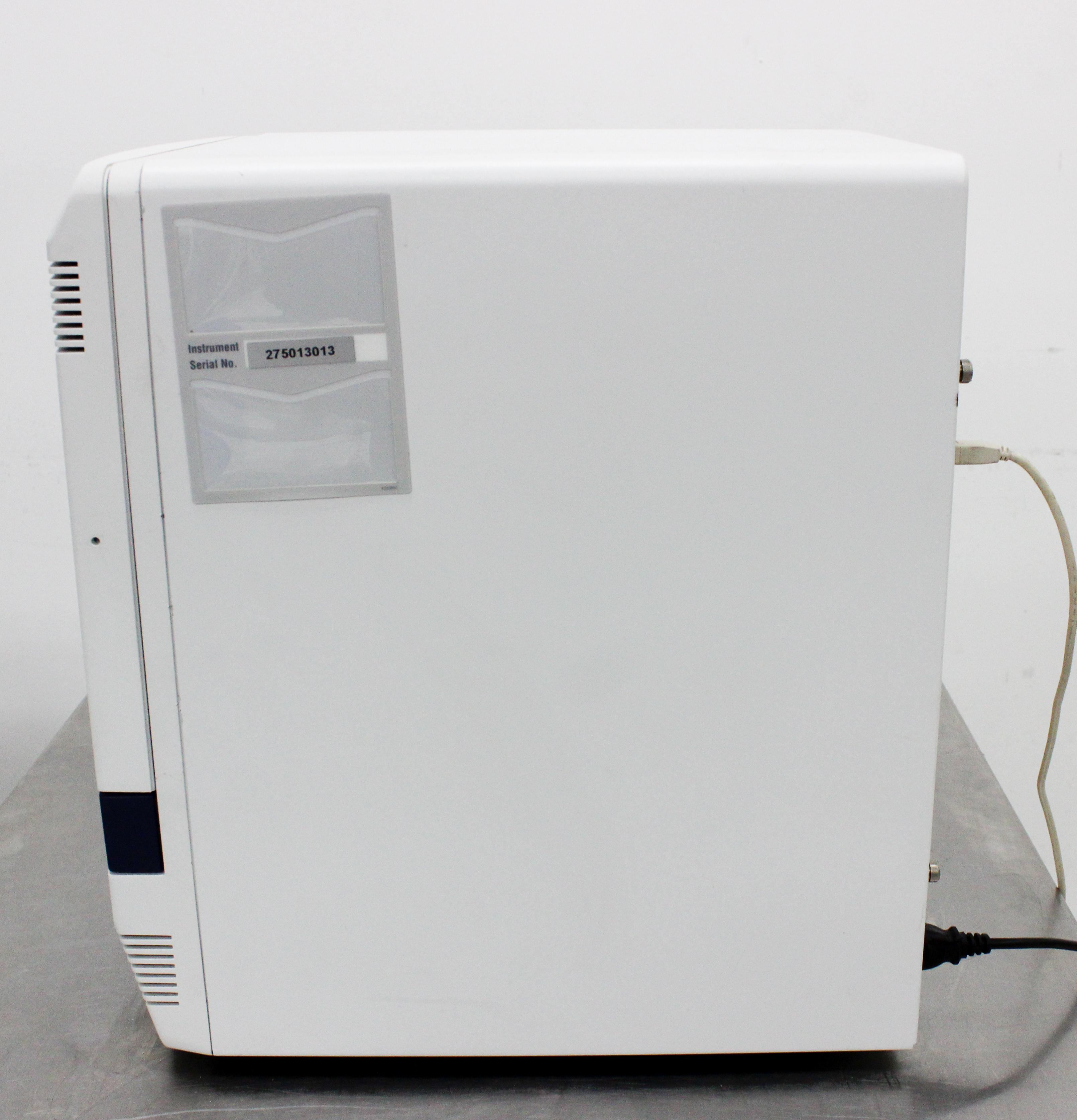

Serial275013013
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-

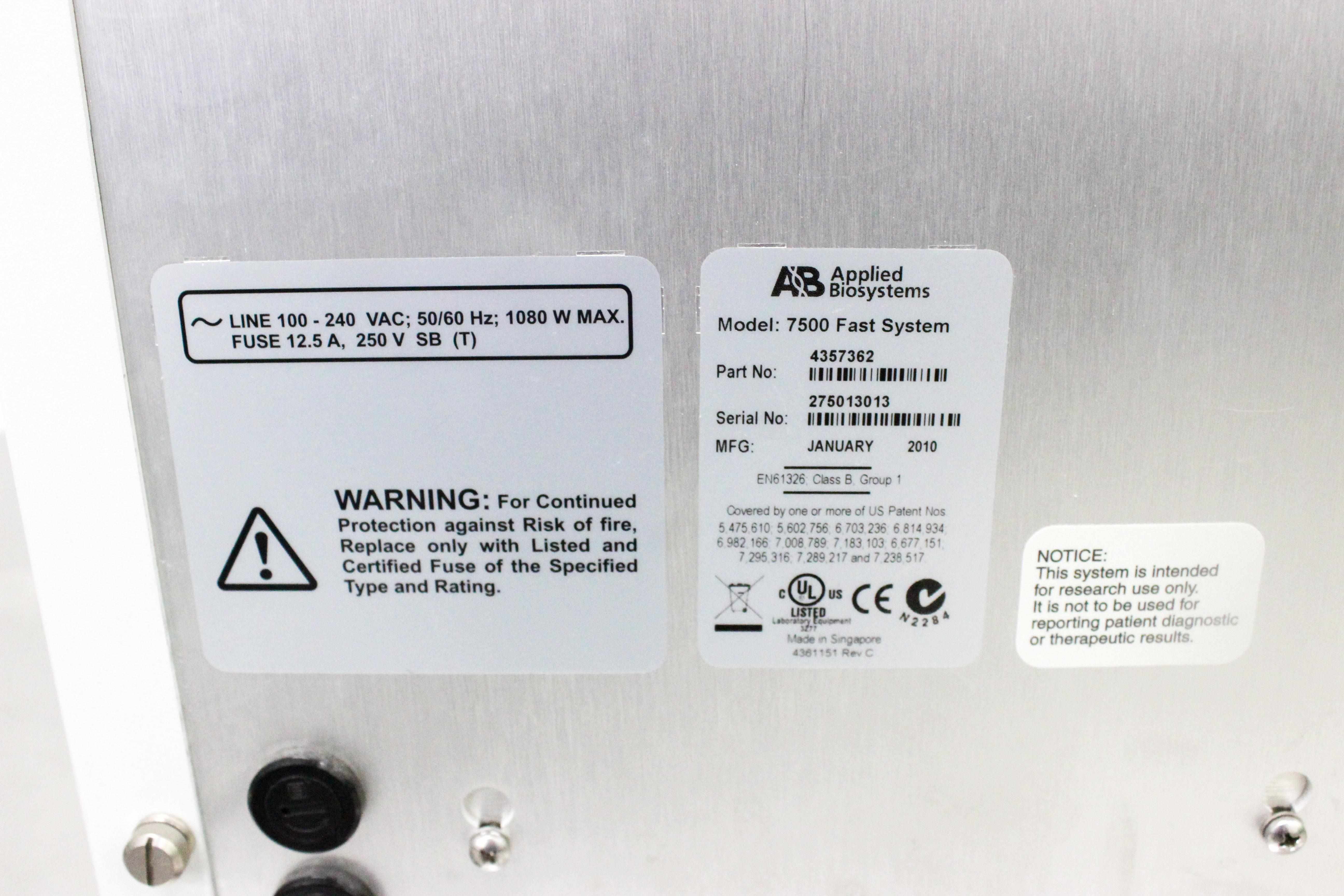

Voltage / Hertz100-240v / 50Hz/60Hz
Description
The Applied Biosystems 7500 Fast Real-Time PCR System, Model 7500 Fast System, is a versatile and reliable platform for laboratories seeking superior performance in gene expression analysis, pathogen quantitation, and SNP genotyping. This sophisticated 3rd generation system enhances dye sensitivity and versatility with its innovative optical setup. Optimized for fast cycling, it delivers results within 30 minutes. The system includes a Dell notebook with installed software, ensuring seamless data management. Ideal for mutation scanning and genotyping, it allows easy data review through customizable views and auto-genotype calling. With 5.5°C/s ramp rates and precise thermal uniformity, it allows for multiple applications with minimal optimization effort. It accommodates large studies with specialized software packages, offers easy compliance with 21 CFR Part 11, and provides built-in features for audit trails and e-signatures.
Technician comment

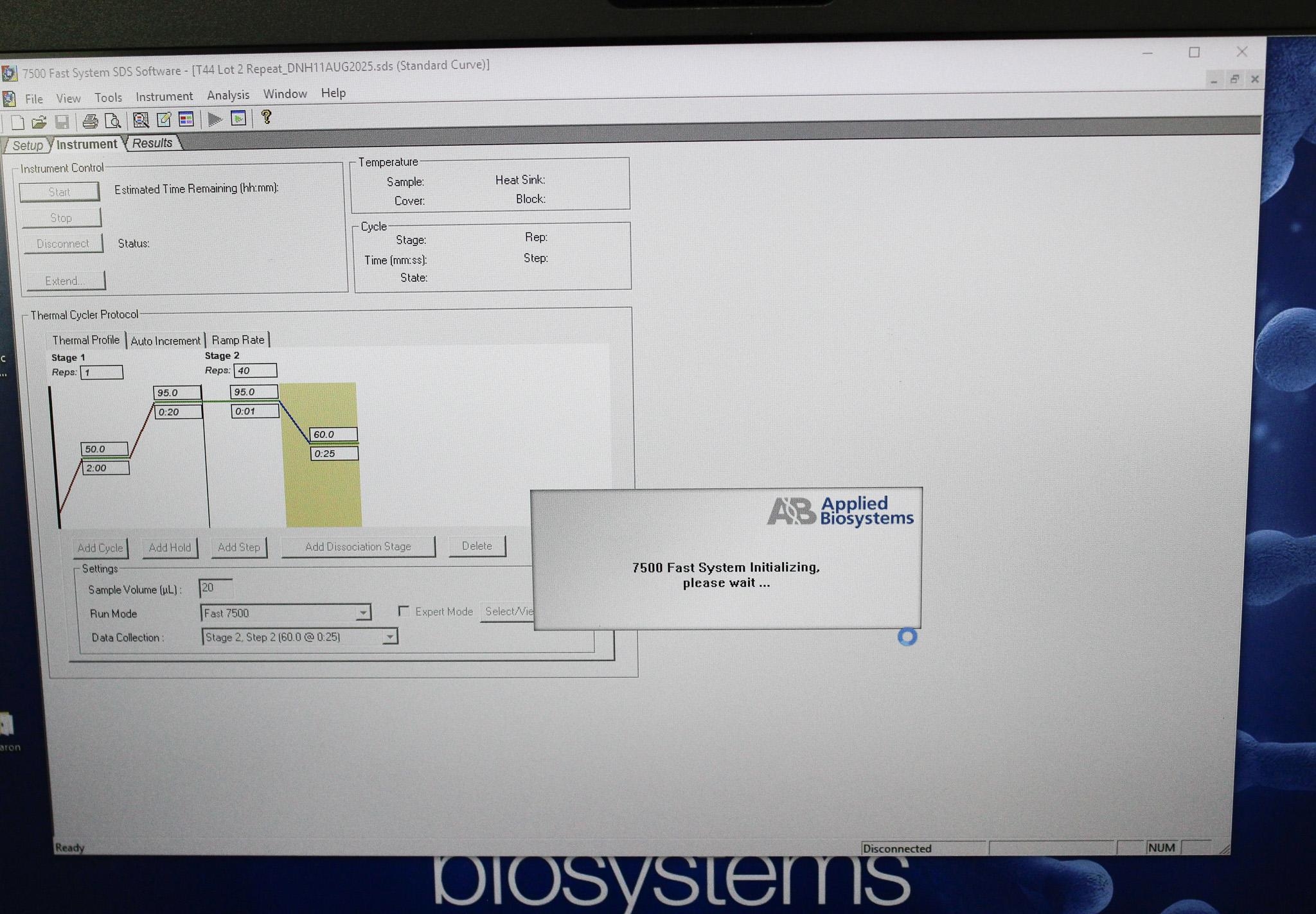

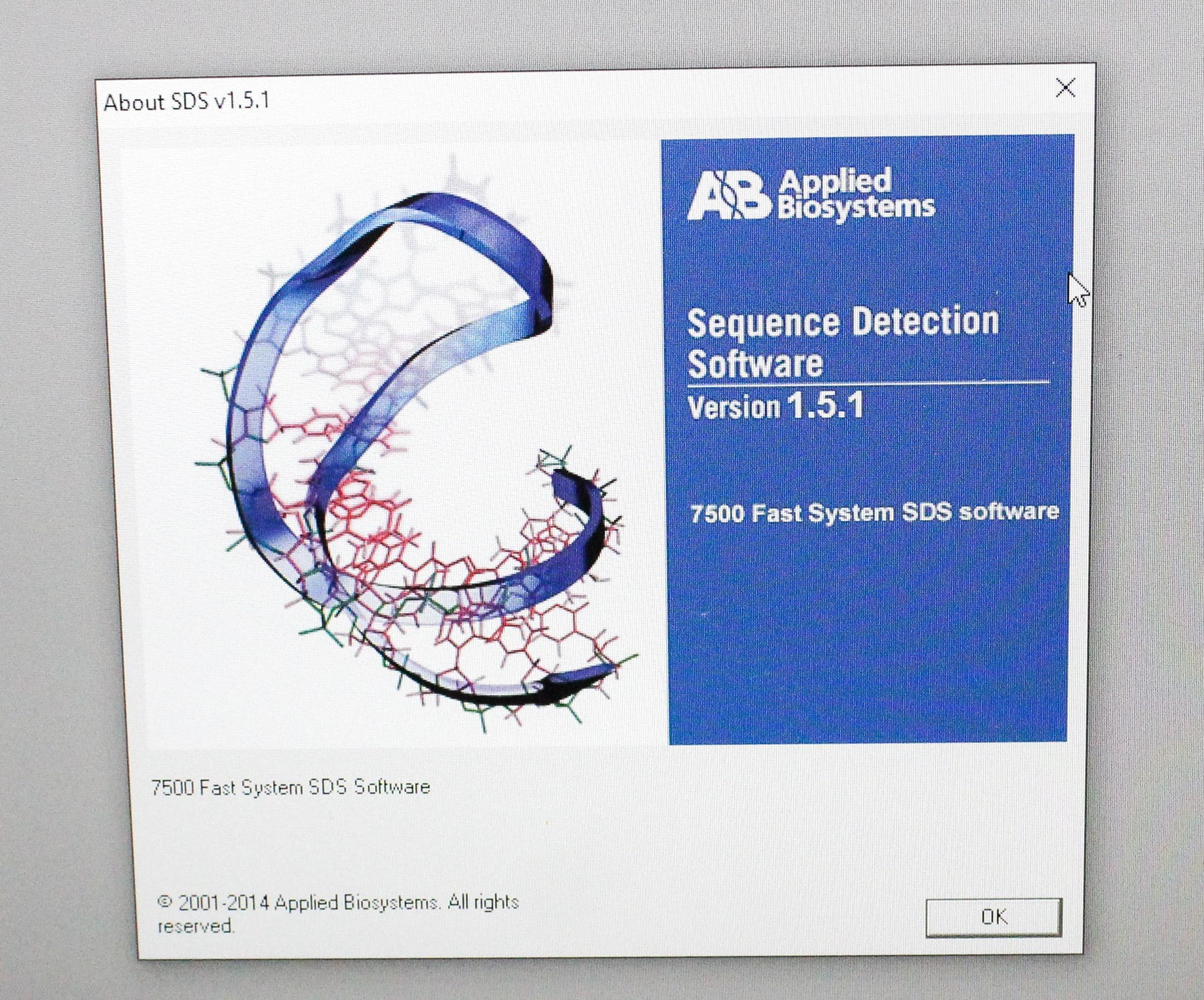

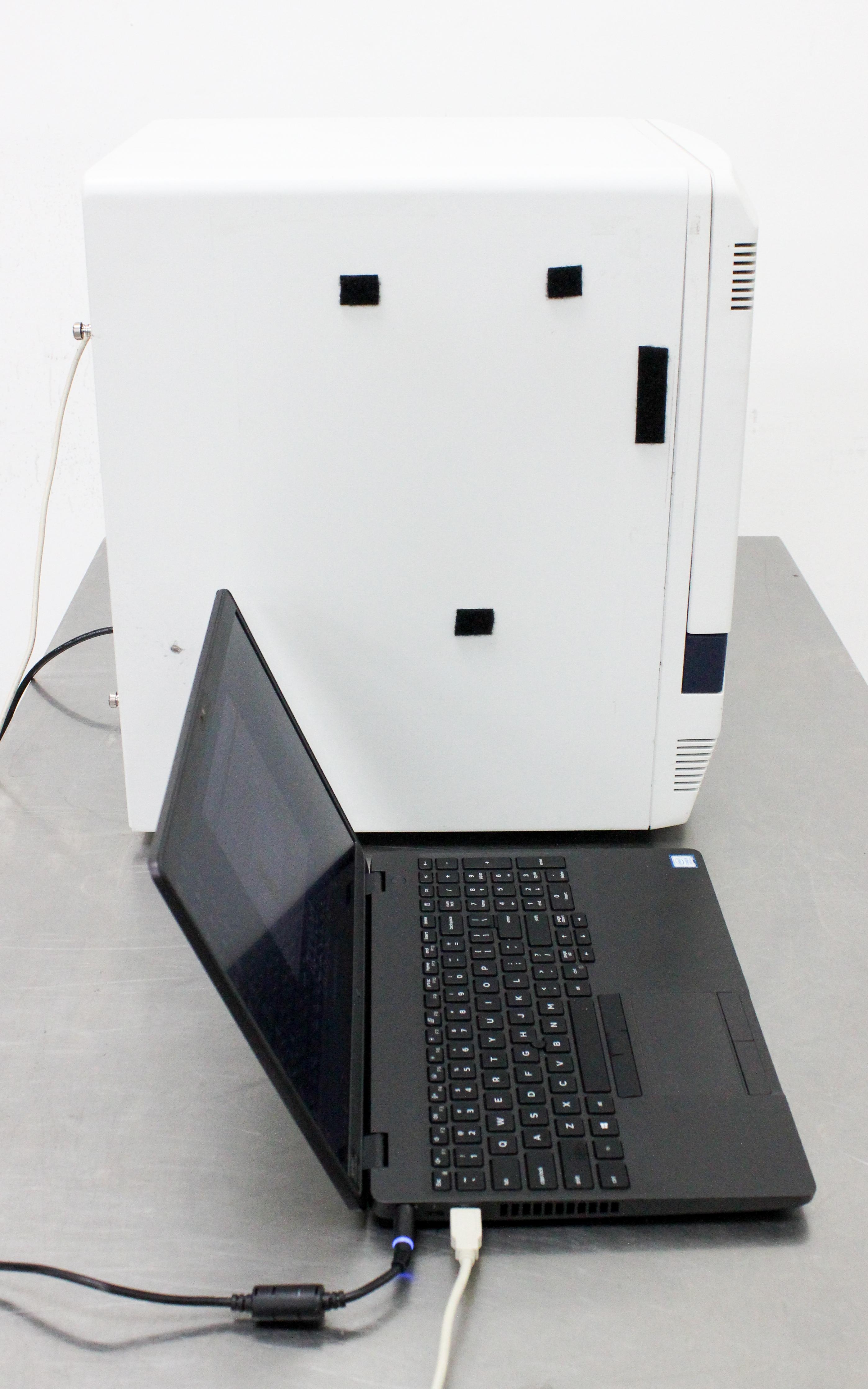

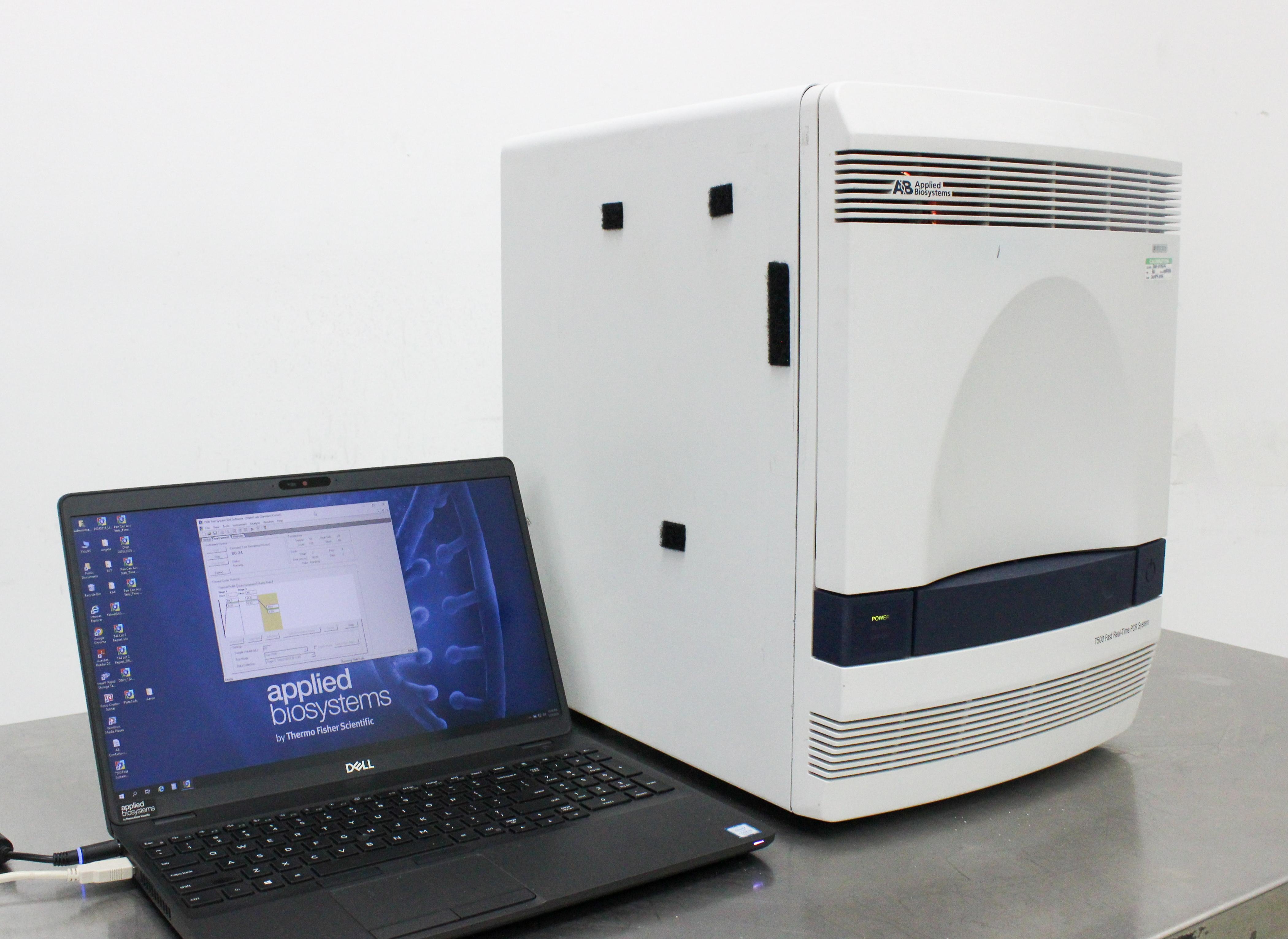

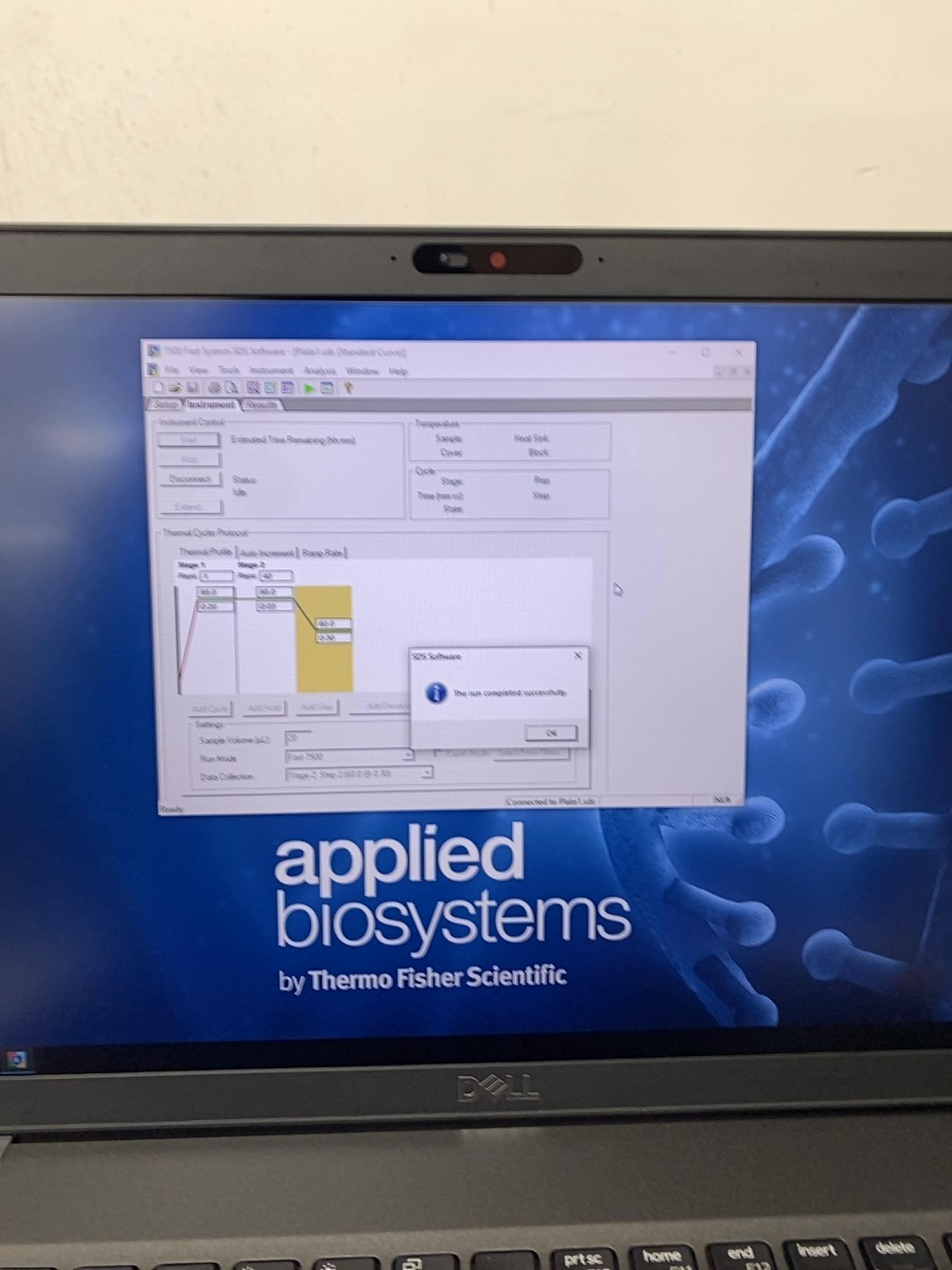

Applied Biosystems 7500 Fast System powers on and passes all available functional tests without errors. Unit connects and communicates properly with the included 7500 System Software during testing. This is a preowned instrument removed from an active laboratory environment and shows slight wear from prior lab use. Includes: Dell laptop with 7500 Fast SDS Software V1.51 installed
Key Features
- Fast cycling optimizes results in as little as 30 minutes
- Includes Dell notebook with installed software
- Dynamic range of 9 logs
- Five excitation and five emission filters for versatile dye analysis
- High-resolution melting analysis with HRM software
Specifications
- Calibrated Dye: TAMRA, Cy3, FAM, SYBR Green, Texas Red, JOE, ROX, Cy5, NED, VIC
- Dimensions: 34 cm (W) x 49 cm (H) x 45 cm (D)
- Dynamic Range: 9 Logs of Linear Dynamic Range
- External Computer: Laptop Computer Provided

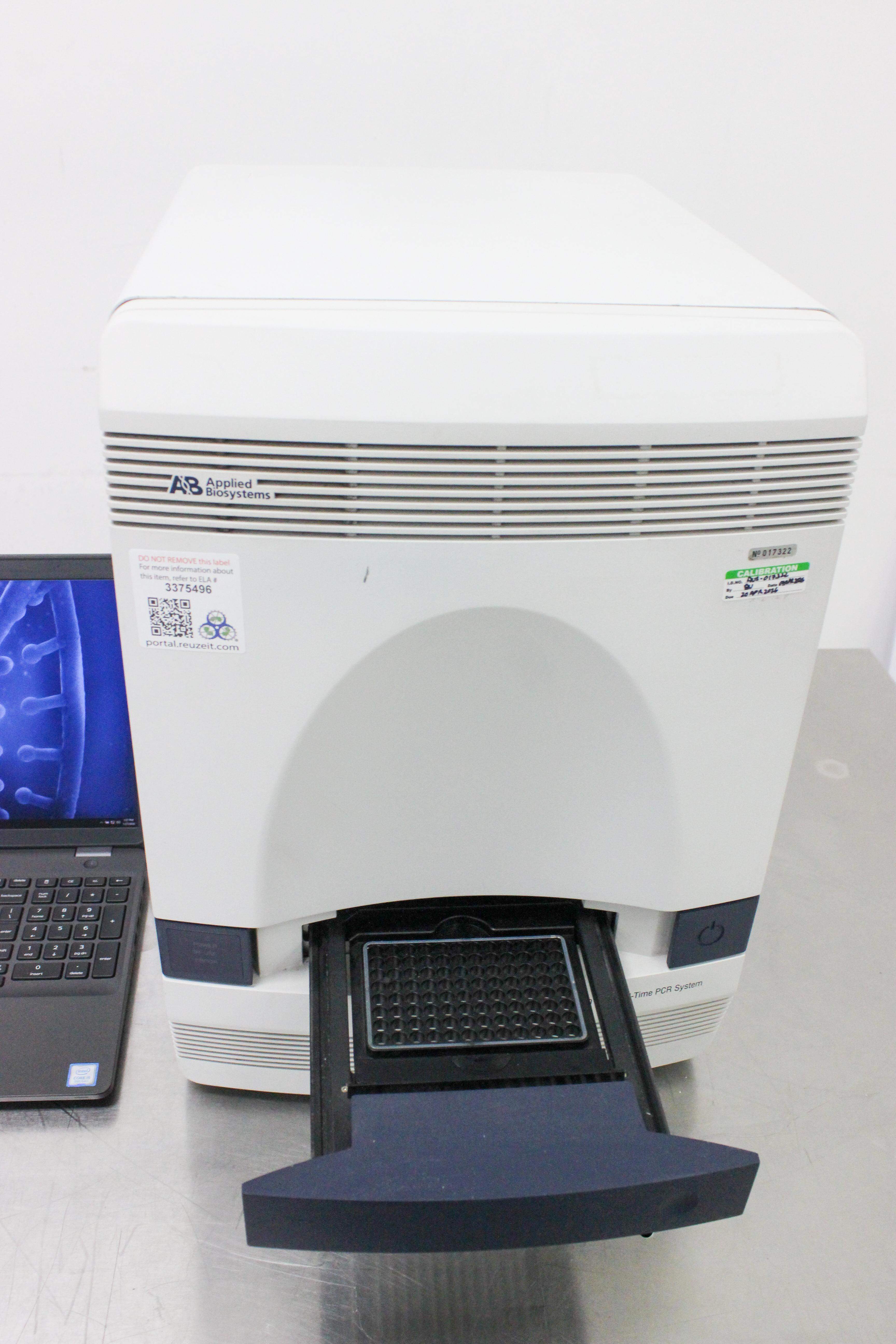

- Format: 96-well Plate, 8-well Strips
- Max. Heating Rate: 5.5°C
- Optics: CCD Camera, Halogen Light Source
- Passive Reference Dye: ROX, others
- Precision: Distinguish 5000 to 10,000 genome equivalents with 99.7% Confidence
- Reaction Speed: Fast, Standard
- Reaction Volume Range: 10–30 μL
- Run Time: Fast 36 min., Standard <2 hrs
- Sensitivity: Down to 1 Copy of Human RNAse P gene
- Thermal Accuracy: ±0.5°C
- Thermal Cycling System: Peltier-based System
- Thermal Uniformity: ±1°C
- Throughput: 4 to 5 96-well Plates per day
- Capacity: 12 x 8-tube Strips, 1 x 96-well Plate (Fast)
Weight
Imperial: 90.0 Pounds
Metric: 40.82 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 16.8 lb x 24.0 lb
Metric: 54.86 cm x 42.67 cm x 60.96 cm
Harmonized Code
9027.80.10
Harmonized Code Details
The harmonized code 9027.80.10 refers to chemical analysis instruments. Chosen because product is a real-time PCR system used for analytical purposes in various biological and chemical applications.
