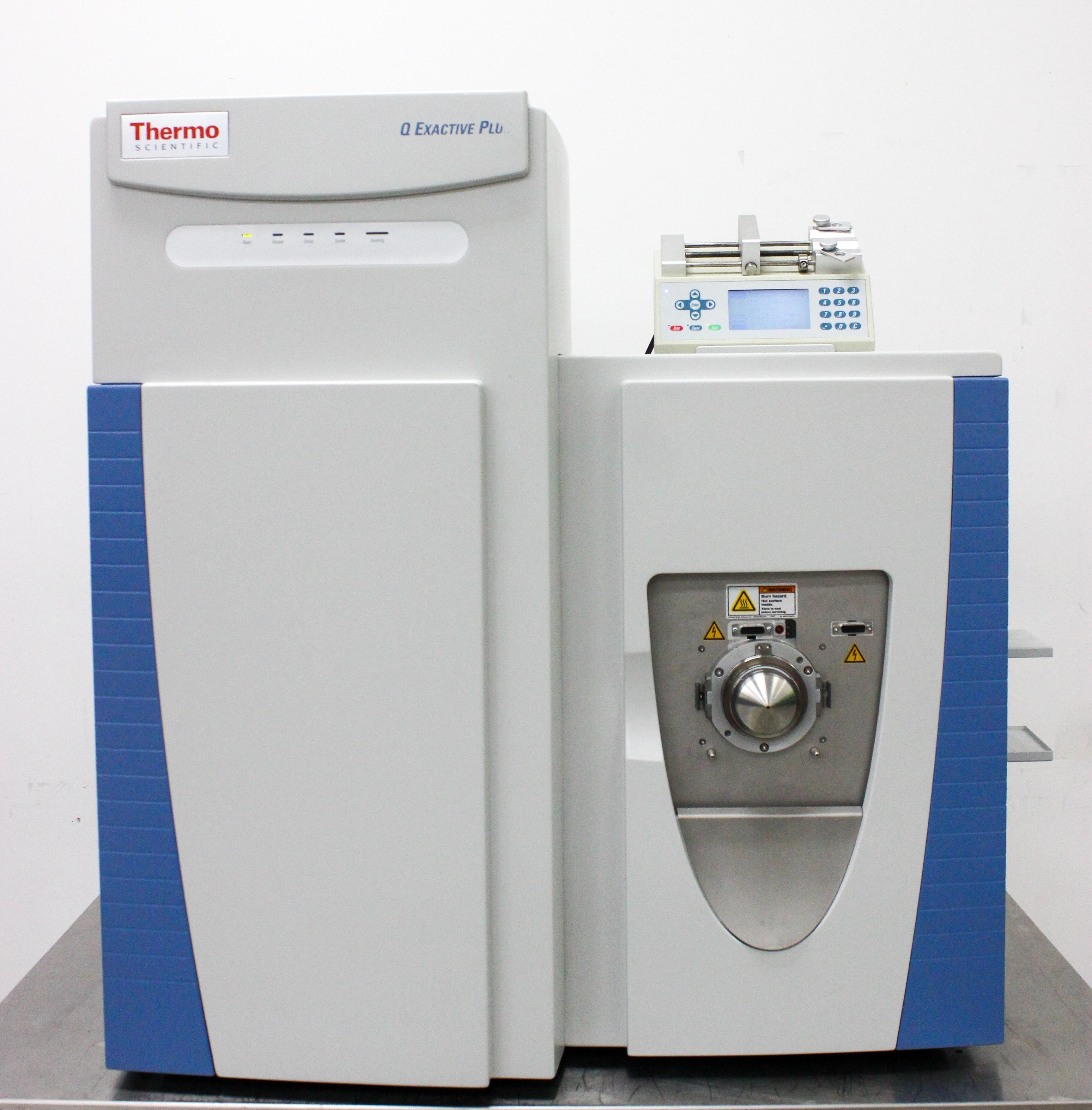

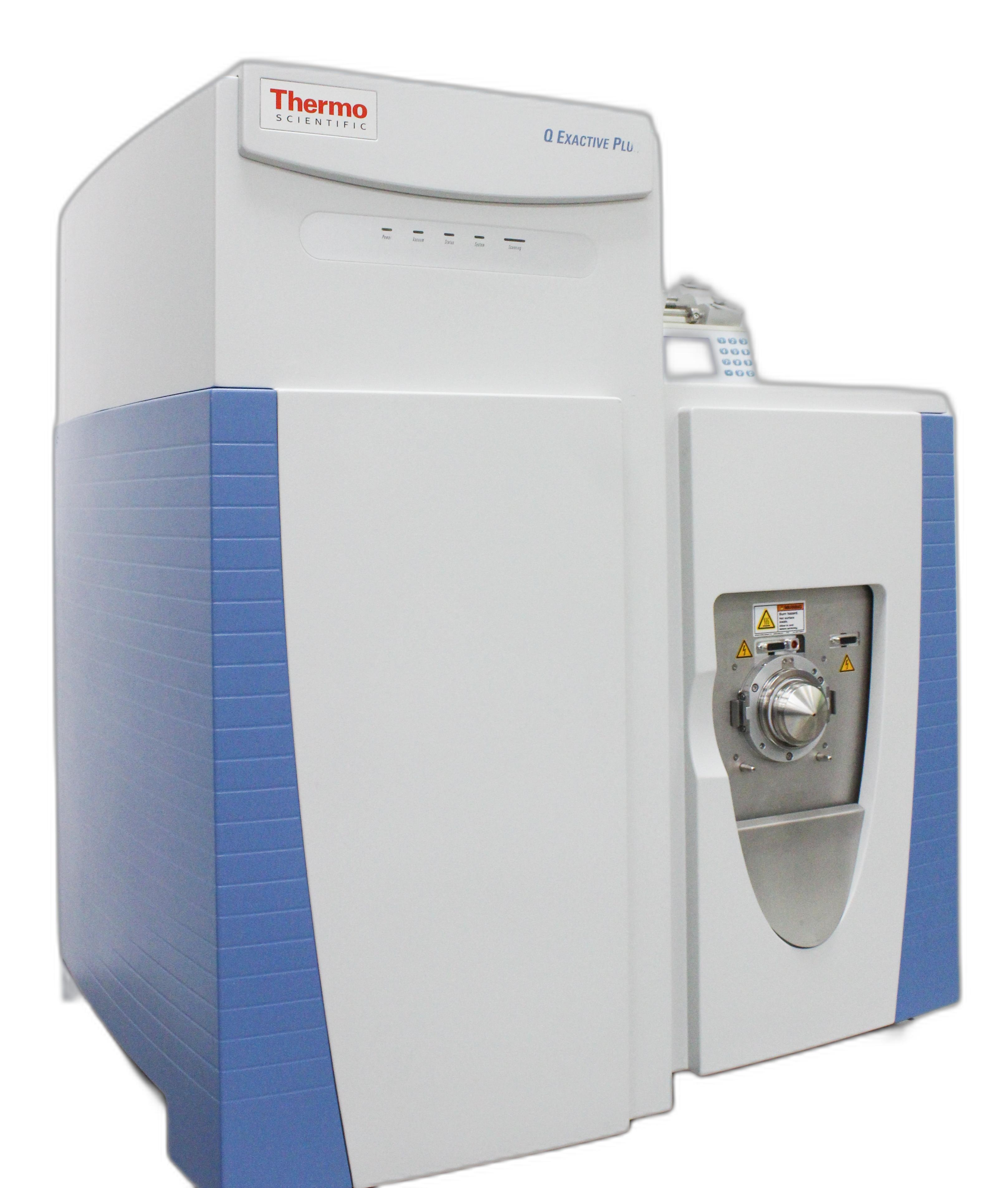

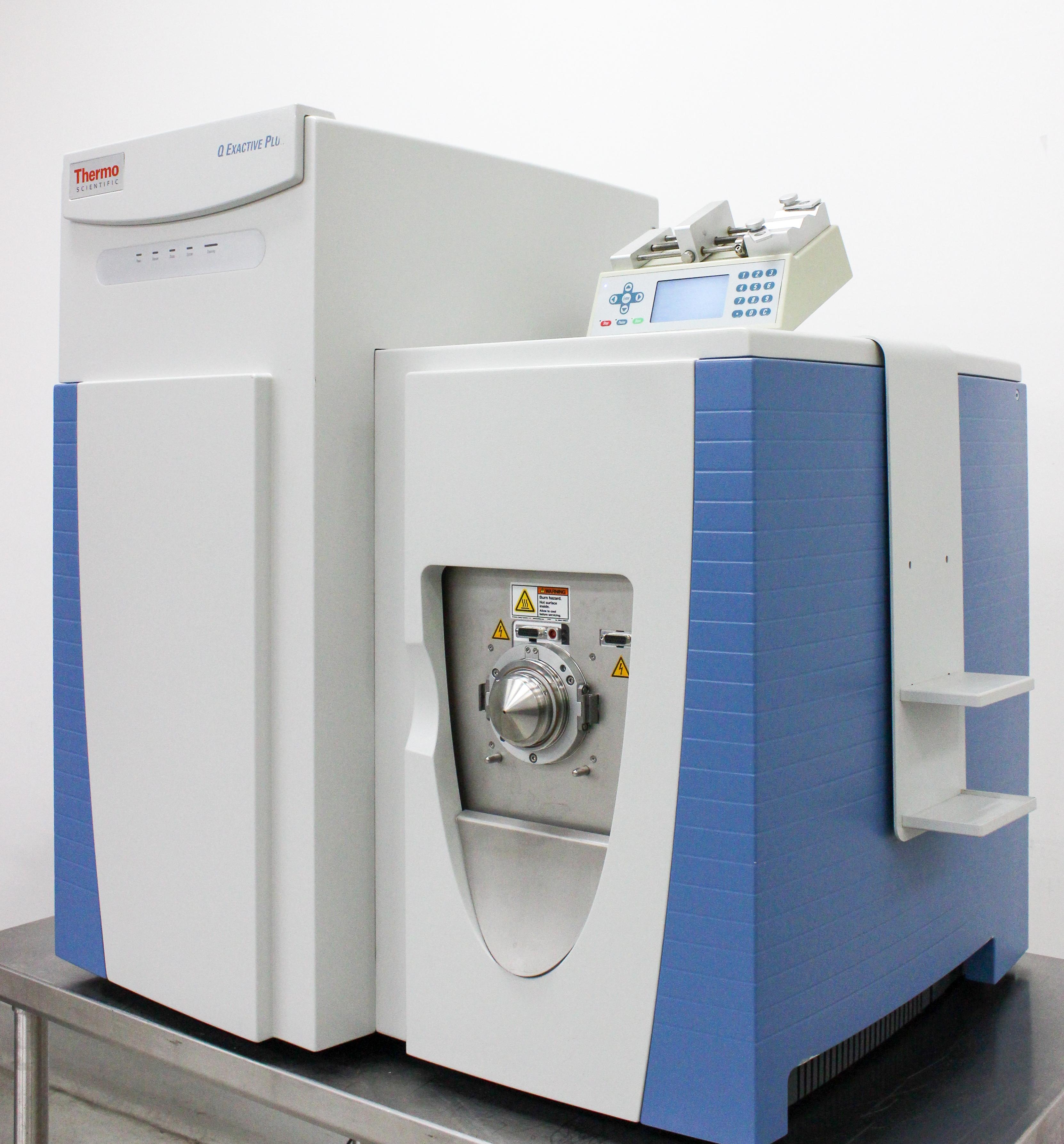

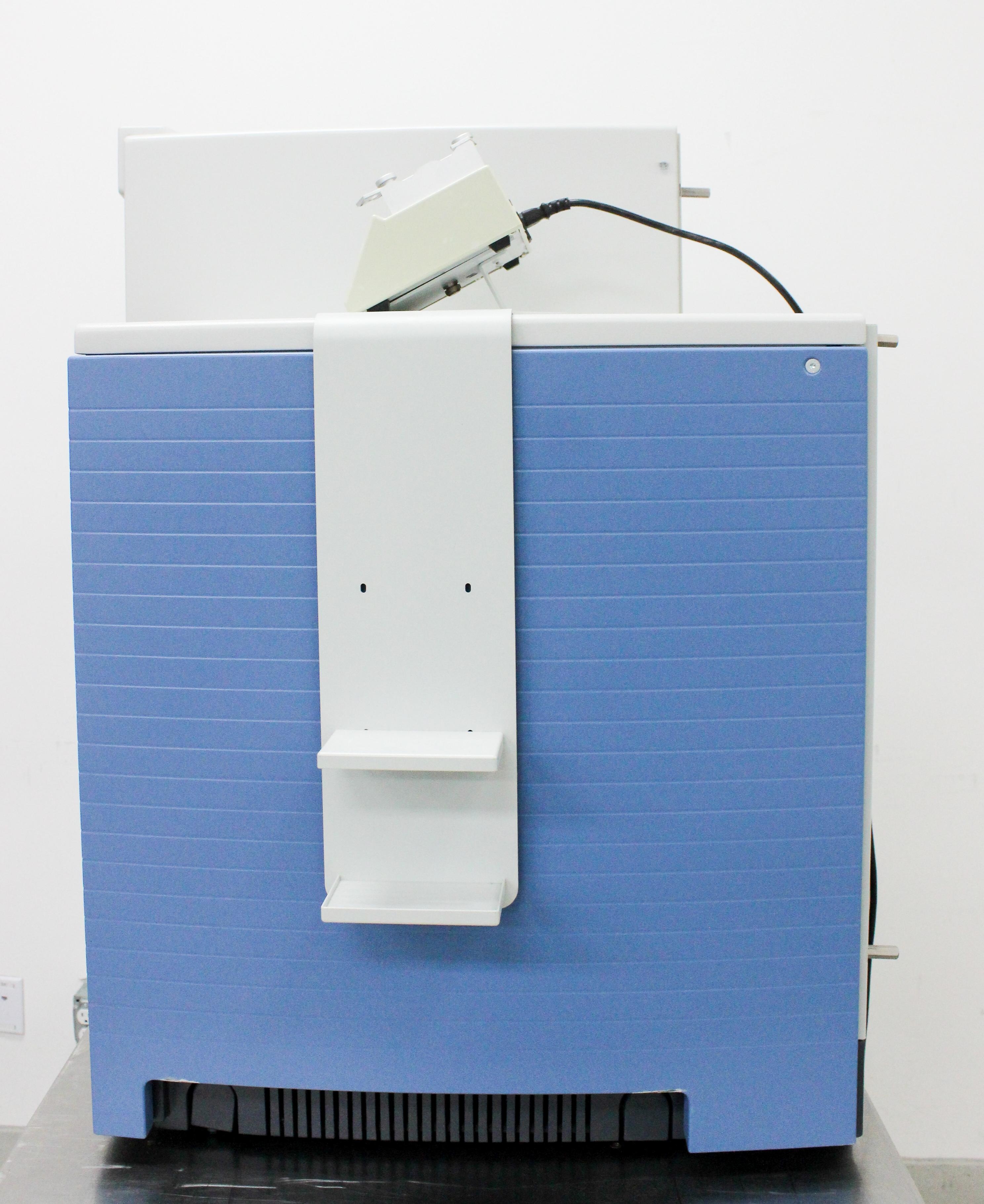

Thermo Q Exactive Plus LC-MS/MS Orbitrap Protein Analysis 140k Resolving
Thermo Scientific
Details
-
CategoryMass Spectrometry
-
Dimension30.0in x 36.0in x 38.0in
-
Serial03692L
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-

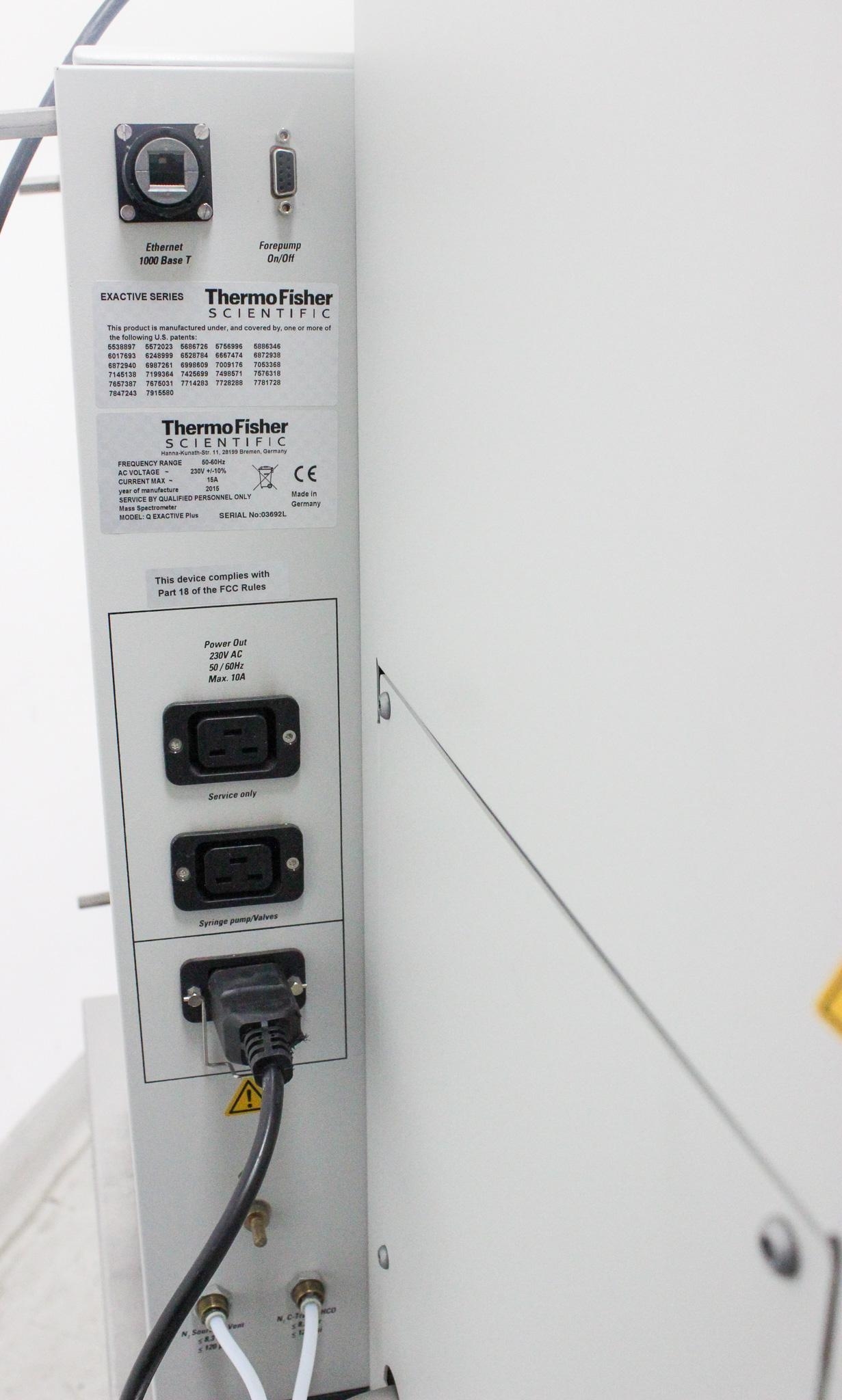

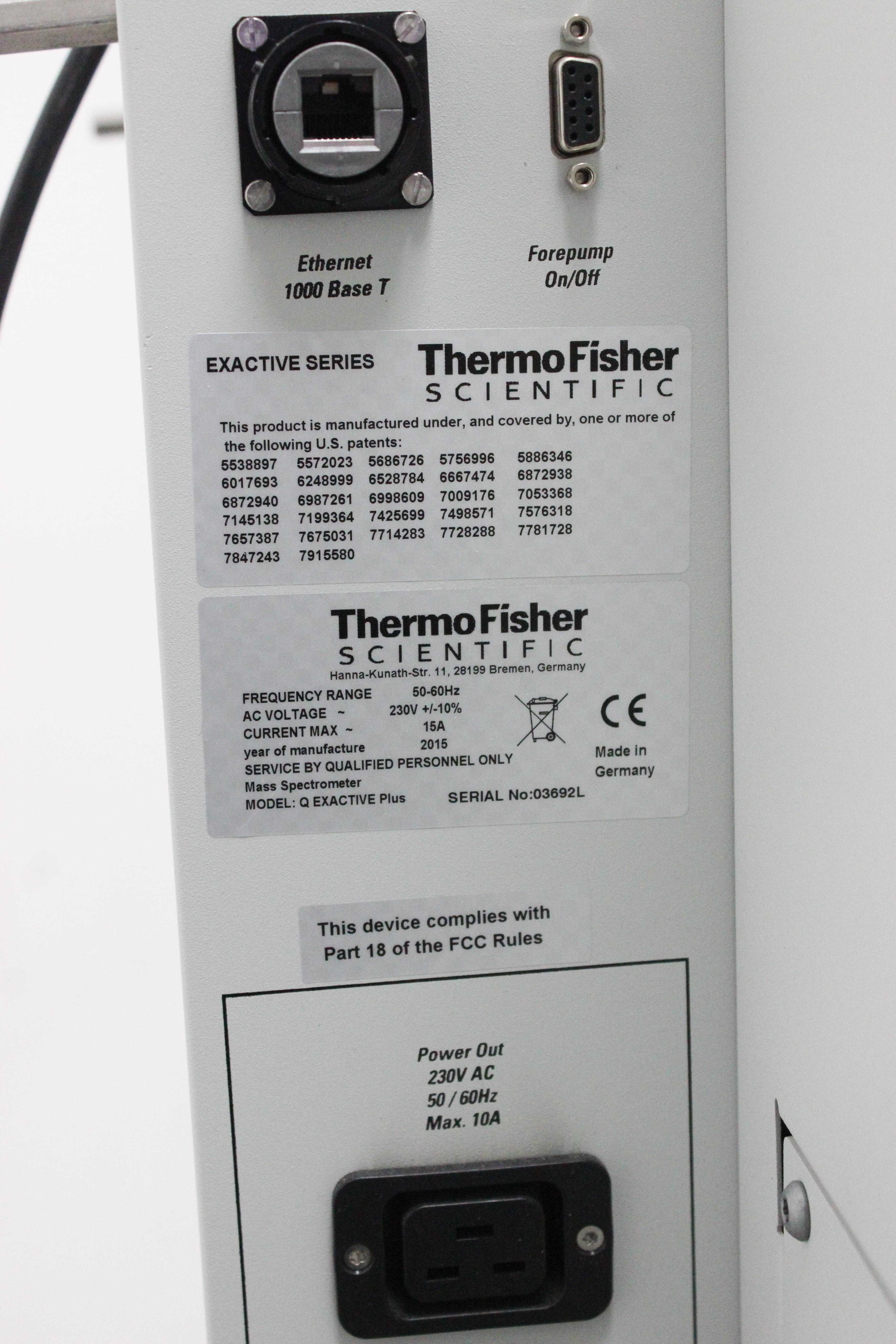

Voltage / Hertz230V / 50Hz/60Hz
Description
The Thermo Q Exactive Plus Orbitrap LC-MS/MS System, designed in Germany, features advanced quadrupole technology for superior precursor isolation and an active beam guide for enhanced sensitivity. Ideal for large and small molecule analysis, it offers resolving power up to 140,000 FWHM at m/z 200 with optional 280,000 FWHM, and supports multiple quantitation methods. Although software is not included, the unit powers on with no known issues and originates from a working laboratory. The system, weighing 400 pounds, requires 230V power and pure nitrogen for operation. It's ideal for research applications needing high performance and reproducibility, especially in protein and lipidomics studies.
Technician comment

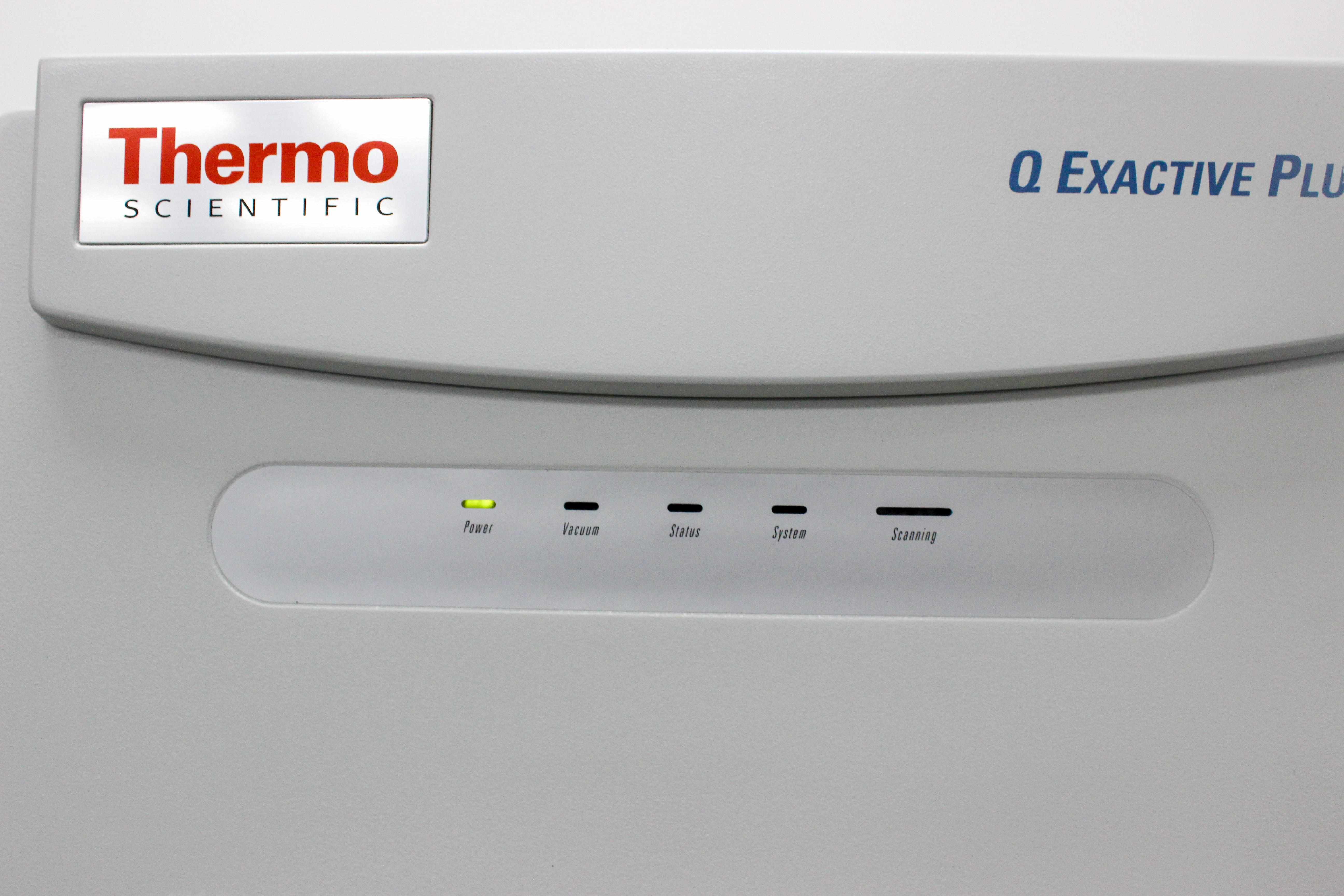

Unit powers on successfully with no error indicators. Software unavailable for testing; functionality limited to power verification. System will require validation/calibration by to ensure accurate results—inquire about professional validation services for an additional cost. Instrument is preowned, and removed in working condition from an active laboratory environment.
Key Features
- Advanced quadrupole technology (AQT) for superior precursor isolation
- Active beam guide for enhanced sensitivity
- Optional resolving power of up to 280,000 FWHM at m/z 200
- High-performance Orbitrap mass analyzer for accurate mass detection
- Compatible with various ion sources including ESI and APCI
- Supports multiple quantitation methods including SIM and PRM
- Efficient ion optics with RF lens and axial beam guide
- Differentially pumped vacuum system with seven regions
Specifications
- Resolving power: 140,000 FWHM standard, optional 280,000 at m/z 200
- Mass range: 50 to 6,000 m/z
- Scan rate: Up to 12 Hz at resolution setting of 17,500 FWHM
- Mass accuracy: Internal <1 ppm RMS, External <3 ppm RMS
- Dynamic range: >5000:1
- Polarity switching: Complete cycle <1 sec
- Data acquisition: Real-time, automated calibration, Xcalibur software suite
Weight
Imperial: 480.0 Pounds
Metric: 217.72 Kilograms
Shipping Dimensions
Imperial: 36.0 lb x 43.2 lb x 45.6 lb
Metric: 91.44 cm x 109.73 cm x 115.82 cm
Harmonized Code
902780
Harmonized Code Details
Harmonized code 902780 refers to instruments and apparatus for physical or chemical analysis. This code is appropriate as the Thermo Q Exactive Plus is a sophisticated analytical tool for high-precision mass spectrometry.
